Valves & Manifolds

486 SKUs24 brands

Showing 1–48 of 486 SKUs

Sun Hydraulics NQEB air bleed and start-up valve, series 2, T-3A cavity — dimension drawing

Sun Hydraulics Air Bleed and Start-Up Valve — NQEB

Sun HydraulicsAir Bleed and Start-Up Valve2
Inquire
Sun Hydraulics HPUA screw-in hand pump cartridge, series 1C, SC-10-02 cavity — dimension drawing

Sun Hydraulics Screw-In Hand Pump Cartridge — HPUA

Sun HydraulicsScrew-In Hand Pump Cartridge1C
Inquire
Sun Hydraulics XMOA flow-path cavity plug, series 1, T-21A & T-61A cavity — dimension drawing

Sun Hydraulics Flow-Path Cavity Plug — 21 cavity sizes

Sun HydraulicsT-163A, T-11A, T-21A, T-21A & T-61A, T-31A, T-2A, T-22A & T-62A, T-17A, T-23A & T-63A, T-19A, T-24A & T-64A, T-9ACavity Plug
Inquire
Sun Hydraulics EVEC 2-port energy harvester valve, series 3, T-16A cavity — dimension drawing

Sun Hydraulics 2-Port Energy Harvester Valve — EVEC

Sun HydraulicsT-16A2-Port Energy Harvester Valve
Inquire
Sun Hydraulics XGAA cavity converter (adaptor), series 1, T-13A cavity — dimension drawing

Sun Hydraulics Cavity Converter (Adaptor) — 11 cavity pairs

Sun HydraulicsT-10A, T-13A, T-17A, T-16A, T-23A, T-19A, T-24ACavity Converter
Inquire
Sun Hydraulics DMDF 3-way solenoid-operated directional spool valve, series 1, T-11A cavity — dimension drawing

Sun Hydraulics 3-Way, Solenoid-Operated Directional Spool Valve (740 Series) — DMDF

Sun Hydraulics13-Way Solenoid-Operated Directional Spool Valve
Inquire
Sun Hydraulics DLDAZ 2-way direct-acting solenoid-operated spool valve, series 1, T-13A cavity — dimension drawing

Sun Hydraulics 2-Way, Solenoid-Operated Directional Spool Valve with Position Switch — DLDAZ

Sun Hydraulics2-Way Direct-Acting Solenoid-Operated Spool ValveT-13A
Inquire
Sun Hydraulics RPEI electro-proportional relief valve, high setting with no command — dimension drawing

Sun Hydraulics Electro-Proportional Relief Valve, High Pressure Setting with No Command — RPEI

Sun Hydraulics1Electro-Proportional Relief Valve, High Setting with No Command
Inquire

Questions we get asked

About this range

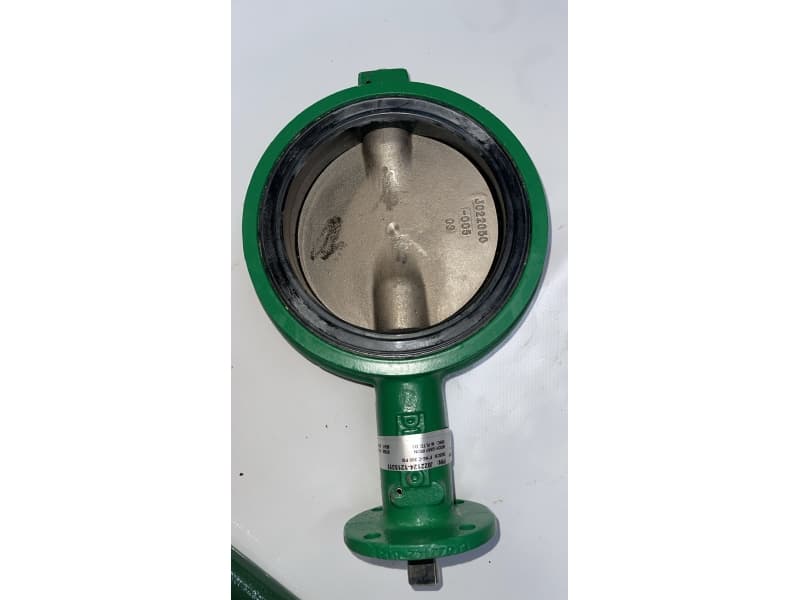

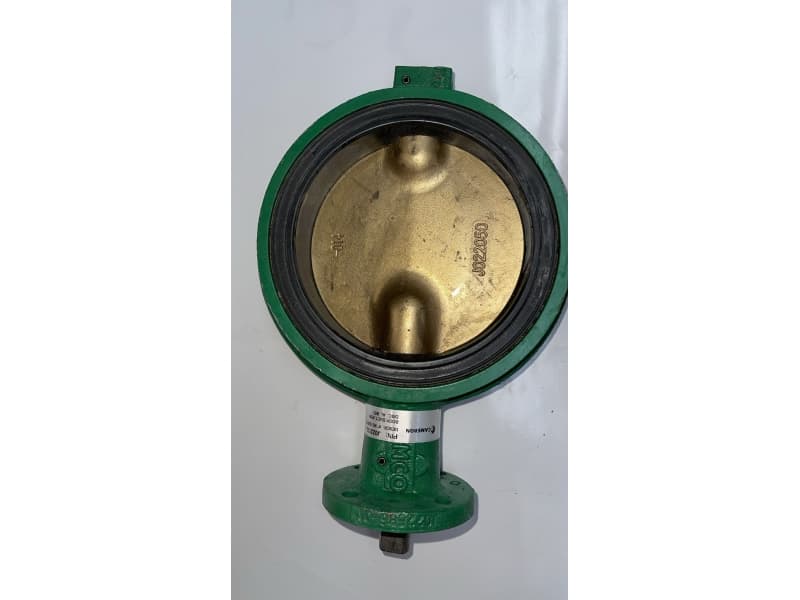

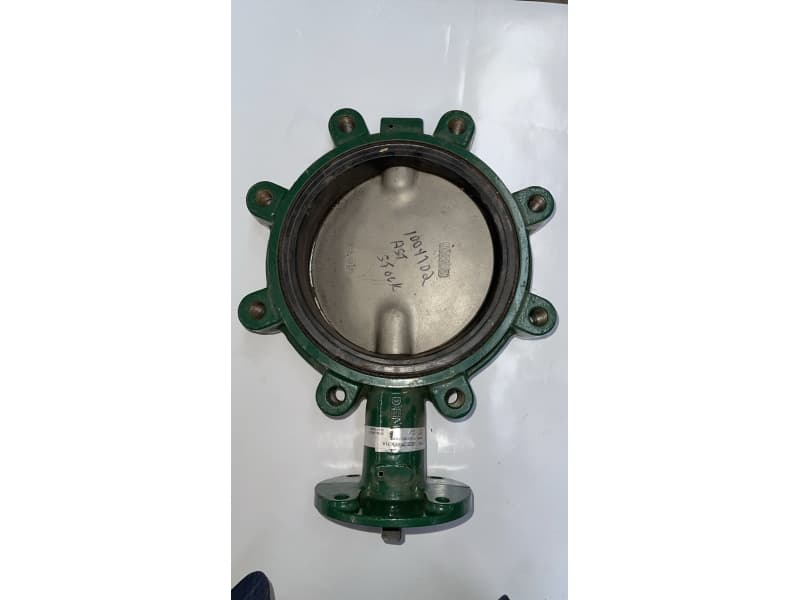

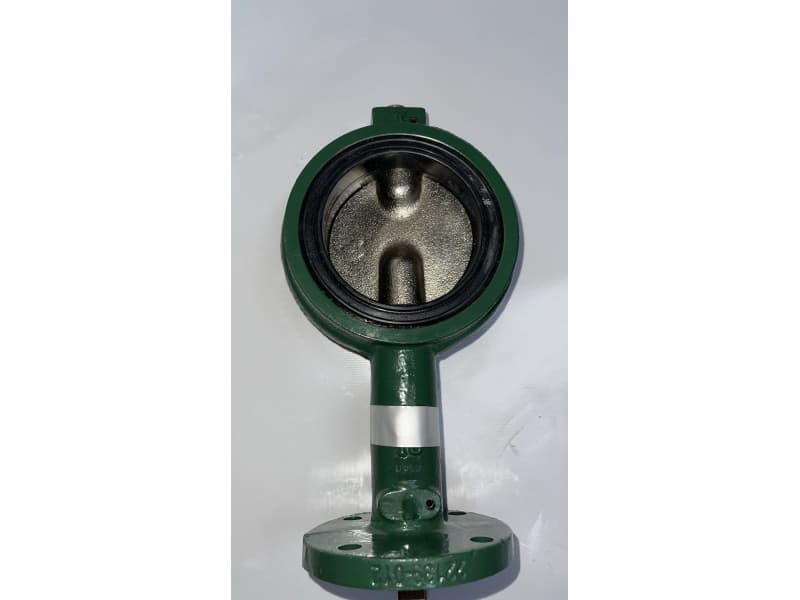

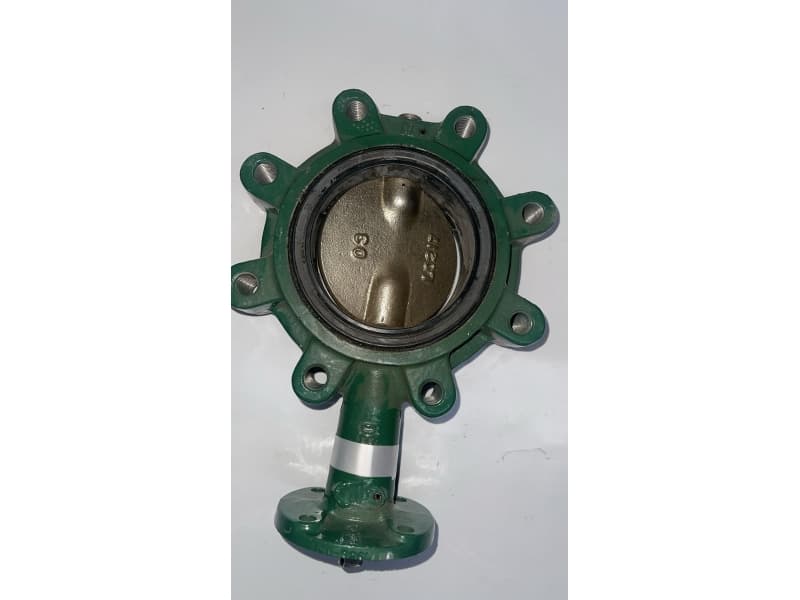

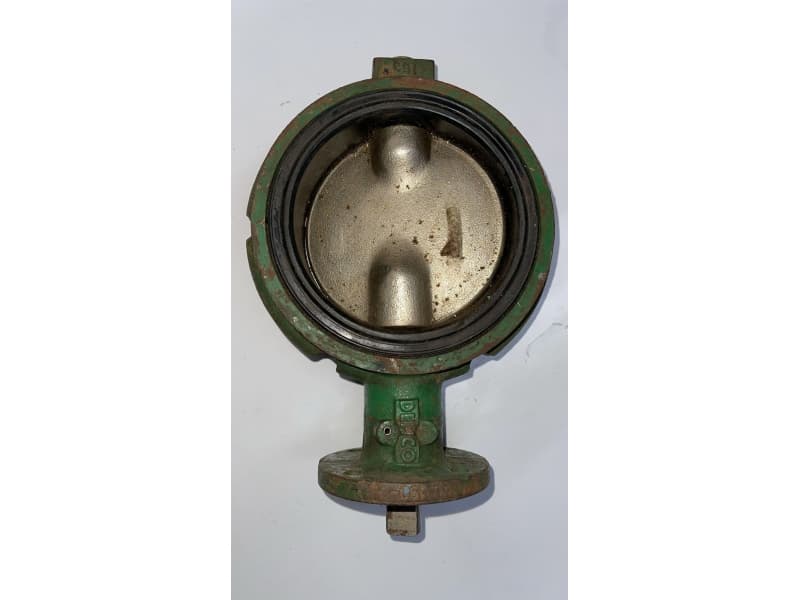

01Wafer or lug butterfly valve — what is the difference?

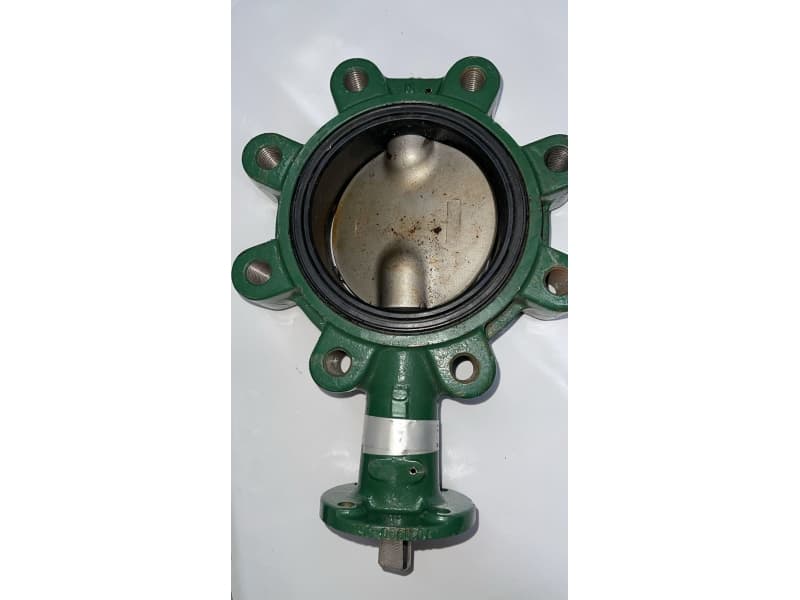

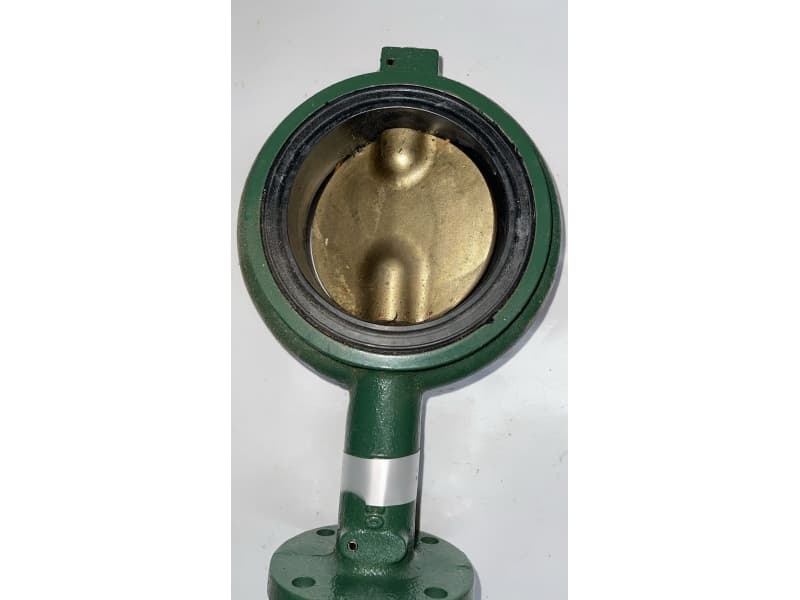

A wafer valve is clamped between two pipe flanges by bolts that pass around its body, so both flanges must stay in place. A lug valve has threaded lugs that each flange bolts into separately, so the downstream pipe can be removed with the line still live on the other side, or the valve used at the end of a line. Check the maker's end-of-line pressure rating before using a lug valve that way.
02Which seat material should a butterfly valve have?
Choose it by the medium and temperature. EPDM suits water, glycol and many mild chemicals but not oils; Buna-N (nitrile) suits oils, fuels and air; Viton (FKM) covers higher temperatures and many aggressive chemicals; PTFE-lined valves are used for corrosive, high-purity and food service. Tell us the fluid, its concentration and temperature and we confirm the seat.
03Can a butterfly valve be used for throttling?
Yes, within limits. Butterfly valves throttle reasonably between about a third and fully open, and DEMCO memory-stop and 10-position locking handles hold a set position. Running almost closed causes high velocity, noise, cavitation and seat wear, so a valve that spends its life throttling hard should be a dedicated control valve.
04What does CETOP 3 or NG6 mean on a hydraulic valve?
They are names for the same mounting pattern: the ISO 4401-03 interface, also called D03. CETOP 5, NG10 and D05 are the larger ISO 4401-05 interface. Any valve made to the pattern bolts to a subplate or manifold of the same size, whatever its maker.
05What does a Yuken part number such as DSG-01-3C4-D24-50 mean?
DSG is Yuken's solenoid-operated directional valve; 01 is the size, the CETOP 3 / NG6 pattern; 3 means three positions, and C4 is the spool type, which sets the flow paths in the centre position; D24 is a 24 V DC coil; and 50 is the design number. A 2B2 in the same place is a two-position, spring-offset valve. Send the full code from the valve's nameplate when ordering a replacement.
06Do you supply actuators and gear operators for butterfly valves?
Yes. The DEMCO range includes double-acting and spring-return pneumatic actuators for 2″ to 24″ valves, worm-gear operators for 2″ to 36″, stem extensions, and lever, square-nut and locking handles for 2″ to 12″.

From the blog

Written about this range

Oilfield & pressure control

DEMCO butterfly valve part numbers decoded: series, size, body, stem, disc and seat

A DEMCO butterfly valve number such as J022122-1215311 spells out the valve: series and size in the base, then body style, body, stem, disc and seat in the suffix. How to read one, and when to trust the nameplate instead.

5 min read

Oilfield & pressure control

Butterfly valves: wafer, lug or grooved, shut-off ratings and dead-end service

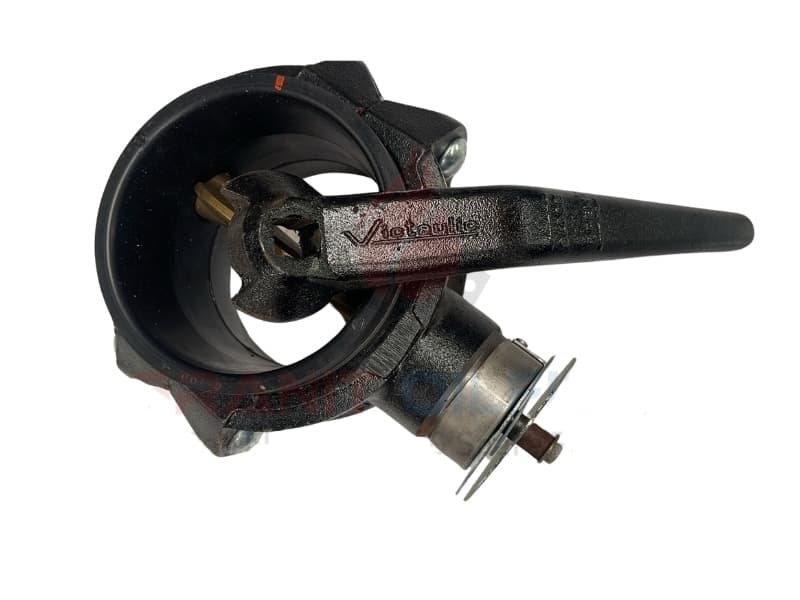

A butterfly valve is the cheapest, lightest way to isolate a large line — but the body style decides what it can do. A wafer valve is clamped between two flanges and cannot hold pressure with one side removed; a lug valve can, within limits the maker sets; a grooved valve joins grooved pipe without flanges at all. How the DEMCO NE-C, NE-I, NE-D and NF-C series and the Victaulic grooved valves differ, what their shut-off ratings mean, and how to choose the handle or gear — and where concentric, double offset and triple offset valves to API 609 take over.

8 min read

Cylinders, pumps & motors

Hydraulic control valves: directional, relief, flow control and flow dividers explained

A hydraulic circuit is steered by a handful of valve types: a directional valve that sends oil to one side of a cylinder or the other, a relief valve that caps the pressure, flow controls and dividers that set speed, and check and selector valves that hold or route the flow. How monoblock spool valves, CETOP 3 solenoid valves and modular stacks work, what open and closed centre mean, and what to send to get the right replacement.

5 min read
