Can I mix Grade 80 and Grade 100 components?

You can, but the sling is then rated as Grade 80: the weakest component sets the working load limit of the whole assembly. To use the Grade 100 rating, every component in the load path must be Grade 100.

What is the difference between WLL, SWL and breaking load?

WLL — working load limit — is the most the manufacturer rates a part to carry in service. SWL, safe working load, is the older term and is sometimes set lower for a particular installation. The minimum breaking load is what the part withstood in test, several times its WLL, and it is never a working figure.

Do the parts come with test certificates?

Yes. Each consignment ships with the manufacturer's test certificate. If your site needs more — third-party certification or witnessed proof testing — say so on the RFQ and we will confirm what we can arrange.

Use Grade 100 fittings with Grade 100 chain

Grade 100 fittings carry about a quarter more than Grade 80 fittings for the same chain size, so a Grade 100 sling must be built from Grade 100 chain and fittings throughout — a single Grade 80 part sets the rating of the whole sling. Match each fitting to the chain size it is made for, and select on the WLL for the sling configuration.

Rated at 4:1

Grade 100 chain and its fittings are rated with a 4:1 design factor between working load limit and minimum breaking force. Each size table shows the WLL and breaking load the manufacturer publishes for the fitting.

Questions we get asked

About this range

01Can I mix Grade 80 and Grade 100 components?: You can, but the sling is then rated as Grade 80: the weakest component sets the working load limit of the whole assembly. To use the Grade 100 rating, every component in the load path must be Grade 100.
02What is the difference between WLL, SWL and breaking load?: WLL — working load limit — is the most the manufacturer rates a part to carry in service. SWL, safe working load, is the older term and is sometimes set lower for a particular installation. The minimum breaking load is what the part withstood in test, several times its WLL, and it is never a working figure.
03Do the parts come with test certificates?: Yes. Each consignment ships with the manufacturer's test certificate. If your site needs more — third-party certification or witnessed proof testing — say so on the RFQ and we will confirm what we can arrange.

Grade 100 Chain Fittings

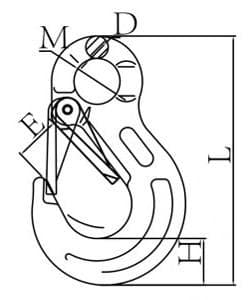

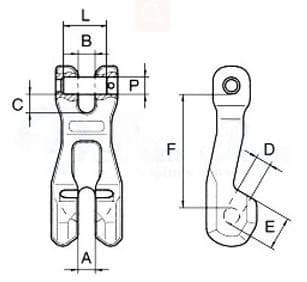

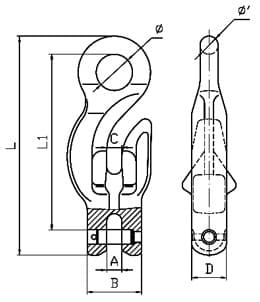

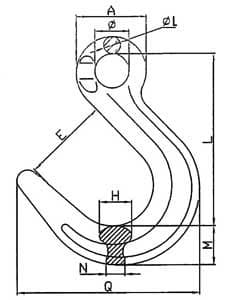

Grade 100 alloy sling hooks, self-locking hooks, grab hooks, shortening clutches, master links and connectors for building Grade 100 chain slings.

27 SKUs0 brands

Size range

152orderable sizes

27listings with a size table

Every size above is a part number you can quote from. Open any listing for its full table.

Delivery

Grade 100 Chain Fittings across the Gulf

Ex-stock from Dubai, delivered within 3 working days in the UAE.

Rigging hardware is bought on its working load limit and its certificate, and both travel with the part: every shackle, hook, chain and sling ships from Dubai with the manufacturer's test certificate, so the receiving inspection checks a document against a stamp rather than a claim. Hardware and fittings go by air or courier in cartons; wire rope, chain, hoists and anchors are heavy enough that sea freight is usually the sensible answer.

Saudi ArabiaTypically 3 working days from dispatch OmanTypically 3 working days from dispatch QatarTypically 3 working days from dispatch BahrainTypically 3 working days from dispatch KuwaitTypically 3 working days from dispatch
