ORB Adapters

SAE O-ring boss adapters in zinc-plated carbon steel, for straight-thread ports on pumps, valves and cylinders.

17 SKUs2 brands

Sealing an ORB port

An ORB port seals on an O-ring compressed under the hex, so the thread carries no sealant. Adjustable elbows and tees have a locknut, so the branch can be set to any angle before the O-ring is clamped. Fit a new O-ring whenever the joint is remade.

SAE J1926 and SAE J514

The O-ring boss port is defined by SAE J1926 (ISO 11926); it shares its threads with the 37° JIC flare of SAE J514. Pipe-thread ends are NPTF to ASME B1.20.3.

Size range

279orderable sizes
17listings with a size table

Every size above is a part number you can quote from. Open any listing for its full table.

Delivery

ORB Adapters across the Gulf

Ex-stock from Dubai, delivered within 3 working days in the UAE.

Hose and fittings are the bulk of what leaves this warehouse, and they travel well: a crated batch of assemblies with its crimp records, or a box of adapters on an airway bill. Buyers outside the UAE usually order to a measured list rather than to a part number, because a hose is defined by its ends, its length and its route rather than by a code. Send those and we will quote against them.

Saudi ArabiaTypically 3 working days from dispatchOmanTypically 3 working days from dispatchQatarTypically 3 working days from dispatchBahrainTypically 3 working days from dispatchKuwaitTypically 3 working days from dispatch

Beyond the Gulf

West & Central Africa
Nigeria, DR Congo, Equatorial Guinea
Southern Africa
South Africa, Botswana, Zambia
South-East Asia
Singapore, Malaysia, Indonesia

See every export destination

Showing 1–17 of 17 SKUs

Sort
LatestA–ZZ–A

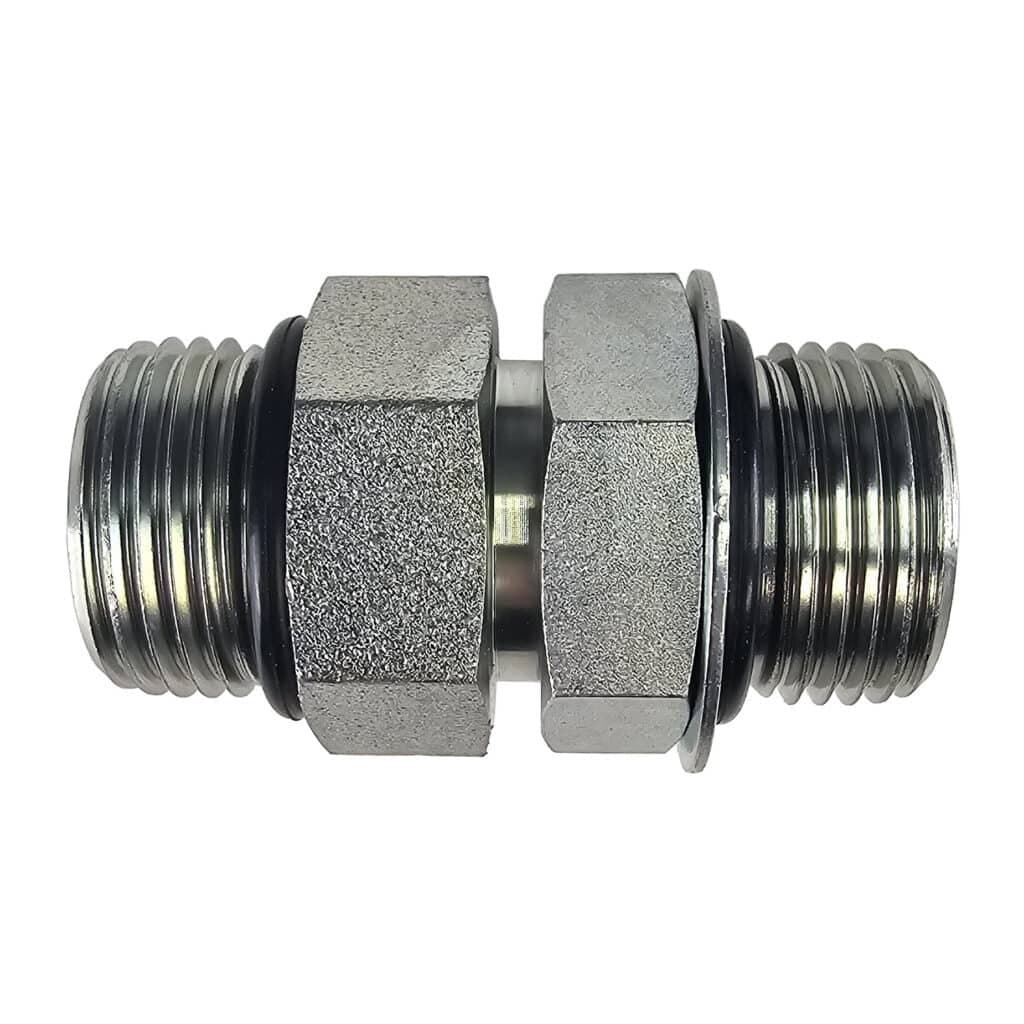

Tompkins 6403 male o-ring boss × male o-ring boss adjustable nipple, carbon steel, product photo
IH-TK-6403

Tompkins 6403 Male O-Ring Boss × Male O-Ring Boss Adjustable Nipple

TompkinsStraight

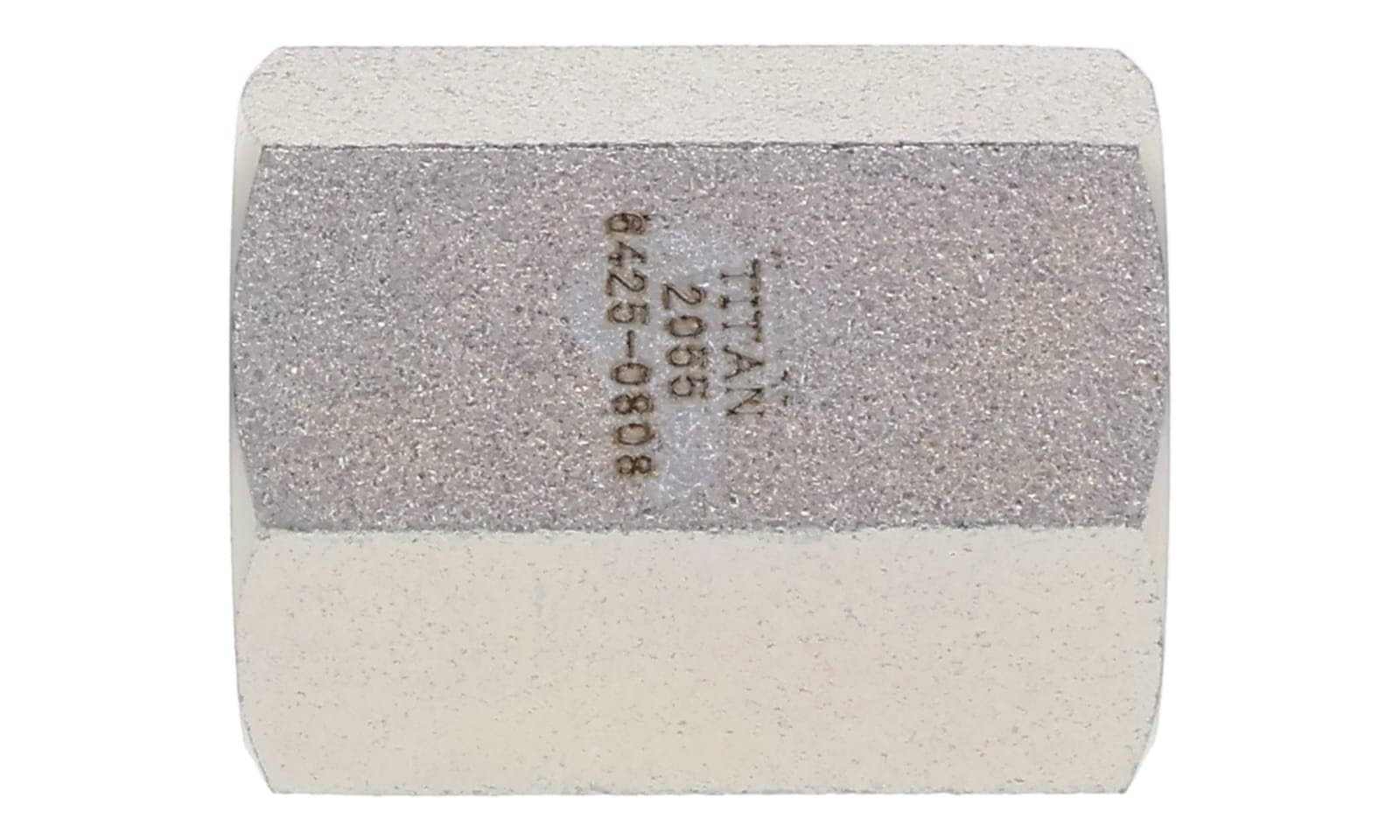

Steel ORB female coupling, zinc-plated steel, side view
IH-ST-6425

Steel ORB Female Coupling

Indus HydraulicsSAE straight-thread port sealed by an O-ring under the hexSAE O-ring boss (ORB), 1/2" to 3/4" (3/4-16 to 1-1/16-12)

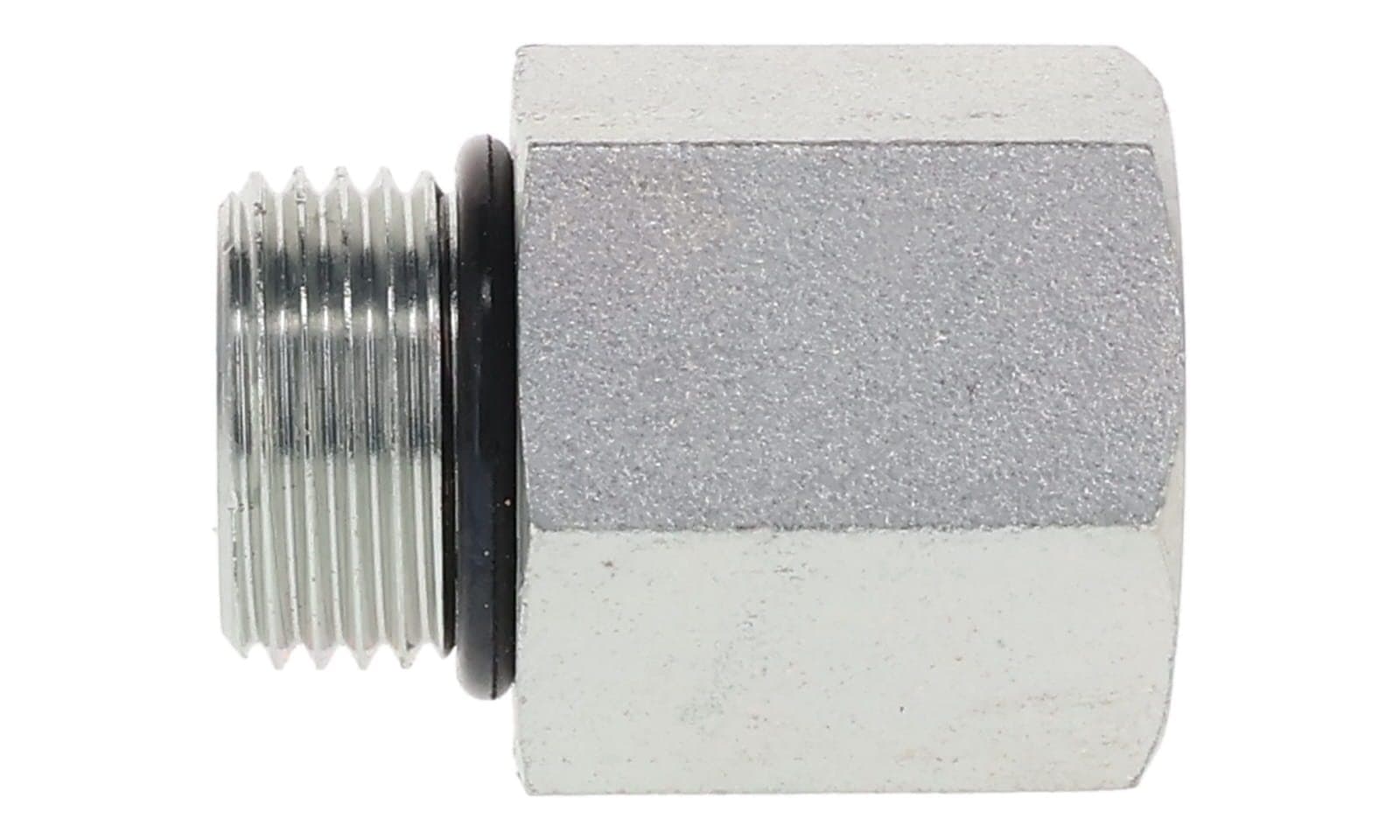

Steel ORB male × ORB female reducer / expander, zinc-plated steel, side view
IH-ST-6410

Steel ORB Male × ORB Female Reducer / Expander

Indus Hydraulicsstraight reducerSAE straight-thread port sealed by an O-ring under the hex

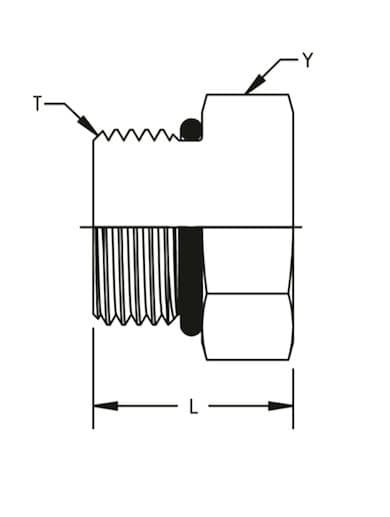

Dimension drawing of the steel ORB hollow hex head plug, lettered for the size table
IH-ST-6408H

Steel ORB Hollow Hex Head Plug

Indus HydraulicsSAE straight-thread port sealed by an O-ring under the hexSAE O-ring boss (ORB), 1/8" to 2" (5/16-24 to 2-1/2-12)

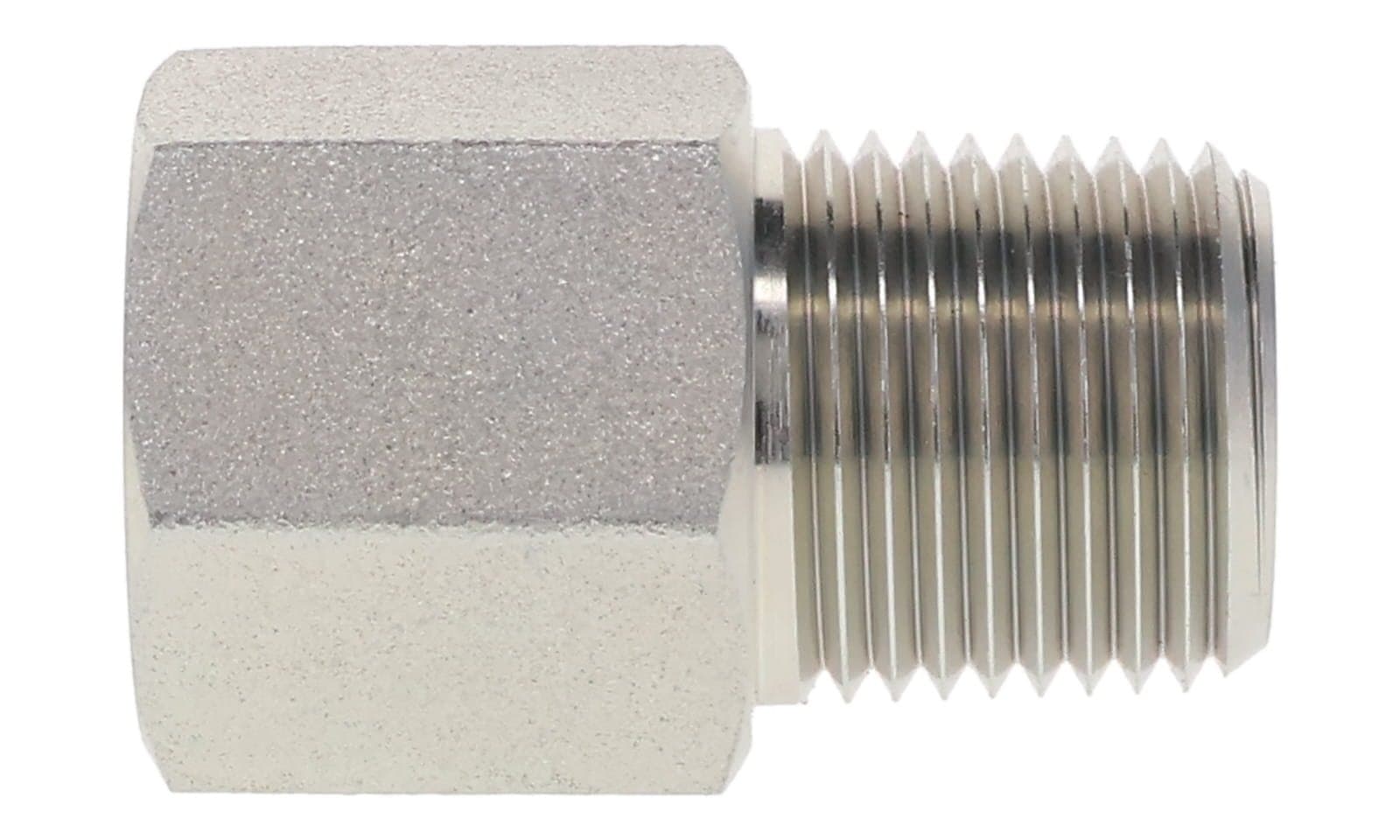

Steel ORB female × NPTF male adapter, zinc-plated steel, side view
IH-ST-6404

Steel ORB Female × NPTF Male Adapter

Indus HydraulicsSAE straight-thread port sealed by an O-ring under the hexstraight adapter
Category image · Hoses & Fittings
IH-ST-6902

Steel ORB Male × NPSM Female Swivel 45° Elbow

Indus HydraulicsSAE O-ring boss (ORB), 1/4" to 1-1/2" (7/16-20 to 1-7/8-12)45° elbow
Category image · Hoses & Fittings
IH-ST-6901

Steel ORB Male × NPSM Female Swivel 90° Elbow

Indus HydraulicsSAE straight-thread port sealed by an O-ring under the hex90° elbow
Category image · Hoses & Fittings
IH-ST-6815

Steel ORB Male × ORB Female 90° Elbow

Indus Hydraulics90° elbowSAE straight-thread port sealed by an O-ring under the hex
Category image · Hoses & Fittings
IH-ST-6809

Steel ORB Male × JIC 37° Female Swivel 90° Elbow

Indus Hydraulics90° elbowSAE O-ring boss (ORB), 1/4" to 1-1/4" (7/16-20 to 1-5/8-12)
Category image · Hoses & Fittings
IH-ST-6807

Steel ORB Male 90° Elbow

Indus HydraulicsSAE O-ring boss (ORB), 1/4" to 1-1/2" (7/16-20 to 1-7/8-12)90° elbow
Category image · Hoses & Fittings
IH-ST-6806

Steel ORB Male × NPTF Male 90° Elbow

Indus HydraulicsSAE O-ring boss (ORB), 1/4" to 2" (7/16-20 to 2-1/2-12)SAE straight-thread port sealed by an O-ring under the hex
Category image · Hoses & Fittings
IH-ST-6805L

Steel ORB Male × NPTF Female 90° Elbow, Long

Indus HydraulicsSAE straight-thread port sealed by an O-ring under the hexSAE O-ring boss (ORB), 1/2" to 1" (3/4-16 to 1-5/16-12)
Category image · Hoses & Fittings
IH-ST-6805

Steel ORB Male × NPTF Female 90° Elbow

Indus HydraulicsSAE O-ring boss (ORB), 1/4" to 2" (7/16-20 to 2-1/2-12)SAE straight-thread port sealed by an O-ring under the hex

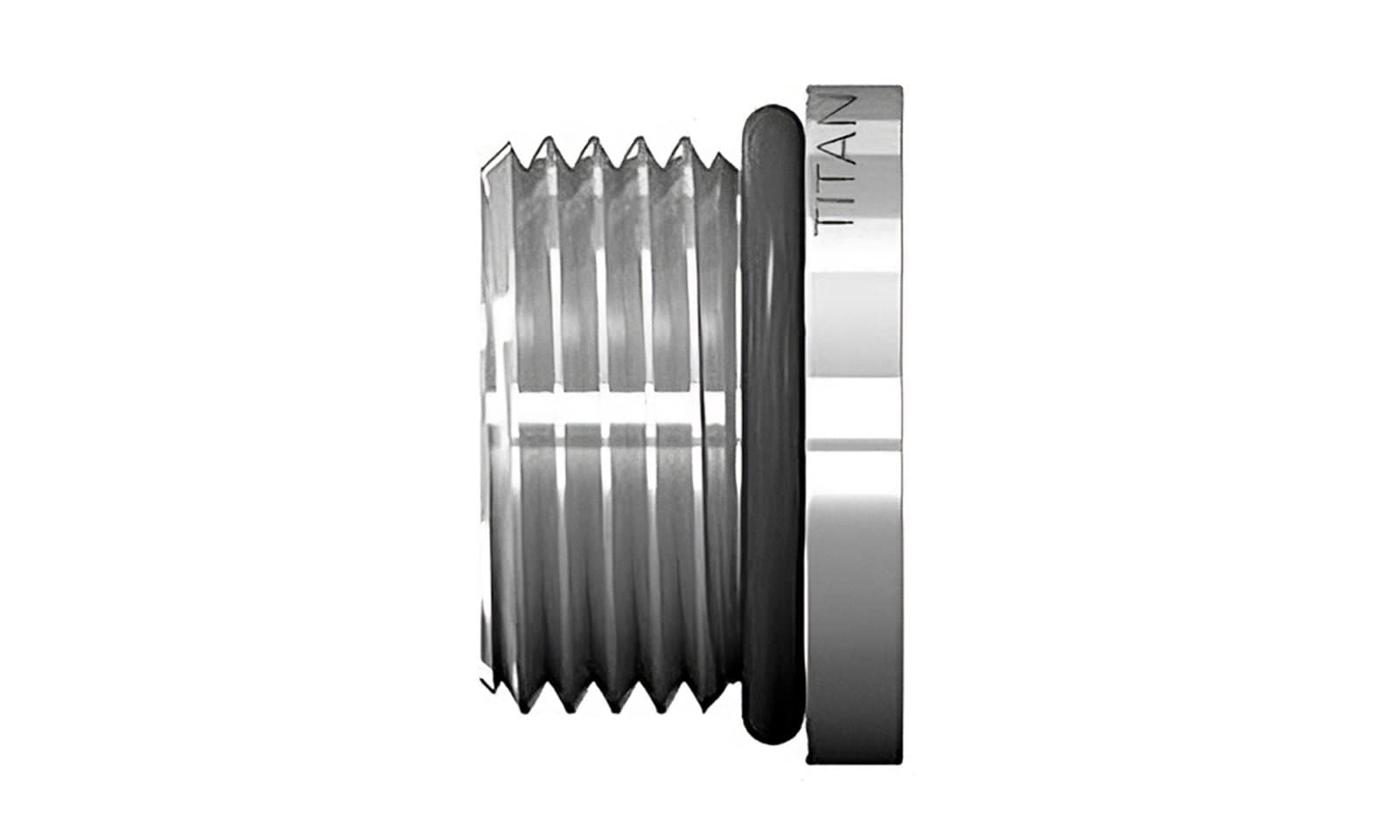

Steel ORB hex socket plug, angled view
IH-ST-6409

Steel ORB Hex Socket Plug

Indus HydraulicsplugSAE O-ring boss (ORB), 1/8" to 2" (5/16-24 to 2-1/2-12)
Dimension drawing of the steel ORB hex head plug, lettered for the size table
IH-ST-6408

Steel ORB Hex Head Plug

Indus HydraulicsplugSAE straight-thread port sealed by an O-ring under the hex

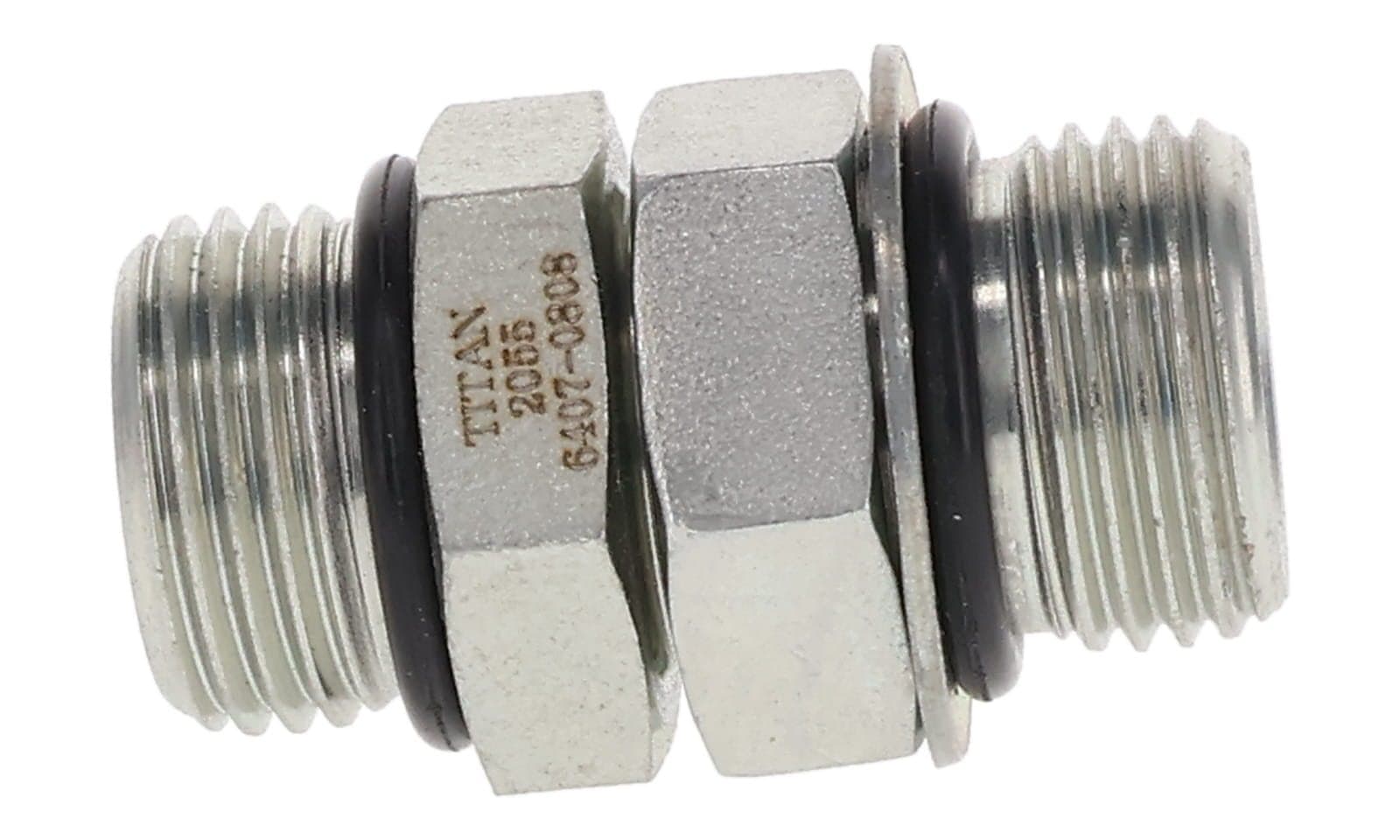

Steel ORB male adjustable union, zinc-plated steel, side view
IH-ST-6407

Steel ORB Male Adjustable Union

Indus Hydraulicsadjustable unionSAE O-ring boss (ORB), 1/4" to 2" (7/16-20 to 2-1/2-12)

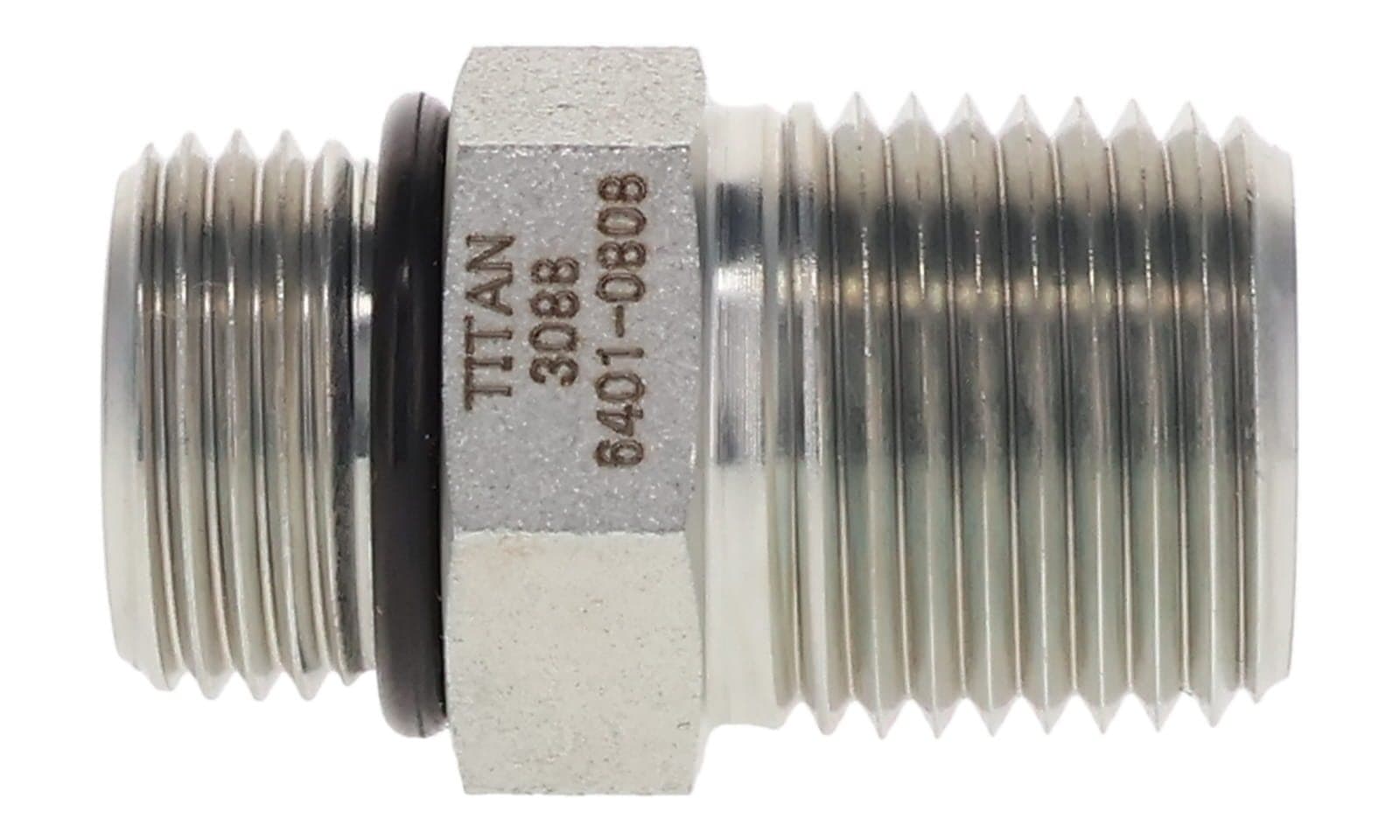

Steel ORB male × NPTF male adapter, zinc-plated steel, side view
IH-ST-6401

Steel ORB Male × NPTF Male Adapter

Indus Hydraulicsstraight adapterSAE O-ring boss (ORB), 3/16" to 2" (3/8-24 to 2-1/2-12)

Questions we get asked

About this range

01Do the listings show part numbers and sizes?
Yes: every size has its own Indus part number, with the size and thread on each end; many also carry millimetre dimensions and the Parker equivalent the manufacturer cross-references.
02Do you list the O-rings?
Yes: Buna-N and Viton O-rings for ORB ports, by size, are listed under O-Rings for ORB & ORFS Adapters.
