Can I mix L and S series parts?

No. For the same tube size the two series use different nut threads, and their pressure ratings differ. Identify the series from the existing parts before ordering.

Do I need a new cutting ring when I remake a joint?

A ring that has already bitten can be remade on the same tube end, but it should never be moved to a different tube. When the tube is cut back, fit a new ring.

Do you supply blanking plugs?

Yes — blanking plugs for cones, plugs for ports with ED seals, and plugs with nuts.

Which nut thread goes with which tube size?

Each tube OD and series has its own nut thread. Light series: 6L M12×1.5, 8L M14×1.5, 10L M16×1.5, 12L M18×1.5, 15L M22×1.5, 18L M26×1.5, 22L M30×2, 28L M36×2, 35L M45×2, 42L M52×2. Heavy series: 6S M14×1.5, 8S M16×1.5, 10S M18×1.5, 12S M20×1.5, 14S M22×1.5, 16S M24×1.5, 20S M30×2, 25S M36×2, 30S M42×2, 38S M52×2. Note that 12L and 10S share M18×1.5, so a thread that fits does not prove the tube size: check the tube OD too.

What does a code like GE 12 L R1/2 mean?

It is the DIN-style designation many makers use: the body type, the tube OD in millimetres, the series, then the port thread. GE is a male stud connector, so GE 12 L R1/2 is a straight stud connector for 12 mm tube, light series, with a 1/2″ BSP thread. Other common prefixes are WE (male stud elbow), GV (straight union), W (union elbow), T (union tee), K (union cross) and SV (bulkhead union). Suffixes for the stud seal and material vary by maker, so send the full code.

What tube should be used with bite-type fittings?

Seamless precision steel tube to EN 10305-4 (formerly DIN 2391/2445), annealed or normalised so it is softer than the cutting ring, with the OD matching the fitting. Cut the tube square with a saw guide or cutter, deburr inside and out, and check the wall is thick enough for the pressure. Thin-wall or soft tube needs a reinforcing insert so the ring has something to bite against. Make up the ring until it grips, then the further turn the maker specifies, commonly about one and a half.

DIN 2353 Bite Type Adapters

DIN 2353 bite-type adapters are 24° cone tube fittings in which a hardened cutting ring bites into the outside of metric steel tube as the nut is tightened, sealing on the cone. This shelf carries Indus Hydraulics bite-type fittings from Dubai to DIN 2353 / ISO 8434-1 in light and heavy series: male stud connectors and elbows with BSPP, BSPT, NPT and metric ends, unions, elbows, tees, crosses, bulkheads, adjustable stud ends, weld connectors, banjos, nuts, cutting rings and blanking plugs.

57 SKUs1 brands

Tube OD and series, then the shape

A bite-type fitting grips steel tube with a hardened cutting ring that bites into the tube as the nut is tightened, and seals on a 24° cone. It is sized by tube outside diameter, and each size comes in a light (L) and a heavy (S) series that do not interchange.

Measure the tube OD, establish the series from the existing nut or the system pressure, then choose the body — straight, elbow, tee, bulkhead, adjustable stud end or plug. Pre-set the ring with the proper tool where you can: a badly set ring is a common cause of a weeping joint.

ISO 8434-1, formerly DIN 2353

Bite-type 24° cone fittings were standardised as DIN 2353 and are now covered by ISO 8434-1, which defines the light (L) and heavy (S) series. Adjustable stud ends follow the port standards ISO 6149 and DIN 3852.

Size range

1,099orderable sizes

53listings with a size table

Every size above is a part number you can quote from. Open any listing for its full table.

Delivery

DIN 2353 Bite Type Adapters across the Gulf

Ex-stock from Dubai, delivered within 3 working days in the UAE.

Hose and fittings are the bulk of what leaves this warehouse, and they travel well: a crated batch of assemblies with its crimp records, or a box of adapters on an airway bill. Buyers outside the UAE usually order to a measured list rather than to a part number, because a hose is defined by its ends, its length and its route rather than by a code. Send those and we will quote against them.

Saudi ArabiaTypically 3 working days from dispatch OmanTypically 3 working days from dispatch QatarTypically 3 working days from dispatch BahrainTypically 3 working days from dispatch KuwaitTypically 3 working days from dispatch

Beyond the Gulf

South-East Asia: Singapore, Brunei, Timor-Leste
North Africa: Egypt, Morocco, Algeria
East Africa: Kenya, Rwanda, Burundi

See every export destination

Showing 1–48 of 57 SKUs

Sort

Latest A–Z Z–A

IH-ST-5368L

Steel DIN 2353 Female Swivel × Metric Male Adapter, Light Series

Indus Hydraulicsstraight adapterDIN 2353 24° cone, 6 mm to 35 mm

IH-ST-5307S

Steel DIN 2353 Female Swivel × NPT Male Adapter, Heavy Series

Indus Hydraulicsstraight adapterfemale swivel nut that seals on a DIN 2353 24° cone; light (L) and heavy (S) series share tube sizes but not threads

IH-ST-5307L

Steel DIN 2353 Female Swivel × NPT Male Adapter, Light Series

Indus Hydraulicsfemale swivel nut that seals on a DIN 2353 24° cone; light (L) and heavy (S) series share tube sizes but not threadsstraight adapter

IH-ST-5302S

Steel DIN 2353 Female Swivel × BSPP Male Adapter, Heavy Series

Indus Hydraulicsfemale swivel nut that seals on a DIN 2353 24° cone; light (L) and heavy (S) series share tube sizes but not threadsstraight adapter

IH-ST-5302L

Steel DIN 2353 Female Swivel × BSPP Male Adapter, Light Series

Indus Hydraulicsfemale swivel nut that seals on a DIN 2353 24° cone; light (L) and heavy (S) series share tube sizes but not threadsDIN 2353 24° cone, 6 mm to 42 mm

IH-ST-5204S

Steel DIN 2353 Soft-Seal Tube Cap, Heavy Series

Indus HydraulicsDIN 2353 24° cone, 6 mm to 38 mmfemale swivel nut that seals on a DIN 2353 24° cone; light (L) and heavy (S) series share tube sizes but not threads

IH-ST-5204L

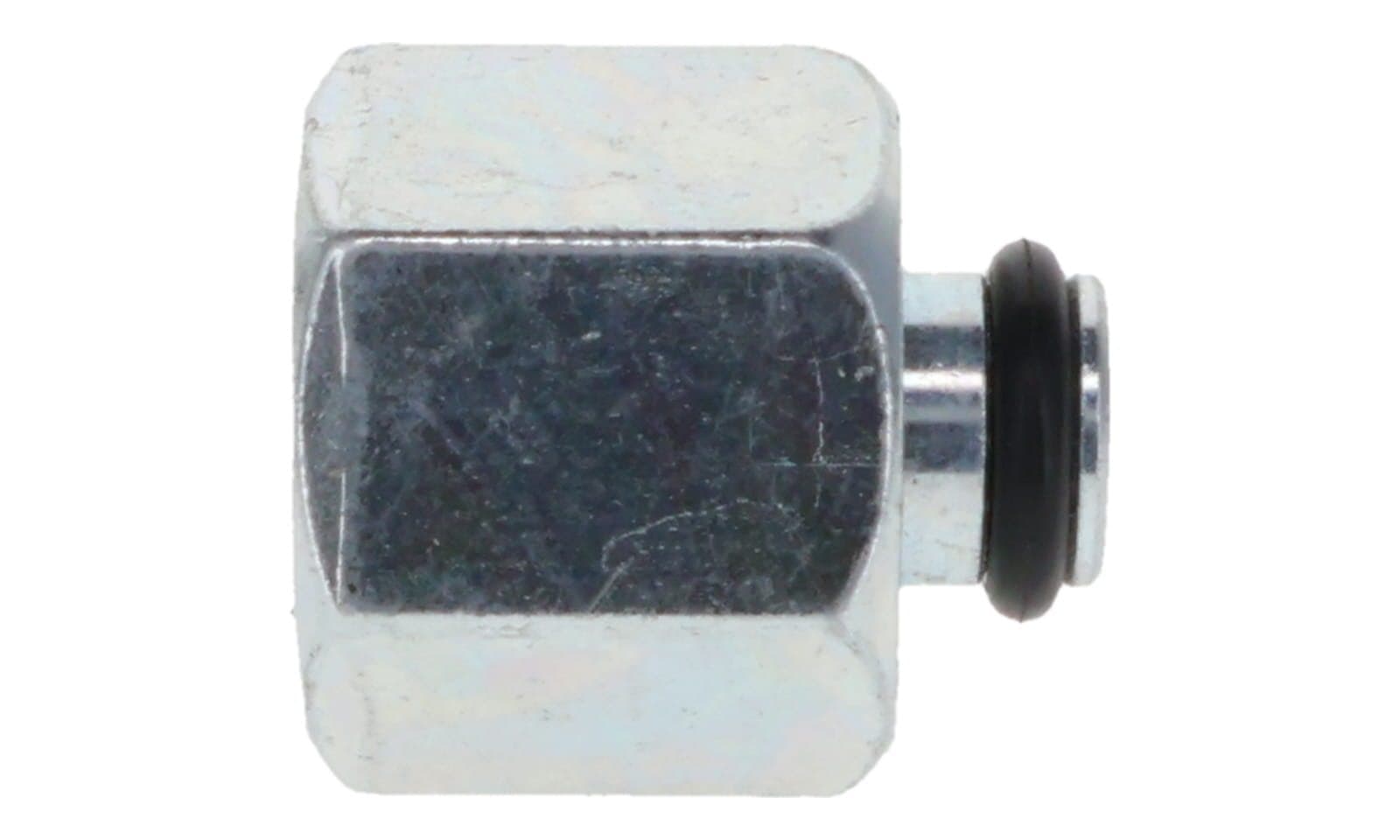

Steel DIN 2353 Soft-Seal Tube Cap, Light Series

Indus Hydraulicstube capfemale swivel nut that seals on a DIN 2353 24° cone; light (L) and heavy (S) series share tube sizes but not threads

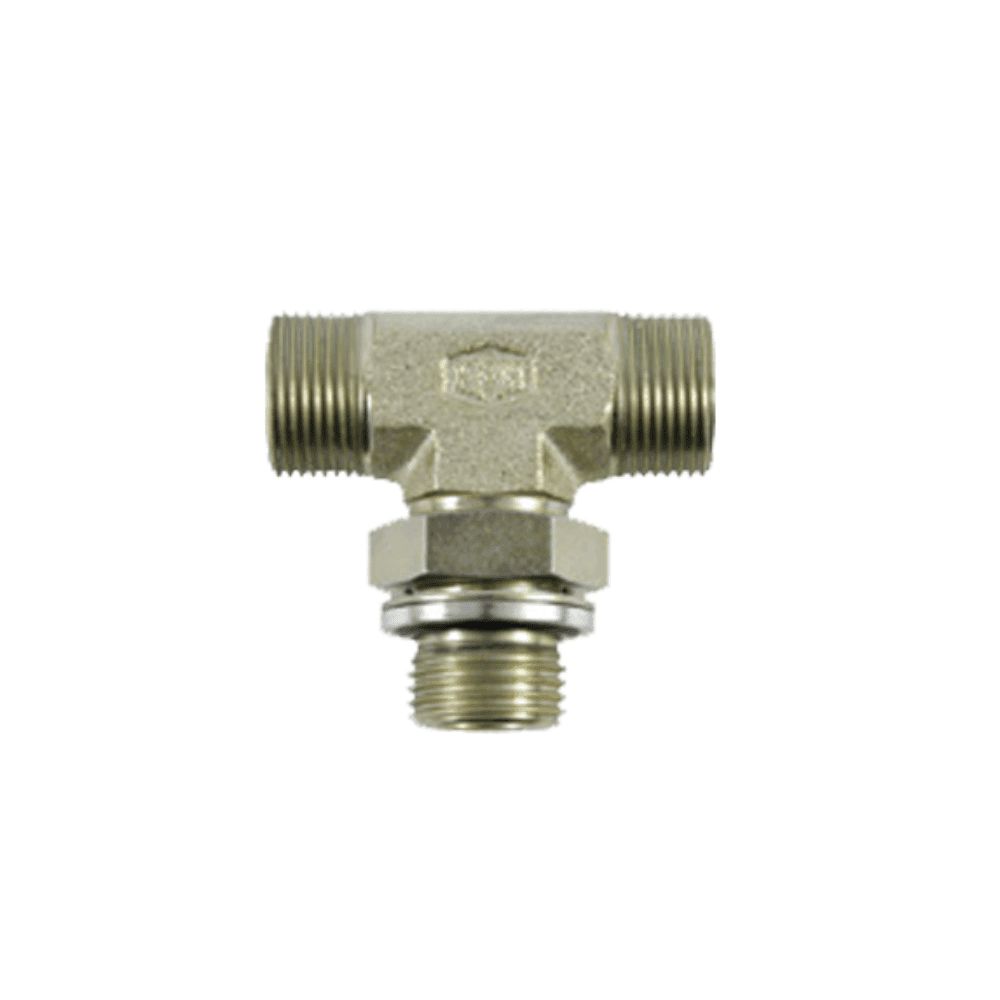

IH-AD-DIN-011

Adjustable Branch Tee (Variant 2)

Indus Hydraulics24-coneL-series up to 250 bar (3625 psi); S-series up to 400 bar (5800 psi)

IH-AD-DIN-009

Adjustable Branch Tee

Indus HydraulicsL-series up to 250 bar (3625 psi); S-series up to 400 bar (5800 psi)DIN 24° cone L-series and S-series (M10×1 to M42×2)

Male stud connector, metric thread with ED seal × DIN 2353 bite-type tube end

IH-AD-DIN-038

Male Stud Connector Metric with ED Seal

Indus Hydraulicsed-sealL6 to L42 (light series), S6 to S38 (heavy series)

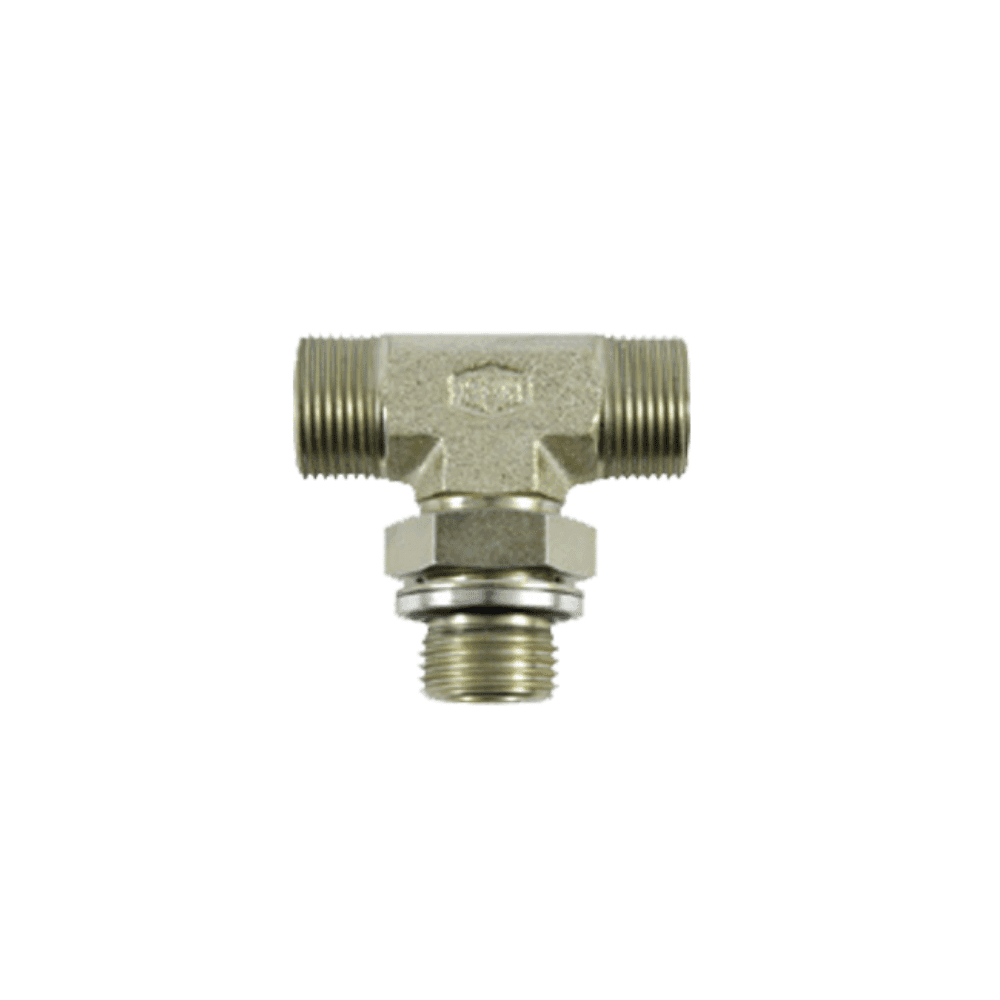

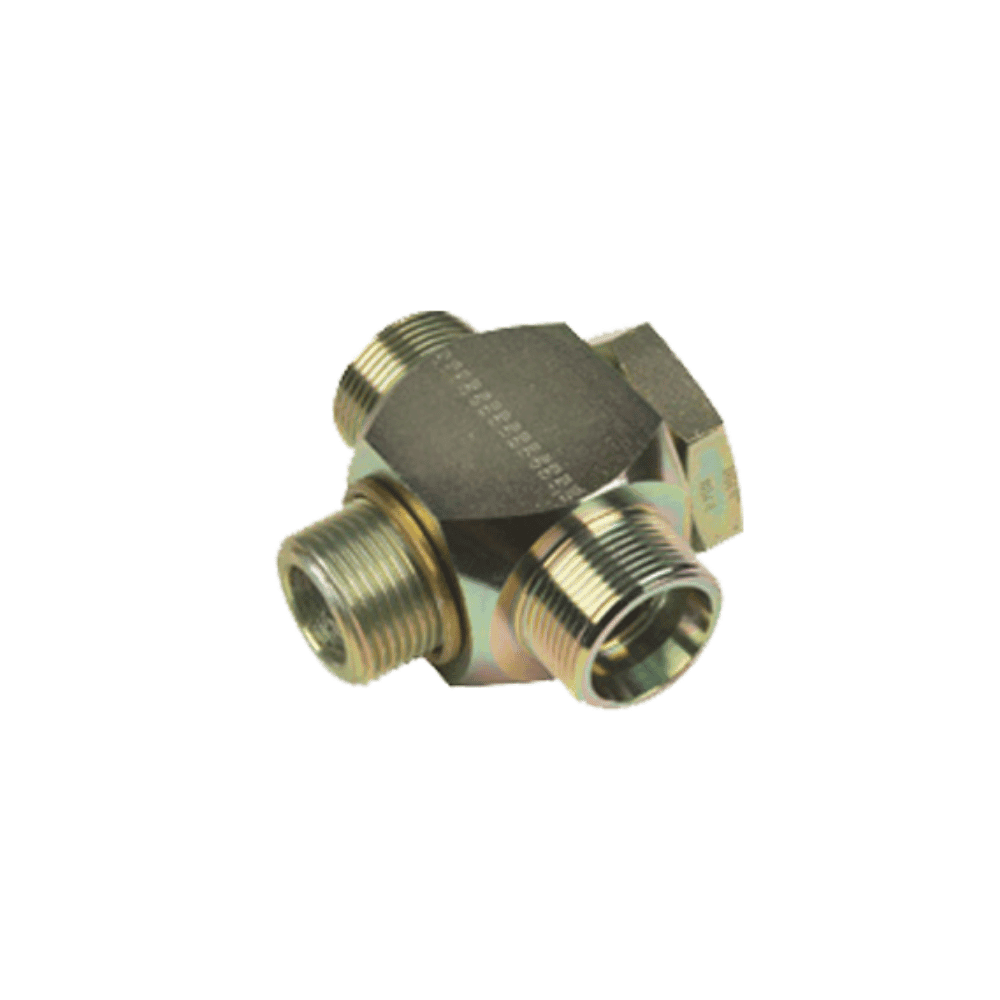

Adjustable branch tee, metric bite-type × SAE O-ring stud × metric, yellow zinc-plated steel

IH-AD-DIN-010

Adjustable Branch Tee m Metric X m SAE X m Metric

Indus HydraulicsL-series up to 250 bar (3625 psi); S-series up to 400 bar (5800 psi)branch-tee

IH-AD-DIN-043

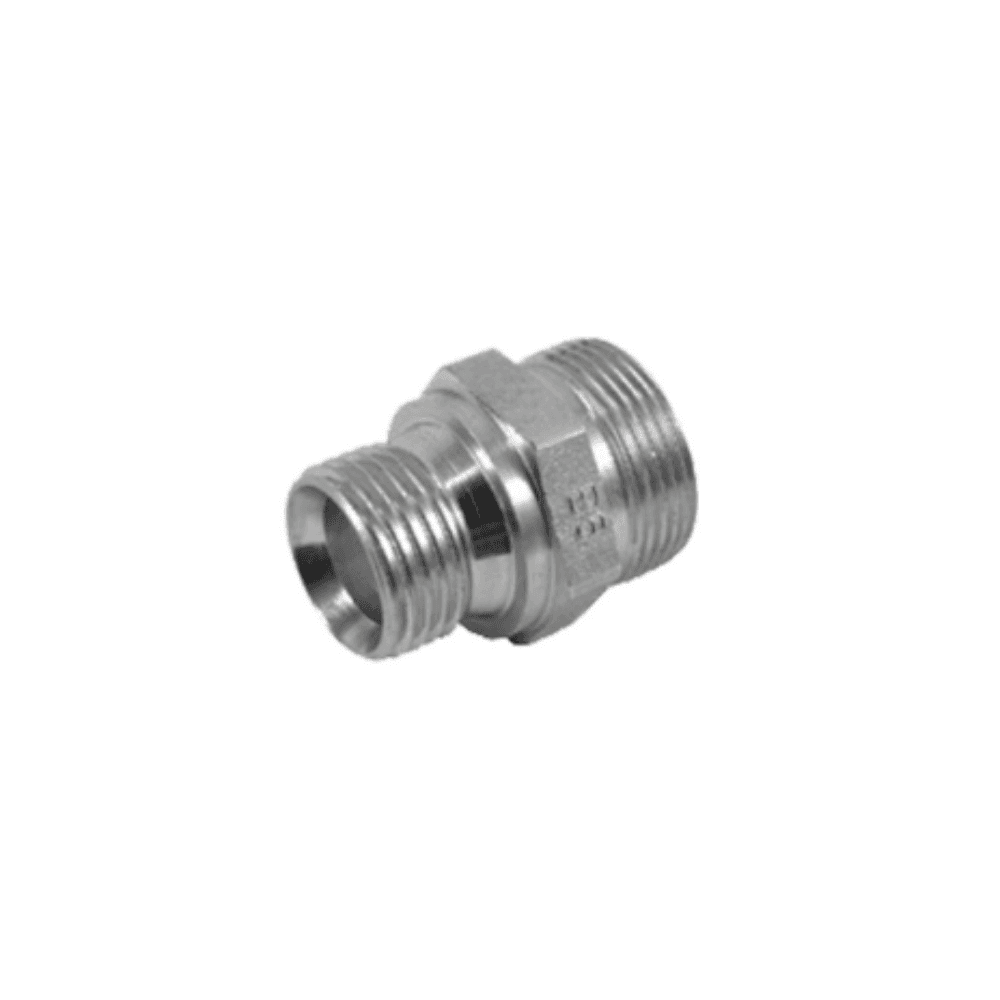

Male Stud Connector BSPP

Indus Hydraulics24-coneDIN 24° cone L-series and S-series (M10×1 to M42×2)

IH-AD-DIN-007

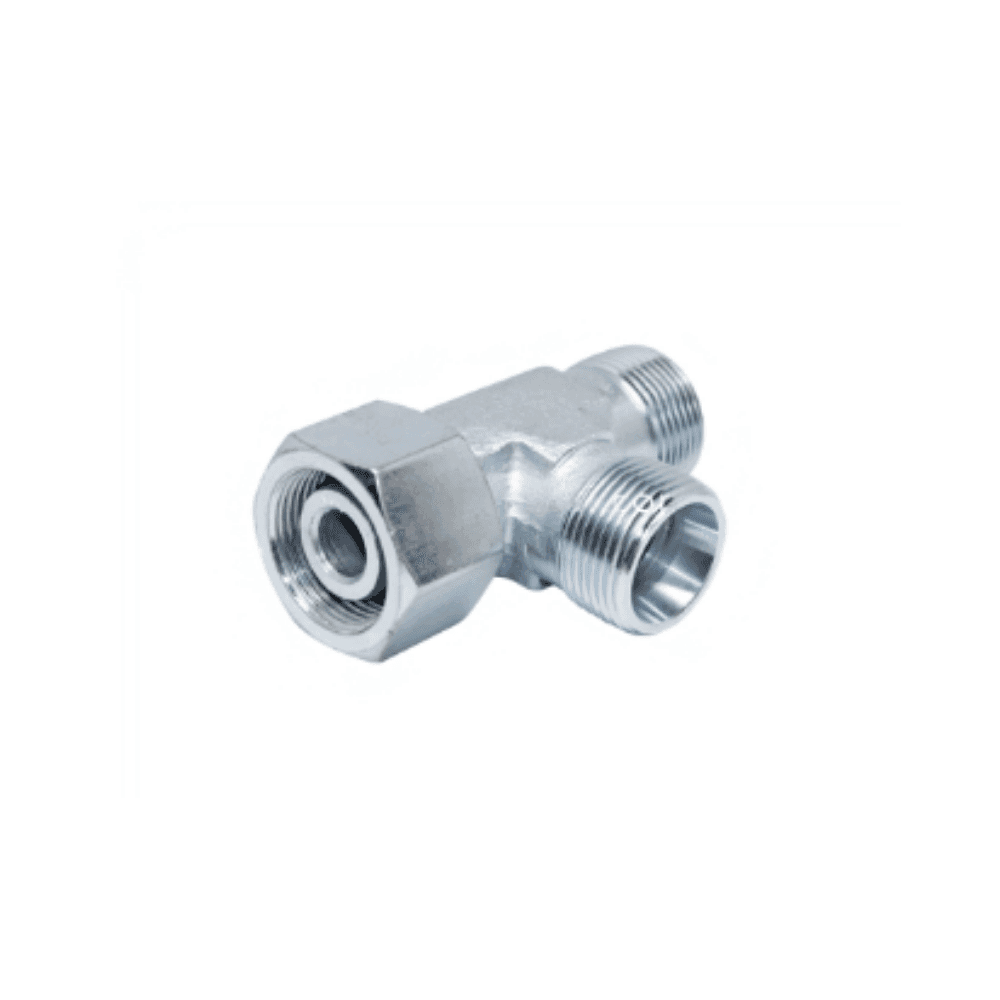

Swivel Nut Run Tee (DIN 2353)

Indus HydraulicsDIN 24° cone L-series and S-series (M10×1 to M42×2)L-series up to 250 bar (3625 psi); S-series up to 400 bar (5800 psi)

IH-AD-DIN-037

High Pressure Banjo Elbow BSPP

Indus HydraulicsDIN 24° cone L-series and S-series (M10×1 to M42×2)banjo

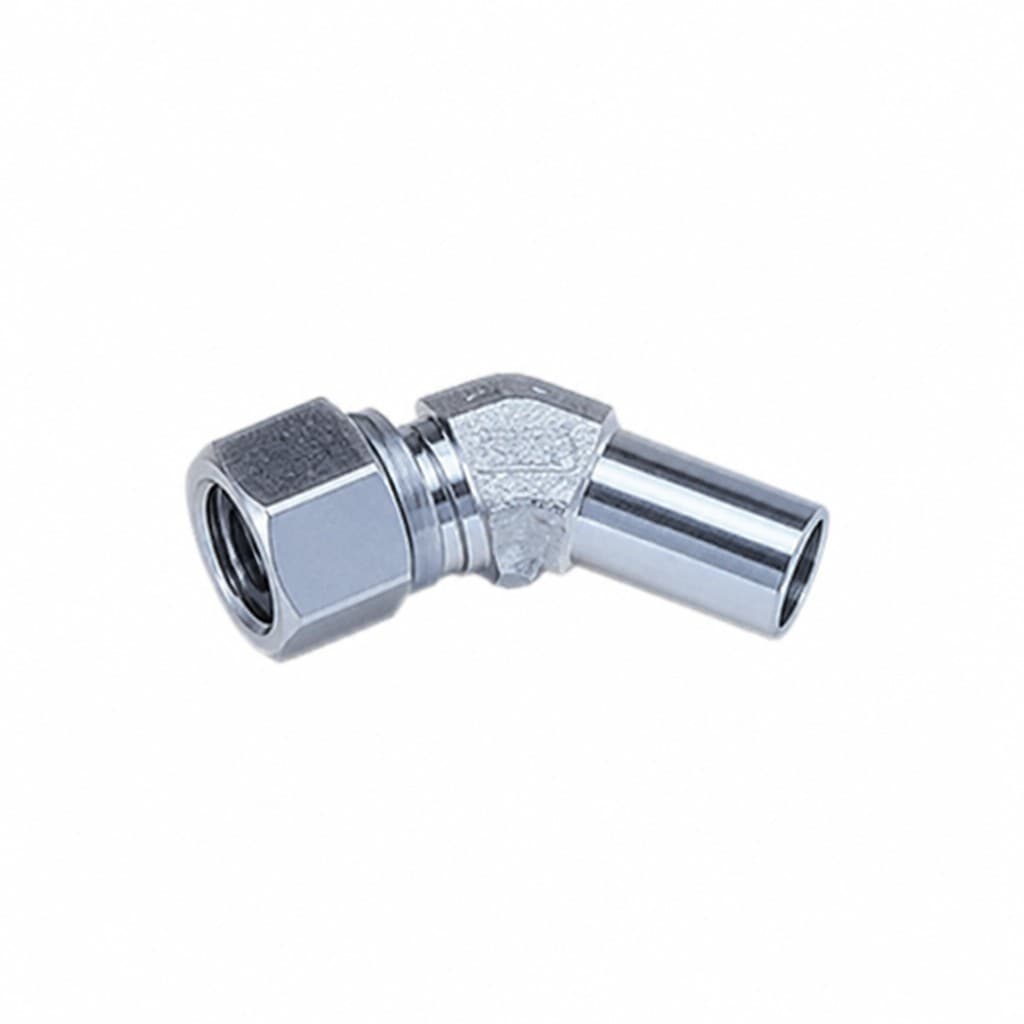

Metric bite-type 45° elbow reducer, swivel nut on one leg and plain tube stub on the other

IH-AD-DIN-051

Metric Bite Type 45° Elbow Reducer Tube Adaptor with Swivel Nut

Indus Hydraulics-12 to -52Metric M12×1.5 to M42×2

IH-AD-DIN-020

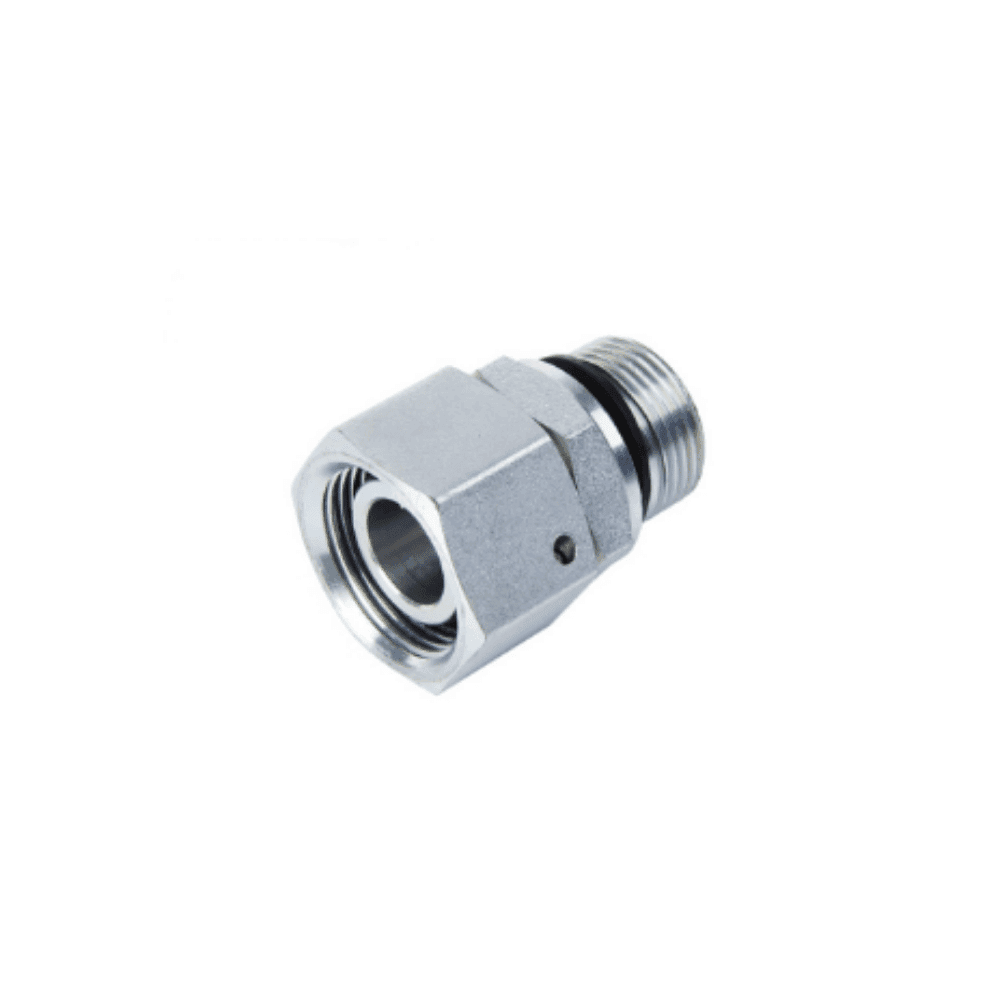

Swivel Connector BSPP Flat

Indus Hydraulicsstraight24-cone

Male stud connector, BSPP thread with ED seal × DIN 2353 bite-type tube end

IH-AD-DIN-040

Male Stud Connector BSPP with ED Seal

Indus Hydraulicsed-sealL-series up to 250 bar (3625 psi); S-series up to 400 bar (5800 psi)

Union tee, three DIN 2353 bite-type tube ends, zinc-plated steel

IH-AD-DIN-014

Union Tee (DIN 2353)

Indus Hydraulics24-coneL-series up to 250 bar (3625 psi); S-series up to 400 bar (5800 psi)

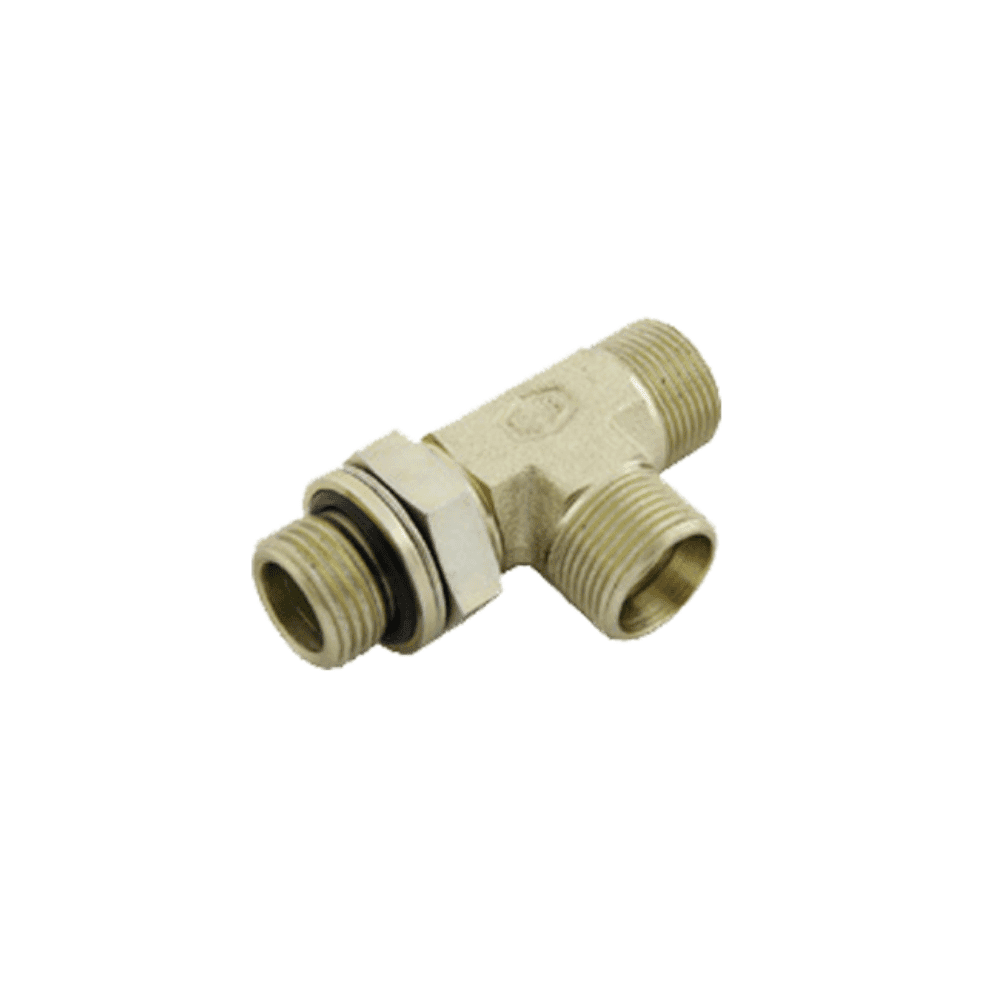

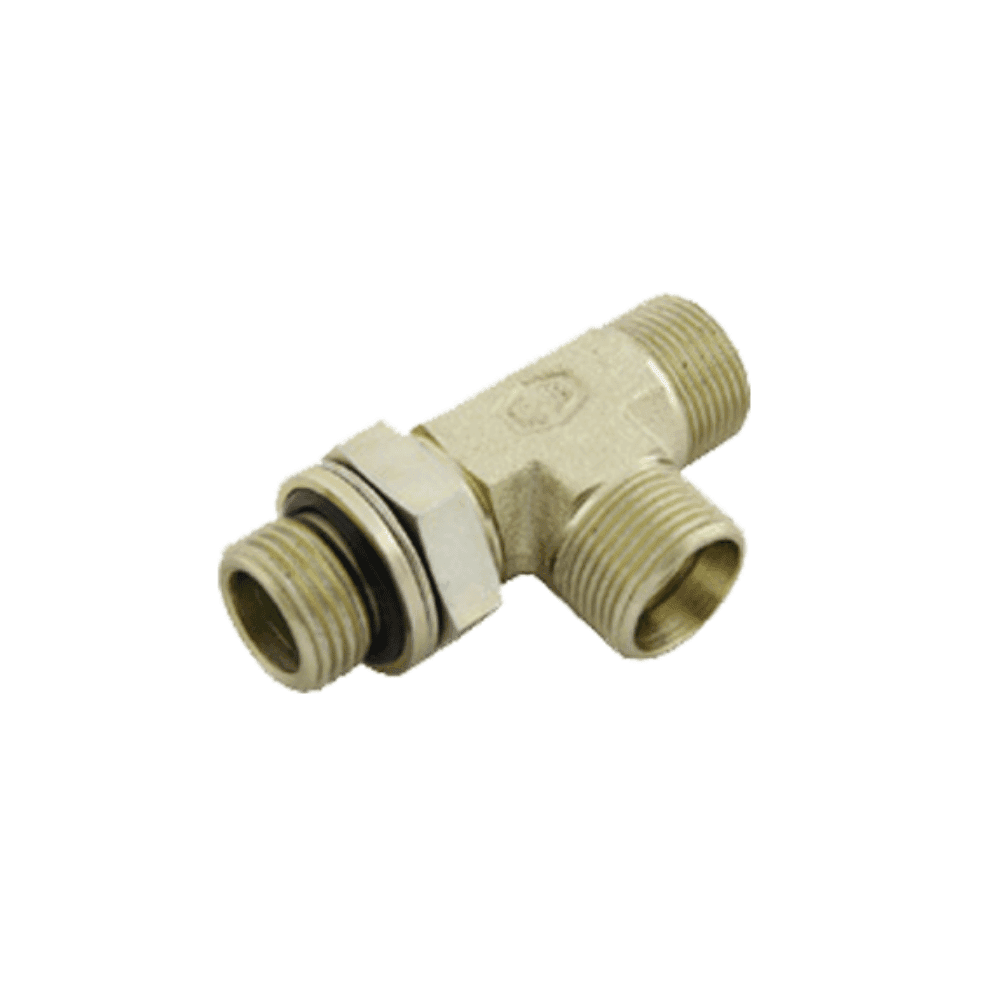

Adjustable run tee, metric × metric DIN 2353 bite-type with O-ring stud end and locknut

IH-AD-DIN-013

Adjustable Run Tee m Metric X m Metric

Indus HydraulicsL6 to L42 (light series), S6 to S38 (heavy series)L-series up to 250 bar (3625 psi); S-series up to 400 bar (5800 psi)

IH-AD-DIN-034

Male Stud Connector Metric

Indus HydraulicsDIN 24° cone L-series and S-series (M10×1 to M42×2)L6 to L42 (light series), S6 to S38 (heavy series)

IH-AD-DIN-019

Swivel Union

Indus HydraulicsL6 to L42 (light series), S6 to S38 (heavy series)L-series up to 250 bar (3625 psi); S-series up to 400 bar (5800 psi)

IH-AD-DIN-018

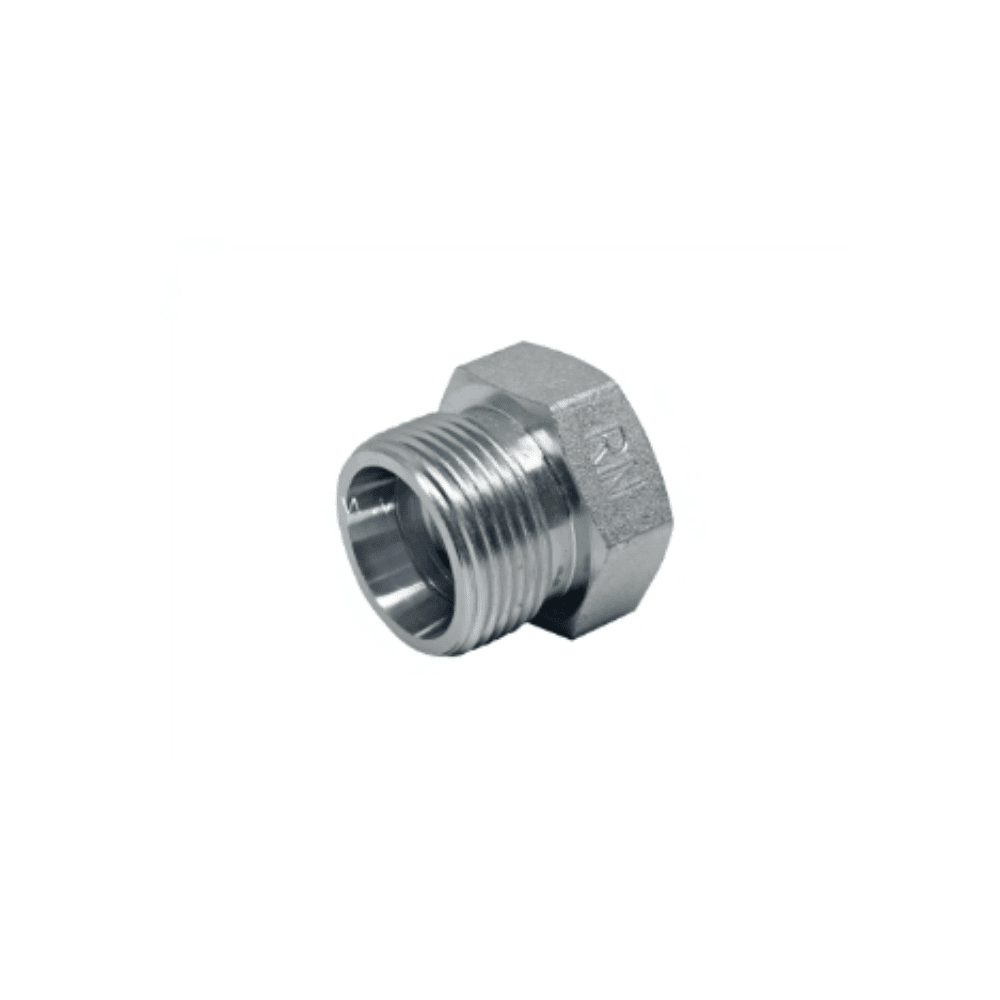

Blanking Plug

Indus HydraulicsL-series up to 250 bar (3625 psi); S-series up to 400 bar (5800 psi)L6 to L42 (light series), S6 to S38 (heavy series)

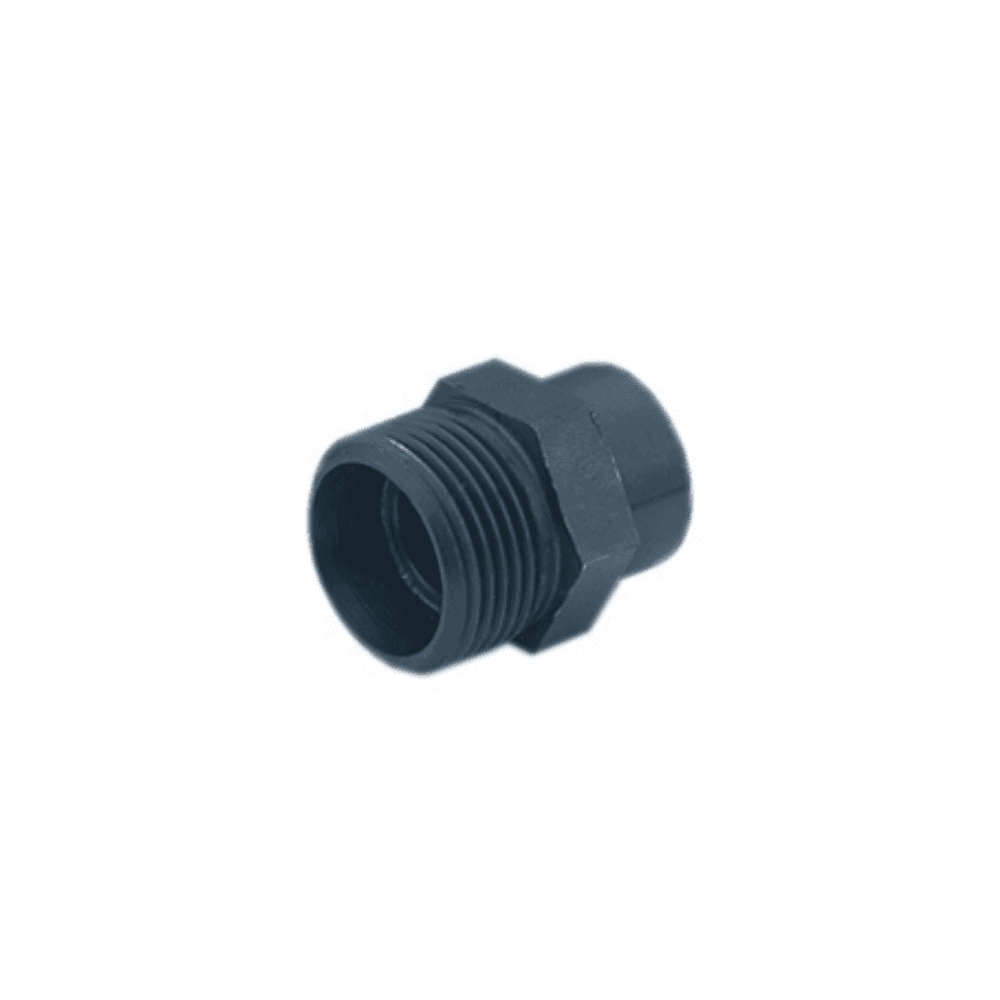

IH-AD-DIN-029

Weld Connector

Indus HydraulicsstraightL-series up to 250 bar (3625 psi); S-series up to 400 bar (5800 psi)

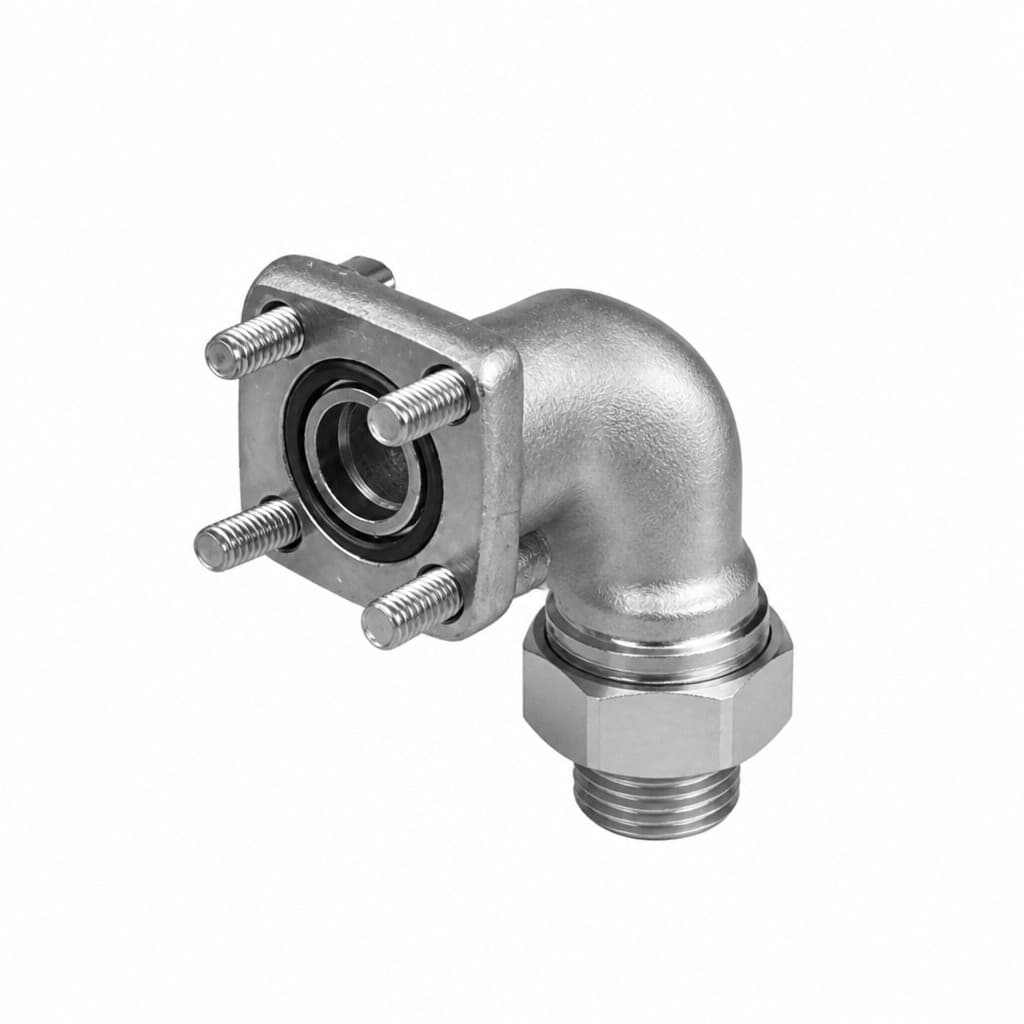

Metric bite-type 90° elbow on a square four-bolt pump flange with studs

IH-AD-DIN-052

Metric Bite Type Elbow Pump Flange Connection

Indus HydraulicsSAE flange face with O-ringMetric M16×1.5 to M24×1.5

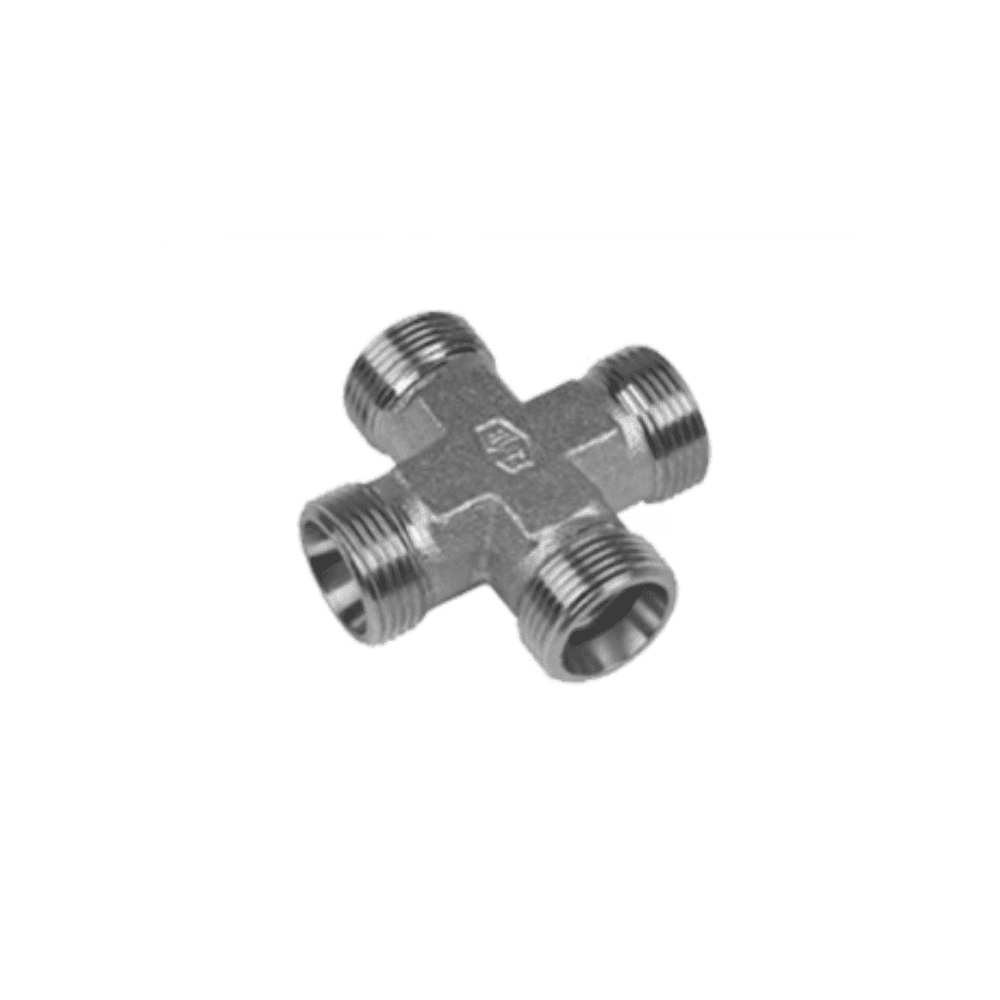

IH-AD-DIN-005

Union Cross

Indus HydraulicscrossL-series up to 250 bar (3625 psi); S-series up to 400 bar (5800 psi)

IH-AD-DIN-039

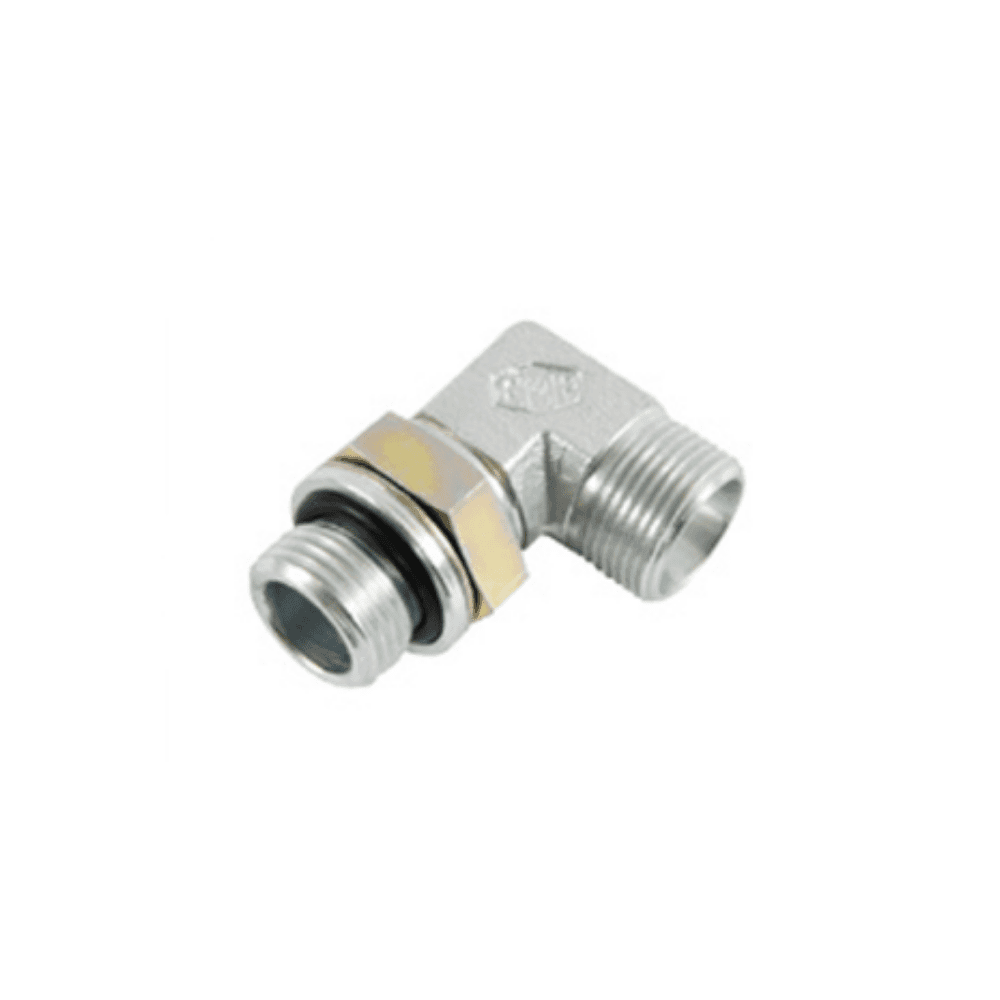

Adjustable Lock Nut Elbow BSPP

Indus HydraulicsDIN 24° cone L-series and S-series (M10×1 to M42×2)L-series up to 250 bar (3625 psi); S-series up to 400 bar (5800 psi)

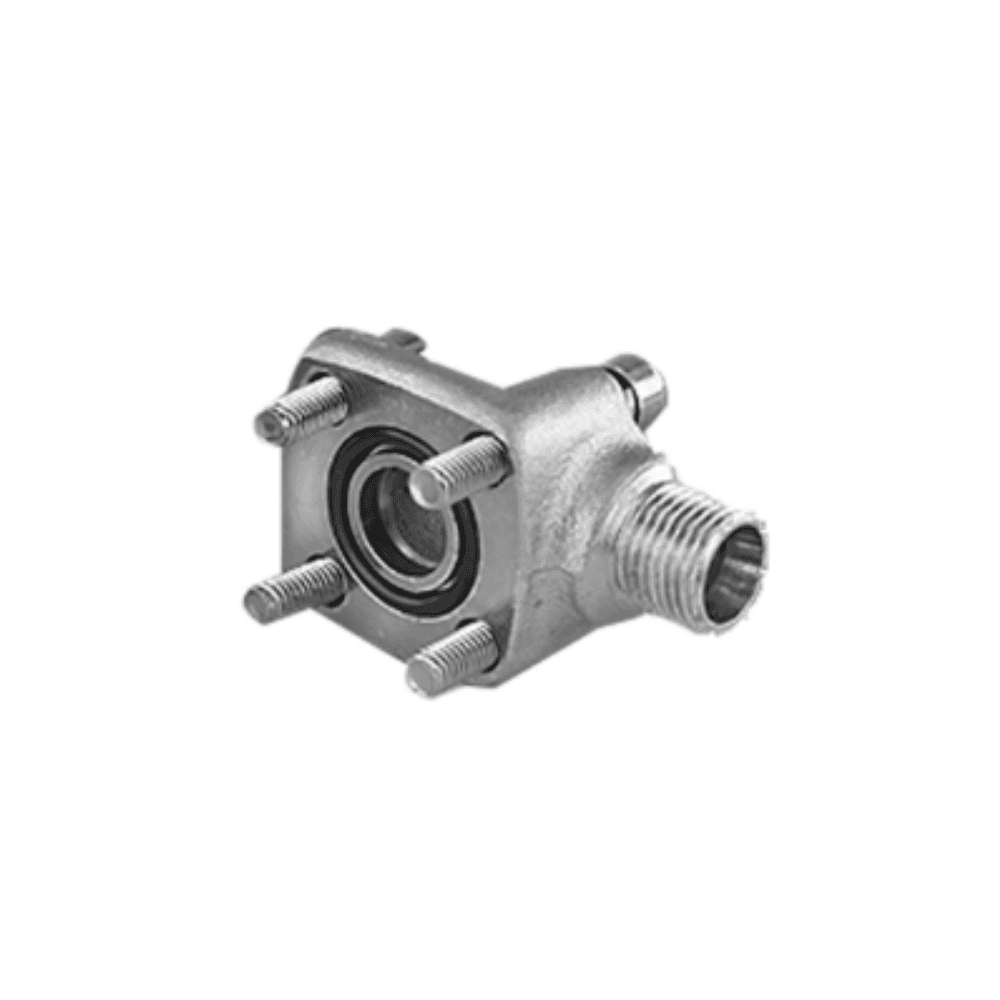

IH-AD-DIN-006

Pump Connector

Indus Hydraulicsstraight24-cone

IH-AD-DIN-004

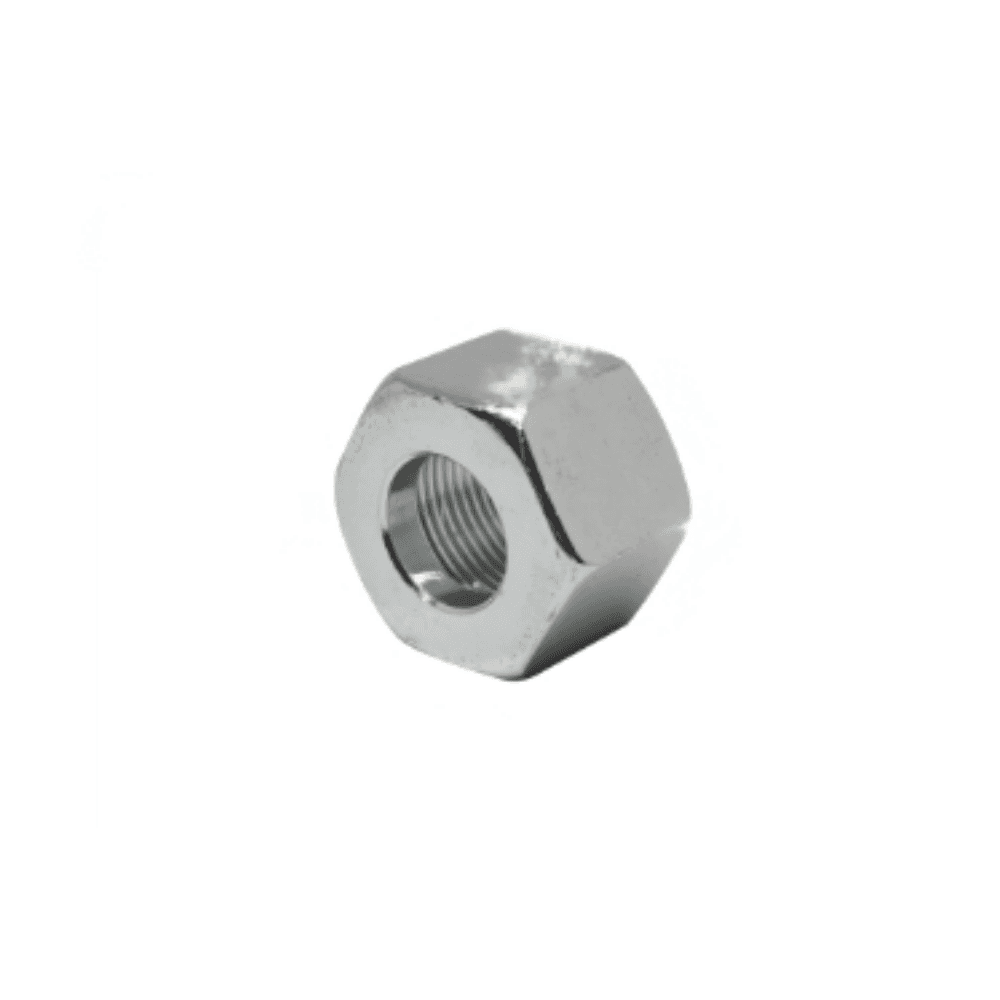

24° Cone End Nut

Indus HydraulicsL6 to L42 (light series), S6 to S38 (heavy series)none

DIN 2353 metric bulkhead union, straight with long threaded body and locknut

IH-AD-DIN-028

Bulkhead Union Metric

Indus HydraulicsbulkheadL-series up to 250 bar (3625 psi); S-series up to 400 bar (5800 psi)

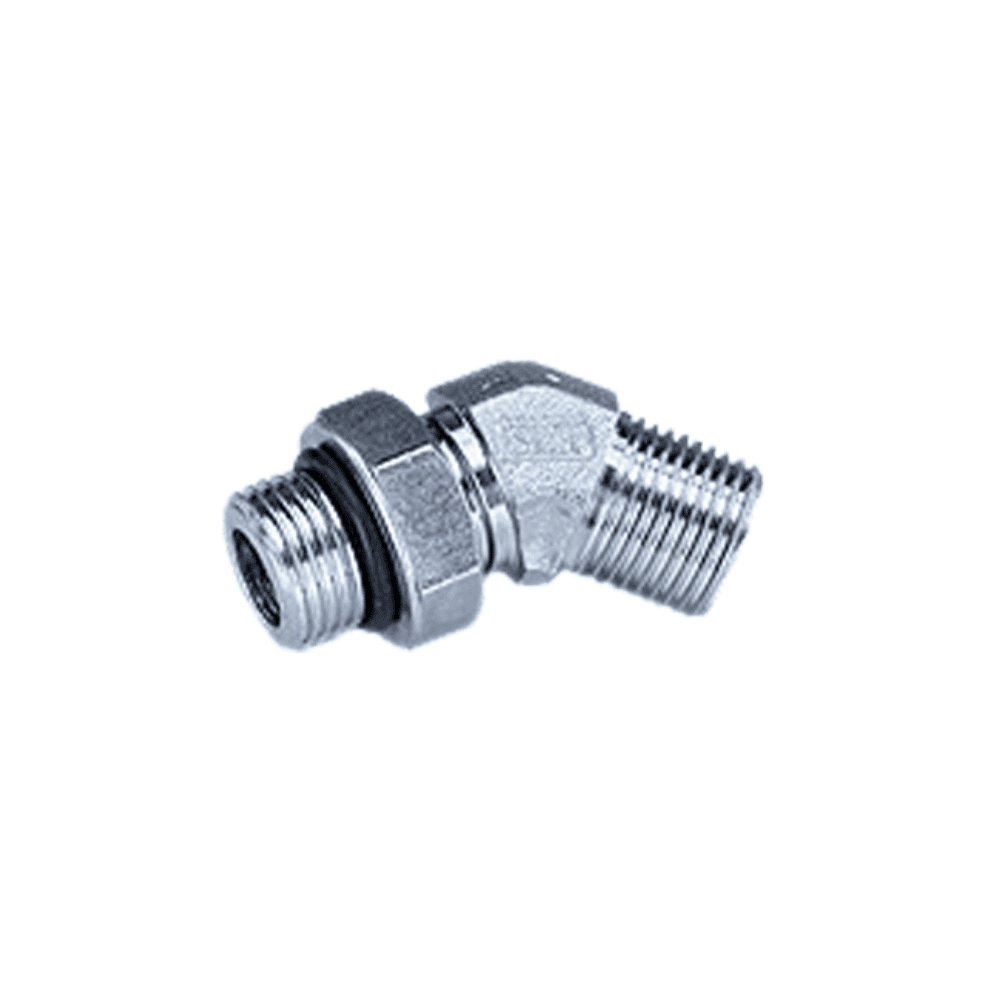

Metric bite-type 45° elbow with UN/UNF O-ring adjustable stud end and locknut

IH-AD-DIN-046

Metric Bite Type 45° Elbow UN/UNF Adjustable Stud End

Indus Hydraulics-12 to -52Metric M12×1.5 to M42×2

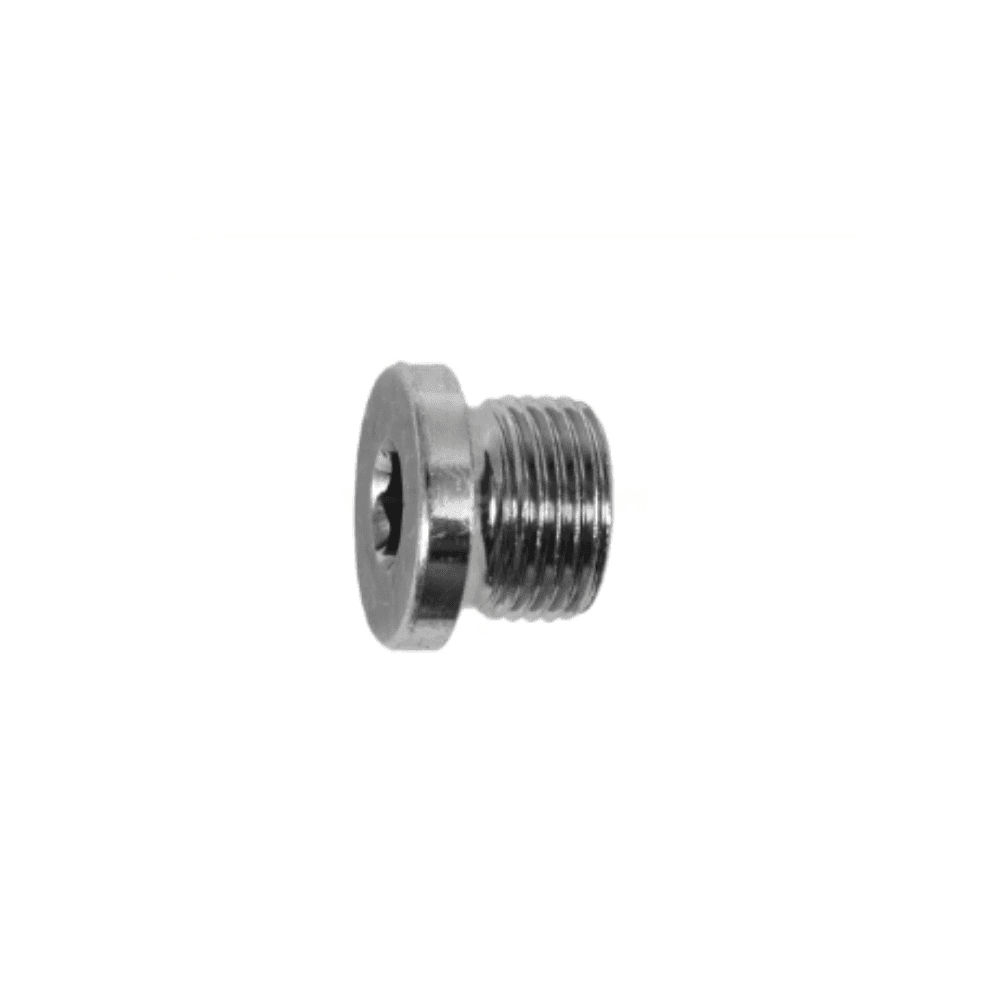

IH-AD-DIN-016

Blanking Plug for Port with ED Seal

Indus HydraulicsL6 to L42 (light series), S6 to S38 (heavy series)L-series up to 250 bar (3625 psi); S-series up to 400 bar (5800 psi)

Male stud connector, BSPT tapered thread × DIN 2353 bite-type tube end

IH-AD-DIN-030

Male Stud Connector BSPT (DIN 2353)

Indus HydraulicsDIN 24° cone L-series and S-series (M10×1 to M42×2)L6 to L42 (light series), S6 to S38 (heavy series)

Male stud elbow, 90°, NPT thread × DIN 2353 bite-type tube end, zinc-plated steel

IH-AD-DIN-032

Male Stud Elbow NPT (DIN 2353)

Indus Hydraulics24-cone90-elbow

IH-AD-DIN-021

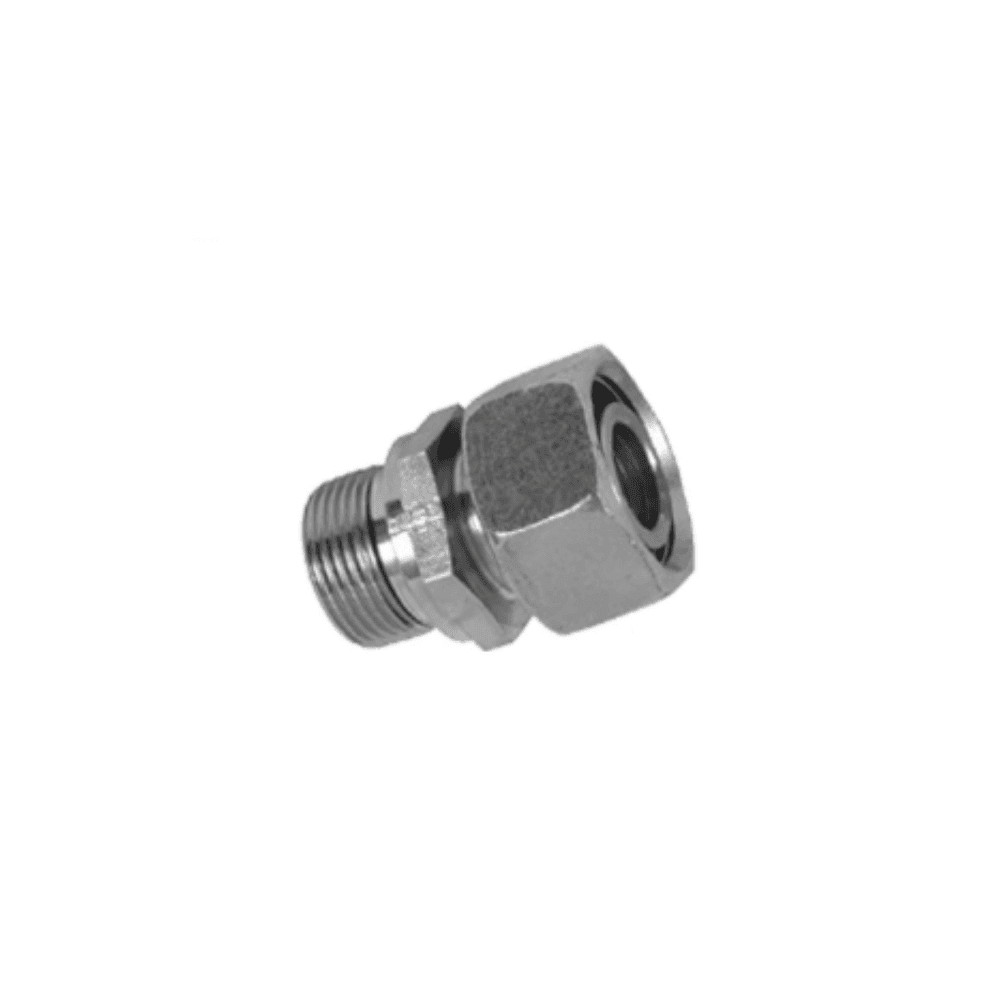

Swivel Connector BSPT

Indus HydraulicsDIN 24° cone L-series and S-series (M10×1 to M42×2)L6 to L42 (light series), S6 to S38 (heavy series)

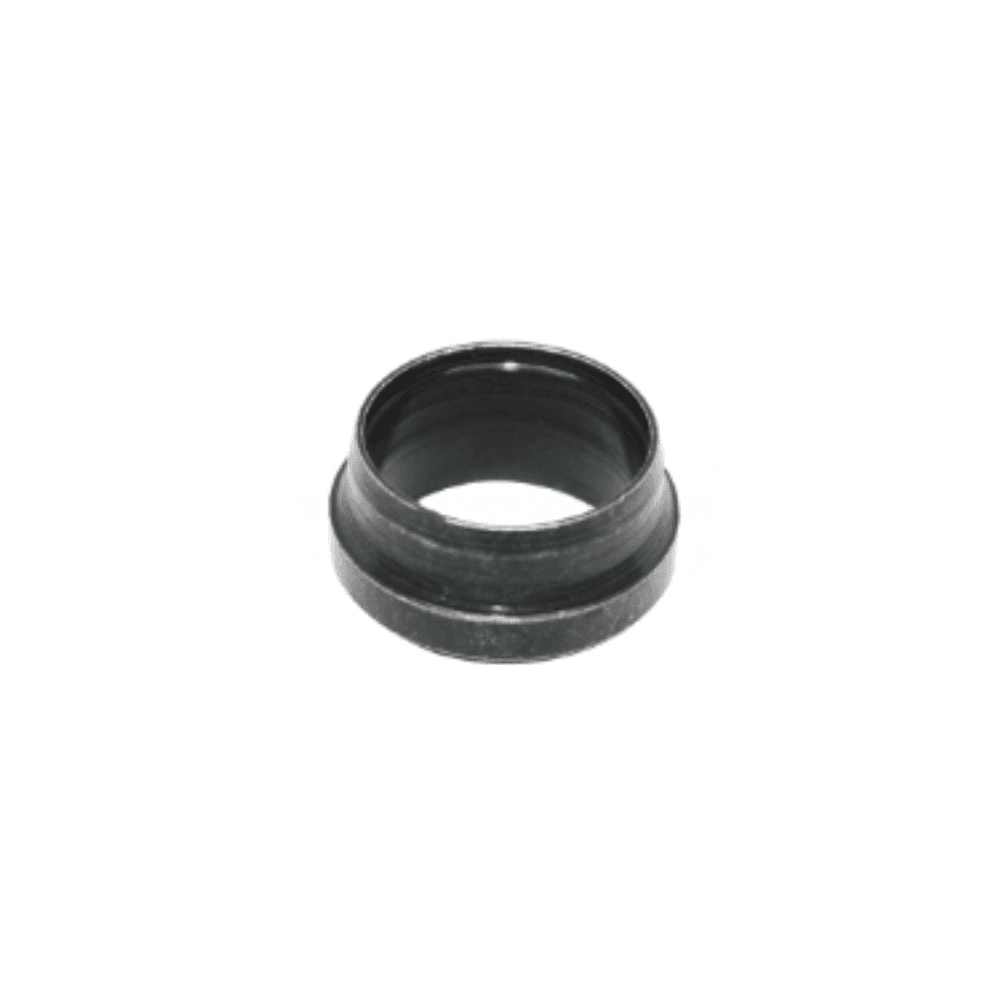

Cutting ring for DIN 2353 24° cone end nut, bite-type tube ferrule

IH-AD-DIN-003

Cutting Ring for 24° Cone End Nut

Indus HydraulicsnoneCutting ring for DIN 2353 bite-type fitting (sizes L6 to L42, S6 to S38)

IH-AD-DIN-044

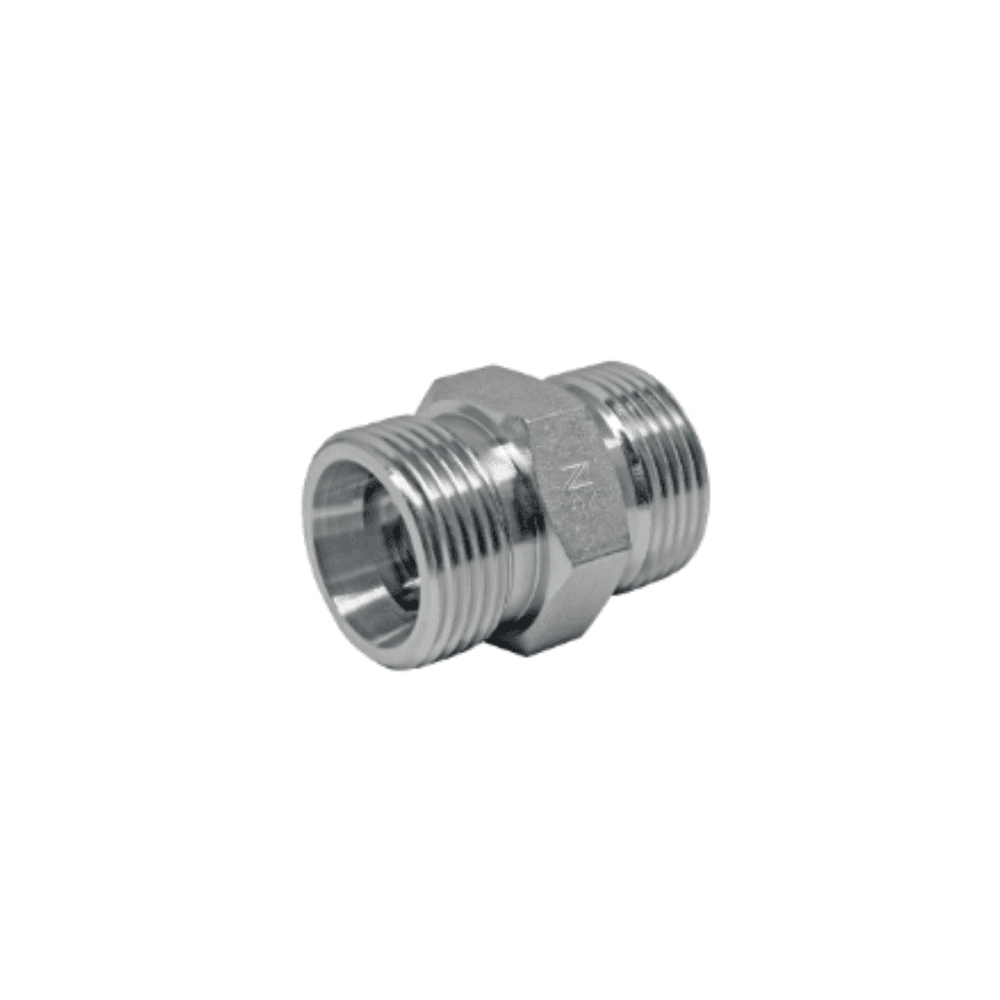

Union Metric

Indus Hydraulicsstraight24-cone

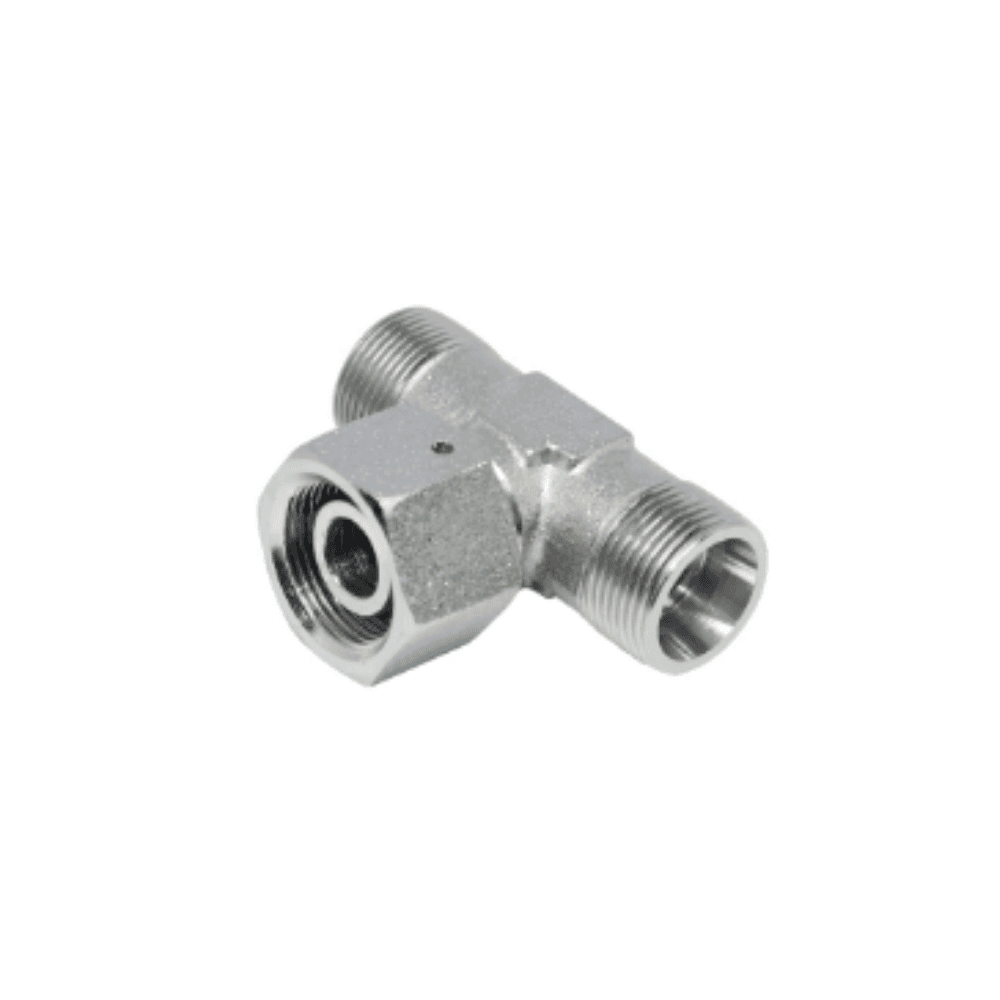

IH-AD-DIN-008

Swivel Nut Branch Tee (DIN 2353)

Indus Hydraulics24-coneL6 to L42 (light series), S6 to S38 (heavy series)

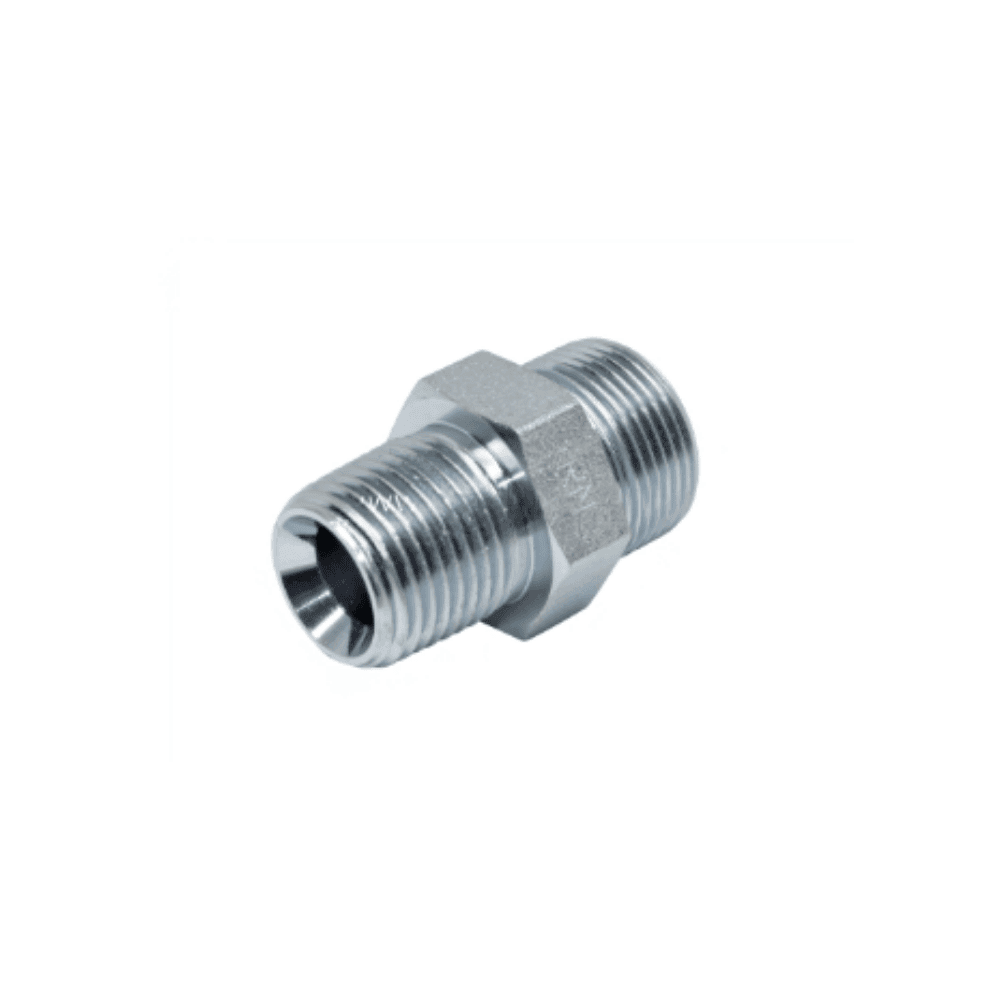

Male stud connector, NPT tapered thread × DIN 2353 bite-type tube end

IH-AD-DIN-033

Male Stud Connector NPT (DIN 2353)

Indus HydraulicsDIN 24° cone L-series and S-series (M10×1 to M42×2)24-cone

Bulkhead locknut for DIN 2353 bulkhead fittings, thin zinc-plated steel hex

IH-AD-DIN-002

Lock Nut for Bulkhead

Indus HydraulicsL6 to L42 (light series), S6 to S38 (heavy series)none

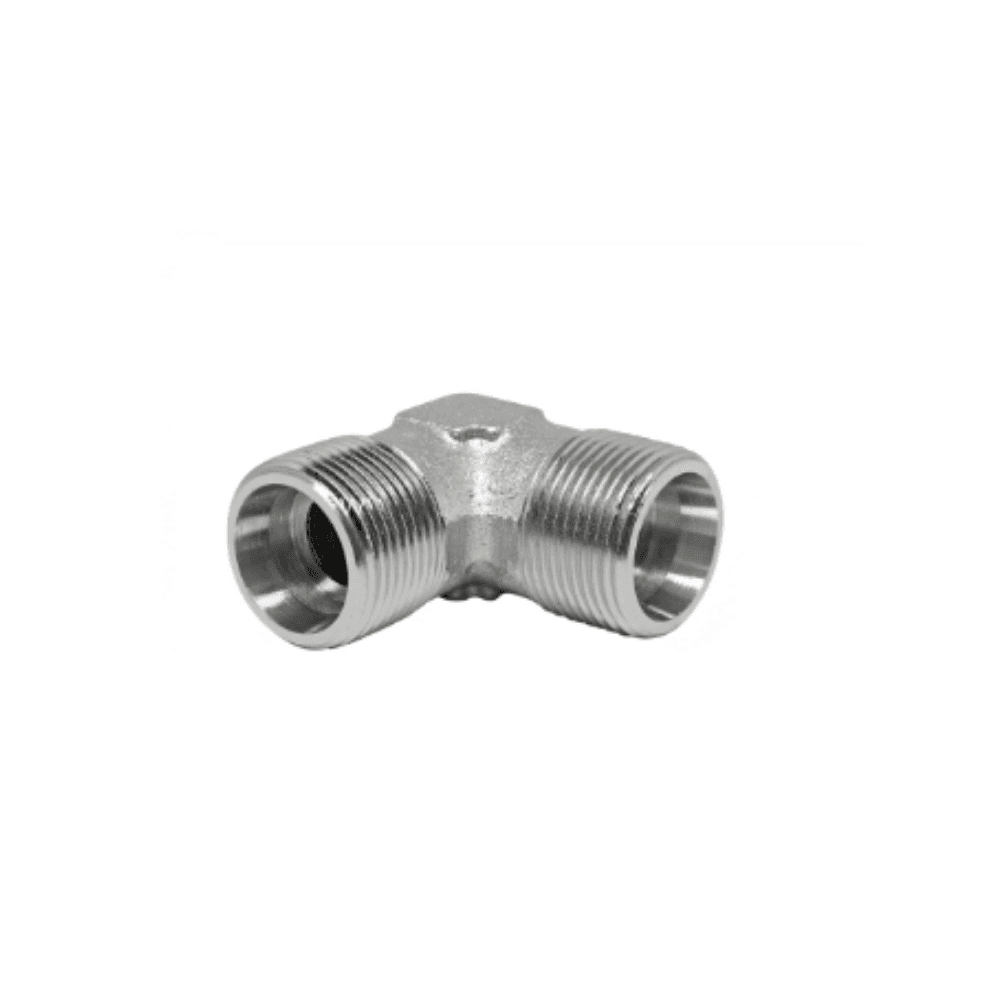

Union elbow, 90°, metric DIN 2353 bite-type tube ends, zinc-plated steel

IH-AD-DIN-045

Union Elbow Metric

Indus Hydraulics24-coneDIN 24° cone L-series and S-series (M10×1 to M42×2)

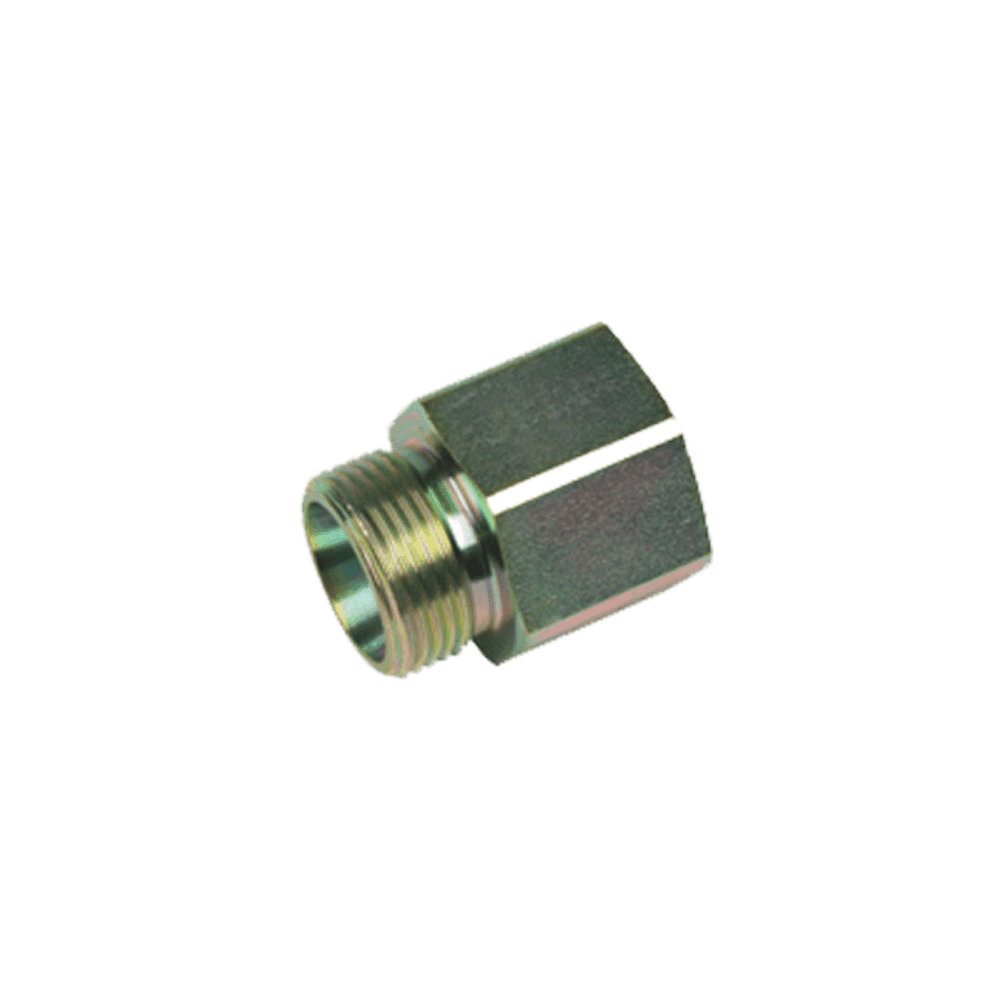

IH-AD-DIN-015

Male Female Connector

Indus HydraulicsL6 to L42 (light series), S6 to S38 (heavy series)straight

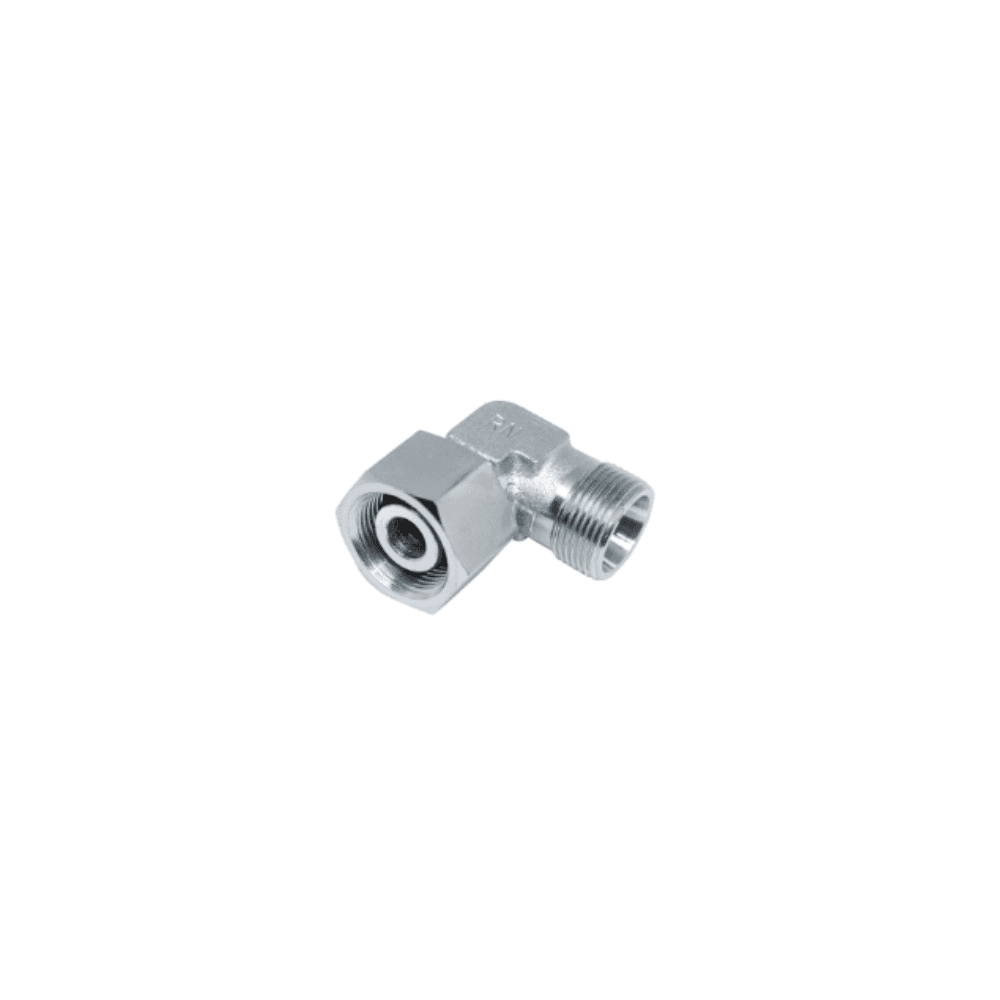

Swivel nut elbow, 90°, DIN 2353 bite-type, zinc-plated steel

IH-AD-DIN-022

Swivel Nut Elbow (DIN 2353)

Indus HydraulicsL6 to L42 (light series), S6 to S38 (heavy series)DIN 24° cone L-series and S-series (M10×1 to M42×2)

Metric bite-type 90° elbow with UN/UNF O-ring adjustable stud end and swivel nut

IH-AD-DIN-048

Metric Bite Type 90° Elbow UN/UNF Adjustable Stud End

Indus Hydraulics-12 to -52Metric O-ring stud end

45° elbow, BSP O-ring adjustable stud end with locknut × bite-type tube end, zinc-plated steel

IH-AD-DIN-050

45° Elbow BSP Adjustable Stud End

Indus Hydraulics45 elbow-12 to -52

IH-AD-DIN-041

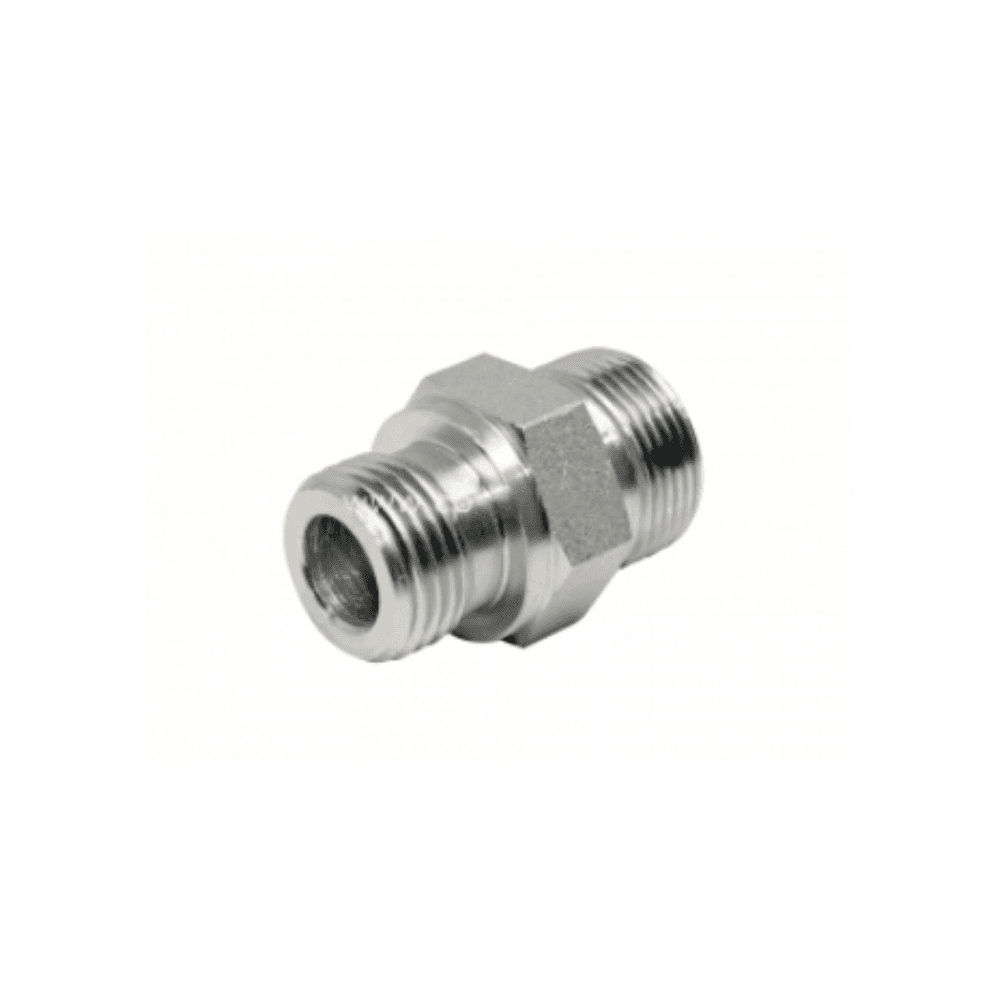

Male Stud Connector

Indus Hydraulics24-coneL6 to L42 (light series), S6 to S38 (heavy series)

Metric bite-type 45° elbow with male O-ring adjustable stud end and locknut

IH-AD-DIN-049

Metric Bite Type 45° Elbow Male Adjustable Stud End

Indus Hydraulics-12 to -45Metric O-ring stud end

IH-AD-DIN-012

Adjustable RunTee

Indus HydraulicsL6 to L42 (light series), S6 to S38 (heavy series)L-series up to 250 bar (3625 psi); S-series up to 400 bar (5800 psi)

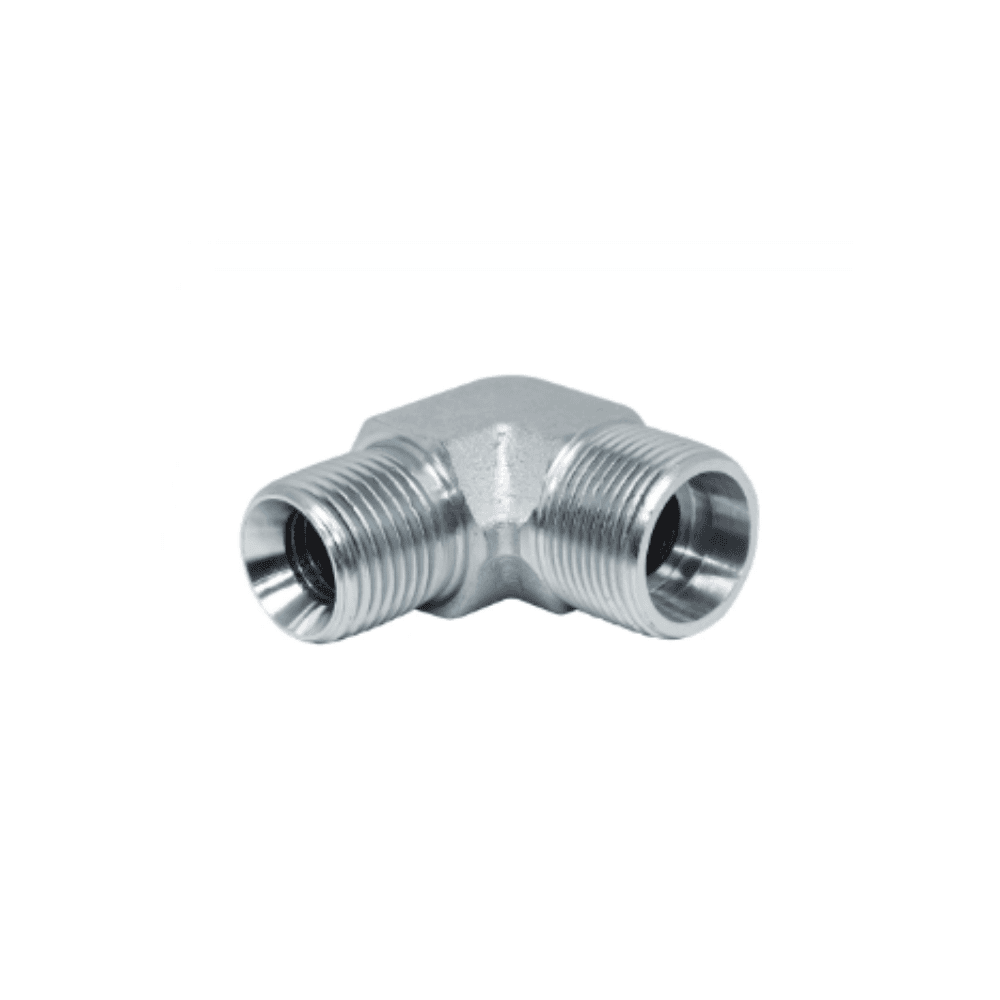

Male stud elbow, 90°, BSPT thread × DIN 2353 bite-type tube end, zinc-plated steel

IH-AD-DIN-031

Male Stud Elbow BSPT (DIN 2353)

Indus HydraulicsL6 to L42 (light series), S6 to S38 (heavy series)L-series up to 250 bar (3625 psi); S-series up to 400 bar (5800 psi)

1 2 ›

Questions we get asked

About this range

01Can I mix L and S series parts?: No. For the same tube size the two series use different nut threads, and their pressure ratings differ. Identify the series from the existing parts before ordering.
02Do I need a new cutting ring when I remake a joint?: A ring that has already bitten can be remade on the same tube end, but it should never be moved to a different tube. When the tube is cut back, fit a new ring.
03Do you supply blanking plugs?: Yes — blanking plugs for cones, plugs for ports with ED seals, and plugs with nuts.
04Which nut thread goes with which tube size?: Each tube OD and series has its own nut thread. Light series: 6L M12×1.5, 8L M14×1.5, 10L M16×1.5, 12L M18×1.5, 15L M22×1.5, 18L M26×1.5, 22L M30×2, 28L M36×2, 35L M45×2, 42L M52×2. Heavy series: 6S M14×1.5, 8S M16×1.5, 10S M18×1.5, 12S M20×1.5, 14S M22×1.5, 16S M24×1.5, 20S M30×2, 25S M36×2, 30S M42×2, 38S M52×2. Note that 12L and 10S share M18×1.5, so a thread that fits does not prove the tube size: check the tube OD too.
05What does a code like GE 12 L R1/2 mean?: It is the DIN-style designation many makers use: the body type, the tube OD in millimetres, the series, then the port thread. GE is a male stud connector, so GE 12 L R1/2 is a straight stud connector for 12 mm tube, light series, with a 1/2″ BSP thread. Other common prefixes are WE (male stud elbow), GV (straight union), W (union elbow), T (union tee), K (union cross) and SV (bulkhead union). Suffixes for the stud seal and material vary by maker, so send the full code.
06What tube should be used with bite-type fittings?: Seamless precision steel tube to EN 10305-4 (formerly DIN 2391/2445), annealed or normalised so it is softer than the cutting ring, with the OD matching the fitting. Cut the tube square with a saw guide or cutter, deburr inside and out, and check the wall is thick enough for the pressure. Thin-wall or soft tube needs a reinforcing insert so the ring has something to bite against. Make up the ring until it grips, then the further turn the maker specifies, commonly about one and a half.
