Stainless Steel ORFS Adapters

O-ring face seal adapters in stainless steel, for high-pressure, high-vibration lines that must not weep.

24 SKUs1 brands

Why face seal

An ORFS joint seals on an O-ring held in a groove on the male face, pressed flat against the female face. It tolerates vibration and resists over-tightening better than a metal-to-metal seat, which is why mobile and offshore hydraulics specify it.

SAE J1453 and ISO 8434-3

The O-ring face seal connection is defined by SAE J1453 and ISO 8434-3. Replace the O-ring each time the joint is broken.

Size range

126orderable sizes
24listings with a size table

Every size above is a part number you can quote from. Open any listing for its full table.

Delivery

Stainless Steel ORFS Adapters across the Gulf

Ex-stock from Dubai, delivered within 3 working days in the UAE.

Hose and fittings are the bulk of what leaves this warehouse, and they travel well: a crated batch of assemblies with its crimp records, or a box of adapters on an airway bill. Buyers outside the UAE usually order to a measured list rather than to a part number, because a hose is defined by its ends, its length and its route rather than by a code. Send those and we will quote against them.

Saudi ArabiaTypically 3 working days from dispatchOmanTypically 3 working days from dispatchQatarTypically 3 working days from dispatchBahrainTypically 3 working days from dispatchKuwaitTypically 3 working days from dispatch

Beyond the Gulf

Southern Africa
South Africa, Botswana, Zambia
South-East Asia
Singapore, Thailand, Vietnam
North Africa
Egypt, Tunisia, Mauritania

See every export destination

Showing 1–24 of 24 SKUs

Sort
LatestA–ZZ–A
Dimension drawing of the stainless steel ORFS male × JIC 37° male connector, lettered for the size table
IH-SS-FS6403

Stainless Steel ORFS Male × JIC 37° Male Connector

Indus Hydraulicsflat face sealed by an O-ring in a groove on the male facestraight connector

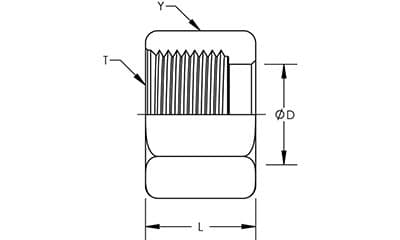

Dimension drawing of the stainless steel ORFS tube nut, lettered for the size table
IH-SS-FS318

Stainless Steel ORFS Tube Nut

Indus HydraulicsO-ring face seal (ORFS), 1/4" to 1" (9/16-18 to 1-7/16-12)tube nut

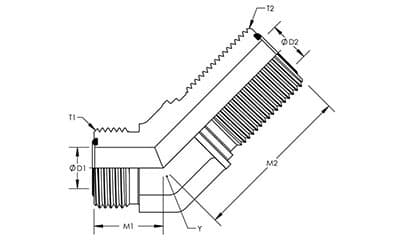

Dimension drawing of the stainless steel ORFS male bulkhead union 45° elbow, lettered for the size table
IH-SS-FS2702

Stainless Steel ORFS Male Bulkhead Union 45° Elbow

Indus HydraulicsO-ring face seal (ORFS), 1/4" to 1" (9/16-18 to 1-7/16-12)bulkhead 45° elbow
Dimension drawing of the stainless steel ORFS male × NPT male branch tee, lettered for the size table
IH-SS-FS2601

Stainless Steel ORFS Male × NPT Male Branch Tee

Indus Hydraulicsflat face sealed by an O-ring in a groove on the male facebranch tee
Dimension drawing of the stainless steel ORFS male × NPT male 45° elbow, lettered for the size table
IH-SS-FS2503

Stainless Steel ORFS Male × NPT Male 45° Elbow

Indus Hydraulicsflat face sealed by an O-ring in a groove on the male faceO-ring face seal (ORFS), 1/4" to 3/8" (9/16-18 to 11/16-16)
Dimension drawing of the stainless steel ORFS male × ORB male 90° elbow, long, lettered for the size table
IH-SS-FS6801L

Stainless Steel ORFS Male × ORB Male 90° Elbow, Long

Indus HydraulicsO-ring face seal (ORFS), 3/8" (11/16-16)flat face sealed by an O-ring in a groove on the male face
Dimension drawing of the stainless steel ORFS male × ORB male adjustable 90° elbow, lettered for the size table
IH-SS-FS6801

Stainless Steel ORFS Male × ORB Male Adjustable 90° Elbow

Indus HydraulicsO-ring face seal (ORFS), 1/4" to 3/4" (9/16-18 to 1-3/16-12)adjustable 90° elbow

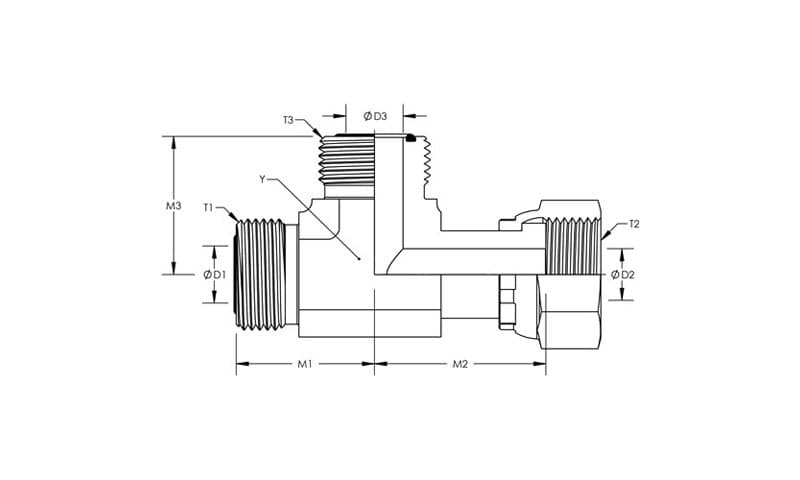

Dimension drawing of the stainless steel ORFS swivel nut run tee, lettered for the size table
IH-SS-FS6602

Stainless Steel ORFS Swivel Nut Run Tee

Indus Hydraulicsrun teeflat face sealed by an O-ring in a groove on the male face

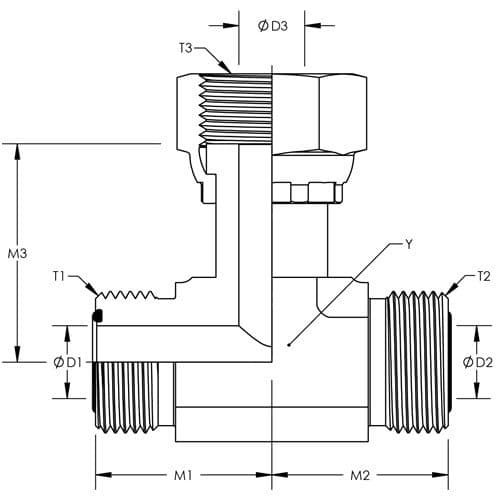

Dimension drawing of the stainless steel ORFS swivel nut branch tee, lettered for the size table
IH-SS-FS6600

Stainless Steel ORFS Swivel Nut Branch Tee

Indus HydraulicsO-ring face seal (ORFS), 1/4" to 1-1/2" (9/16-18 to 2-12)branch tee
Dimension drawing of the stainless steel ORFS male × ORFS female swivel 90° elbow, lettered for the size table
IH-SS-FS6500

Stainless Steel ORFS Male × ORFS Female Swivel 90° Elbow

Indus Hydraulics90° elbowflat face sealed by an O-ring in a groove on the male face

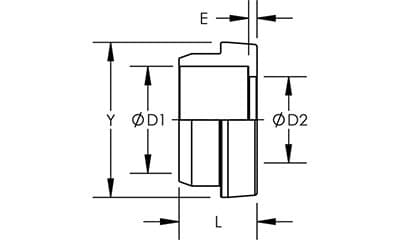

Dimension drawing of the stainless steel ORFS braze sleeve, lettered for the size table
IH-SS-FS319

Stainless Steel ORFS Braze Sleeve

Indus Hydraulicsbraze sleeveflat face sealed by an O-ring in a groove on the male face

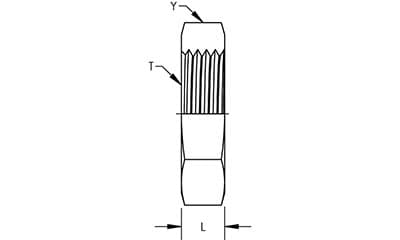

Dimension drawing of the stainless steel ORFS bulkhead locknut, lettered for the size table
IH-SS-FS306

Stainless Steel ORFS Bulkhead Locknut

Indus Hydraulicsbulkhead locknutO-ring face seal (ORFS), 1/4" to 1-1/2" (9/16-18 to 2-12)
Category image · Hoses & Fittings
IH-SS-FS2701

Stainless Steel ORFS Male Bulkhead Union 90° Elbow

Indus Hydraulicsbulkhead 90° elbowO-ring face seal (ORFS), 1/2" (13/16-16)

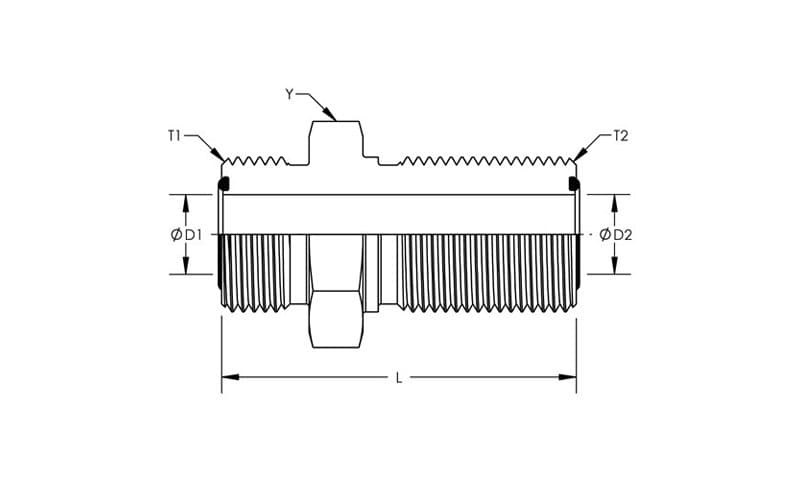

Dimension drawing of the stainless steel ORFS male bulkhead union, lettered for the size table
IH-SS-FS2700

Stainless Steel ORFS Male Bulkhead Union

Indus Hydraulicsflat face sealed by an O-ring in a groove on the male facebulkhead union
Dimension drawing of the stainless steel ORFS male union cross, lettered for the size table
IH-SS-FS2650

Stainless Steel ORFS Male Union Cross

Indus HydraulicsO-ring face seal (ORFS), 3/4" (1-3/16-12)union cross

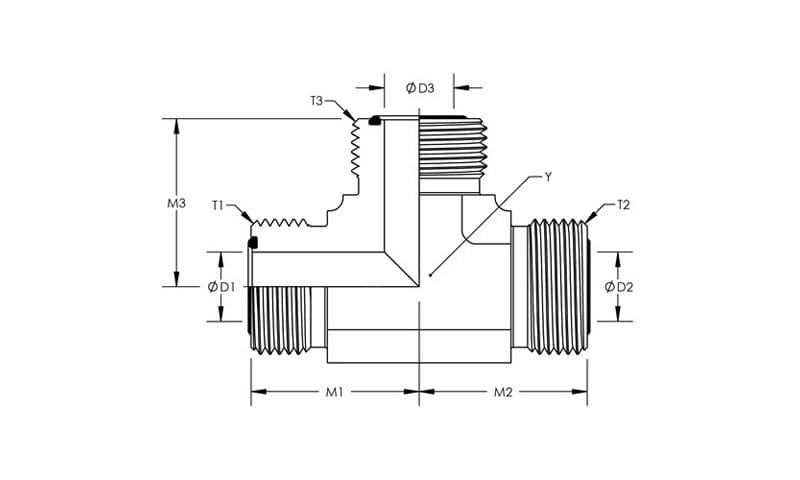

Dimension drawing of the stainless steel ORFS male union tee, lettered for the size table
IH-SS-FS2603

Stainless Steel ORFS Male Union Tee

Indus HydraulicsO-ring face seal (ORFS), 1/4" to 1-1/2" (9/16-18 to 2-12)flat face sealed by an O-ring in a groove on the male face
Dimension drawing of the stainless steel ORFS male × NPT male 90° elbow, lettered for the size table
IH-SS-FS2501

Stainless Steel ORFS Male × NPT Male 90° Elbow

Indus Hydraulics90° elbowflat face sealed by an O-ring in a groove on the male face

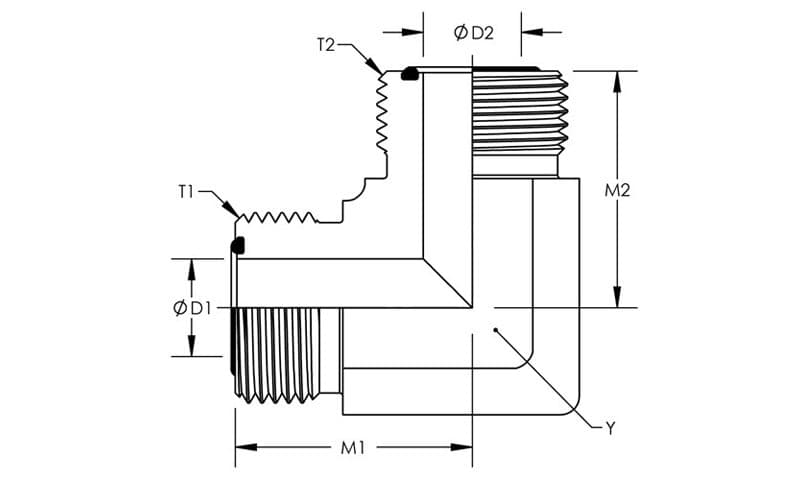

Dimension drawing of the stainless steel ORFS male union 90° elbow, lettered for the size table
IH-SS-FS2500

Stainless Steel ORFS Male Union 90° Elbow

Indus HydraulicsO-ring face seal (ORFS), 1/4" to 1-1/2" (9/16-18 to 2-12)90° elbow
Stainless steel ORFS female plug, stainless, side view
IH-SS-FS2409

Stainless Steel ORFS Female Plug

Indus Hydraulicsflat face sealed by an O-ring in a groove on the male faceplug

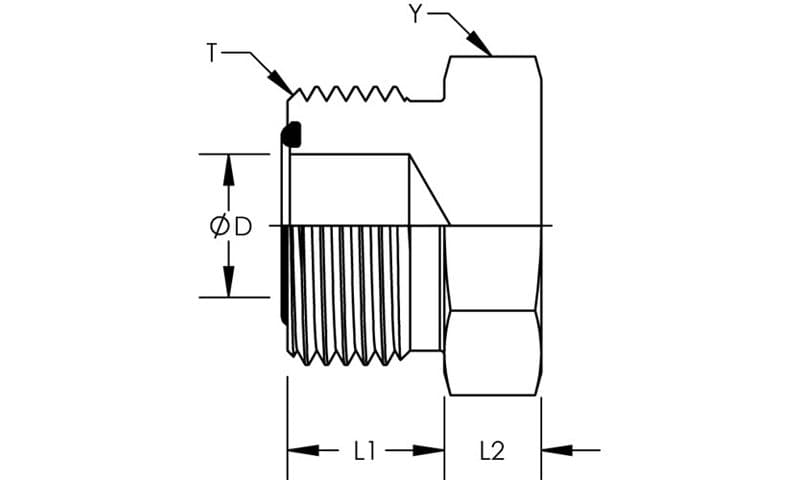

Dimension drawing of the stainless steel ORFS male plug, lettered for the size table
IH-SS-FS2408

Stainless Steel ORFS Male Plug

Indus Hydraulicsflat face sealed by an O-ring in a groove on the male faceO-ring face seal (ORFS), 1/4" to 1-1/2" (9/16-18 to 2-12)
Dimension drawing of the stainless steel ORFS female swivel × ORFS male reducer, lettered for the size table
IH-SS-FS2406

Stainless Steel ORFS Female Swivel × ORFS Male Reducer

Indus Hydraulicsflat face sealed by an O-ring in a groove on the male facestraight reducer

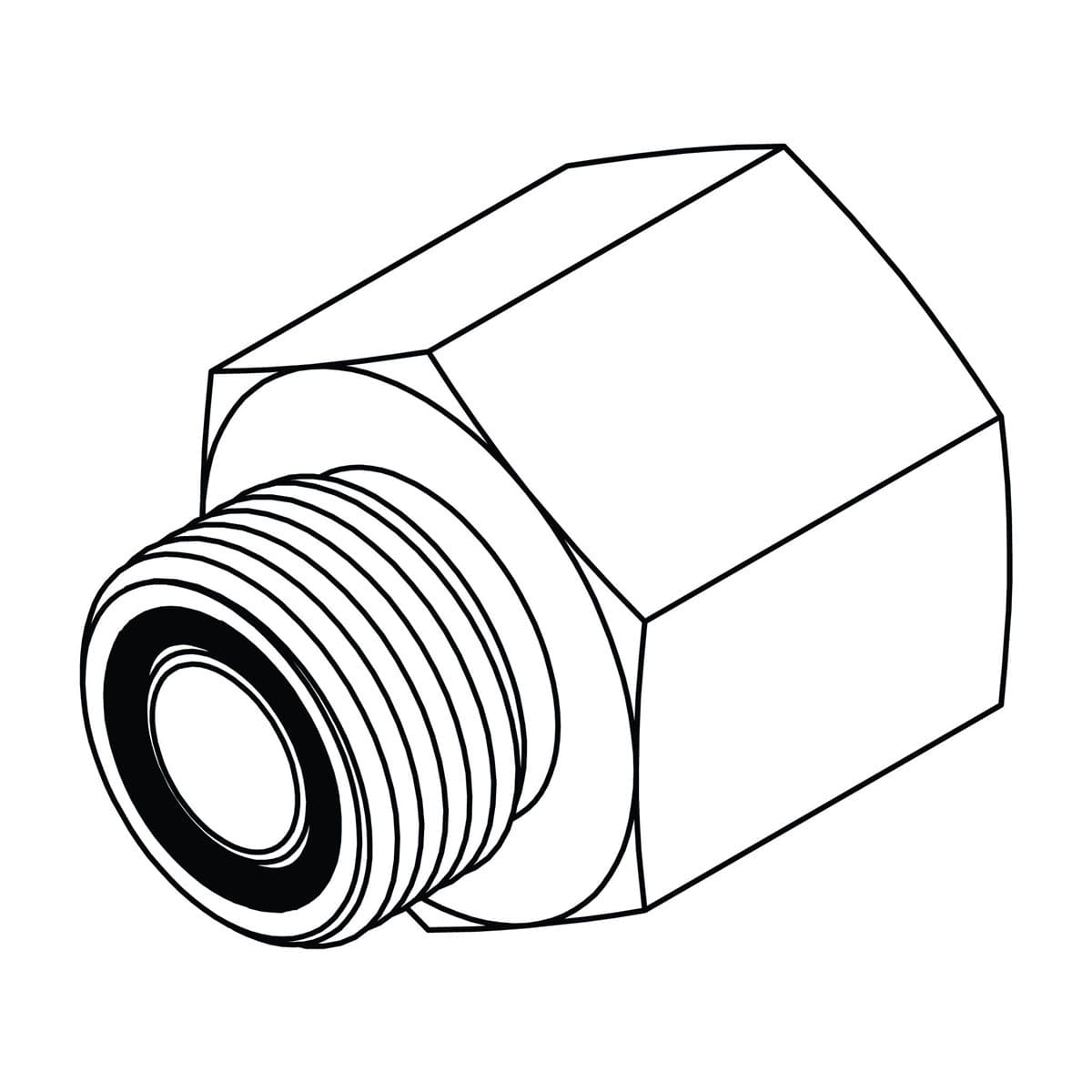

Stainless steel ORFS male × NPT female connector, stainless, side view
IH-SS-FS2405

Stainless Steel ORFS Male × NPT Female Connector

Indus Hydraulicsflat face sealed by an O-ring in a groove on the male faceO-ring face seal (ORFS), 1/4" (9/16-18)

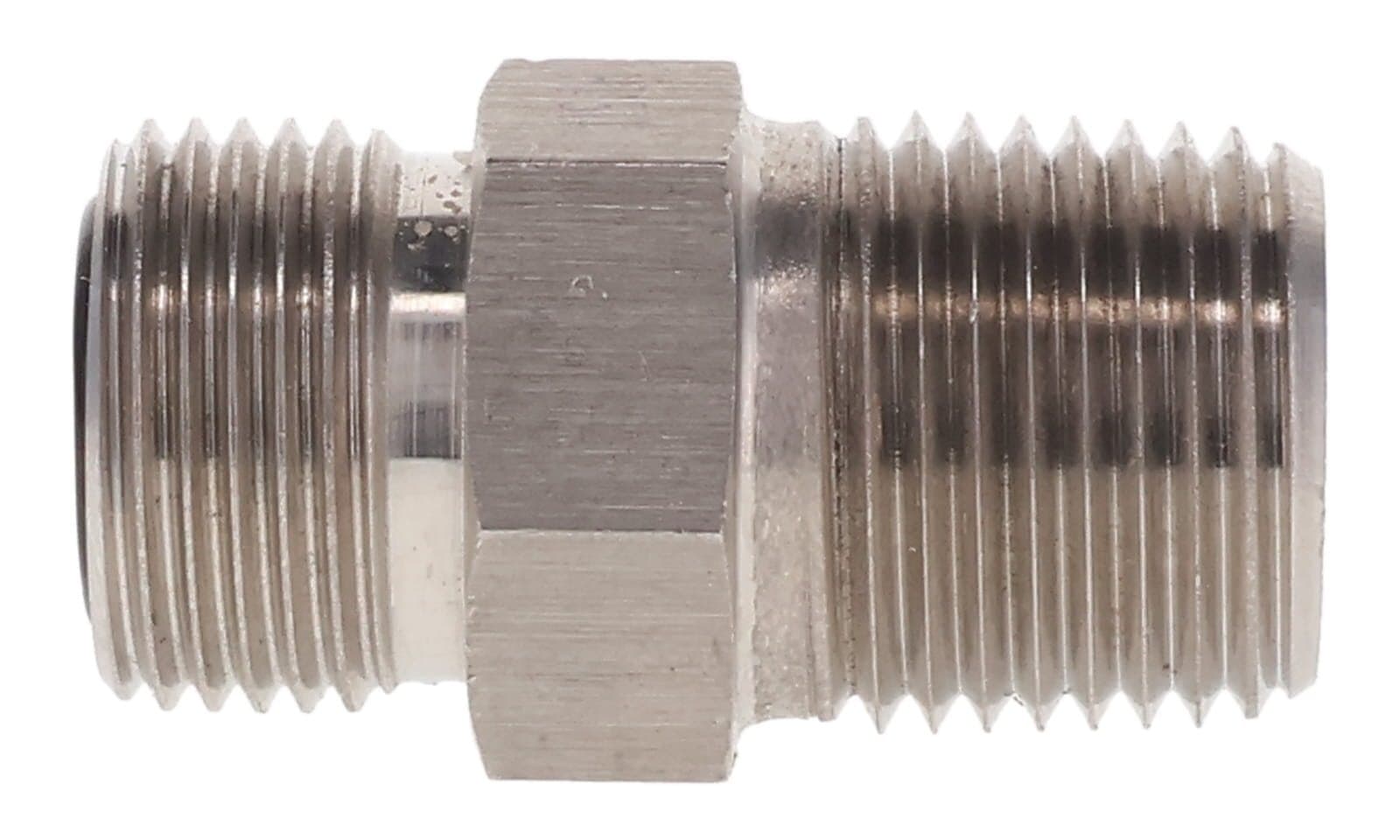

Stainless steel ORFS male × NPT male connector, stainless, side view
IH-SS-FS2404

Stainless Steel ORFS Male × NPT Male Connector

Indus HydraulicsO-ring face seal (ORFS), 1/4" to 1" (9/16-18 to 1-7/16-12)straight connector
Dimension drawing of the stainless steel ORFS male union, lettered for the size table
IH-SS-FS2403

Stainless Steel ORFS Male Union

Indus HydraulicsO-ring face seal (ORFS), 1/4" to 1-1/2" (9/16-18 to 2-12)straight union

Questions we get asked

About this range

01Are these 316 stainless?
Most families are 316L stainless steel, forged; each listing states the grade the manufacturer gives. Where a listing says stainless steel without a grade, ask and we will confirm before you order.
02Do the listings show dimensions and equivalents?
Yes, where the manufacturer publishes them. Every size is listed with its end sizes; most also carry millimetre dimensions and the Parker part number the manufacturer cross-references.
