Stainless Steel DIN 2353 Tube Fittings
Metric 24° cone bite-type tube fittings in stainless steel, for metric tube from 4 mm to 42 mm.
31 SKUs1 brands
Light, heavy or extra light
DIN 2353 fittings come in series that share a tube size but not a thread: the light (L) series suits general hydraulics and the heavy (S) series higher pressure, with a larger thread for the same tube. Order nut, cutting ring and body in the same series, and match the tube to the outside diameter in the listing.
DIN 2353 and ISO 8434-1
The 24° cone bite-type connection is defined by DIN 2353, now ISO 8434-1. The cutting ring bites into the tube as the nut is made up, which is why the manufacturer notes its resistance to vibration.
Size range
281orderable sizes
31listings with a size table
Every size above is a part number you can quote from. Open any listing for its full table.
Delivery
Stainless Steel DIN 2353 Tube Fittings across the Gulf
Ex-stock from Dubai, delivered within 3 working days in the UAE.
Hose and fittings are the bulk of what leaves this warehouse, and they travel well: a crated batch of assemblies with its crimp records, or a box of adapters on an airway bill. Buyers outside the UAE usually order to a measured list rather than to a part number, because a hose is defined by its ends, its length and its route rather than by a code. Send those and we will quote against them.
Saudi ArabiaTypically 3 working days from dispatchOmanTypically 3 working days from dispatchQatarTypically 3 working days from dispatchBahrainTypically 3 working days from dispatchKuwaitTypically 3 working days from dispatch
Beyond the Gulf
- West & Central Africa
- Nigeria, Mali, Burkina Faso
- Southern Africa
- South Africa, Namibia, Botswana
IH-SS-5204S
Stainless Steel DIN 2353 Soft-Seal Tube Cap, Heavy Series
Indus HydraulicsDIN 2353 24° cone, M14×1.5 (6 mm tube) to M52×2.0 (38 mm tube)24° cone tube end with a cutting ring and nut that bite into the tube
IH-SS-5204L
Stainless Steel DIN 2353 Soft-Seal Tube Cap, Light Series
Indus Hydraulicstube cap24° cone tube end with a cutting ring and nut that bite into the tube
IH-SS-5055S
Stainless Steel DIN 2353 Union 90° Elbow, Heavy Series
Indus HydraulicsDIN 2353 24° cone, M14×1.5 (6 mm tube) to M52×2.0 (38 mm tube)24° cone tube end with a cutting ring and nut that bite into the tube
IH-SS-5055LL

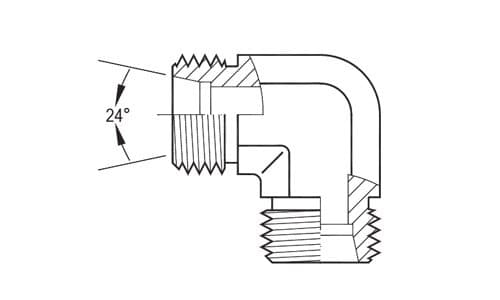

Stainless Steel DIN 2353 Union 90° Elbow, Extra-Light Series
Indus Hydraulics24° cone tube end with a cutting ring and nut that bite into the tube90° union elbow
IH-SS-5055L
Stainless Steel DIN 2353 Union 90° Elbow, Light Series
Indus HydraulicsDIN 2353 24° cone, M12×1.5 (6 mm tube) to M52×2.0 (42 mm tube)90° union elbow
IH-SS-5360S
Stainless Steel DIN 2353 × Female Swivel 90° Elbow, Heavy Series
Indus Hydraulics90° swivel elbowDIN 2353 24° cone, M14×1.5 (6 mm tube) to M52×2.0 (38 mm tube)
IH-SS-5360L
Stainless Steel DIN 2353 × Female Swivel 90° Elbow, Light Series
Indus HydraulicsDIN 2353 24° cone, M12×1.5 (6 mm tube) to M52×2.0 (42 mm tube)90° swivel elbow
IH-SS-5300S
Stainless Steel DIN 2353 Female Swivel Union, Heavy Series
Indus Hydraulics24° cone tube end with a cutting ring and nut that bite into the tubeDIN 2353 24° cone, M14×1.5 (6 mm tube) to M52×2.0 (38 mm tube)
IH-SS-5300L
Stainless Steel DIN 2353 Female Swivel Union, Light Series
Indus Hydraulicsswivel union24° cone tube end with a cutting ring and nut that bite into the tube
IH-SS-5203S
Stainless Steel DIN 2353 Tube Plug, Heavy Series
Indus HydraulicsDIN 2353 24° cone, M14×1.5 (6 mm tube) to M52×2.0 (38 mm tube)24° cone tube end with a cutting ring and nut that bite into the tube

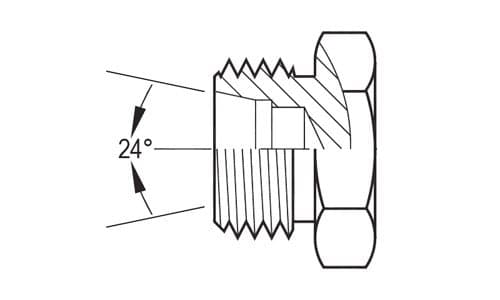

IH-SS-5203L
Stainless Steel DIN 2353 Tube Plug, Light Series
Indus Hydraulicstube plugDIN 2353 24° cone, M12×1.5 (6 mm tube) to M45×2.0 (35 mm tube)

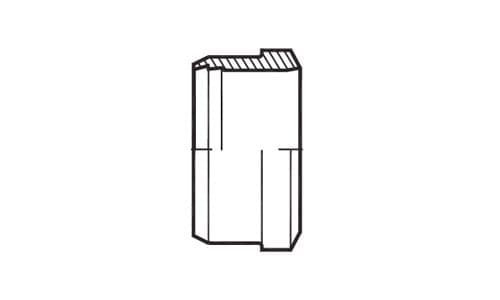

IH-SS-5202LL
Stainless Steel DIN 2353 Cutting Ring, Extra-Light Series
Indus Hydraulics24° cone tube end with a cutting ring and nut that bite into the tubecutting ring
IH-SS-5201S
Stainless Steel DIN 2353 Tube Nut, Heavy Series
Indus HydraulicsDIN 2353 24° cone, M14×1.5 (6 mm tube) to M52×2.0 (38 mm tube)24° cone tube end with a cutting ring and nut that bite into the tube
IH-SS-5201LL
Stainless Steel DIN 2353 Tube Nut, Extra-Light Series
Indus HydraulicsDIN 2353 24° cone, M8×1.0 (4 mm tube) to M14×1.0 (10 mm tube)tube nut
IH-SS-5201L

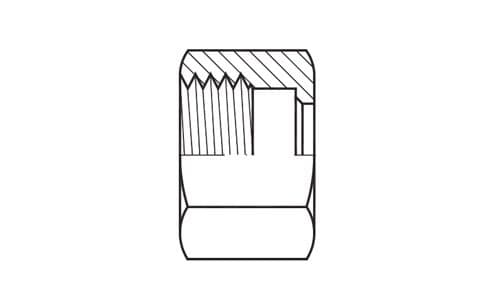

Stainless Steel DIN 2353 Tube Nut, Light Series
Indus Hydraulicstube nut24° cone tube end with a cutting ring and nut that bite into the tube
IH-SS-5096S
Stainless Steel DIN 2353 Union Cross, Heavy Series
Indus Hydraulics24° cone tube end with a cutting ring and nut that bite into the tubeunion cross
IH-SS-5096L

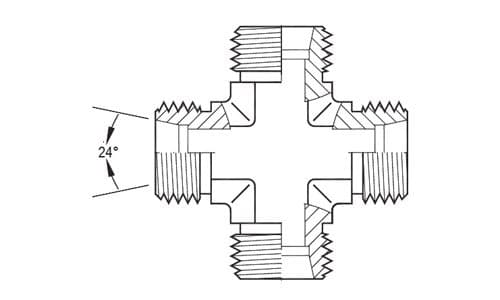

Stainless Steel DIN 2353 Union Cross, Light Series
Indus HydraulicsDIN 2353 24° cone, M12×1.5 (6 mm tube) to M18×1.5 (12 mm tube)24° cone tube end with a cutting ring and nut that bite into the tube
IH-SS-5080S

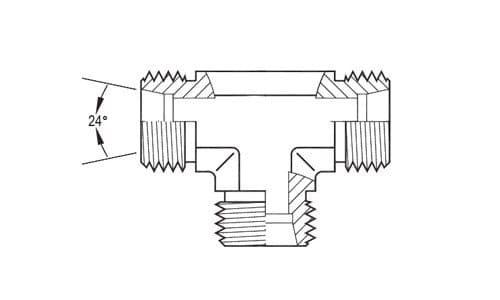

Stainless Steel DIN 2353 Union Tee, Heavy Series
Indus Hydraulics24° cone tube end with a cutting ring and nut that bite into the tubeDIN 2353 24° cone, M14×1.5 (6 mm tube) to M52×2.0 (38 mm tube)
IH-SS-5080LL
Stainless Steel DIN 2353 Union Tee, Extra-Light Series
Indus HydraulicsDIN 2353 24° cone, M8×1.0 (4 mm tube) to M16×1.0 (12 mm tube)union tee
IH-SS-5080L
Stainless Steel DIN 2353 Union Tee, Light Series
Indus Hydraulics24° cone tube end with a cutting ring and nut that bite into the tubeunion tee
IH-SS-5070S
Stainless Steel DIN 2353 × NPT Male 90° Elbow, Heavy Series
Indus Hydraulics90° male elbow24° cone tube end with a cutting ring and nut that bite into the tube

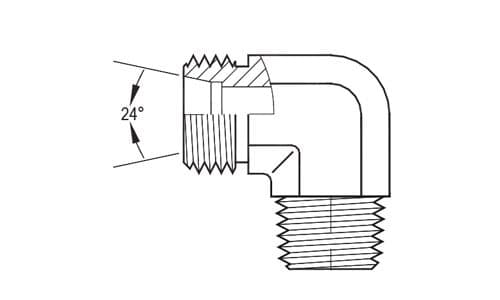

IH-SS-5070LL
Stainless Steel DIN 2353 × NPT Male 90° Elbow, Extra-Light Series
Indus HydraulicsDIN 2353 24° cone, M8×1.0 (4 mm tube) to M16×1.0 (12 mm tube)90° male elbow
IH-SS-5070L
Stainless Steel DIN 2353 × NPT Male 90° Elbow, Light Series
Indus HydraulicsDIN 2353 24° cone, M12×1.5 (6 mm tube) to M45×2.0 (35 mm tube)24° cone tube end with a cutting ring and nut that bite into the tube
IH-SS-5040S

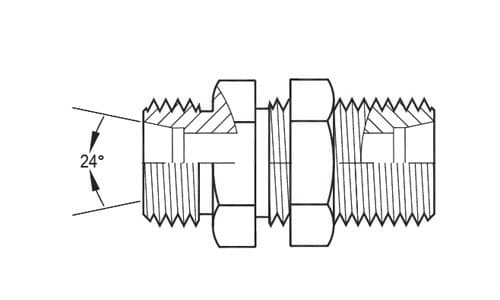

Stainless Steel DIN 2353 Bulkhead Union, Heavy Series
Indus Hydraulics24° cone tube end with a cutting ring and nut that bite into the tubeDIN 2353 24° cone, M14×1.5 (6 mm tube) to M52×2.0 (38 mm tube)
IH-SS-5040L

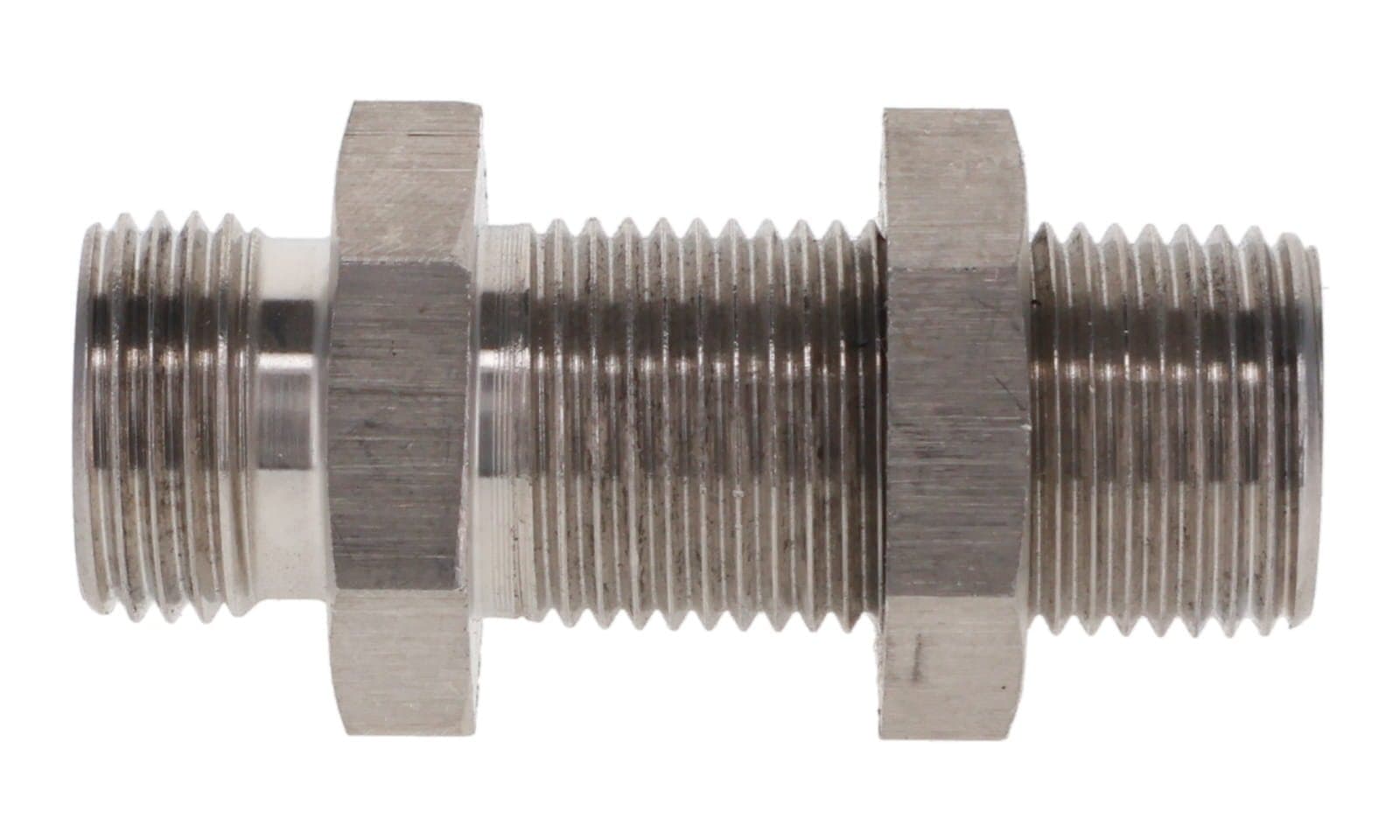

Stainless Steel DIN 2353 Bulkhead Union, Light Series
Indus Hydraulics24° cone tube end with a cutting ring and nut that bite into the tubeDIN 2353 24° cone, M12×1.5 (6 mm tube) to M52×2.0 (42 mm tube)
IH-SS-5007S
Stainless Steel DIN 2353 × NPT Male Connector, Heavy Series
Indus Hydraulicsstraight male connectorDIN 2353 24° cone, M14×1.5 (6 mm tube) to M52×2.0 (38 mm tube)
IH-SS-5007LL

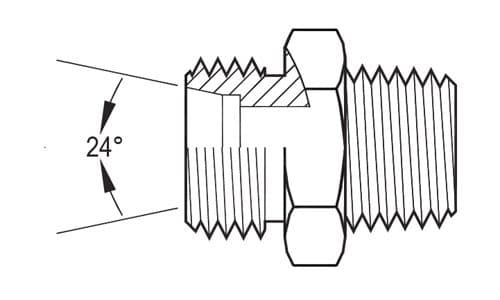

Stainless Steel DIN 2353 × NPT Male Connector, Extra-Light Series
Indus HydraulicsDIN 2353 24° cone, M10×1.0 (6 mm tube) to M10×1.0 (10 mm tube)24° cone tube end with a cutting ring and nut that bite into the tube
IH-SS-5007L
Stainless Steel DIN 2353 × NPT Male Connector, Light Series
Indus HydraulicsDIN 2353 24° cone, M12×1.5 (6 mm tube) to M52×2.0 (42 mm tube)24° cone tube end with a cutting ring and nut that bite into the tube
IH-SS-5000S

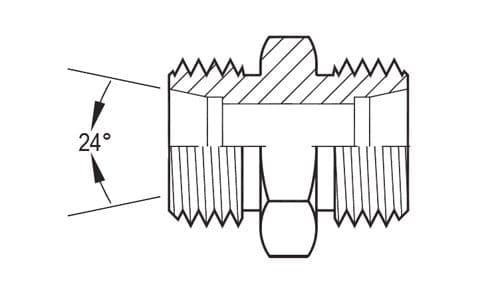

Stainless Steel DIN 2353 Straight Union, Heavy Series
Indus Hydraulicsstraight union24° cone tube end with a cutting ring and nut that bite into the tube
IH-SS-5000LL
Stainless Steel DIN 2353 Straight Union, Extra-Light Series
Indus HydraulicsDIN 2353 24° cone, M8×1.0 (4 mm tube) to M14×1.0 (10 mm tube)24° cone tube end with a cutting ring and nut that bite into the tube
IH-SS-5000L
Stainless Steel DIN 2353 Straight Union, Light Series
Indus HydraulicsDIN 2353 24° cone, M12×1.5 (6 mm tube) to M52×2.0 (42 mm tube)straight union
Questions we get asked
About this range
- 01Are these 316 stainless?
- Most families are 316L stainless steel, forged; each listing states the grade the manufacturer gives. Where a listing says stainless steel without a grade, ask and we will confirm before you order.
- 02Do the listings show dimensions and equivalents?
- Yes, where the manufacturer publishes them. Every size is listed with its end sizes; most also carry millimetre dimensions and the Parker part number the manufacturer cross-references.
- 03What is the extra-light (LL) series for?
- It is the smallest DIN 2353 series, for small-bore tube in low-pressure, lubrication and instrument lines, and it uses its own nuts, rings and bodies. LL parts do not interchange with L or S parts, even where a thread looks close. Order nut, cutting ring and body together in LL and check the tube OD against the listing.
- 04How do I stop a stainless bite-type fitting from galling?
- Lubricate the nut thread and the cutting ring with a suitable assembly lubricant before make-up, and tighten steadily rather than in jerks. Stainless on stainless is prone to galling, which raises the torque and can seize the nut before the ring has bitten. Pre-setting the ring with a hardened pre-assembly tool gives the most reliable bite on stainless tube.
- 05Which stainless tube suits these fittings?
- Seamless annealed stainless tube, such as 316L, with an OD that matches the fitting and a hardness low enough for the cutting ring to bite. Hard or cold-worked tube resists the ring and can leak or pull out. Cut it square, deburr inside and out, and fit a reinforcing insert in thin-wall tube.
- 06What is a soft-seal tube cap?
- It is a cap that closes the end of a tube, sealing with an elastomer seal so it can be fitted without setting a cutting ring. Use it to blank a tube line temporarily for testing or during maintenance. To blank the fitting body instead, use a tube plug of the same series.
