Stainless Steel Flanges & Stub Ends

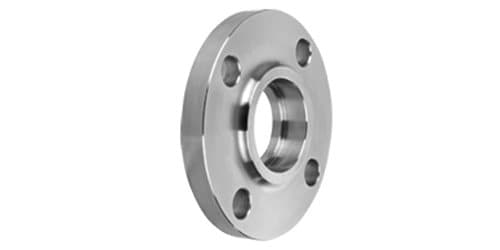

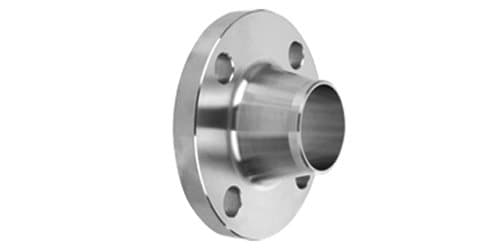

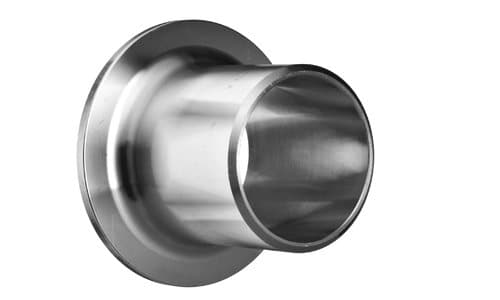

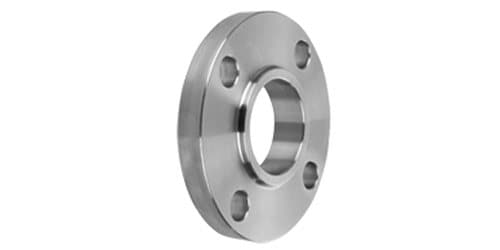

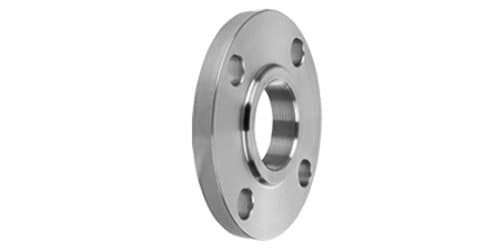

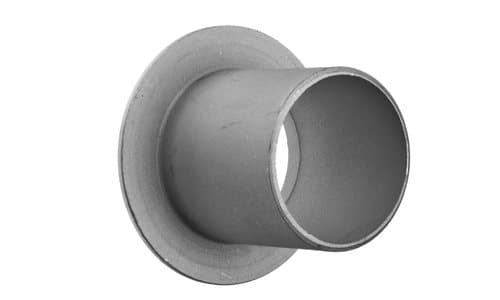

Weld neck for high pressure, temperature or cyclic load; slip-on where alignment speed matters and service is lighter; socket weld and threaded for small bores; lap joint with a stub end where bolt holes must be lined up or the flange need not touch the fluid. Match the class, the schedule of the pipe and the grade.

Flanges are to ASME B16.5 (Class 150 and 300); ratings follow its pressure–temperature tables for Material Group 2.1 (304) and 2.2 (316). Stub ends are to MSS SP-43.

Ex-stock from Dubai, delivered within 3 working days in the UAE.

Hose and fittings are the bulk of what leaves this warehouse, and they travel well: a crated batch of assemblies with its crimp records, or a box of adapters on an airway bill. Buyers outside the UAE usually order to a measured list rather than to a part number, because a hose is defined by its ends, its length and its route rather than by a code. Send those and we will quote against them.
