Gate Valves

44 SKUs6 brands

Showing 1–44 of 44 SKUs

Oteco DM gate valve, green, with T-handle and threaded ends — 5-inch DM range

Oteco DM Gate Valve, 5 in, 5,000 to 7,500 psi

Oteco5 in (end connections)5,000 to 7,500 psi
Inquire
Oteco DM gate valve, green, with T-handle and threaded ends — 4-inch DM range

Oteco DM Gate Valve, 4 in, 3,000 to 7,500 psi

Oteco4 in (end connections)Standard, stainless, sour gas (H2S), cold service
Inquire
Oteco DM gate valve, green, with T-handle and threaded ends — 3-inch DM range

Oteco DM Gate Valve, 3 in, 3,000 to 7,500 psi

OtecoGate valve, DM series (mud and manifold service)3,000 to 7,500 psi
Inquire
Oteco DM gate valve, green, with T-handle and threaded ends — 2-inch DM range

Oteco DM Gate Valve, 2 in, 2,000 to 7,500 psi

OtecoGate valve, DM series (mud and manifold service)Standard, stainless, sour gas (H2S), cold service
Inquire
Oteco Model 72 gate valve with handwheel and flanged body subs, the 5-inch range in this listing

Oteco Model 72 Gate Valve, 5 in, 2,000 to 5,000 psi

OtecoStandard, sour gas (H2S), waterflood (stainless trim)Gate valve, rising stem (mud and manifold service)
Inquire
Oteco Model 72 gate valve with handwheel and flanged body subs, the 4-inch range in this listing

Oteco Model 72 Gate Valve, 4 in, 2,000 to 5,000 psi

OtecoGate valve, rising stem (mud and manifold service)4 in
Inquire
Oteco Model 72 gate valve with handwheel and flanged body subs, the 2-inch range in this listing

Oteco Model 72 Gate Valve, 2 in, 2,000 to 5,000 psi

Oteco2 inStandard, sour gas (H2S), waterflood (stainless trim)
Inquire
Cutaway of a red manual gate valve, 4-1/16 in × 5M flanged, API 6A

Manual Gate Valve, 4-1/16 in × 5M Flanged, 5,000 psi, API 6A PSL 3 PR1, EE

Stream-Flo Industries4-1/16 in API 6A 5M Flanged (RTJ)Gate — Manual
Inquire
Red hydraulic fail-close gate valve with actuator installed on a wellhead

Hydraulic Gate Valve, Fail Close, 4-1/16 in × 5M Flanged, 5,000 psi, API 6A PSL 3 PR2, EE-0.5

Stream-Flo IndustriesGate — Hydraulic4-1/16 in API 6A 5M Flanged (RTJ)
Inquire
Red flanged mud valve with T-bar handle on a top-entry bolted bonnet

Mud Valve, Top Entry, 1-13/16" to 5-1/8", 2,000 to 10,000 psi

Indus Hydraulics2,000 to 10,000 psi working pressureMud valve, top entry
Inquire
Category image · Oilfield Valves
Cutaway of an API 6A slab gate valve showing the slab gate, floating seats and non-rising stem, flanged

API 6A Slab Gate Valve, 1-13/16" to 11", 2,000 to 20,000 psi

Indus HydraulicsHandwheel, gear operator, pneumatic or hydraulic actuatorAPI 6A, NACE MR0175
Inquire
Cutaway of an API 6A expanding gate valve showing the gate and segment, non-rising stem and flanged ends

API 6A Expanding Gate Valve, 3-1/16" to 7-1/16", 2,000 to 5,000 psi

Indus HydraulicsAPI 6A flanged or threadedHandwheel; actuator on request
Inquire
Cutaway of a high-pressure balanced-stem gate valve showing the tail rod below the gate and ball-screw drive

API 6A Balanced-Stem Gate Valve, 10,000 to 25,000 psi

Indus HydraulicsAPI 6A (21st edition)Handwheel with ball-screw drive; actuator on request
Inquire
WOM gate valve, 2-1/16″ 7,500 psi

Gate Valve, 2-1/16″, 7,500 psi

7500 psiGate valve — manual handwheel; hydraulic on request
Inquire

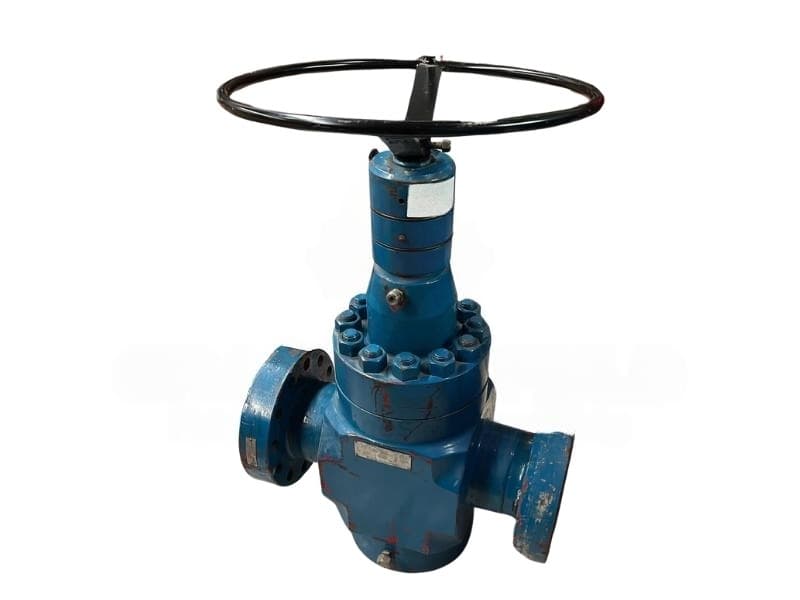

WOM gate valve, 5-1/8″ 10,000 psi

API 6A Gate Valve, 5-1/8″, 10,000 psi

API 6AGate valve — manual handwheel; hydraulic on request
Inquire

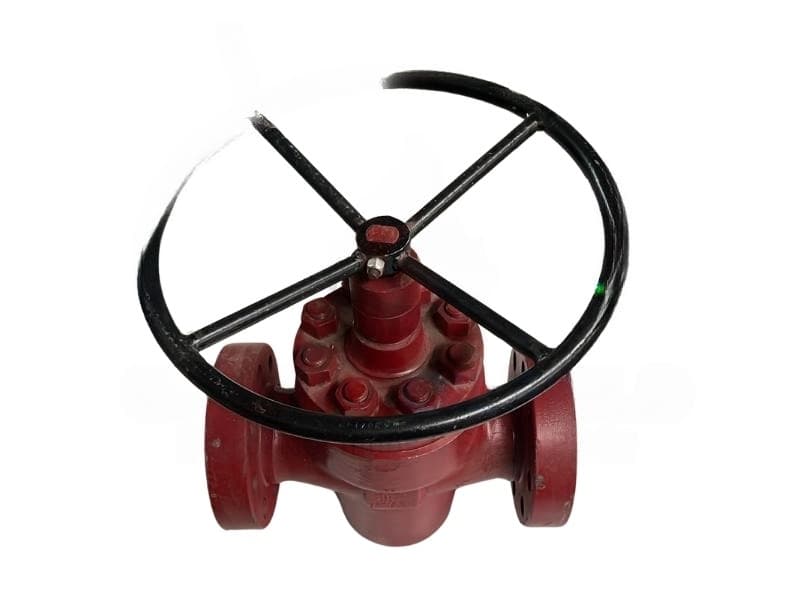

Cameron FL gate valve, 4-1/8″ 5,000 psi

API 6A Gate Valve, 4-1/8″, 5,000 psi

API 6AGate valve — manual handwheel; hydraulic on request
Inquire
T3 FC gate valve, 4-1/16″ 5,000 psi

API 6A Gate Valve, 4-1/16″, 5,000 psi

5KGate valve — manual handwheel; hydraulic on request
Inquire

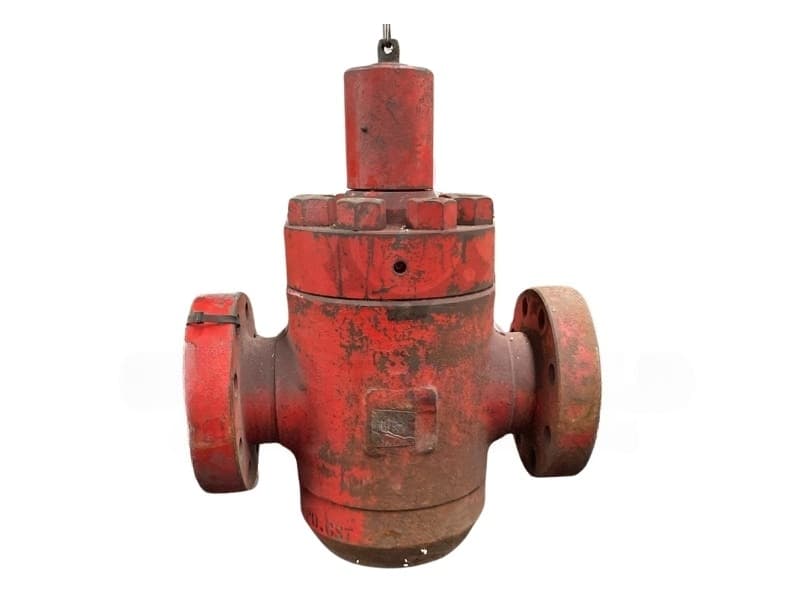

Red API 6A 4-1/16 in gate valve, 15,000 psi, flanged body

API 6A Gate Valve, 4-1/16″, 15,000 psi

API 6AGate valve — manual handwheel; hydraulic on request
Inquire
WOM WM1900 gate valve, 3-1/16″ 15,000 psi

API 6A Gate Valve, 3-1/16″, 15,000 psi

Gate valve — manual handwheel; hydraulic on request3-1/16 in
Inquire

Questions we get asked

About this range

01Slab gate or expanding gate valve — what is the difference?
A slab gate is a single solid gate that floats between two seats and seals when line pressure pushes it against the downstream seat. An expanding gate is a two-piece gate with angled faces that wedge apart at the end of travel, pressing mechanically against both seats, so it seals upstream and downstream even at low pressure. Slab gates are simpler, with fewer parts and a straight-through bore, and are widely used on wellheads and frac trees; expanding gates suit duty where a positive mechanical seal on both sides is wanted.

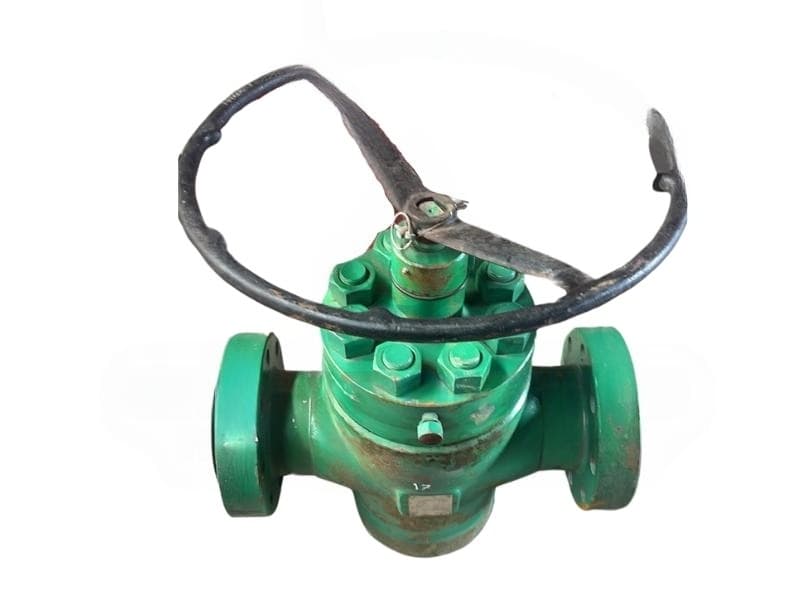

02What does FLS mean on a manual gate valve, and how does a fail-close hydraulic valve differ?

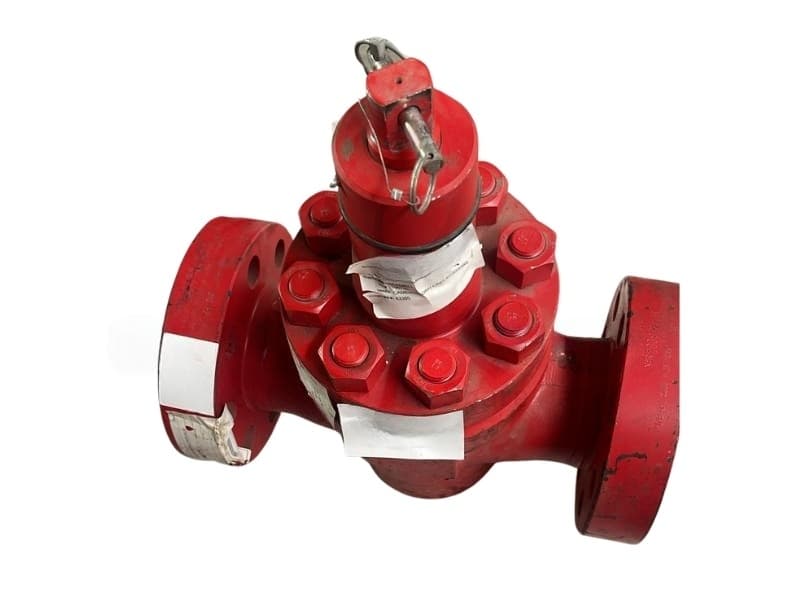

On a Cameron valve, FLS is the name of the valve model, a forged-body slab gate valve, not an operating mode. A manual gate valve stays where its handwheel leaves it. A hydraulic fail-close gate valve has an actuator whose hydraulic pressure holds the gate open against a spring; when the pressure is lost or vented, the spring closes the valve, which is how a surface safety valve shuts a well in. Specify the actuator's control pressure available and whether a manual override or lock-open cap is needed.
03What do PSL 3G and PR2F mean on a gate valve?
PSL 3G is product specification level 3 with an additional gas test: as well as the PSL 3 hydrostatic tests, the assembled valve is tested with gas, which finds leaks that water can miss, so it is specified for gas wells and high-pressure gas service. PR2F means the design has passed performance verification to API 6A Annex F, the PR2 test programme of pressure and temperature cycles and repeated operations under load. Both are design and test levels the buyer specifies; they are stated in each product title.
04Why are there 3-1/8″ and 3-1/16″ gate valves?
They are the same nominal 3″ bore in the two API 6A flange families. 3-1/8″ is the 6B size for 2,000, 3,000 and 5,000 psi, with an R or RX ring; 3-1/16″ is the 6BX size for 10,000 psi and above, with a BX ring. A 3-1/8″ 5,000 psi valve will not bolt to a 3-1/16″ 10,000 psi flange. Give both the bore and the pressure rating when ordering a valve or a replacement, and check the ring number on the existing flanges.

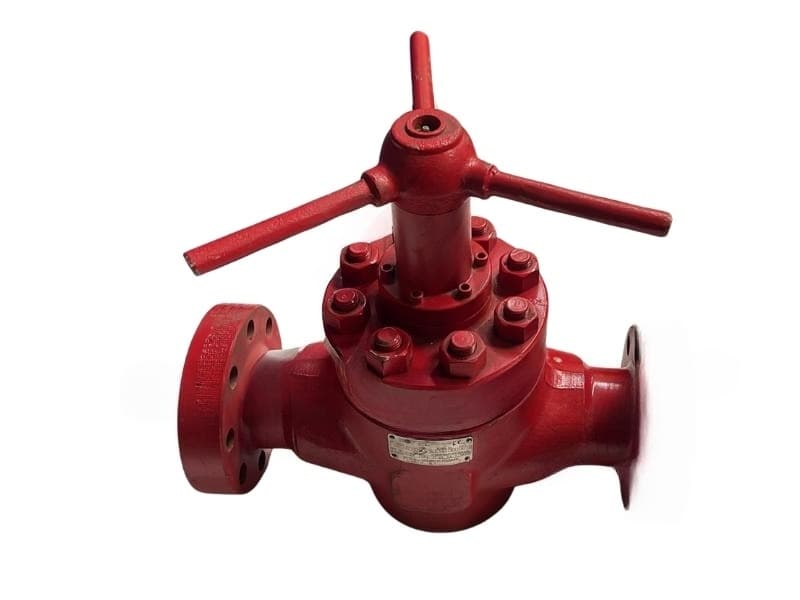

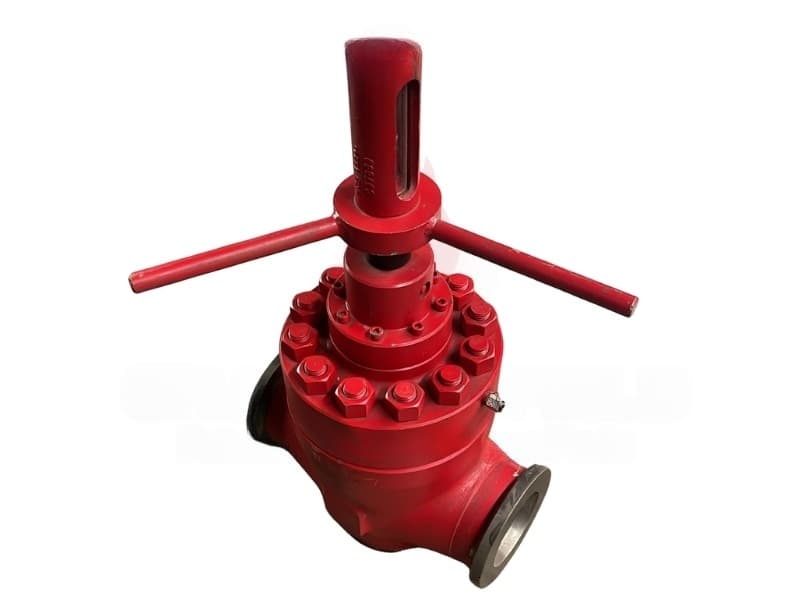

05What is a mud gate valve and how is it different from an API 6A wellhead gate valve?

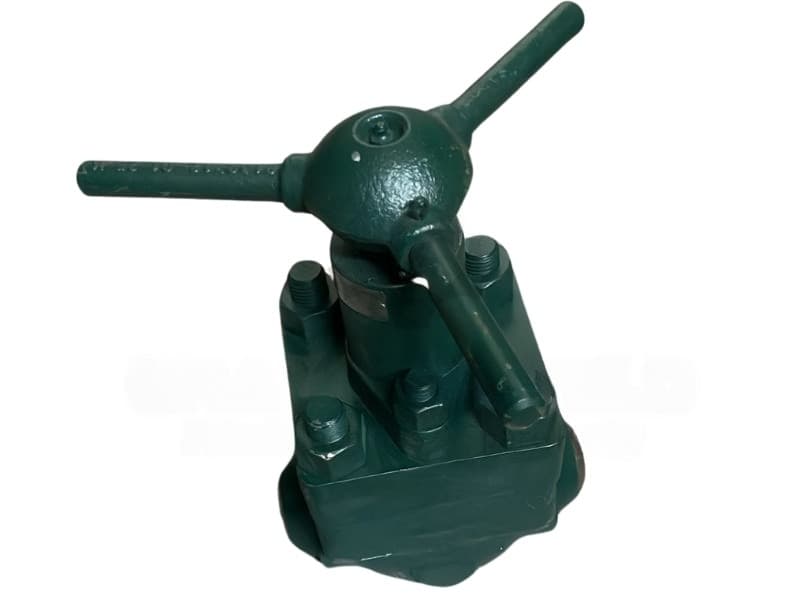

A mud gate valve isolates drilling fluid in a rig's standpipe manifold, mud pump discharge and mud lines. It is built to tolerate abrasive mud and to be serviced on the rig, often with replaceable elastomer-bonded seats, and its 7,500 psi rating is a maker's rating rather than one of the API 6A rated working pressures. Ends are typically butt-weld, threaded or hammer union. Parts are model-specific: DEMCO DM 2000–5000 and DM 7500 valves look alike but share no seats, gates or kits.
06What does HH Inconel 625 cladded mean on a slab gate valve?
HH is the most severe API 6A material class, for wells with high H2S and CO2, and requires corrosion-resistant alloy on all wetted surfaces. Cladding means a weld overlay of Inconel 625 applied to the bore, seal pockets and other wetted areas of a low-alloy-steel body, which gives the corrosion resistance of the alloy without making the whole body from it. The gate, seats and stem are corrosion-resistant alloy too. Use HH where the well's H2S and CO2 partial pressures and chlorides call for it.
