Master Links, Rings & Swivels

36 SKUs

Showing 1–36 of 36 SKUs

Red weldless pear link, forged pear-shaped ring, carbon or alloy steel

Weldless Pear Link — Carbon and Alloy, 3/8–2″

3/8″ to 2″alloy 7,000 to 102,600 lbs; carbon 1,600 to 20,500 lbs
Inquire
Red weldless forged ring, beside its dimension drawing

Weldless Forged Ring — 2,200–22,000 lbs WLL

2,200 to 22,000 lbs3/8″ × 2″ ID to 1-1/2″ × 8″ ID
Inquire
Yellow-chromate twin clevis link with clevis pins, beside its dimension drawing

Twin Clevis Link — 2,600–17,500 lbs WLL

1/4″ to 5/8″2,600 to 17,500 lbs
Inquire

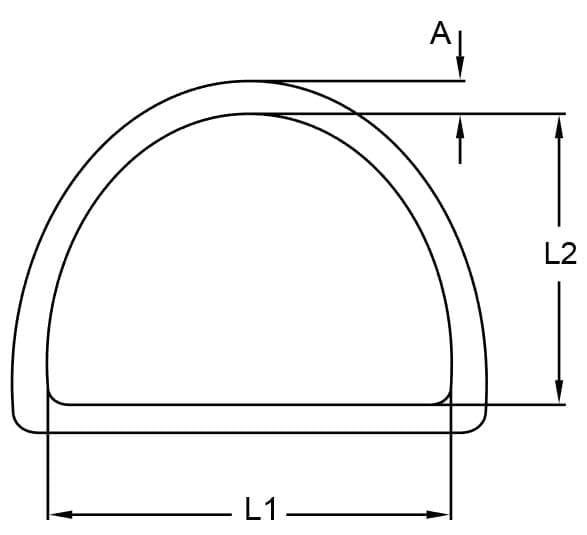

Stainless Steel Welded D Ring — dimension drawing

Stainless Steel Welded D Ring — 3–8 mm

Stainless steel 304/3163 mm to 8 mm
Inquire

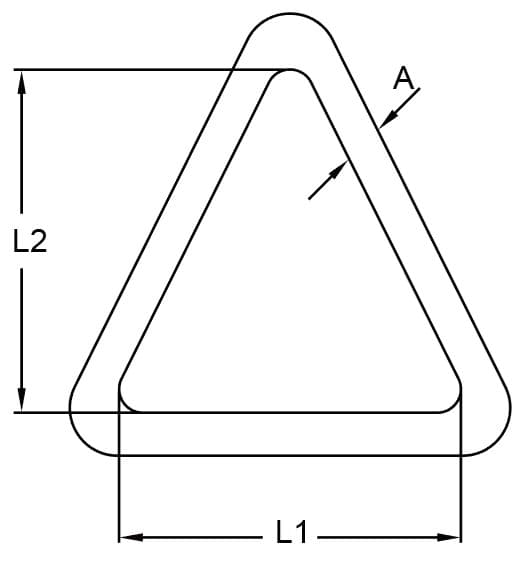

Stainless Steel Triangle Delta Ring — dimension drawing

Stainless Steel Triangle Delta Ring — 3–8 mm

3 mm to 8 mmStainless steel AISI304 or AISI316
Inquire

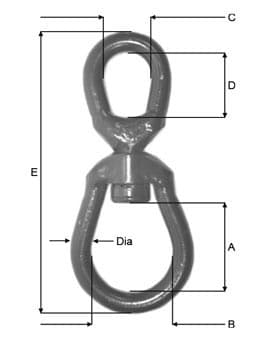

Stainless Steel Swivel — Bow Type — dimension drawing

Stainless Steel Swivel — Bow Type, 1.6–4 t WLL

Stainless steel type 304/3161.6 to 4 t
Inquire

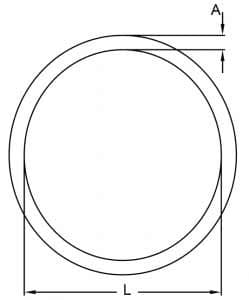

Stainless Steel Round Ring (O Ring) — dimension drawing

Stainless Steel Round Ring (O Ring) — 3–6 mm

PolishedStainless steel type 304 / 316
Inquire

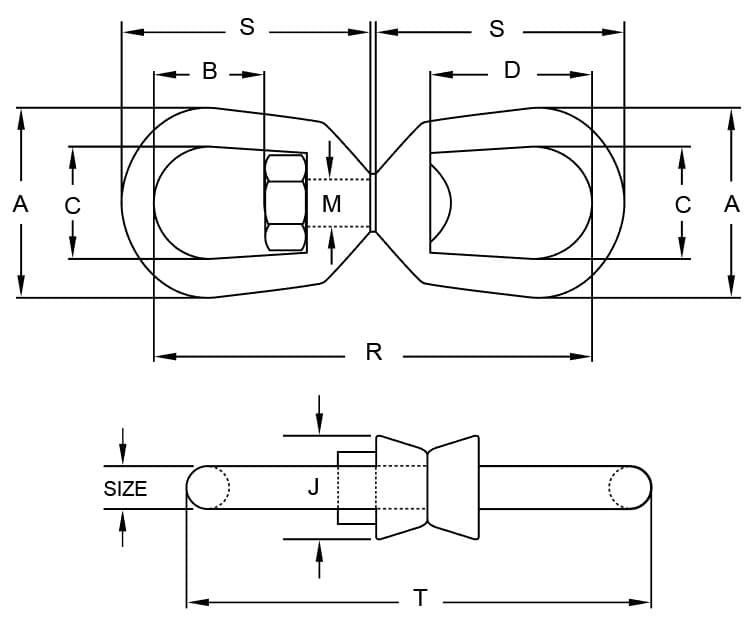

Stainless Steel Regular Swivel — G-402 Pattern — dimension drawing

Stainless Steel Regular Swivel — G-402 Pattern, 850–45,200 lbs WLL

850 to 45,200 lbsStainless steel 304 or 316 G-402 regular swivel
Inquire
Stainless Steel Jaw End Swivel — G-403 Pattern — dimension drawing

Stainless Steel Jaw End Swivel — G-403 Pattern, 850–45,200 lbs WLL

Stainless steel 304 or 316 G-403 chain swivel850 to 45,200 lbs
Inquire
Stainless Steel Chain Swivel — G-401 Pattern — dimension drawing

Stainless Steel Chain Swivel — G-401 Pattern, 850–7,200 lbs WLL

PolishedStainless steel 304 or 316 G-401 chain swivel
Inquire
Cast galvanized cleat (jaw end swivel listing)

Jaw End Swivel — 850–45,200 lbs WLL

850 to 45,200 lbs1/4″ to 1-1/2″
Inquire

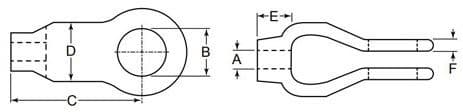

Blank Clevis End Fitting — dimension drawing

Blank Clevis End Fitting — 2–3″

2″ to 3″Self coloured,hot-dip galvanized
Inquire

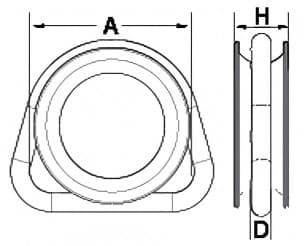

Stainless Steel D Ring Thimble — dimension drawing, standard

Stainless Steel D Ring Thimble

Stainless steel 304/316Polished
Inquire

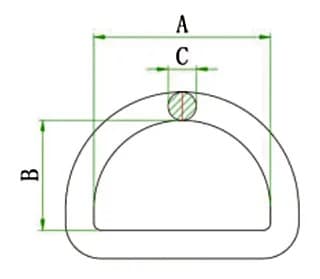

Stainless Steel D Ring — dimension drawing

Stainless Steel D Ring

Type 304 or 316 stainless steelPolished
Inquire
Zinc-plated repair link, open hooked link for joining chain

Repair Link — Zinc Plated

1/8″ × 3/4″ to 1/2″ × 2-1/2″Zinc plated
Inquire

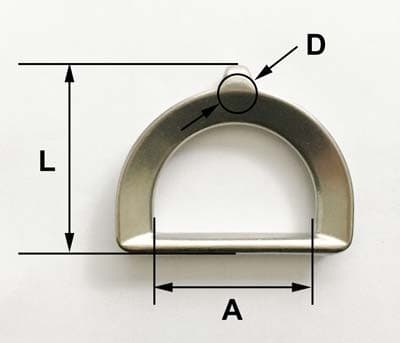

Stainless Steel Ezi Hold Dee Ring — dimension drawing, cast

Stainless Steel Ezi Hold Dee Ring

Stainless steel 304/316Polished
Inquire

Questions we get asked

About this range

01Can a swivel rotate under load?

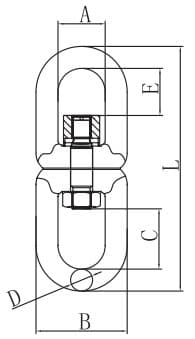

A standard chain swivel lets the rigging untwist but is not designed to rotate while carrying its full load. Use it to prevent twisting, not as a rotating bearing. A bearing swivel, such as the Grade 80 roller-bearing swivel on this shelf, is made to turn under load within its rated capacity.
02Do the parts come with test certificates?
Yes. Each consignment ships with the manufacturer's test certificate. If your site needs more — third-party certification or witnessed proof testing — say so on the RFQ and we will confirm what we can arrange.
03How big a master link do I need for my crane hook?
One whose inside dimensions let it sit freely in the hook's bowl, and whose WLL covers the total load of every leg at the sling angle. A link that is rated high enough but too small will ride on the hook's tip or bind against its sides, and that loads both parts in a way neither is rated for. Check the hook's bowl dimensions against the link's inside length and width in the size table before ordering.
04Master link, ring or pear link — which should I use?
Use a master link to hang a sling on a crane hook — its oblong shape seats in the hook bowl. Use a ring where pulls come from several directions at once, such as a rigging junction, since its round shape spreads the load. Use a pear link where several legs gather at the wide end and the narrow end goes on a hook. Each shape has its own rating for the same bar diameter, so compare WLLs, not sizes.
05What is a master link assembly for a three- or four-leg sling?
It is a master link with two intermediate links fitted below it, so that three or four legs hang from two smaller links rather than crowding one. This keeps each leg's connecting link seated correctly and stops the legs bearing on each other. EN 1677-4 covers these sub-assemblies for Grade 8 slings. The assembly is rated as a unit; do not substitute a single oversized link.
06Are cold shut and repair links safe for lifting?
No. Cold shut links and repair (lap) links are closed by hammering or bolting and are made for chain repair, fencing and general duty. They have no lifting rating unless the maker publishes one, and on this shelf they are zinc-plated general-duty parts. To join or repair lifting chain, use a grade-matched connecting link made for that chain.
