Japanese JIS 30° Adapters

JIS 30° flare adapters in zinc-plated carbon steel, for joining Japanese-built machinery to JIC, ORFS, ORB and BSP lines.

13 SKUs1 brands

JIS 30° or BSP

A JIS 30° fitting has a BSP parallel thread with a 30° flare seat, so it threads onto a BSPP part but seals on the flare. Check the seat angle before ordering: a 30° seat does not seal against a 37° JIC or a 60° BSP cone.

Thread and seat

The JIS 30° connection uses BSP parallel threads (ISO 228-1). The adapters' other ends follow SAE J514 (JIC), SAE J1453 (ORFS) and SAE J1926 (ORB).

Size range

64orderable sizes
13listings with a size table

Every size above is a part number you can quote from. Open any listing for its full table.

Delivery

Japanese JIS 30° Adapters across the Gulf

Ex-stock from Dubai, delivered within 3 working days in the UAE.

Hose and fittings are the bulk of what leaves this warehouse, and they travel well: a crated batch of assemblies with its crimp records, or a box of adapters on an airway bill. Buyers outside the UAE usually order to a measured list rather than to a part number, because a hose is defined by its ends, its length and its route rather than by a code. Send those and we will quote against them.

Saudi ArabiaTypically 3 working days from dispatchOmanTypically 3 working days from dispatchQatarTypically 3 working days from dispatchBahrainTypically 3 working days from dispatchKuwaitTypically 3 working days from dispatch

Beyond the Gulf

North Africa
Egypt, Mauritania, Morocco
West & Central Africa
Nigeria, Chad, Gabon

See every export destination

Showing 1–13 of 13 SKUs

Sort
LatestA–ZZ–A
Line drawing of the steel 30° sealing seat, BSPP male to JIS 30° converter
IH-ST-9999

Steel 30° Sealing Seat, BSPP Male to JIS 30° Converter

Indus HydraulicsBSPP, 1/4" to 1-1/2" (G1/4-19 to G1-1/2-11)BSP parallel thread, sealed by a bonded seal, O-ring or cone seat rather than on the thread
Steel JIC 37° male × JIS 30° male adapter, zinc-plated steel, side view
IH-ST-9337

Steel JIC 37° Male × JIS 30° Male Adapter

Indus Hydraulics37° JIC, 1/4" to 3/4" (7/16-20 to 1-1/16-12)straight adapter
Line drawing of the steel JIS 30° male × JIS 30° female swivel 90° elbow
IH-ST-9292

Steel JIS 30° Male × JIS 30° Female Swivel 90° Elbow

Indus HydraulicsJIS 30° flare, 1/4" to 3/4" (G1/4-19 to G3/4-14)30° flare: the male flare seals metal to metal in the female 30° seat; the thread is BSP parallel
Steel JIS 30° male × JIS 30° female swivel run tee, zinc-plated steel, top view
IH-ST-9291

Steel JIS 30° Male × JIS 30° Female Swivel Run Tee

Indus Hydraulics30° flare: the male flare seals metal to metal in the female 30° seat; the thread is BSP parallelrun tee

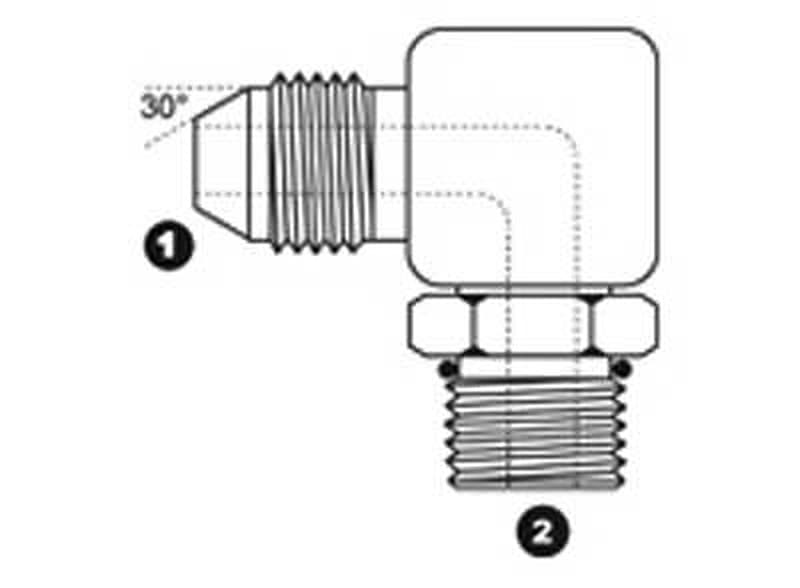

Line drawing of the steel JIS 30° male × ORB adjustable 90° elbow
IH-ST-9278

Steel JIS 30° Male × ORB Adjustable 90° Elbow

Indus HydraulicsJIS 30° flare, 1/4" to 1/2" (G1/4-19 to G1/2-14)30° flare: the male flare seals metal to metal in the female 30° seat; the thread is BSP parallel

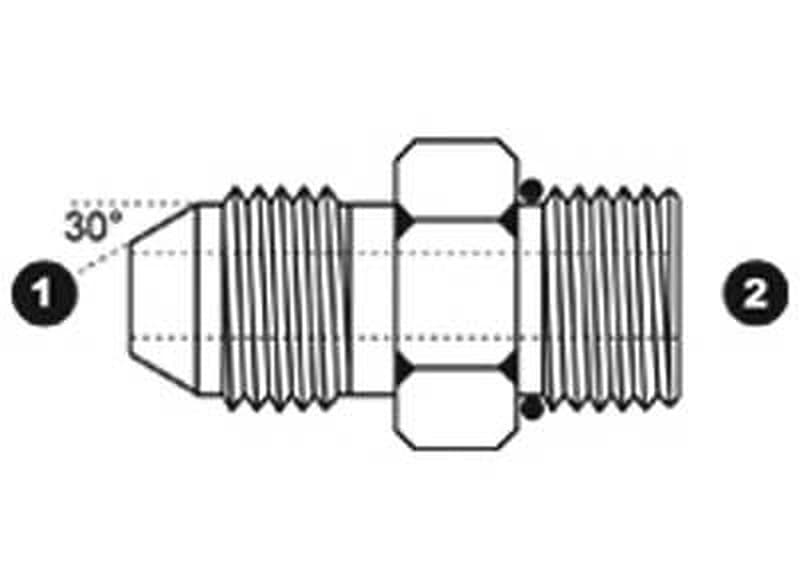

Line drawing of the steel JIS 30° male × ORB male adapter
IH-ST-9277

Steel JIS 30° Male × ORB Male Adapter

Indus Hydraulics30° flare: the male flare seals metal to metal in the female 30° seat; the thread is BSP parallelstraight adapter

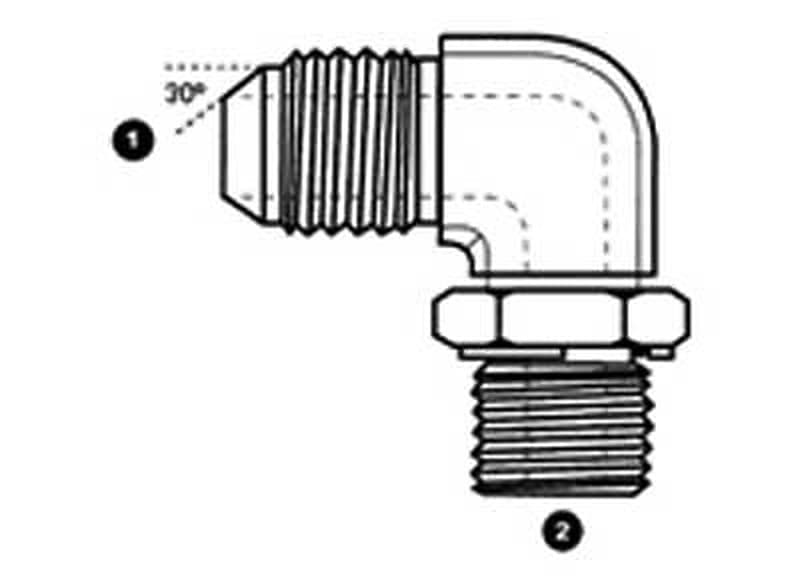

Line drawing of the steel JIS 30° male × BSPP adjustable 90° elbow
IH-ST-9259

Steel JIS 30° Male × BSPP Adjustable 90° Elbow

Indus HydraulicsJIS 30° flare, 3/8" to 1/2" (G3/8-19 to G1/2-14)30° flare: the male flare seals metal to metal in the female 30° seat; the thread is BSP parallel
Steel JIC 37° female × JIS 30° female adapter, zinc-plated steel, side view
IH-ST-9226

Steel JIC 37° Female × JIS 30° Female Adapter

Indus Hydraulics37° flare, a metal-to-metal seat on a 74° included conestraight adapter

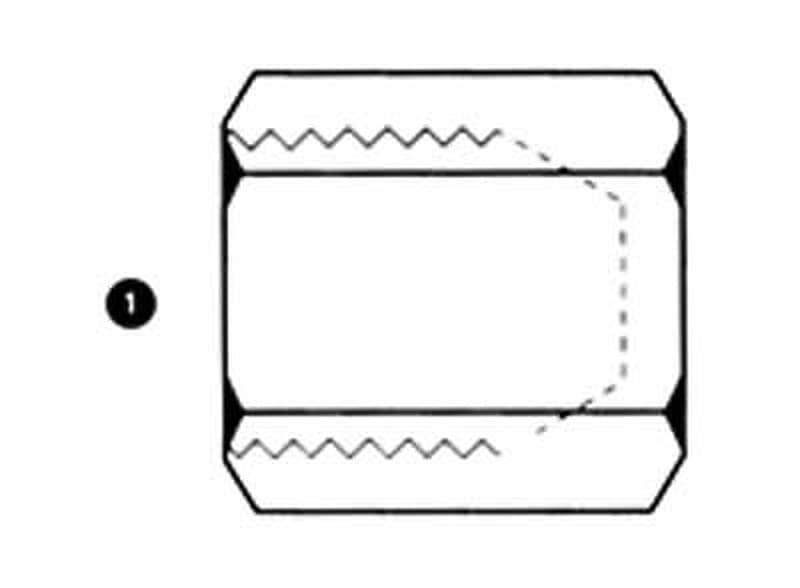

Line drawing of the steel JIS 30° female cap
IH-ST-9222

Steel JIS 30° Female Cap

Indus Hydraulics30° flare: the male flare seals metal to metal in the female 30° seat; the thread is BSP parallelcap

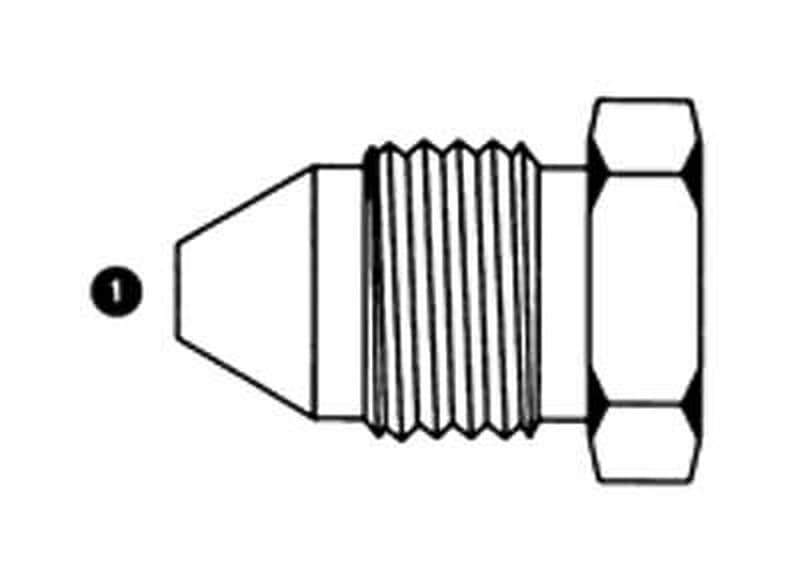

Line drawing of the steel JIS 30° hex head plug
IH-ST-9221

Steel JIS 30° Hex Head Plug

Indus Hydraulics30° flare: the male flare seals metal to metal in the female 30° seat; the thread is BSP parallelJIS 30° flare, 1/8" to 2" (G1/8-28 to G2-11)
Steel JIC 37° male × JIS 30° female adapter, zinc-plated steel, side view
IH-ST-9220

Steel JIC 37° Male × JIS 30° Female Adapter

Indus Hydraulicsstraight adapter37° JIC, 1/4" to 2" (7/16-20 to 2-1/2-12)
Line drawing of the steel ORFS male × JIS 30° male adapter
IH-ST-6337

Steel ORFS Male × JIS 30° Male Adapter

Indus Hydraulicsflat face sealed by an O-ring in a groove on the male faceO-ring face seal (ORFS), 1/4" to 1/2" (9/16-18 to 13/16-16)
Line drawing of the steel ORFS male × JIS 30° female adapter
IH-ST-6220

Steel ORFS Male × JIS 30° Female Adapter

Indus HydraulicsO-ring face seal (ORFS), 1/4" to 3/4" (9/16-18 to 1-3/16-12)straight adapter

Questions we get asked

About this range

01Do the listings show part numbers and sizes?
Yes: every size has its own Indus part number, with the size and thread on each end; many also carry millimetre dimensions and the Parker equivalent the manufacturer cross-references.
02Do you have Komatsu adapters?
One: a Komatsu M16×1.5 male to BSPT male adapter, listed under BSP adapters.
