Metallic Hoses
Metallic hose is corrugated metal tubing, usually stainless steel or a nickel alloy, with a wire braid that carries the pressure, used where heat, cold, fire, gas permeation or aggressive chemicals rule out rubber and plastic hose. On this page Indus supplies from Dubai annular and helical stainless hose, Inconel 625, Hastelloy C276, Monel 400 and bronze hose, high-pressure, cryogenic, oxygen, chlorine, steam-jacketed and heated assemblies, fire jackets, hose guards and couplings, from Thorburn Flex, Senior Flexonics, Hose Master, Witzenmann and Dixon.
Metal hose for what rubber cannot take
Corrugated metal hose is chosen where temperature, permeation, fire or the medium rules out rubber and thermoplastic: steam, hot oil, cryogenic liquids, industrial gases and aggressive chemicals. Annular corrugated hose suits most process duties, and a stainless braid over it carries the pressure.
Specify the medium, pressure, temperature, bore, length and end connections, and whether the hose moves in service. Movement matters as much as pressure: metal hose lasts when it flexes in one plane and fails early when it is twisted.
ISO 10380 and the material certificates
Corrugated metal hose and hose assemblies are built to ISO 10380, with EN 10204 material certificates available. Listings offered for sour service state NACE MR0175 / ISO 15156 compliance where it applies.
Delivery
Metallic Hoses across the Gulf
Ex-stock from Dubai, delivered within 3 working days in the UAE.
Industrial hose and the couplings that go on it are usually bought together, and both ship the same way: bulk lengths on the reel, made-up suction and delivery assemblies crated with their couplings already fitted, and loose couplings boxed. Where the duty is food-grade, chemical or steam the certificate is a large part of what is being purchased, so that documentation is prepared before dispatch rather than chased afterwards.
Beyond the Gulf
- North Africa
- Egypt, Mauritania, Morocco
- Western & Northern Europe
- the United Kingdom, Italy, Spain

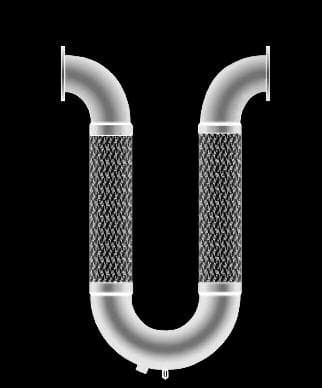

Thorburn Thor-Loop Series VL "V-Loop" Flexible Pipe Loop

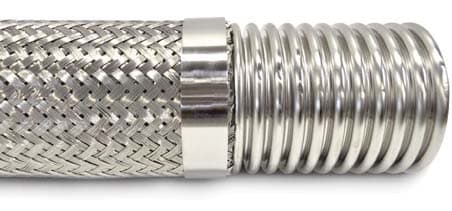

Thorburn S93Z — Type 316L SS Annular, Double Braid (316L SS — Premium)

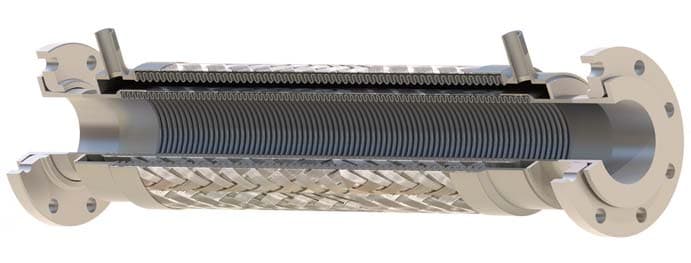

Thorburn TSJ Steam-Jacketed Hose, 3 in — Molten Service
Thorburn IS96 — Inconel 625 Annular with SS304 Single Braid

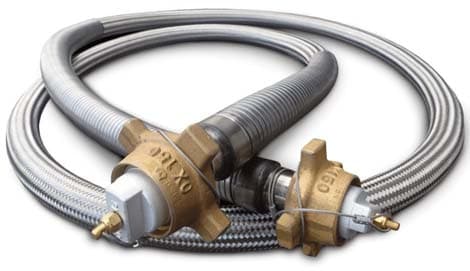

Thorburn Cryogenic LNG Unloading Hose
Thorburn S93 — Type 316L SS Annular, Single Braid (316L SS — Premium)
Thorburn T52 Non-Valved Cryogenic Coupling — Vapor Return
Thorburn M96ZC Monel Chlorine Transfer Hose — Rail-Loading
Hose Master CGA96 Industrial Argon / Nitrogen Service Hose
Thorburn Thor-Loop Series UL "U-Loop" Flexible Pipe Loop
Senior Flexonics Steam-Jacketed Chemical Process Hose

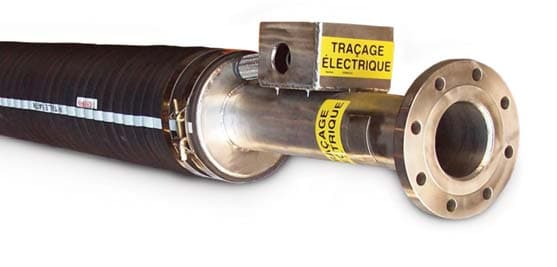

Thorburn Sure-Temp Hazardous-Area Electrically-Heated Hose, 2 in (Ex-rated)
Thorburn CGA96 Industrial Oxygen Service Hose
Senior Flexonics Cryogenic LNG Marine Transfer Hose
Thorburn TSJ Steam-Jacketed Hose, 2 in — Asphalt / Pitch Service
Thorburn Cryogenic Liquid Oxygen (LOX) Transfer Hose

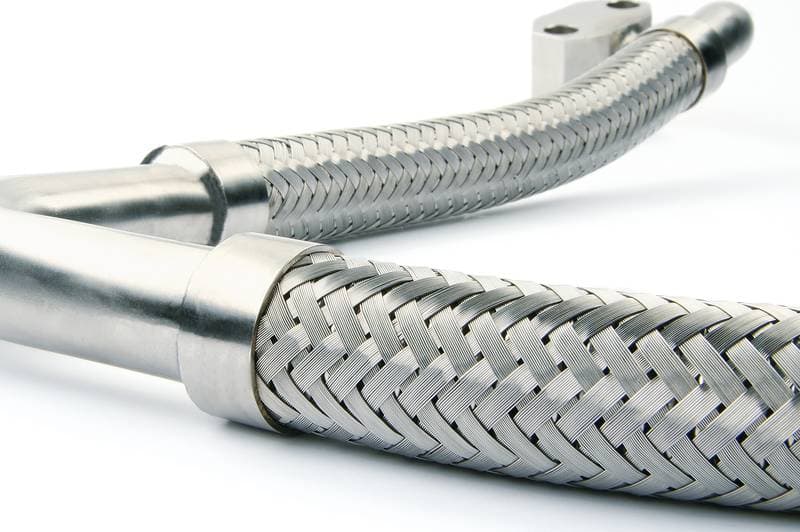

Senior Flexonics Bartlett Fire-Safe Hose Assembly
Thorburn S99Z — HP Fully Compressed Annular, Type 316L SS, Nuclear CRN-Rated

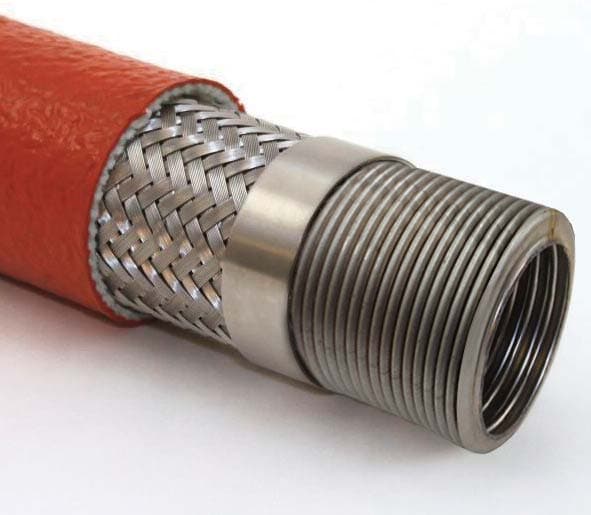

Thorburn S99Z — HP Fully Compressed Annular, Type 321 SS, Nuclear CRN-Rated
Senior Flexonics Pathway HP Annular Hose
Thorburn B96Z — Bronze Annular, Double Bronze Braid
Thorburn S98Z — Ultra HP Fully Compressed Annular, Type 321 SS
Thorburn S69 — Closed-Pitch Omega Annular, Type 321 SS

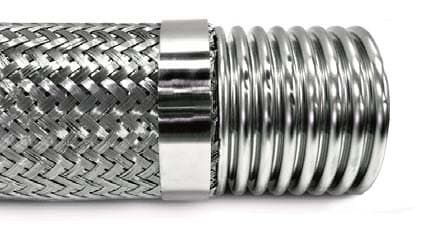

Thorburn M96Z — Monel 400 Annular, Double Monel Braid
Thorburn M95 — Monel 400 Annular, Unbraided Inner Core
Hose Master Monel 400 Annular Hose (Annuflex Series)

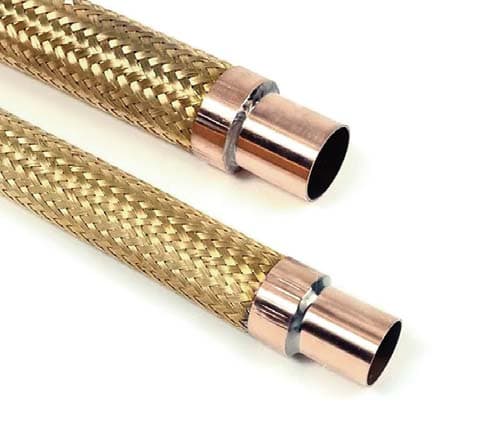

Thorburn B95 — Bronze Annular, Unbraided Inner Core

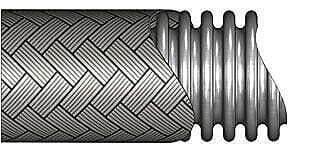

Thorburn HS96 — Hastelloy C276 Annular with SS304 Single Braid
Thorburn H96 — Hastelloy C276 Annular, Single Hastelloy Braid
Hose Master Hastelloy C276 Annular Hose (Annuflex Series)

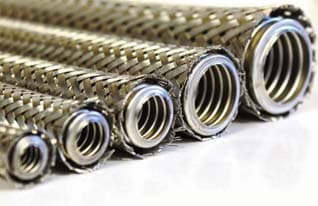

Thorburn H96Z — Hastelloy C276 Annular, Double Hastelloy Braid
Thorburn H95 — Hastelloy C276 Annular, Unbraided Inner Core

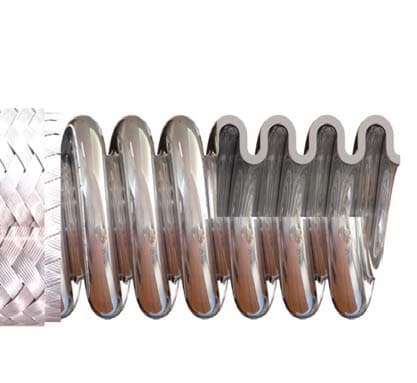

Thorburn S65 — Extra Flex Helical, Type 321 SS with 304 SS Braid

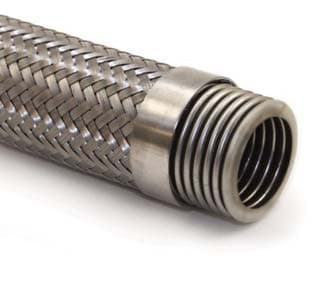

Thorburn S81 — High Pressure 316L SS Annular, Double Braid
Thorburn S96Z — Type 321 SS Annular, Double Braid (304 SS)
Thorburn IS95 — Inconel 625 Annular with SS304 Outer Braid
Thorburn S95 — Type 321 SS Annular, Unbraided Inner Core
Thorburn S92 — Type 316L SS Annular, Single Braid (304 SS)

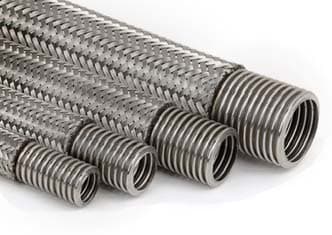

Thorburn I96Z — Inconel 625 Annular, Double Inconel Braid

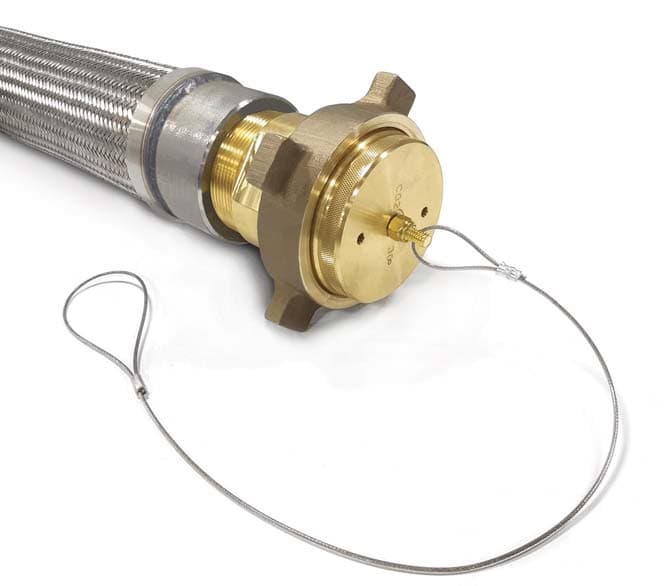

Thorburn Cryogenic CO₂ Connector — Process Plant
Witzenmann Cryogenic Liquid Argon (LAR) Transfer Hose
Thorburn Sure-Temp Electrically-Heated Metallic Hose, 1 in

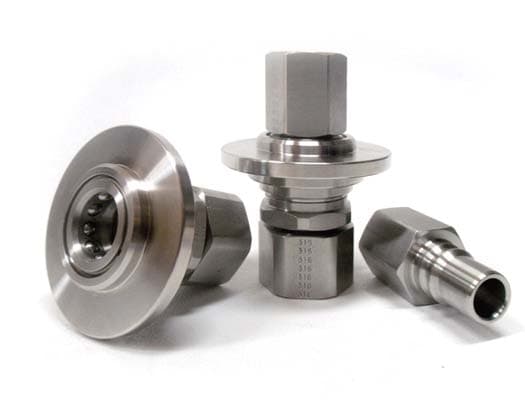

Thorburn T52 Non-Valved Cryogenic Coupling — Liquid Phase
Questions we get asked
About this range
- 01Why do metal hoses fail early?
- Usually from torsion, or from flexing in more than one plane. Install a metal hose without twist, flex it in a single plane and keep it within its minimum bend radius. A hose twisted during installation, or asked to absorb movement in two directions, fatigues far faster than its pressure rating suggests.
- 02Do you supply PTFE hose as well?

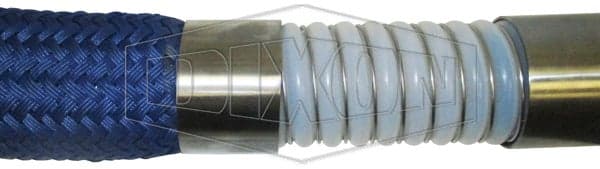

- Yes — smoothbore and convoluted PTFE hose with stainless or polypropylene braid, for chemical transfer and high temperatures where a metal hose is not needed.
- 03What end connections are available?

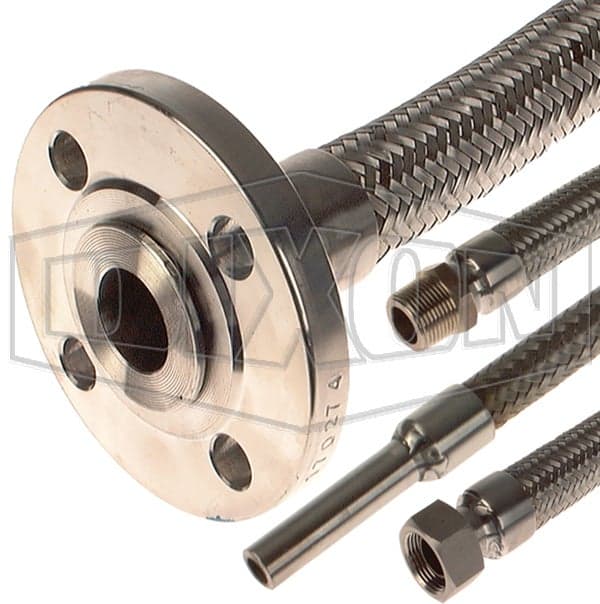

- Flanges, threaded ends and couplings fitted to suit the line, including ANSI Class 150 flanged assemblies. Tell us the mating connection and we will confirm the build.
- 04Does a metal hose keep its pressure rating at high temperature?
- No. Published working pressures for metal hose are given at room temperature and fall as the temperature rises, because the strength of the braid, the corrugated tube and the end attachment all drop with heat. Each maker publishes temperature correction factors for its alloys and for how the ends are attached, welded, brazed or crimped. Multiply the rated pressure by the factor for your operating temperature and check the result still exceeds the line pressure, including surges. Send us the medium, pressure and temperature and we size the hose to them.
- 05What is the difference between static and dynamic bend radius on a metal hose?
- The static bend radius is the tightest bend for a hose that is bent once at installation and then stays put; the dynamic bend radius is the larger radius allowed for a hose that flexes repeatedly in service. Bending tighter than the dynamic radius on a moving hose concentrates strain in the corrugations and shortens its life sharply. Both figures depend on the bore, corrugation profile and braid, so take them from the listing for the hose you choose.
- 06Can a braided metal hose absorb axial expansion in a pipe run?
- Not directly. The braid locks the hose length, so a braided hose installed in line with the pipe cannot stretch or compress to take up thermal growth; it can only absorb movement at right angles to its axis or angular movement. To take axial expansion, install the hose in an offset or a loop, so pipe movement becomes a bend in the hose, or use an expansion joint. Pipe loops built for this purpose are on this shelf.
