Chain & Chain Fittings

135 SKUs

Showing 1–48 of 135 SKUs

Wear-Resistant Round Link Conveyor Chain — dimension drawing

Wear-Resistant Round Link Conveyor Chain — DIN 22252

Alloy steel; three heat-treatment options14 × 50 mm to 42 × 146 mm
Inquire
Stainless Steel Split Connecting Link — dimension drawing

Stainless Steel Split Connecting Link — 5–12 mm

Type 304 or 316 stainless steel5 mm to 12 mm
Inquire
Stainless Steel Lifting Chain — dimension drawing

Stainless Steel Lifting Chain — 3/16–1/2″

Type 304 or type 316 stainless steel3/16″ to 1/2″
Inquire
Stainless Steel Hammerlock — US Type — dimension drawing

Stainless Steel Hammerlock — US Type, 3,500–72,300 lbs WLL

Stainless steel type 304 or 316 connecting linkPolished
Inquire
Heap of polished stainless steel DIN 766 short link chain

Stainless Steel DIN 766 Short Link Chain — 2–32 mm

Polished / electrophoretic coating2 mm to 32 mm
Inquire
Coil of stainless steel DIN 766 calibrated chain with shackles on each end

Stainless Steel DIN 766 Calibrated Chain — 5–13 mm

Stainless steel (AISI 304 / AISI 316)Polished / electrophoretic coating
Inquire
Stainless steel DIN 764 medium link chain, close-up of polished links

Stainless Steel DIN 764 Medium Link Chain — 4–20 mm

Stainless steel AISI304 or AISI3164 mm to 20 mm
Inquire
Category image · Lifting & Rigging
Category image · Lifting & Rigging

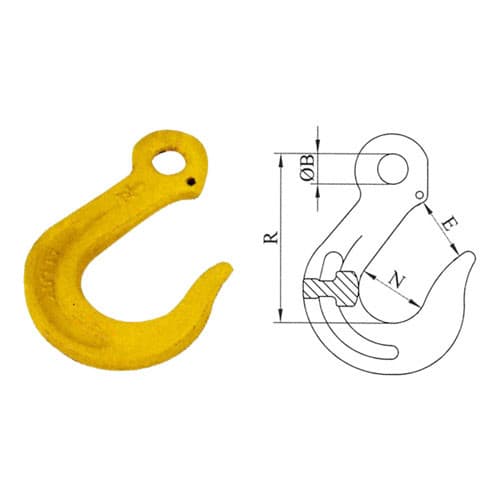

Yellow Grade 80 eye sling hook, beside its dimension drawing

Grade 80 Eye Sling Hook — 3,500–18,100 lbs WLL

Alloy steel (Grade 80)1/4″ to 5/8″
Inquire

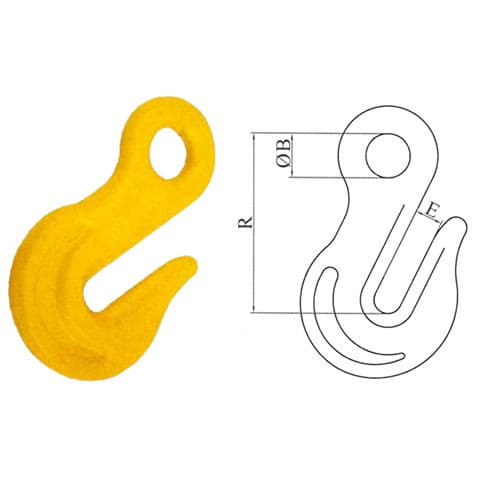

Yellow Grade 80 eye grab hook, narrow chain throat, beside its dimension drawing

Grade 80 Eye Grab Hook — 3,500–34,200 lbs WLL

Alloy steel (Grade 80)3,500 to 34,200 lbs
Inquire

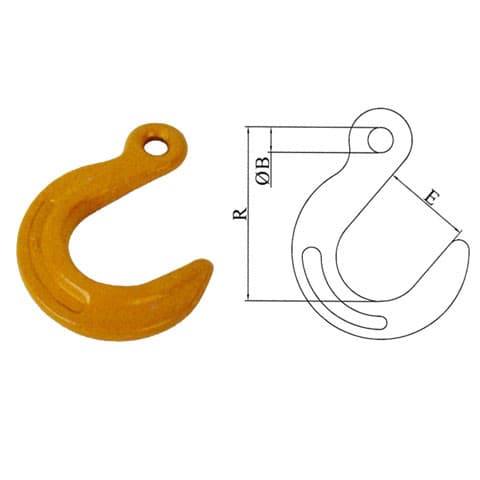

Yellow Grade 80 eye foundry hook, wide open throat, beside its dimension drawing

Grade 80 Eye Foundry Hook — 1.12–15 t WLL

Alloy steel (Grade 80)9/32″ (1/4″) to 22 mm
Inquire
Grade 80 Eye Bend Hook — dimension drawing

Grade 80 Eye Bend Hook — 5/16–1/2″

Powder coated / hot dip galvanized / galvanized5/16″ to 1/2″
Inquire

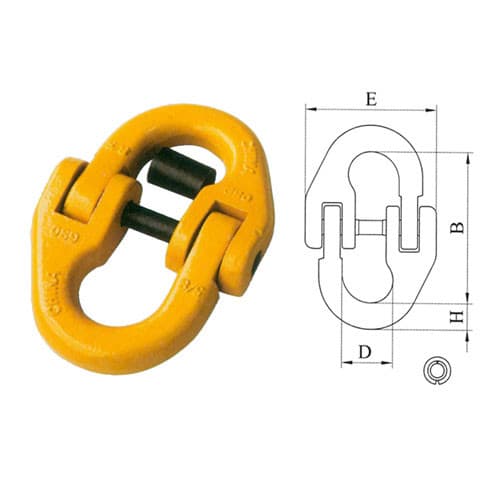

Yellow Grade 80 US-type connecting link (Hammerlok style), beside its drawing

Grade 80 Connecting Link — US Type, 3,500–72,300 lbs WLL

7 mm (9/32″ (1/4″)) to 32 mm (1-1/4″)3,500 to 72,300 lbs
Inquire

Questions we get asked

About this range

01Can Grade 30, 43 or 70 chain be used for lifting?

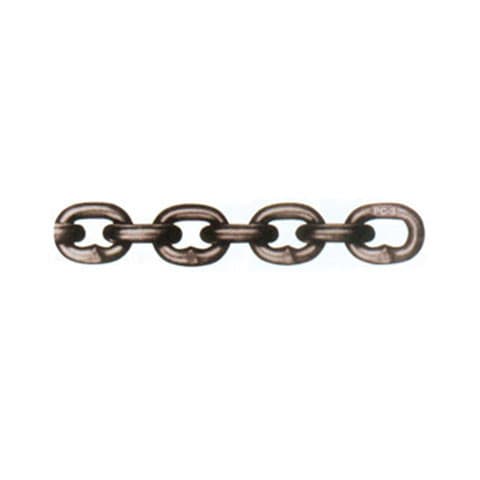

No. Proof coil (Grade 30), high test (Grade 43) and transport (Grade 70) chain are made for tie-down, towing and general duty. Overhead lifting with chain calls for alloy chain — Grade 80 or Grade 100 — with fittings of the same grade.
02Can I mix Grade 80 chain with Grade 100 fittings?
A chain sling is rated by its weakest component, so a mixed assembly takes the lower grade's rating. Match the fittings to the chain grade and size.
03Do the parts come with test certificates?
Yes. Each consignment ships with the manufacturer's test certificate. If your site needs more — third-party certification or witnessed proof testing — say so on the RFQ and we will confirm what we can arrange.
04What is the difference between EN 818-2 and EN 818-7 chain?
EN 818-2 is medium-tolerance Grade 8 chain for chain slings, and EN 818-7 is fine-tolerance chain made to run over the pocketed load sheave of a hoist. Hoist chain is calibrated so each link seats in the pocket, and it is specified by the hoist maker for that block. Sling chain does not have that pitch accuracy and must never be fitted to a hoist; hoist chain is not normally used to make up slings either. Order hoist chain by the hoist make and model as well as size.
05How can I tell what grade a lifting chain is?
Alloy lifting chain is embossed at intervals along its length with a grade mark and the manufacturer's identification, and the fittings carry their own grade and size marks. Grade 80 chain is typically marked 8 or 80 and Grade 100 chain 10 or 100. If a chain carries no legible grade mark and no certificate traces it, treat it as unrated and keep it out of lifting service. Plain or galvanized chain with no mark is usually general-purpose chain.
06When should alloy lifting chain be taken out of service?
Take it out of service when any link is worn, stretched, bent, nicked, cracked or heat-damaged beyond the manufacturer's limits, or when its grade and size marks can no longer be read. Manufacturers commonly set the wear limit at 10% loss of the link's nominal diameter, measured as the mean of two diameters at right angles. Any visible stretch, a link that no longer hinges freely, or weld spatter and heat discolouration are also reasons to remove it. The competent person's thorough examination is the deciding check.
