Stainless Steel BSP & Metric Adapters
British Standard Pipe and metric adapters in stainless steel, for joining BSP and metric ports to JIC and NPT lines.
28 SKUs1 brands
BSPP or BSPT
BSPP (parallel) ports seal on a bonded seal, O-ring or cone seat, not on the thread; BSPT (taper) threads seal on the flanks like NPT. The two have the same pitch but do not interchange. Use a bonded seal with a BSPP male stud.
ISO 228-1 and ISO 7-1
BSPP threads are defined by ISO 228-1 and BSPT by ISO 7-1. Metric dual-purpose ends take a DIN 2353 tube nut or fit a metric port.
Size range
288orderable sizes
28listings with a size table
Every size above is a part number you can quote from. Open any listing for its full table.
Delivery
Stainless Steel BSP & Metric Adapters across the Gulf
Ex-stock from Dubai, delivered within 3 working days in the UAE.
Hose and fittings are the bulk of what leaves this warehouse, and they travel well: a crated batch of assemblies with its crimp records, or a box of adapters on an airway bill. Buyers outside the UAE usually order to a measured list rather than to a part number, because a hose is defined by its ends, its length and its route rather than by a code. Send those and we will quote against them.
Saudi ArabiaTypically 3 working days from dispatchOmanTypically 3 working days from dispatchQatarTypically 3 working days from dispatchBahrainTypically 3 working days from dispatchKuwaitTypically 3 working days from dispatch
Beyond the Gulf
- East Africa
- Kenya, Mozambique, Tanzania
- Southern Africa
- South Africa, Zimbabwe, Namibia
IH-SS-9240

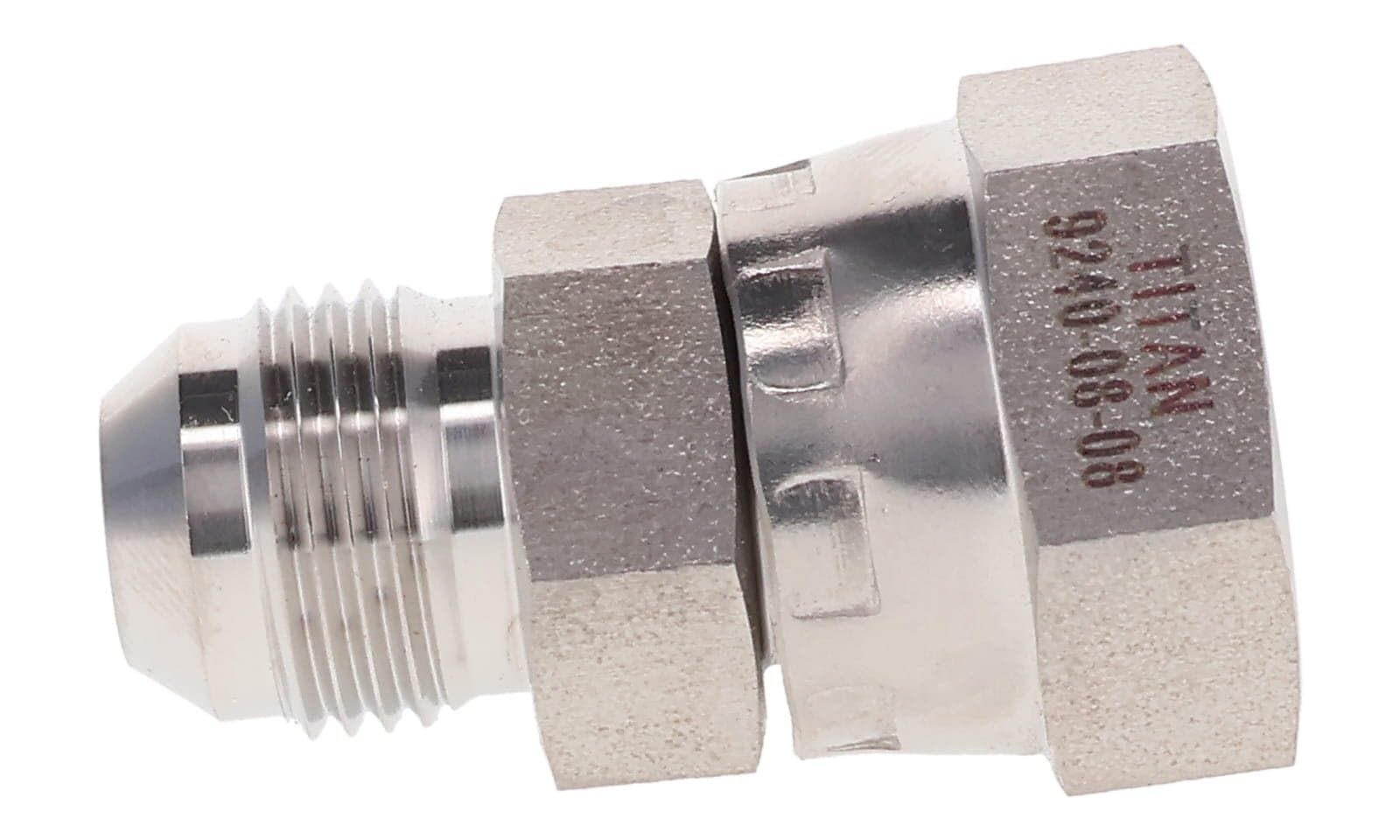

Stainless Steel JIC 37° Male × BSPP Female Swivel Adapter
Indus Hydraulicsstraight adapter37° flare, a metal-to-metal seat on a 74° included cone
Category image · Hoses & FittingsIH-SS-9235
Stainless Steel Metric Male × NPT Female Adapter
Indus Hydraulicsmetric, 10 mm metric male to 22 mm metric malestraight adapter
IH-SS-9042

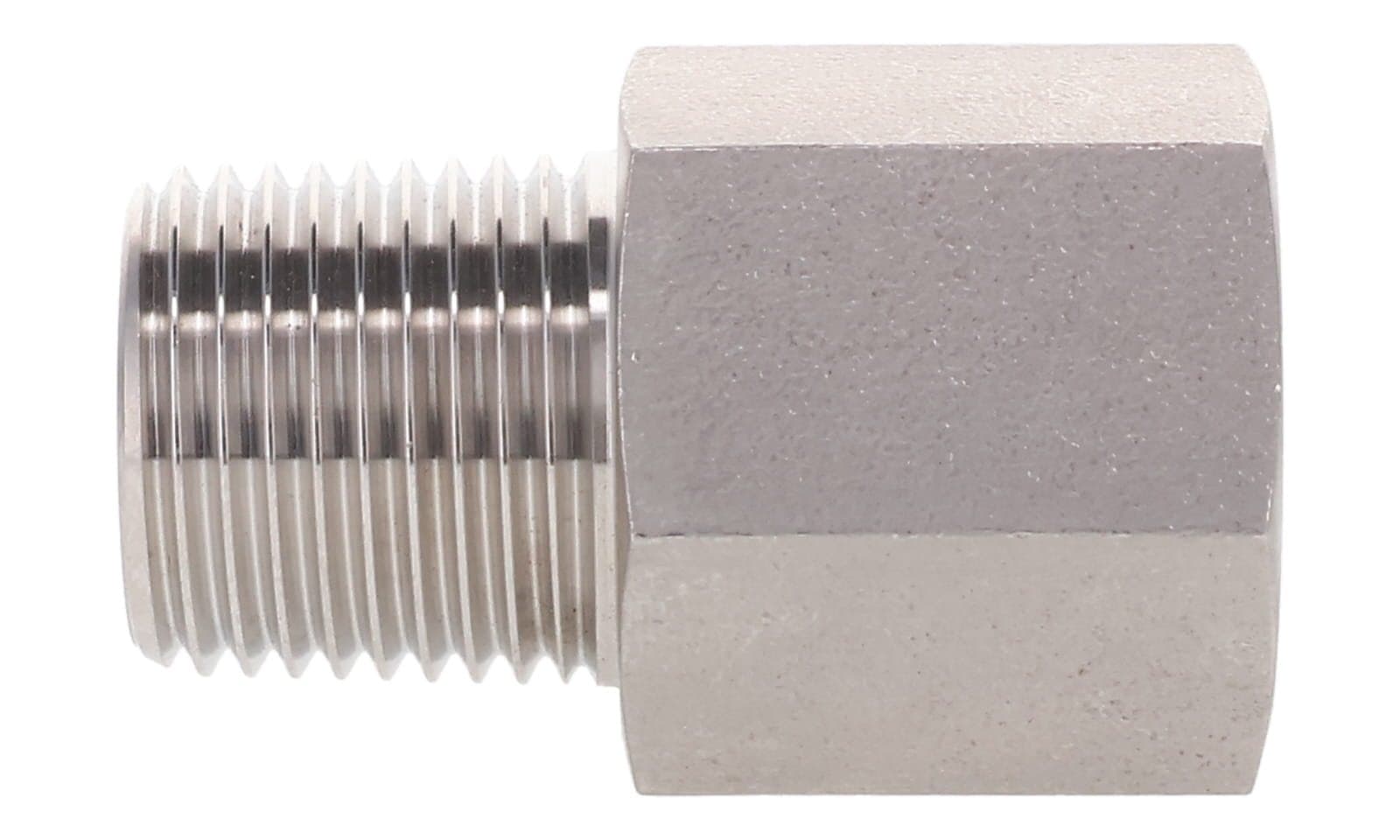

Stainless Steel BSPT Male × NPT Female Adapter
Indus HydraulicsBSP taper thread that seals on the thread flanksBSPT, 1/8" to 1" (R1/8-28 to R1-11)
IH-SS-9008

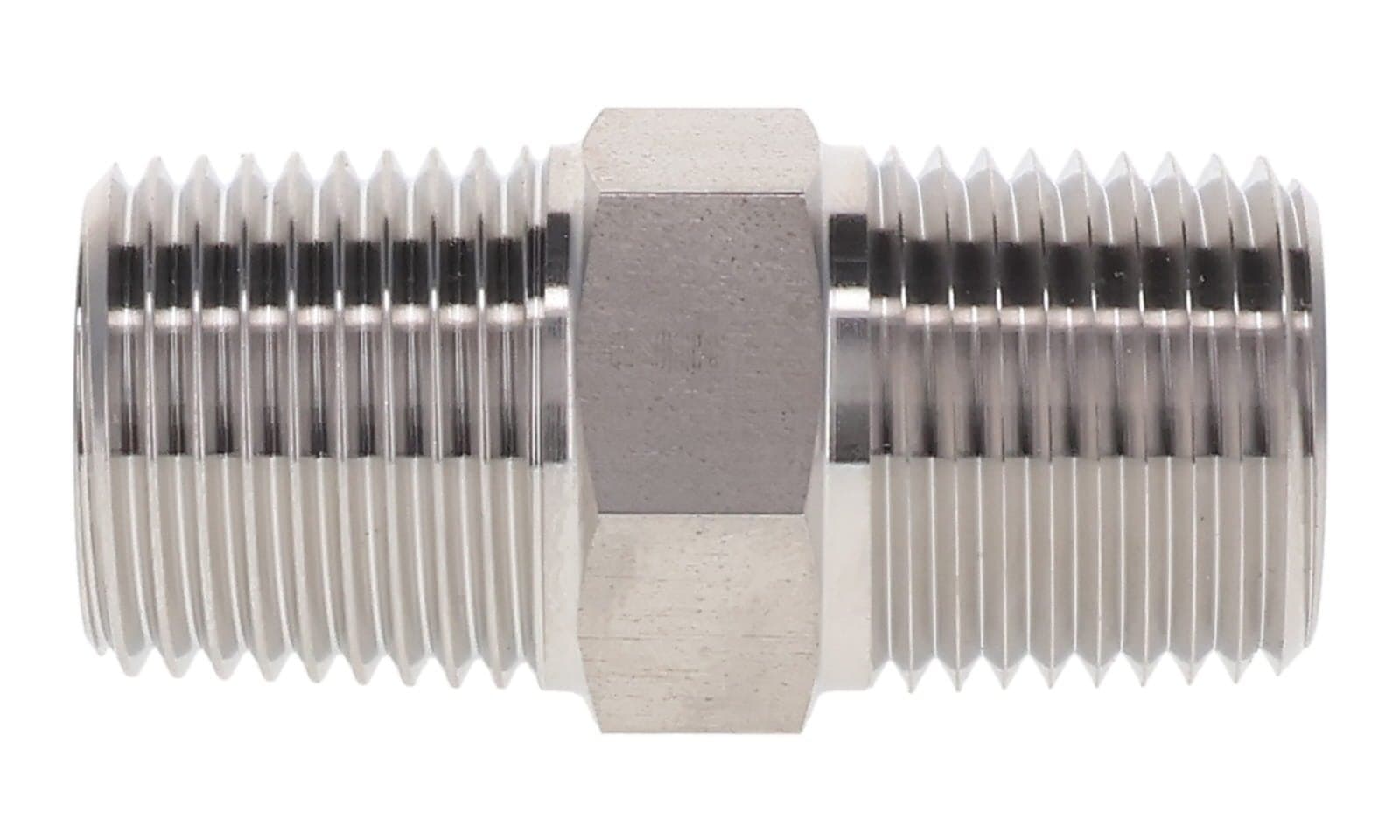

Stainless Steel BSPT Male × NPT Male Adapter
Indus Hydraulicsstraight adapterBSP taper thread that seals on the thread flanks
Category image · Hoses & FittingsIH-SS-9606
Stainless Steel JIC 37° Male × Metric Male Dual-Purpose Adapter, Heavy
Indus Hydraulics37° flare, a metal-to-metal seat on a 74° included cone37° JIC, 1/4" to 1-1/2" (7/16-20 to 1-7/8-12)
Category image · Hoses & FittingsIH-SS-9605
Stainless Steel JIC 37° Male × Metric Male Dual-Purpose Adapter
Indus Hydraulics37° flare, a metal-to-metal seat on a 74° included cone37° JIC, 1/4" to 1-1/2" (7/16-20 to 1-7/8-12)
IH-SS-9500V

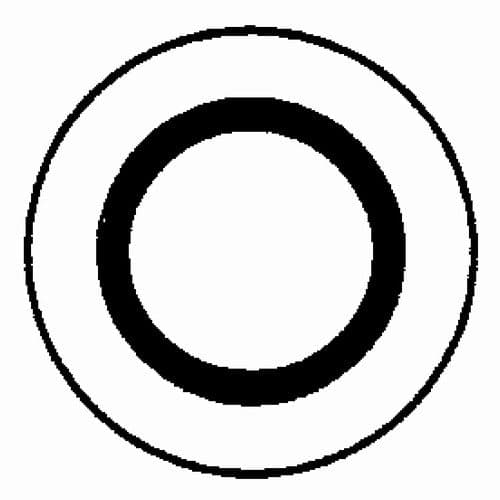

Stainless Steel Bonded Seal with Viton Ring, BSPP
Indus Hydraulicsbonded sealBSP parallel thread, sealed by a bonded seal, O-ring or cone seat
Category image · Hoses & FittingsCategory image · Hoses & FittingsIH-SS-9500
Stainless Steel Bonded Seal, BSPP
Indus HydraulicsBSPP, 1/8" to 2" (G1/8-28 to G2-11)BSP parallel thread, sealed by a bonded seal, O-ring or cone seat
Category image · Hoses & FittingsIH-SS-9200
Stainless Steel JIC 37° Male × Metric Standpipe
Indus Hydraulicsstandpipe37° JIC, 1/4" to 1-1/2" (7/16-20 to 1-7/8-12)
Category image · Hoses & FittingsIH-SS-9069
Stainless Steel JIC 37° Male × Metric Male Adjustable 90° Elbow
Indus Hydraulics37° flare, a metal-to-metal seat on a 74° included coneadjustable 90° elbow
Category image · Hoses & FittingsIH-SS-9063
Stainless Steel JIC 37° Male × BSPT Male 90° Elbow
Indus Hydraulics90° elbow37° JIC, 1/4" to 1" (7/16-20 to 1-5/16-12)
IH-SS-9059

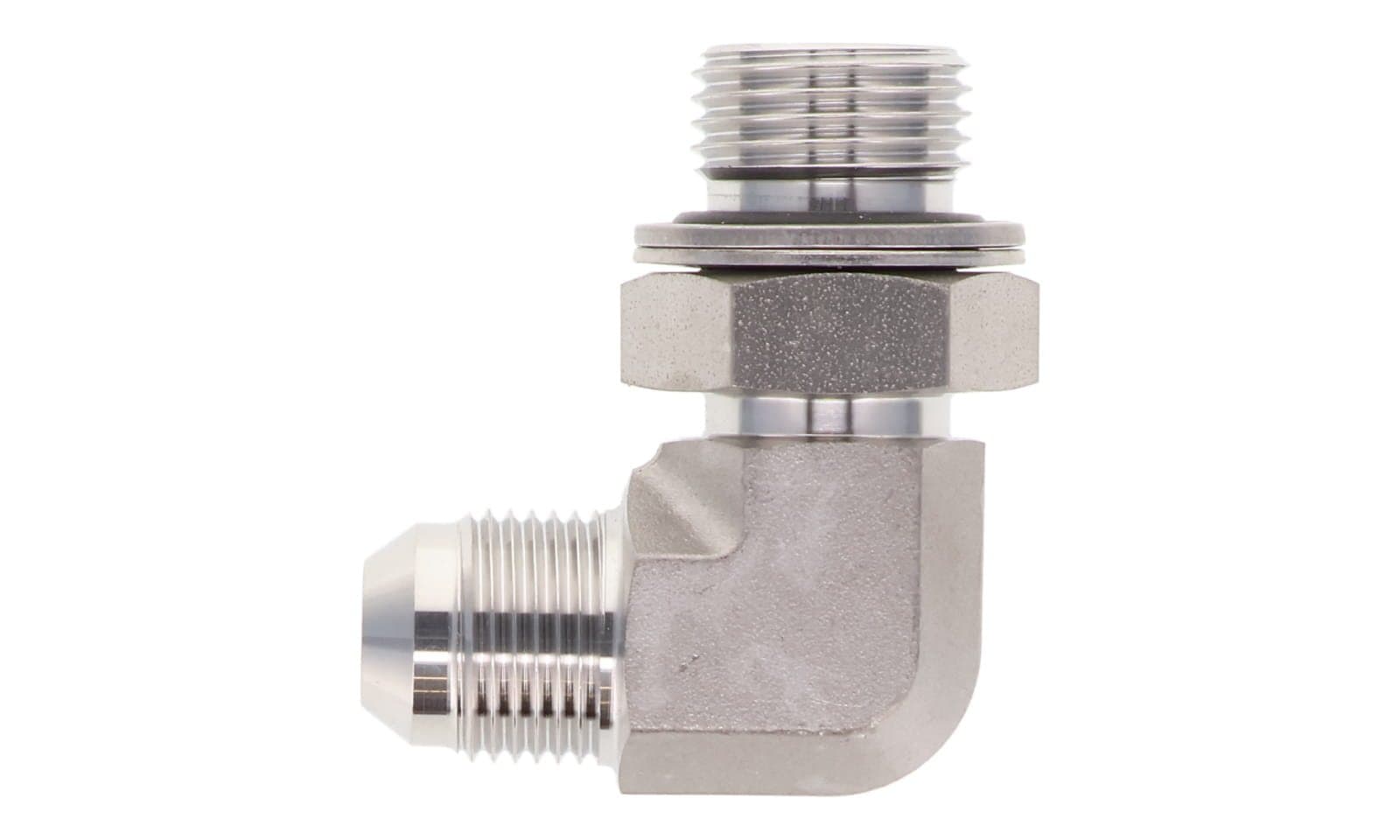

Stainless Steel JIC 37° Male × BSPP Male Adjustable 90° Elbow
Indus Hydraulics37° flare, a metal-to-metal seat on a 74° included coneadjustable 90° elbow
IH-SS-9043

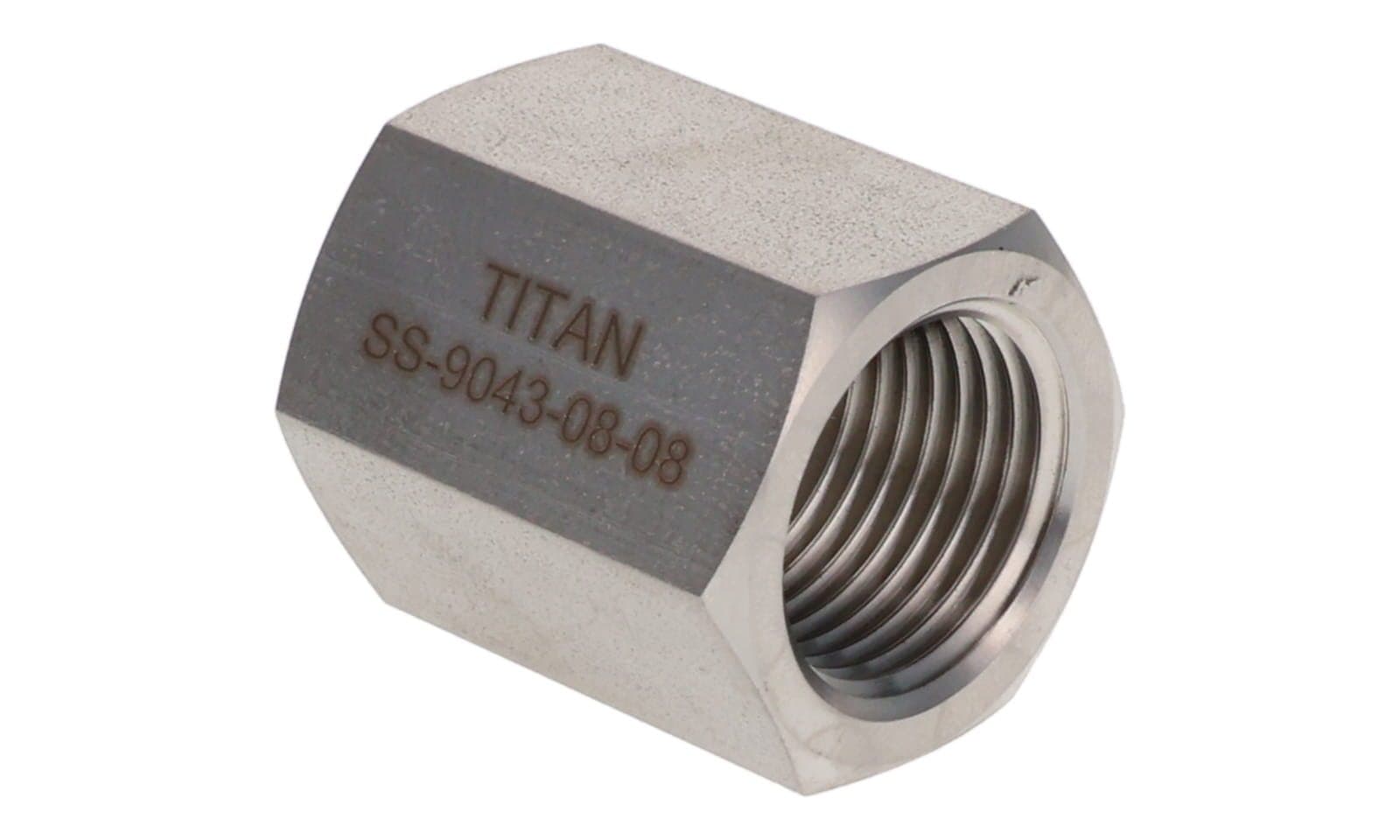

Stainless Steel BSPP Female × BSPP Female Adapter
Indus HydraulicsBSPP, 1/8" to 1-1/2" (G1/8-28 to G1-1/2-11)straight adapter
IH-SS-9037

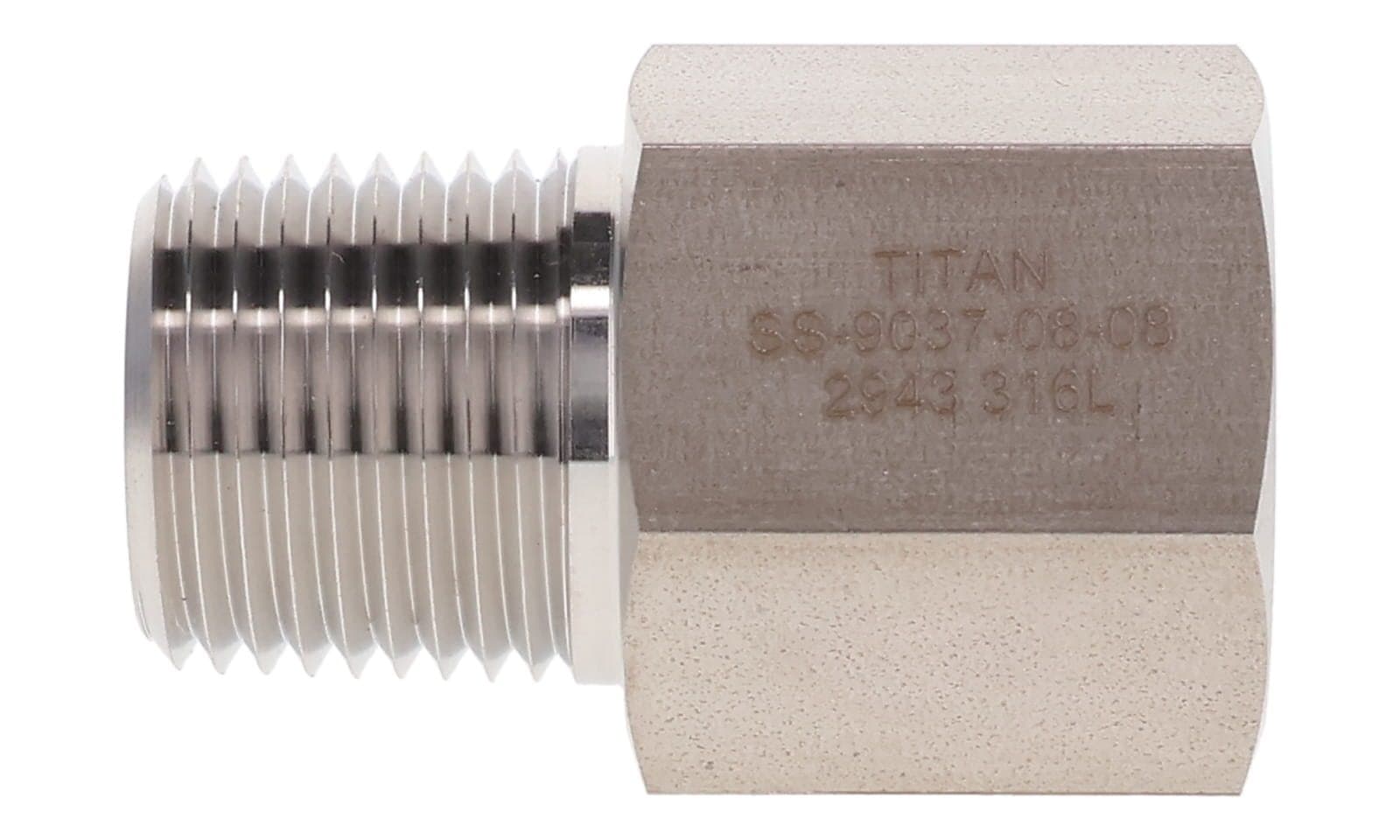

Stainless Steel NPT Male × BSPP Female Adapter
Indus Hydraulicsstraight adaptertaper pipe thread that seals on the thread flanks, with sealant or tape
IH-SS-9035

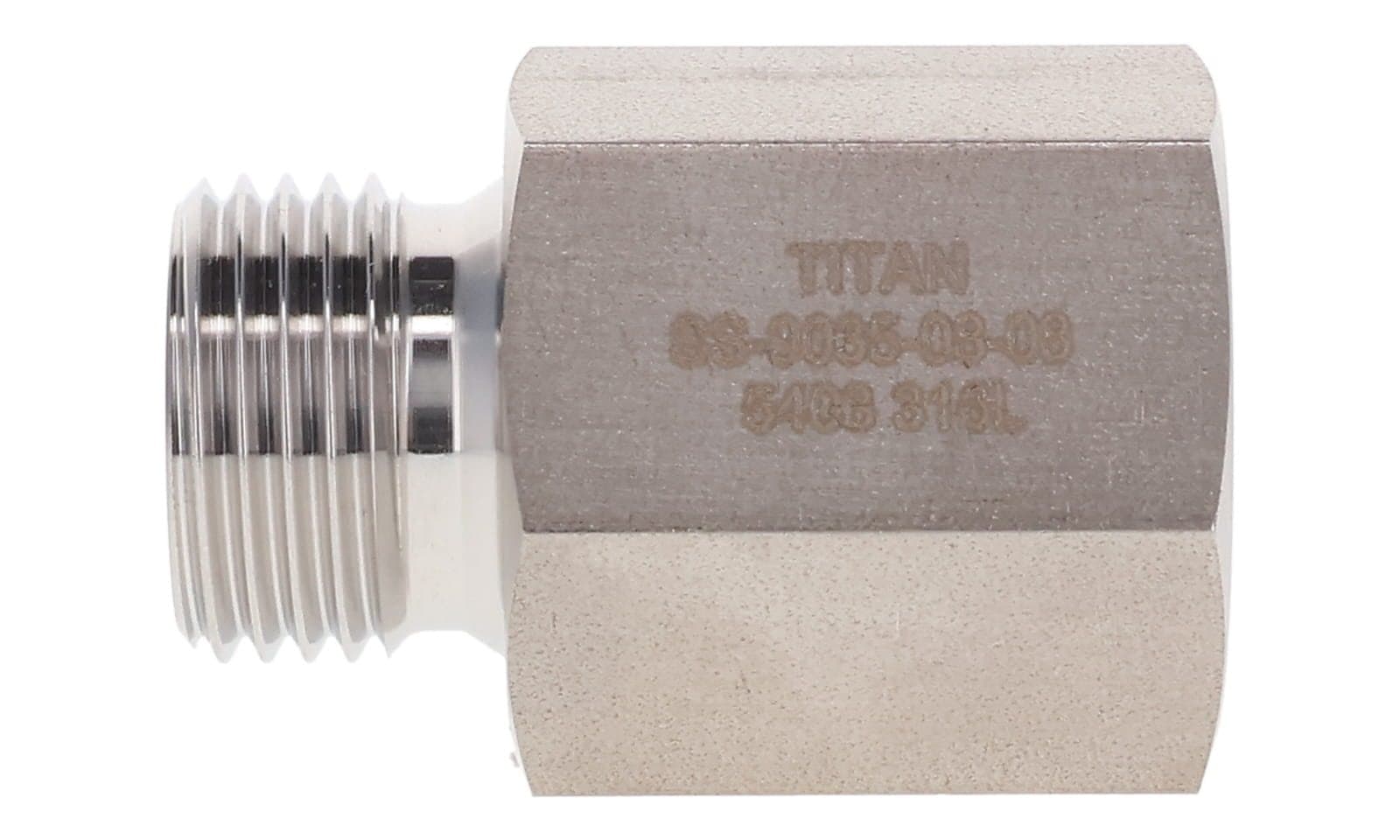

Stainless Steel BSPP Male × NPT Female Adapter
Indus HydraulicsBSPP, 1/8" to 2" (G1/8-28 to G2-11)BSP parallel thread, sealed by a bonded seal, O-ring or cone seat
Category image · Hoses & FittingsIH-SS-9033
Stainless Steel BSPP Female Swivel Cap
Indus HydraulicsBSP parallel thread, sealed by a bonded seal, O-ring or cone seatBSPP, 1/8" to 1-1/2" (G1/8-28 to G1-1/2-11)
Category image · Hoses & FittingsIH-SS-9030T
Stainless Steel BSPT Hex Head Plug
Indus HydraulicsBSPT, 1/8" to 1-1/2" (R1/8-28 to R1-1/2-11)plug
Category image · Hoses & FittingsIH-SS-9030
Stainless Steel BSPP Hex Head Plug
Indus HydraulicsplugBSP parallel thread, sealed by a bonded seal, O-ring or cone seat
Category image · Hoses & FittingsIH-SS-9029
Stainless Steel Metric Countersunk Sealed Plug (Viton Seal)
Indus Hydraulicsmetric parallel threadplug
IH-SS-9028
Stainless Steel BSPP Countersunk Sealed Plug (Viton Seal)
Indus HydraulicsplugBSPP, 1/8" to 1-1/2" (G1/8-28 to G1-1/2-11)
IH-SS-9021

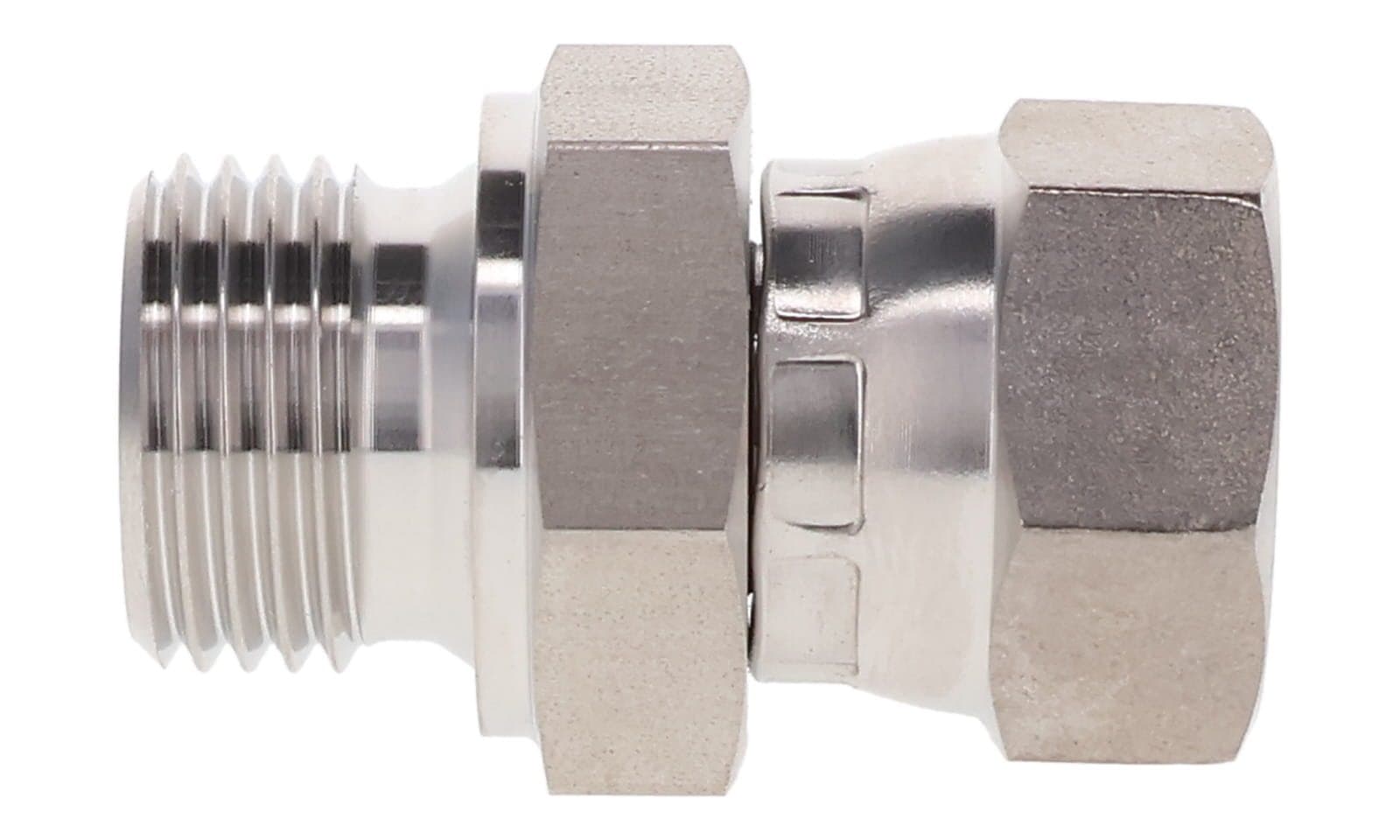

Stainless Steel BSPP Male × JIC 37° Female Swivel Adapter
Indus HydraulicsBSPP, 1/4" to 1" (G1/4-19 to G1-11)straight adapter
IH-SS-9015

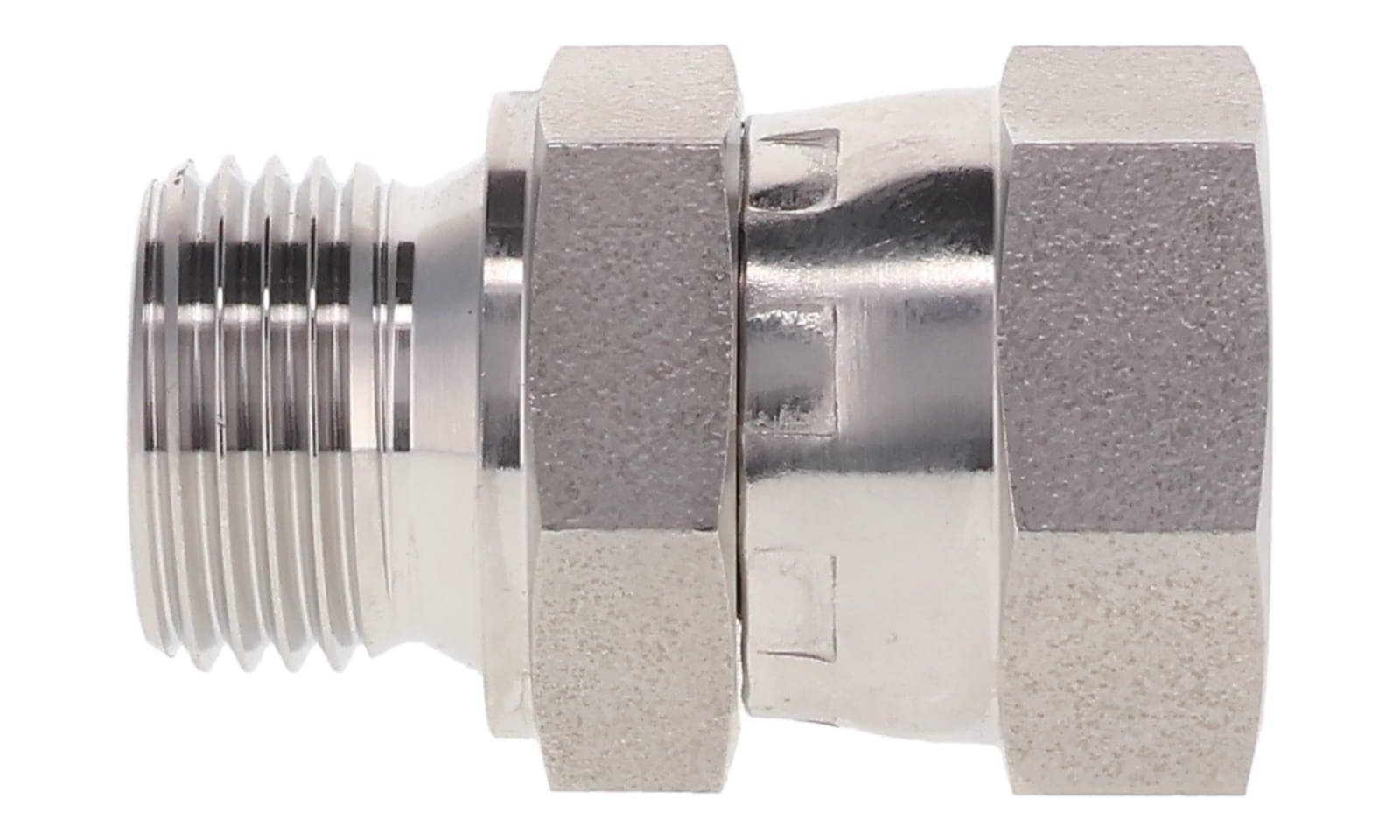

Stainless Steel BSPP Male × BSPP Female Swivel Adapter
Indus HydraulicsBSP parallel thread, sealed by a bonded seal, O-ring or cone seatstraight adapter
IH-SS-9011

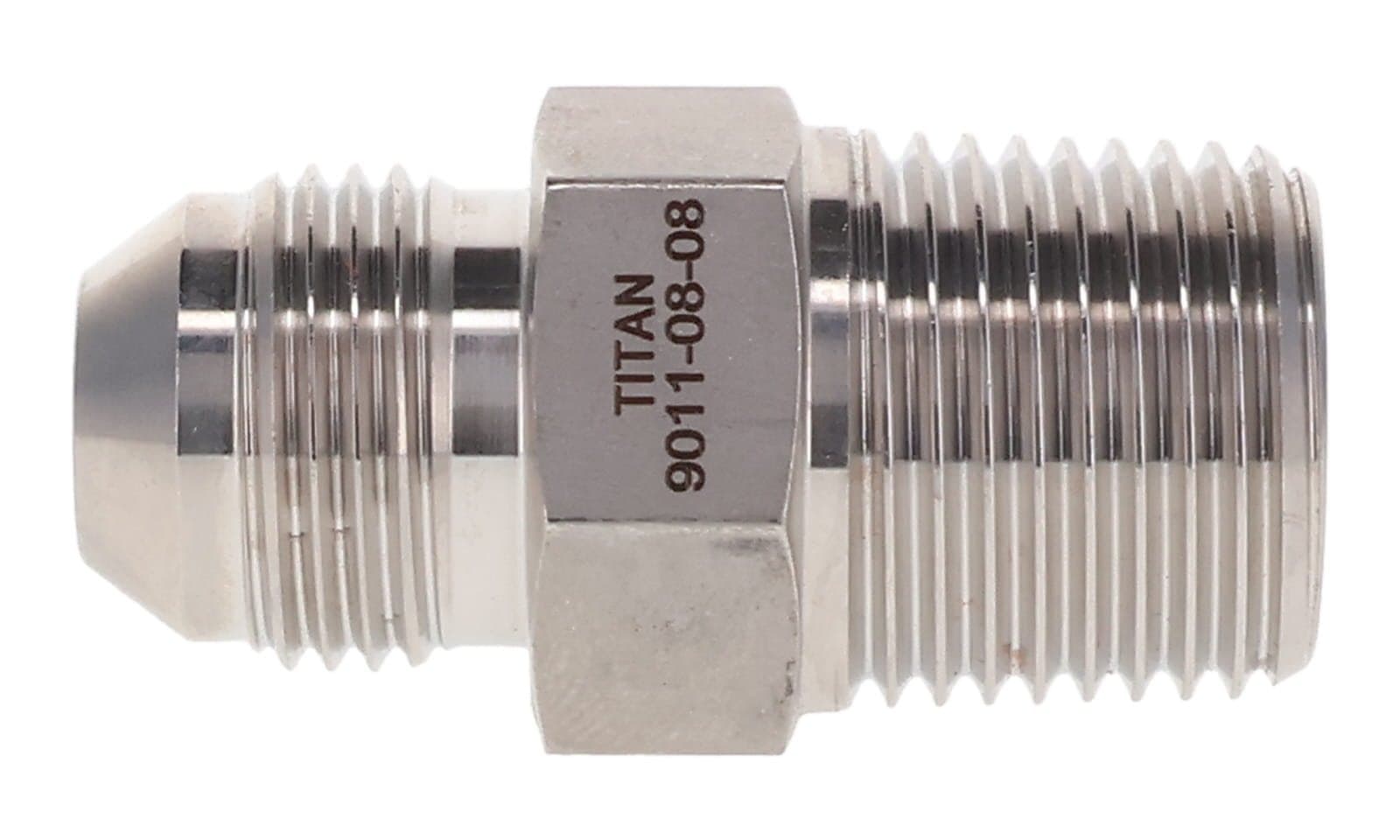

Stainless Steel JIC 37° Male × BSPT Male Adapter
Indus Hydraulicsstraight adapter37° flare, a metal-to-metal seat on a 74° included cone
IH-SS-9007

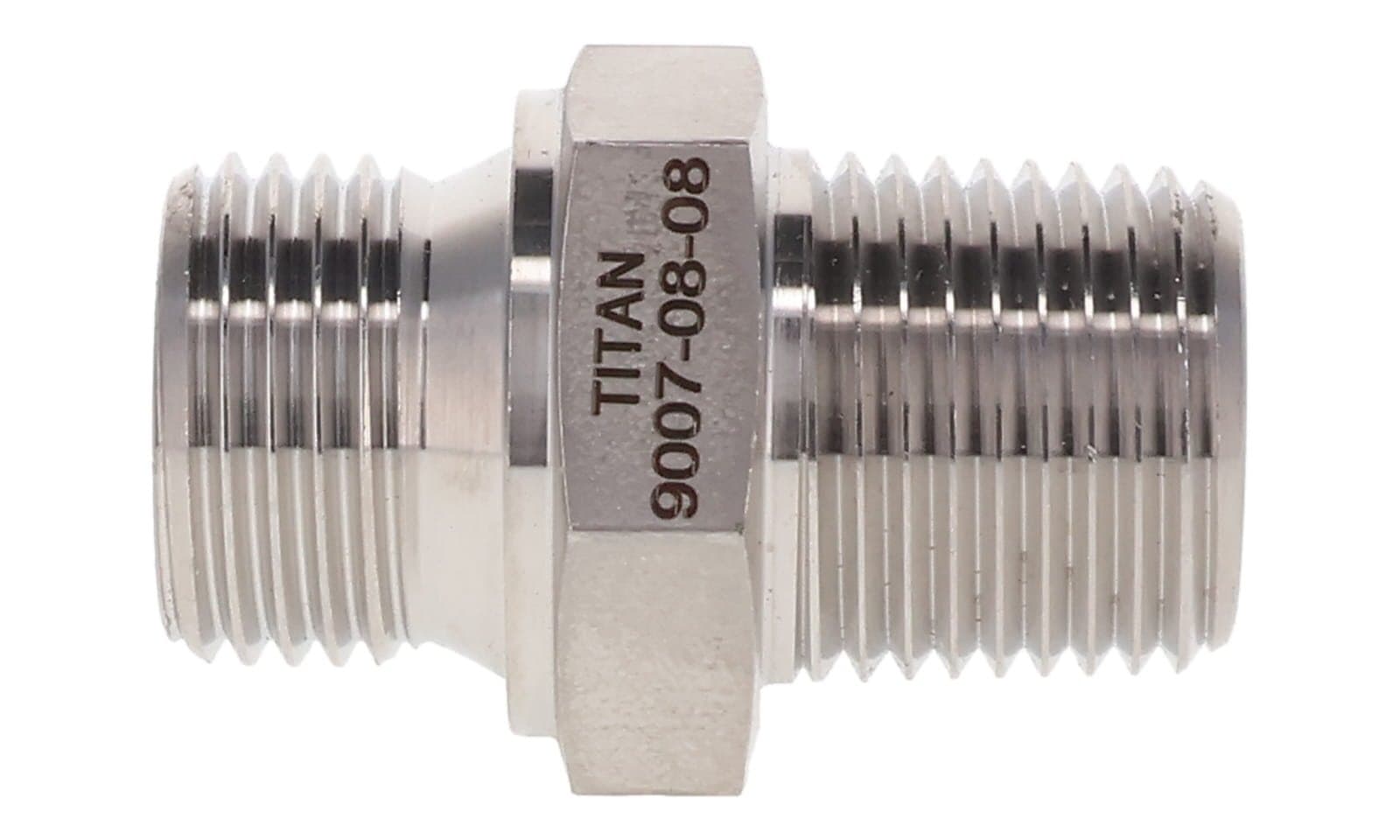

Stainless Steel BSPP Male × NPT Male Adapter
Indus Hydraulicsstraight adapterBSP parallel thread, sealed by a bonded seal, O-ring or cone seat
IH-SS-9005

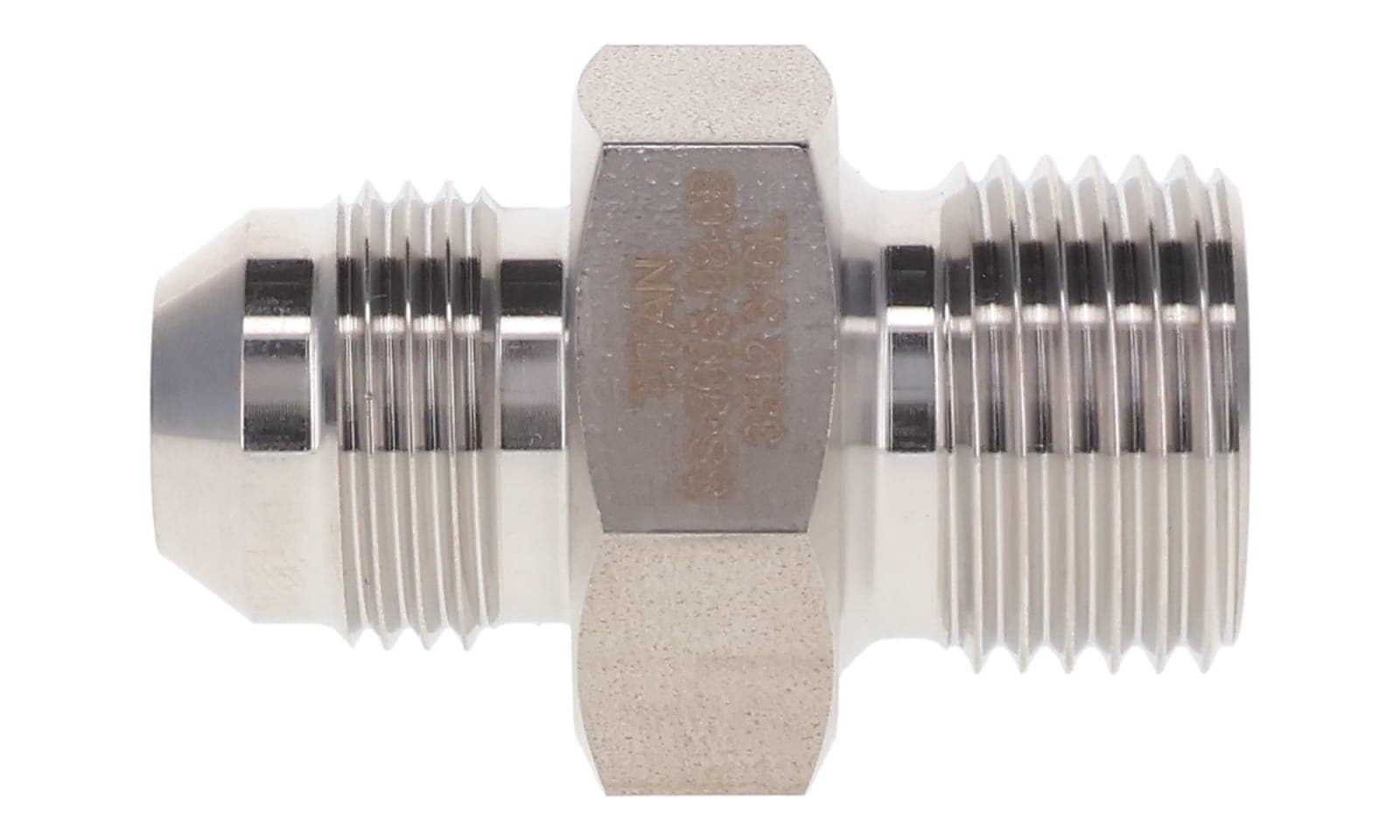

Stainless Steel JIC 37° Male × BSPP Male Adapter
Indus Hydraulics37° JIC, 1/4" to 1-1/2" (7/16-20 to 1-7/8-12)straight adapter
IH-SS-9003

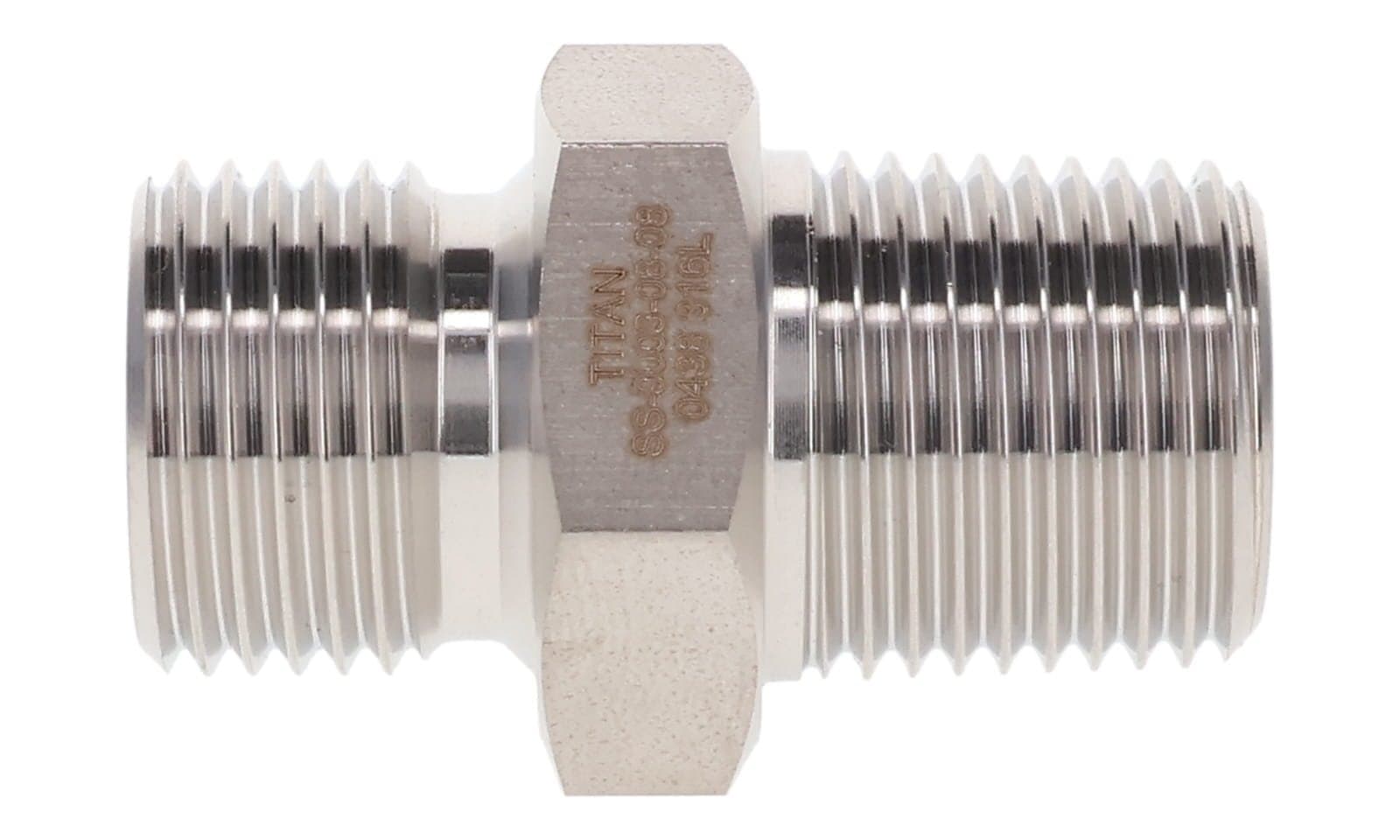

Stainless Steel BSPP Male × BSPT Male Adapter
Indus Hydraulicsstraight adapterBSP parallel thread, sealed by a bonded seal, O-ring or cone seat
IH-SS-9000

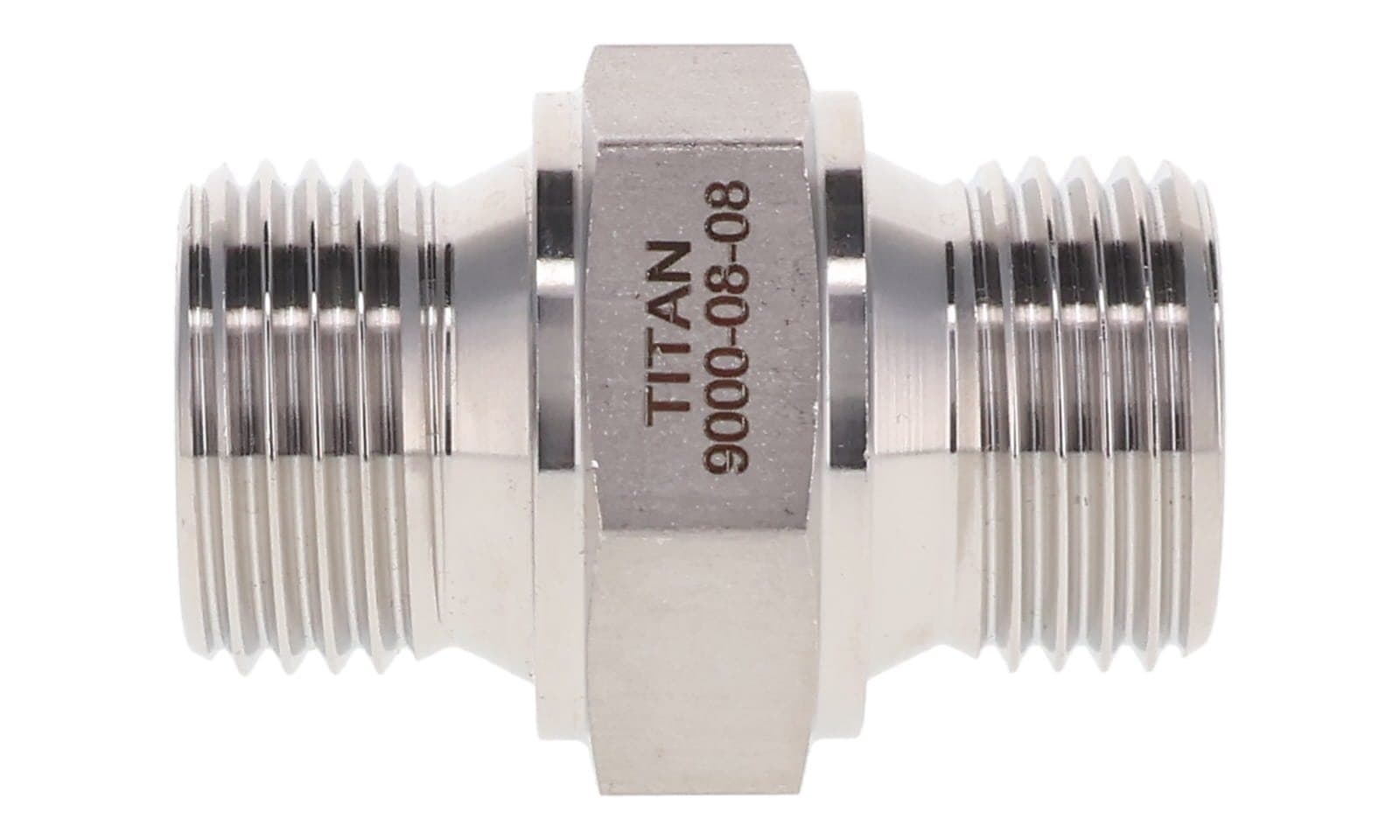

Stainless Steel BSPP Male Nipple
Indus HydraulicsBSP parallel thread, sealed by a bonded seal, O-ring or cone seatBSPP, 1/8" to 2" (G1/8-28 to G2-11)
Questions we get asked
About this range
- 01Are these 316 stainless?
- Most families are 316L stainless steel, forged; each listing states the grade the manufacturer gives. Where a listing says stainless steel without a grade, ask and we will confirm before you order.
- 02Do the listings show dimensions and equivalents?
- Yes, where the manufacturer publishes them. Every size is listed with its end sizes; most also carry millimetre dimensions and the Parker part number the manufacturer cross-references.
- 03What does dual-purpose mean on a stainless JIC × metric adapter?
- The metric male end can take a DIN 2353 tube nut and cutting ring on its 24° cone, or screw into a metric port with a seal. One part therefore connects a JIC line to either a metric tube or a metric port. Fit a bonded seal or the specified seal when it goes into a port; it is not needed for the tube connection.
- 04When should I choose a Viton bonded seal?
- When the joint runs hot or carries a fluid that attacks nitrile, such as many synthetic and phosphate-ester fluids. A Viton (FKM) ring in a stainless washer suits higher temperatures than standard nitrile. Check the fluid against the seal maker’s compatibility chart; FKM is not suitable for every fluid either.
- 05Why use a stainless bonded seal rather than a standard one?
- Because the metal ring of a standard bonded seal is carbon steel, and in a stainless joint exposed to water or salt air it will rust and pit the faces it seals against. A stainless ring keeps the whole joint in one material. Replace bonded seals each time the joint is remade.
- 06What is a countersunk sealed plug?
- A plug whose head sits recessed, flush with the port face, sealed by a Viton seal rather than a taper thread. Use it where a projecting hex head would foul something; use a hex head plug where clearance allows easier removal. Match the plug to the port thread — BSPP or metric.
