Wire Rope & Fittings

101 SKUs

Showing 1–48 of 101 SKUs

Wire Rope Thimble — European Commercial Type — dimension drawing

Wire Rope Thimble — European Commercial Type, 15–140 mm

15 mm to 140 mmElectro-galvanized / hot dip glavanized
Inquire
Wire Rope Thimble — AS 1138 — dimension drawing

Wire Rope Thimble — AS 1138, 6–52 mm

6 mm to 52 mmHot dipped galvanized
Inquire
Tube Thimble without Gusset TTG7 Painted/Galvanized — dimension drawing

Tube Thimble without Gusset TTG7 Painted/Galvanized — 10–48 mm

Zinc plated, hot-dip galvanized, powder coatedCarbon steel
Inquire
Tube Thimble with Gusset TG2K — dimension drawing

Tube Thimble with Gusset TG2K — 10–44 mm

Carbon steelZinc plated, hot-dip galvanized, powder coated
Inquire
Category image · Lifting & Rigging

Stainless Steel Wire Rope 6x19 — 6.00–32.00 mm

Stainless steel 304 or 3166.00 mm to 32.00 mm
Inquire
Stainless Steel Swage Toggle Terminal — dimension drawing

Stainless Steel Swage Toggle Terminal — 3–10 mm

Type 304 or type 316 stainless steel3 mm to 10 mm
Inquire
Stainless Steel Simplex Wire Rope Clip — dimension drawing

Stainless Steel Simplex Wire Rope Clip — M4–M8

Stainless steel type 304 or 316 (A2 or A4)M4 to M8
Inquire
Stainless Steel Protector Sleeve — dimension drawing

Stainless Steel Protector Sleeve — 1/8–3/16″

Type 304 or type 316 stainless steel1/8″ to 3/16″
Inquire
Round Rope Thimble Galvanized — dimension drawing

Round Rope Thimble Galvanized — 8–40 mm

Mild steelHot dipped galvanized / powder coated
Inquire
Fibre Rope Thimble — K3 — dimension drawing, k3-B, reinforced

Fibre Rope Thimble — K3, 2–18″

Hot dipped galvanizedMild steel
Inquire

Questions we get asked

About this range

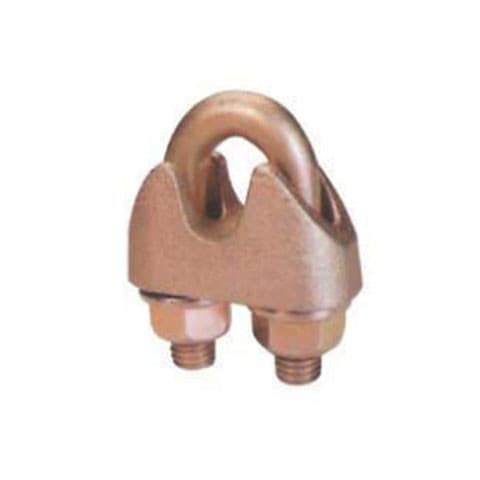

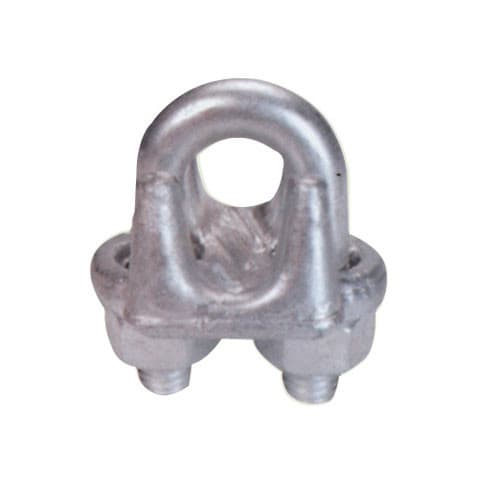

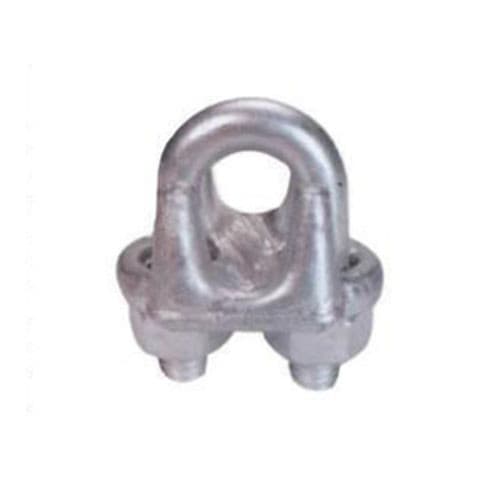

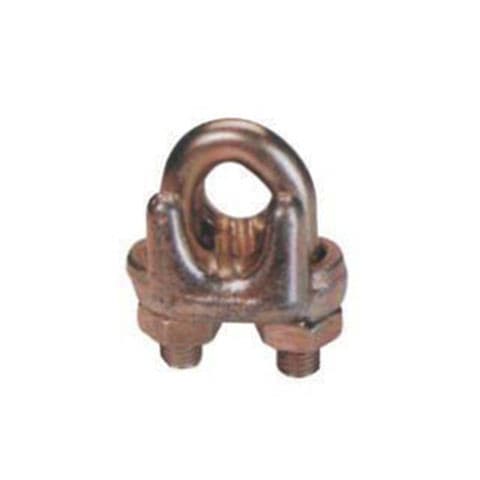

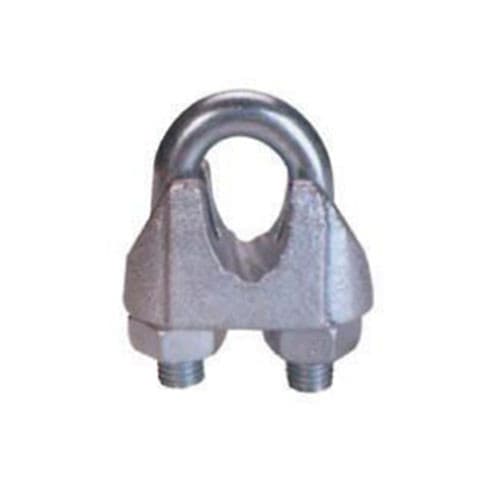

01How many wire rope clips does an eye need?
It depends on the rope diameter and the clip type, and the clip maker's table is the authority. The U-bolt goes on the dead (short) end and the saddle on the live end — "never saddle a dead horse" — and the nuts are re-torqued after the first load.
02What is the difference between a fibre core and a steel core?
A fibre core (FC) makes the rope more flexible; an independent wire rope core (IWRC) resists crushing on a drum and carries a higher breaking load for the same diameter. The size tables give both where the manufacturer publishes them.
03Do the parts come with test certificates?
Yes. Each consignment ships with the manufacturer's test certificate. If your site needs more — third-party certification or witnessed proof testing — say so on the RFQ and we will confirm what we can arrange.
04Should I order ordinary lay or Lang's lay wire rope?
Choose ordinary (regular) lay for general lifting and slings, and Lang's lay only where abrasion and bending fatigue dominate and both rope ends are fixed against rotation. In ordinary lay the wires run opposite to the strands, so the rope resists kinking and crushing and is easier to handle. In Lang's lay the wires and strands run the same way, giving more wearing surface but a rope that tends to untwist if one end is free, such as on a single-part hook block.
05How do I measure wire rope diameter?
Measure across the outermost crowns of the strands, not across the flats, using a caliper with jaws wide enough to span at least two strands. Take two readings at right angles at each point and measure at two or more points along the rope, then use the average. New rope is usually slightly over its nominal size, and a reading below nominal on a used rope is a sign of wear or core damage.
06Which ferrule material should I use — aluminium, copper or stainless?
Use the ferrule material the termination standard and the rope maker specify for that rope: aluminium ferrules to EN 13411-3 are the usual choice for galvanized and bright steel wire rope. Copper and stainless ferrules are used with stainless rope and in marine and corrosive service, where aluminium against stainless can corrode. Whatever the material, the ferrule must match the rope diameter and be pressed with the die made for it.
