Match the hardware to the load path
Rate every piece in the load path for the load it actually sees. A shackle or eye bolt pulled off its axis carries less than its vertical rating; a hook must seat the sling in its bowl, not on its tip; and a master link has to take every leg of the sling at once. Where a range comes in carbon and alloy steel of the same frame, the alloy version carries more — the size table lists the two as separate rows with their own ratings.
Questions we get asked
About this range
- 01Which shackle do I need — anchor (bow) or chain (dee)?
- A chain (dee) shackle is for a straight, in-line pull. An anchor (bow) shackle has a rounder body that accepts more than one sling or a pull at an angle to the pin. For a permanent or long-term installation choose a bolt-type shackle, whose nut and cotter pin cannot unscrew in service; a screw-pin shackle suits rigging that is made and broken often.
- 02What is the difference between WLL, SWL and breaking load?
- WLL — working load limit — is the most the manufacturer rates a part to carry in service. SWL, safe working load, is the older term and is sometimes set lower for a particular installation. The minimum breaking load is what the part withstood in test, several times its WLL, and it is never a working figure.
- 03Do the parts come with test certificates?
- Yes. Each consignment ships with the manufacturer's test certificate. If your site needs more — third-party certification or witnessed proof testing — say so on the RFQ and we will confirm what we can arrange.
Category
Rigging Hardware
Shackles, hooks, master links, rings, swivels, eye bolts, turnbuckles, snap hooks, lifting points, pad eyes and rigging pins — forged, cast and stainless rigging hardware, each size under its own Indus part number.
Size range
Every size above is a part number you can quote from. Open any listing for its full table.
Delivery
Rigging Hardware across the Gulf
Ex-stock from Dubai, delivered within 3 working days in the UAE.
Rigging hardware is bought on its working load limit and its certificate, and both travel with the part: every shackle, hook, chain and sling ships from Dubai with the manufacturer's test certificate, so the receiving inspection checks a document against a stamp rather than a claim. Hardware and fittings go by air or courier in cartons; wire rope, chain, hoists and anchors are heavy enough that sea freight is usually the sensible answer.
Beyond the Gulf
- East Africa
- Kenya, Madagascar, Mozambique
- West & Central Africa
- Nigeria, DR Congo, Equatorial Guinea
Eye Hoist Hook with Latch — 320 Pattern
Shank Hoist Hook with Latch — 319 Pattern
Swivel Hoist Hook with Latch — 322 Pattern
Cluster Hook R-T-J — Single Ring
Cluster Hook R-T-J — Double Ring
Eye Grab Hook — H-323 / A-323 Pattern
Clevis Grab Hook — H-330 / A-330 Pattern
Stainless Steel Shoulder Nut Eye Bolt — US Type

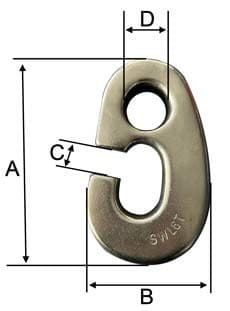

Stainless Steel G Hook — Egg Type
Stainless Steel D Shackle — Countersunk Flush Pin
Commercial Turnbuckle — Eye and Eye, Cast Steel
Stainless Steel Clevis Slip Hook with Safety Latch

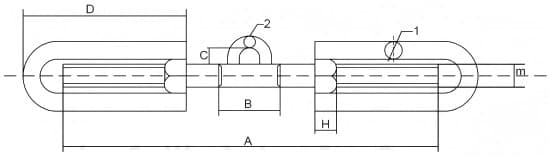

Hamburger Lashing Turnbuckle
Stainless Steel Welded Eye Bolt with Nut and Washer
Stainless Steel Round Pad Eye Plate with Ring
Stainless Steel Shoulder Machinery Eye Bolt — G-279 Pattern
Stainless Steel Eye Slip Hook with Latch
