Capacity, lift and headroom

Choose a hoist on its rated capacity, the lift you need and the headroom you have: the hook-to-hook distance on the table is the height the hoist itself takes up. A trolley must match both the hoist's capacity and the flange width of your beam, and a plate clamp must match the plate thickness it grips — both ranges are in the size tables.

Questions we get asked

About this range

01What is the difference between a push trolley and a geared trolley?
A push trolley is moved by pushing on the load; a geared trolley is driven by a hand chain, which gives finer positioning and is easier with heavier loads.
02Can a snatch block be used for lifting?
Yes, within its rated load — but the load on the block is not the load on the rope. With the rope turned through 180° the block carries about twice the line pull, so rate the block, its hook or shackle and its anchor point for that.
03Do the parts come with test certificates?
Yes. Each consignment ships with the manufacturer's test certificate. If your site needs more — third-party certification or witnessed proof testing — say so on the RFQ and we will confirm what we can arrange.

Category

Hoists, Blocks & Clamps

Manual chain blocks, electric chain and wire rope hoists, push and geared beam trolleys, snatch blocks and pulley blocks, and plate and beam lifting clamps.

126 SKUs0 brands

Size range

1,258orderable sizes
124listings with a size table

Every size above is a part number you can quote from. Open any listing for its full table.

Delivery

Hoists, Blocks & Clamps across the Gulf

Ex-stock from Dubai, delivered within 3 working days in the UAE.

Rigging hardware is bought on its working load limit and its certificate, and both travel with the part: every shackle, hook, chain and sling ships from Dubai with the manufacturer's test certificate, so the receiving inspection checks a document against a stamp rather than a claim. Hardware and fittings go by air or courier in cartons; wire rope, chain, hoists and anchors are heavy enough that sea freight is usually the sensible answer.

Showing 97–126 of 126 SKUs

IH-LR-BP-AB
IH-LR-BP-AB

Aluminium Block

2,000 to 3,000 lbs3″ to 4″
IH-LR-BP-BSBH
IH-LR-BP-BSBH

British Type Snatch Block with Hook

Galvanized or paintedSteel
Heavy Duty Snatch Block — European Type — dimension drawing, swivel hook
IH-LR-BP-HSBE

Heavy Duty Snatch Block — European Type

Alloy steel2 to 15 t
IH-LR-BP-SCSB43043
IH-LR-BP-SCSB43043

Super Champion Snatch Block — 430 / 431 / 407 Pattern

Steel20 to 40 t
IH-LR-BP-CSB420421
IH-LR-BP-CSB420421

Champion Snatch Block — 420 / 421 / 406 Pattern

12 to 15 tColor painted
IH-LR-BP-CSB416417
IH-LR-BP-CSB416417

Champion Snatch Block — 416 / 417 / 402 Alloy Pattern

6″ to 10″12 t
Rectangular Body Wooden Block — dimension drawing, plain
IH-LR-BP-RBWB

Rectangular Body Wooden Block

Wood and steel500 lbs
Nylon Rope Wooden Block — dimension drawing, single sheave
IH-LR-BP-NRWB

Nylon Rope Wooden Block

100 mm to 180 mm0.4 to 2.2 t

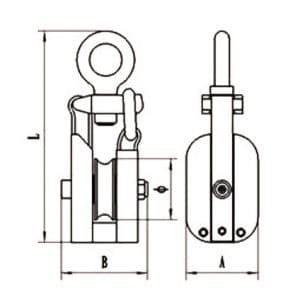

Manila Wooden Shell Snatch Block — dimension drawing, eye
IH-LR-BP-MWSSB

Manila Wooden Shell Snatch Block

Wood/carbon steel6″ to 12″
Wooden Shell Snatch Block — dimension drawing, eye
IH-LR-BP-WSSB

Wooden Shell Snatch Block

Wood/carbon steel2,400 to 7,600 lbs
Regular Wood Block — dimension drawing, single sheave, hook
IH-LR-BP-RWB

Regular Wood Block

500 to 10,600 lbsHot dipped galvanized
JIS Wooden Ship Block — dimension drawing, single sheave, hook
IH-LR-BP-JISWSB

JIS Wooden Ship Block

100 mm to 240 mm0.18 to 2.5 t
JIS Wooden Pulley — dimension drawing
IH-LR-BP-JISWP

JIS Wooden Pulley

3″ to 12″500 to 8,000 lbs
IH-LR-BP-RBE2
IH-LR-BP-RBE2

Rigging Block with Eye

0.25 to 1.5 tGalvanized or painted
IH-LR-BP-MSB
IH-LR-BP-MSB

Marine Snatch Block

2 to 32 t6″ to 18″
IH-LR-BP-BPB
IH-LR-BP-BPB

Black Pulley Block

Galvanized or paintedSteel
IH-LR-BP-GW
IH-LR-BP-GW

Gin Wheel

150 to 1,000 kg
IH-LR-BP-PT0308
IH-LR-BP-PT0308

Steel Pulley — Types 03 to 08

Zinc platedCarbon steel
IH-LR-BP-SBMR
IH-LR-BP-SBMR

Snatch Block for Manila Rope

Steel1,200 to 9,600 lbs
IH-LR-BP-PLHRP
IH-LR-BP-PLHRP

Pulley with Loose Hook, Red Painted

Galvanized or paintedSteel
IH-LR-BP-KPB
IH-LR-BP-KPB

Korean Type Pulley Block

1 to 15 t3″ to 15″
Galvanized Malleable Iron Block — dimension drawing, single sheave, swivel hook
IH-LR-BP-GMIB

Galvanized Malleable Iron Block

3″ to 10″0.2 to 3.5 t
IH-LR-BP-MISB
IH-LR-BP-MISB

Malleable Iron Shell Block

1,100 to 16,000 lbsCarbon steel
Flat Mount Pulley Block — dimension drawing, single sheave
IH-LR-BP-FMPB

Flat Mount Pulley Block

525 to 1,850 lbs
Steel Pulley Block, Open Shell — 7311 Series — dimension drawing, single sheave, eye
IH-LR-BP-PBOS7311

Steel Pulley Block, Open Shell — 7311 Series

0.25 to 6 t2″ to 12″
Steel Pulley Block, Open Shell — 7111 / 7211 Series — dimension drawing, single sheave, eye
IH-LR-BP-PBOS71117

Steel Pulley Block, Open Shell — 7111 / 7211 Series

0.25 to 6 t2″ to 12″
Steel Pulley Block, Closed Shell — 7511 Series — dimension drawing, single sheave, eye
IH-LR-BP-PBCS7511

Steel Pulley Block, Closed Shell — 7511 Series

2″ to 12″0.25 to 6 t
Steel Pulley Block, Closed Shell — 7411 Series — dimension drawing, single sheave, eye
IH-LR-BP-PBCS7411

Steel Pulley Block, Closed Shell — 7411 Series

2″ to 12″0.25 to 6 t
Steel Pulley Block — 7011 Series — dimension drawing, single sheave, eye
IH-LR-BP-PB7011

Steel Pulley Block — 7011 Series

2″ to 12″Mild steel

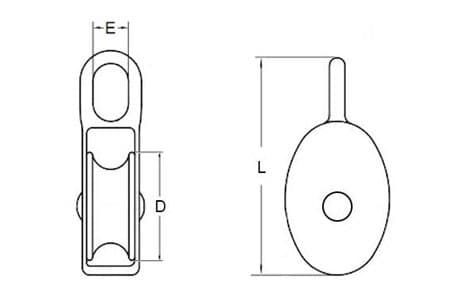

Die-Cast Pulley with Nylon Sheave — dimension drawing, single sheave, fixed eye
IH-LR-BP-DPNS

Die-Cast Pulley with Nylon Sheave

Zinc plated or nickel finishedwhite nylon wheelZinc alloy
