Double Plate Lifting Clamp — Type QS
Double Plate Lifting Clamp, Type QS, in 5 sizes, 1 t to 8 t. Indus part numbers, manufacturer's test certificate.
Key features
- Product type: Horizontal plate lifting clamp
- Pattern / standard: QS type
- Size range: 1 t to 8 t
- Working load limit: 1 to 8 t
- Size range
- 1 t to 8 t
- Working load limit
- 1 to 8 t
- Material
- Carbon steel
- Finish
- Painted
Product description

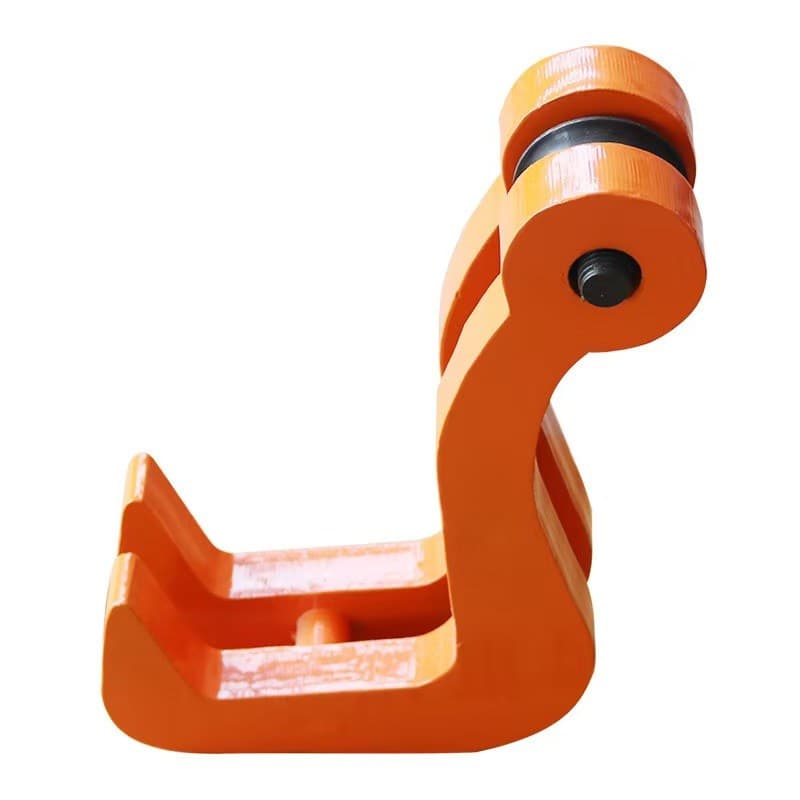

Hook-type clamp with a twin-plate body and a roller at the top for the sling, for lifting plates and structural sections horizontally. The pointed lip gets under a load in a narrow gap.
Sizes and ratings
5 sizes, 1 t to 8 t. Rated load 1 to 8 t. Every size has its own Indus part number in the table below, with the loads in the unit the manufacturer rates them in.
Choosing a size
Horizontal clamps lift in pairs or sets, spaced along the plate so it stays level. Choose by rated load and by jaw opening. The table gives the rated load as the manufacturer publishes it; confirm on the quotation whether the figure is for one clamp or for the set, and work to the load marked on the clamp.
Ordering
Quote the Indus part number from the size table, or send the size and working load you need. Each consignment ships with the manufacturer's test certificate; say on the RFQ if your site needs anything more.
Identification
| Parameter | Value |
|---|---|
| Product type | Horizontal plate lifting clamp |
| Pattern / standard | QS type |
| Sizes | 5 |
Dimensions
| Parameter | Value |
|---|---|
| Size range | 1 t to 8 t |
Performance
| Parameter | Value |
|---|---|
| Working load limit | 1 to 8 t |
Construction
| Parameter | Value |
|---|---|
| Material | Carbon steel |
| Finish | Painted |
Compliance
| Parameter | Value |
|---|---|
| Certification | Manufacturer's test certificate |
Shipping & lead time
Sizes & part numbers
5 sizes| Indus part no. | Size | WLL (t) | Weight (kg) | Jaw opening |
|---|---|---|---|---|
| IH-LR-LC-QS-1T | 1 t | 1 | 2 | 0–40 mm |
| IH-LR-LC-QS-2T | 2 t | 2 | 3.5 | 0–50 mm |
| IH-LR-LC-QS-3P2T | 3.2 t | 3.2 | 6 | 0–60 mm |
| IH-LR-LC-QS-5T | 5 t | 5 | 14.5 | 0–70 mm |
| IH-LR-LC-QS-8T | 8 t | 8 | 22 | 0–90 mm |
Size — Nominal size as the manufacturer states it. WLL — Working load limit — the most the part may carry in service, as the manufacturer rates it. Weight — Weight as the manufacturer publishes it. Jaw opening — Plate thickness range the clamp grips. Ask us for the dimension drawing if you need it stamped.
WLL is the most the part may carry in service. Proof and breaking loads are test figures — never lift to them. Each load is shown in the unit the manufacturer rates the part in, and a size ships with the manufacturer’s test certificate.
What sizes does the double plate lifting clamp come in?▾
What is the working load limit?▾
Is the rated load for one clamp or for a pair?▾
Do the parts come with a test certificate?▾
Shipped worldwide from our Dubai warehouse. Transit, routes and documentation for 126 destinations
The same part, in the designations used across European and Gulf trade catalogues.
- de
- Schlauchschelle
- fr
- collier de serrage
- es
- abrazadera de manguera
- it
- fascetta stringitubo
From the blog
Written about this part
Engineers viewing this also looked at

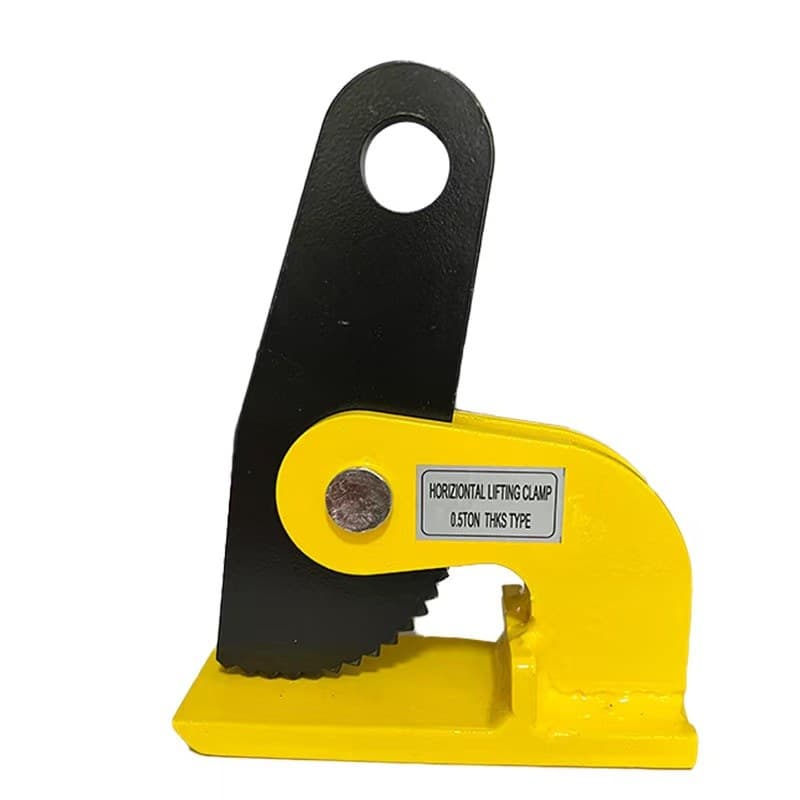

Horizontal Plate Lifting Clamp for Thin Sheet — Type THK / THKS

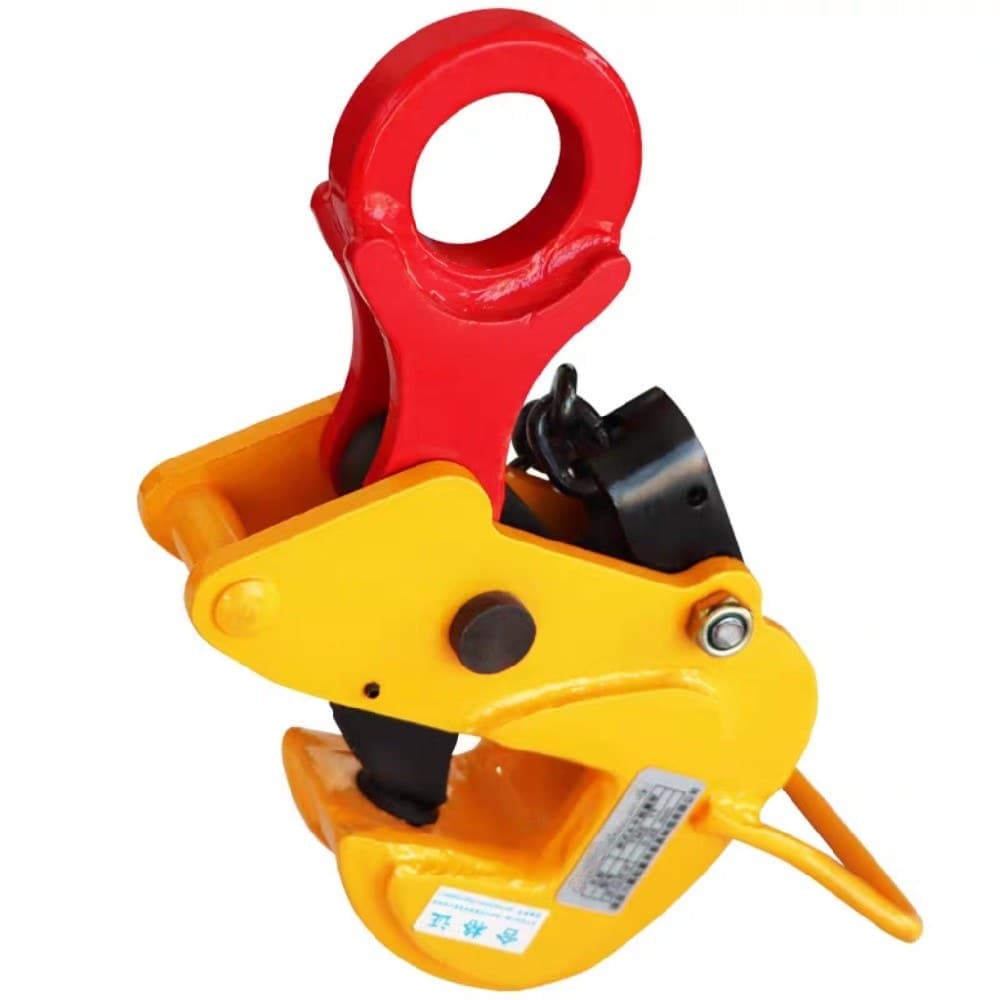

Horizontal Lifting Clamp with Locking Device — Type TMS
Universal Plate Lifting Clamp
Lifting Beam Clamp

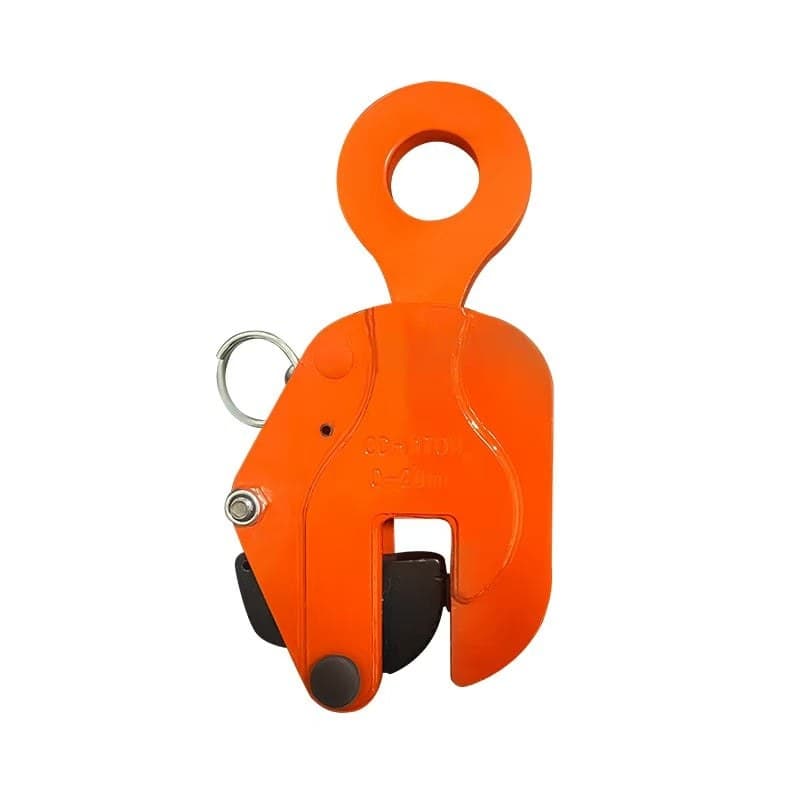

Vertical Plate Lifting Clamp — Type CDH
Horizontal Plate Lifting Clamp

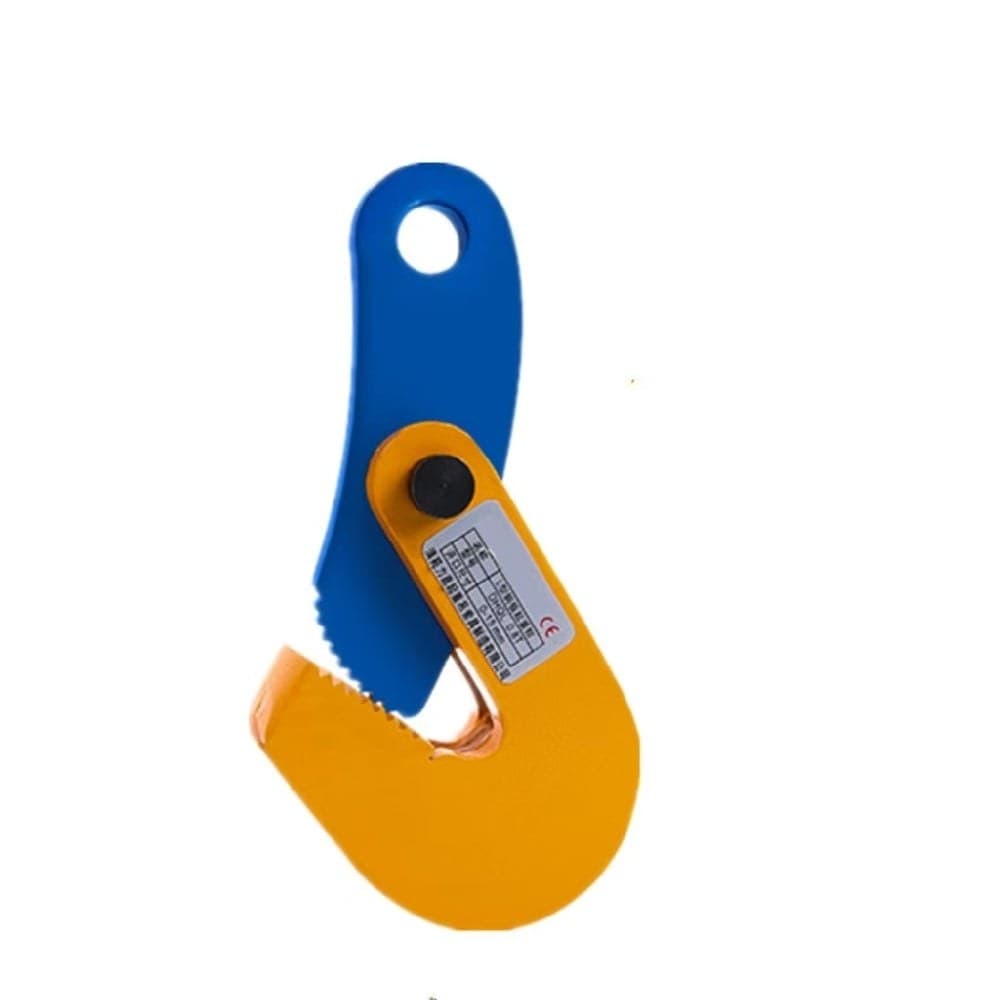

Horizontal Plate Lifting Clamp — Type L
