How is a hydraulic hose specified?
By four things, in order: bore, working pressure at that bore, bend radius, and the fluid and temperature. The grade designation — 2SN, R13, 4SH — falls out at the end as a result of those four. Starting from the designation is the most common way to specify the wrong hose.

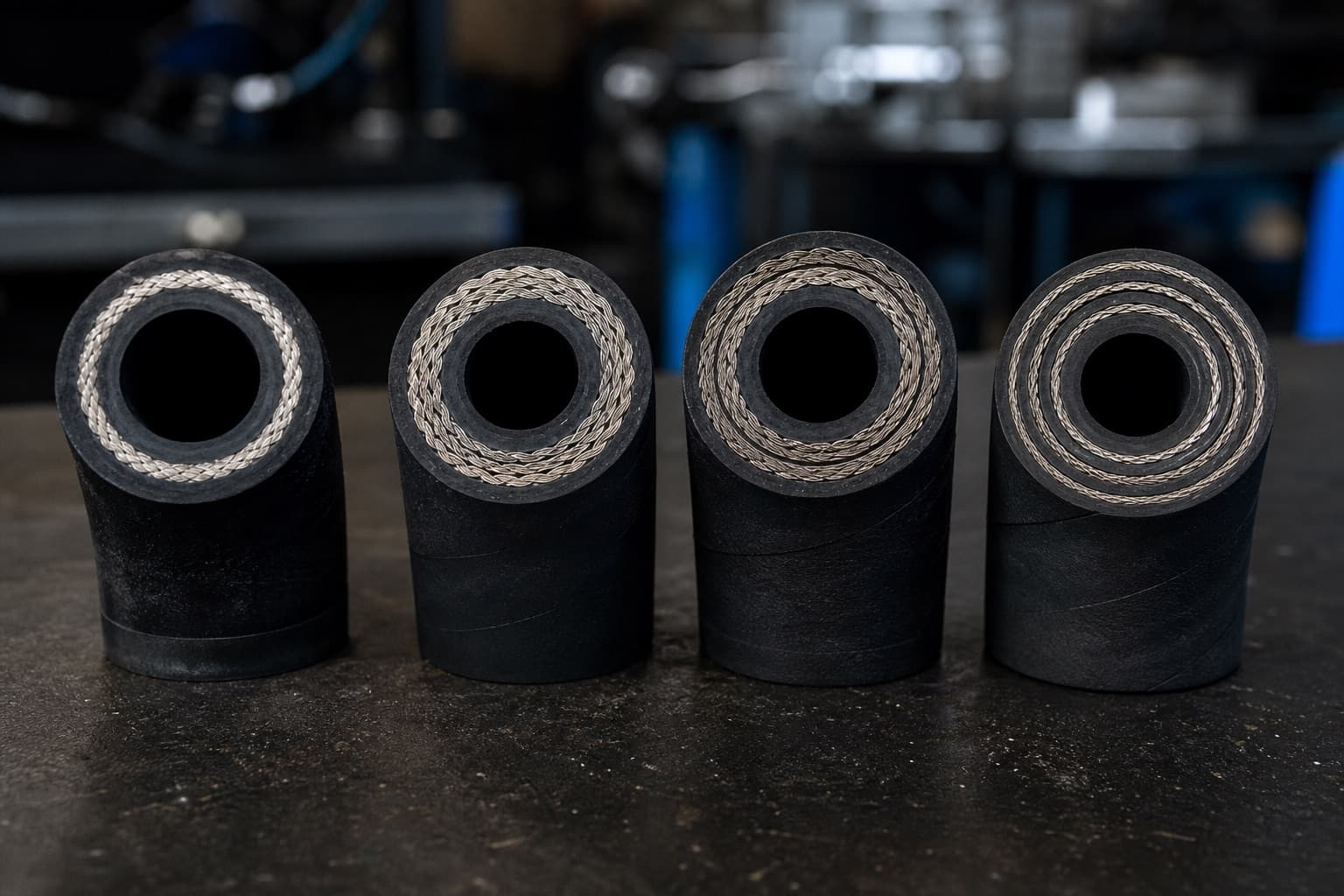

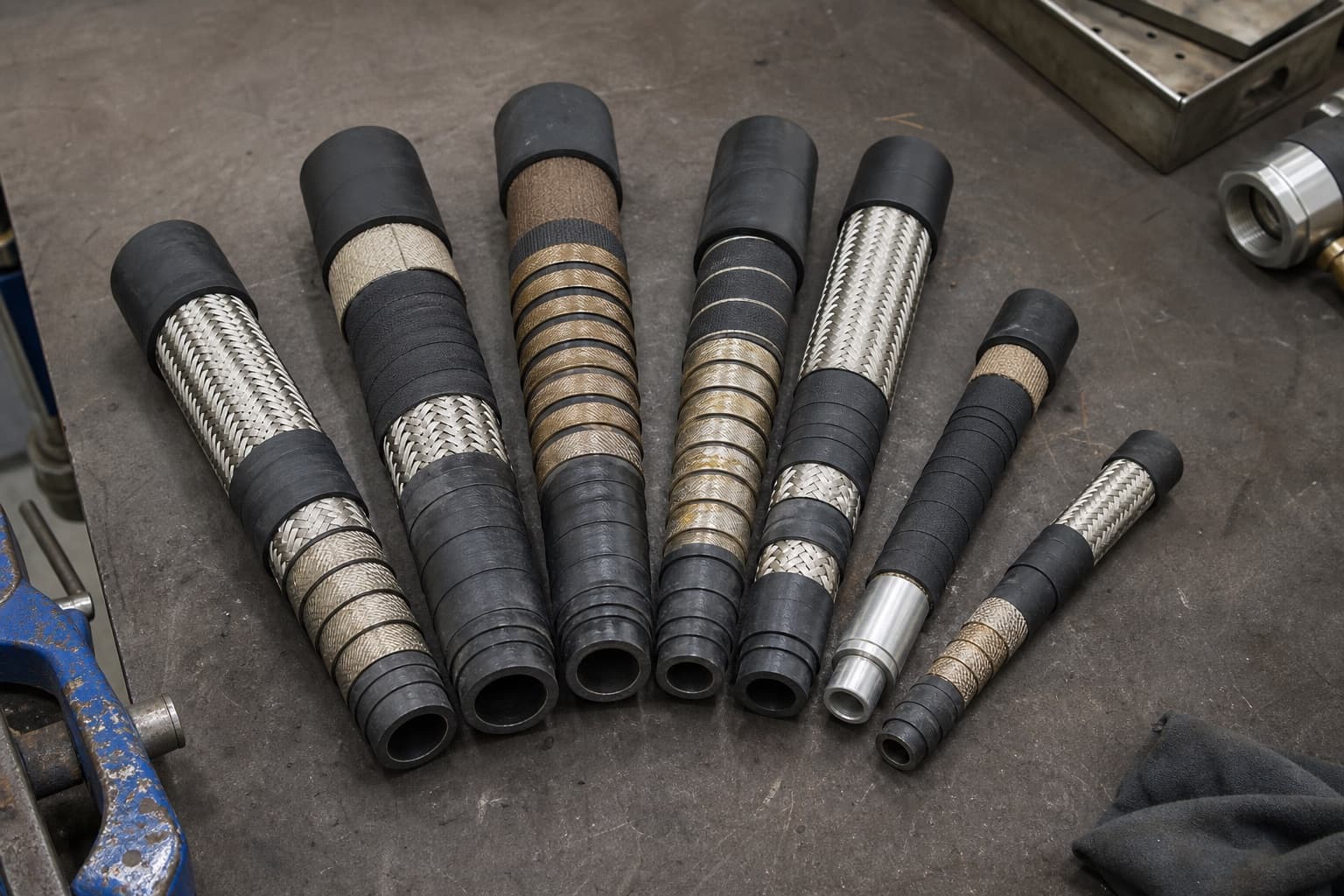

The articles below take the standards one at a time. What follows is the map: four reinforcement families, what each is for, and the single fact that decides between them.
| Family | Grades | Pressure behaviour as bore rises | Typical use |
|---|---|---|---|
| Wire braid | 1SN / R1AT, 2SN / R2AT | Falls steeply — 2SN loses four fifths from −04 to −32 | General high-pressure service |

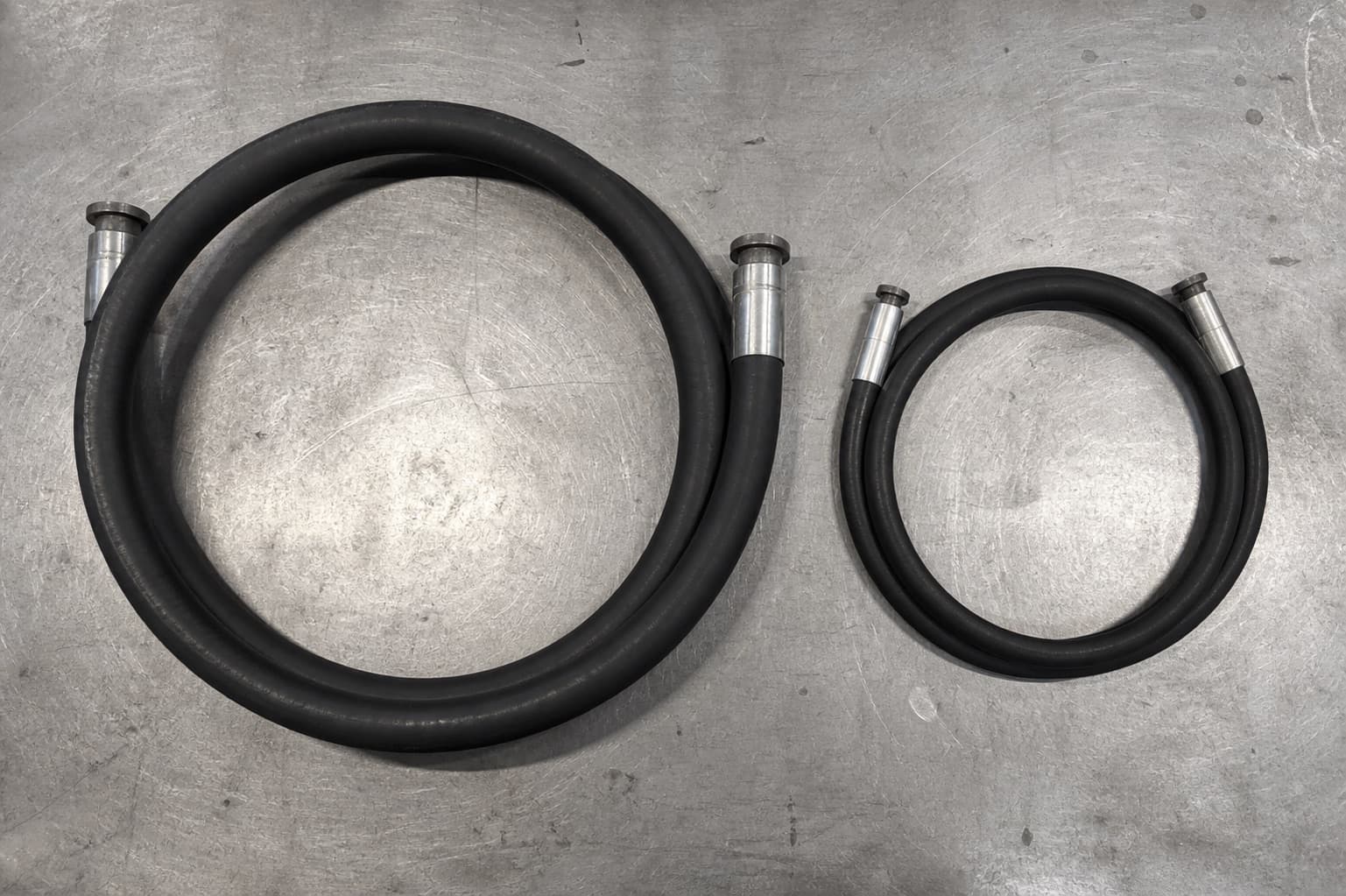

| Compact braid | 1SC, 2SC | As braid, in roughly half the bend radius | Tight routing at braid pressures |

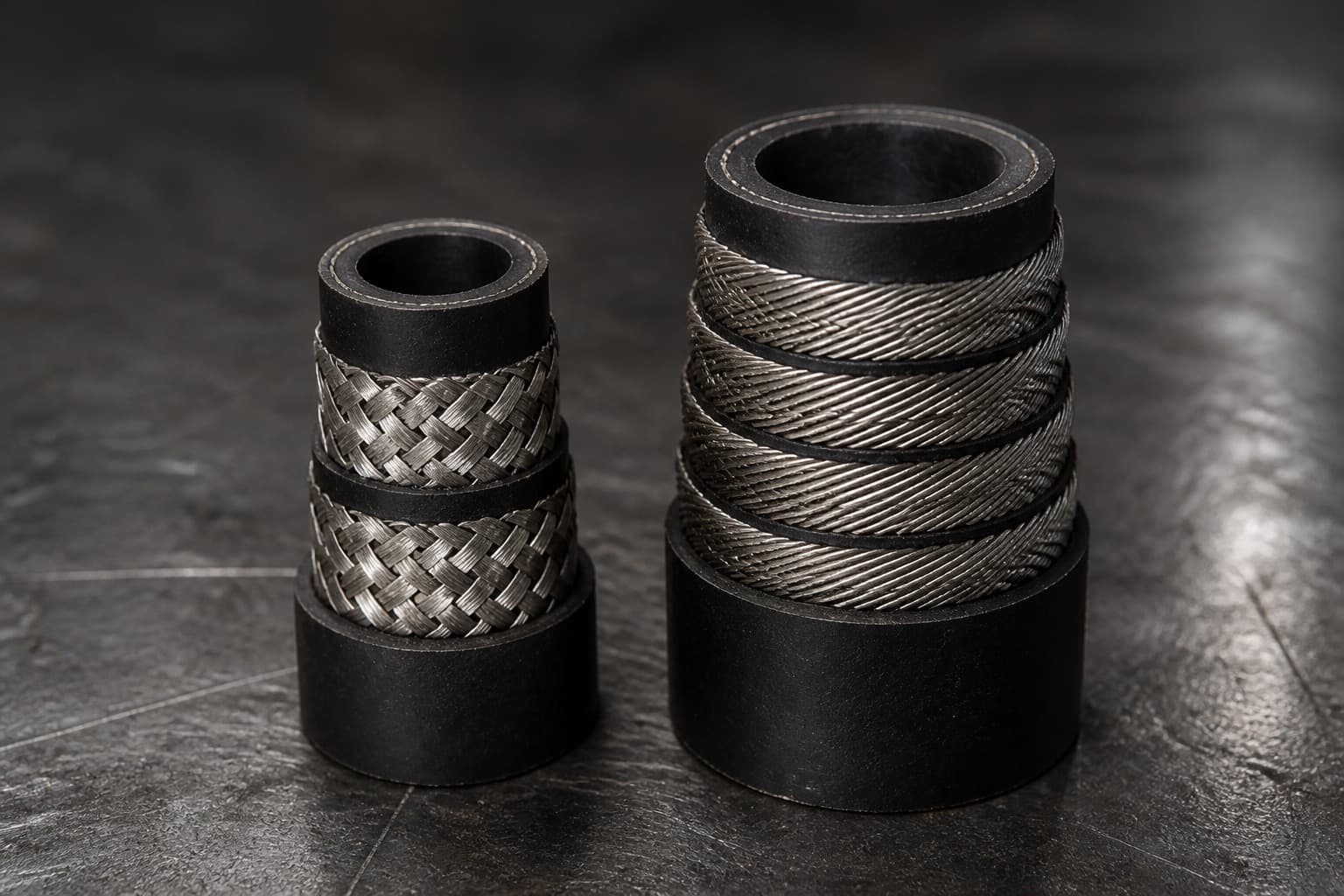

| Wire spiral | 4SP, 4SH, R13, R15 | Almost flat — R13 holds 350 bar across its whole range | Large bore, high pressure, impulse duty |
| Textile / thermoplastic | R5, R6, R7, R14 | Low throughout; selected on medium, not pressure | Return, suction, chemical, tight routing |
Where to start
I have a designation and need to know what it means.
Start with the SAE 100R article — it explains why the numbers are a catalogue rather than a ranking, and gives the working pressures by bore for every grade we stock.
My drawing says EN and my supplier quotes SAE.
The cross-reference article covers which pairings are genuine, which are approximations worth checking, and which have no counterpart at all.

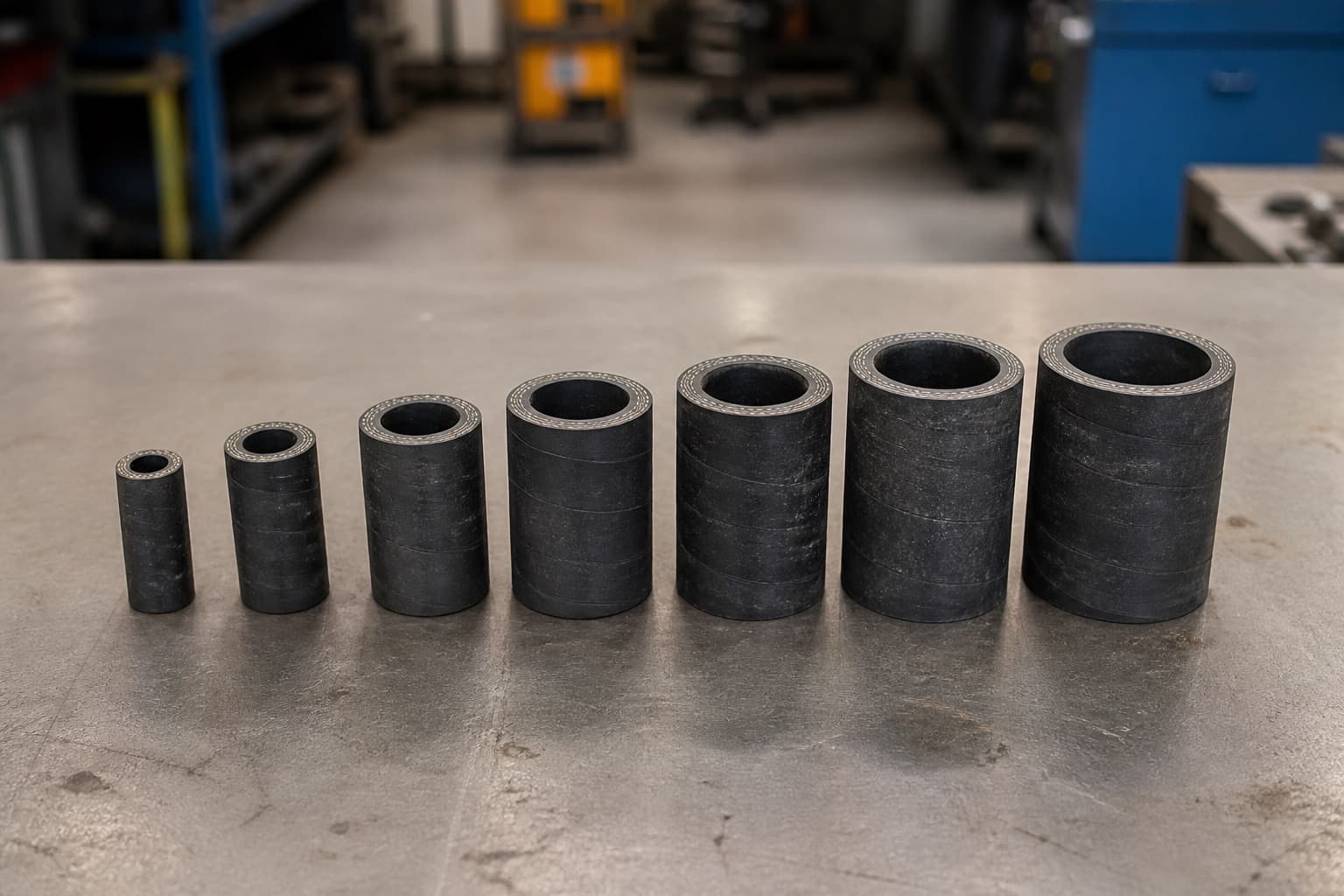

I need the pressure at a particular size.

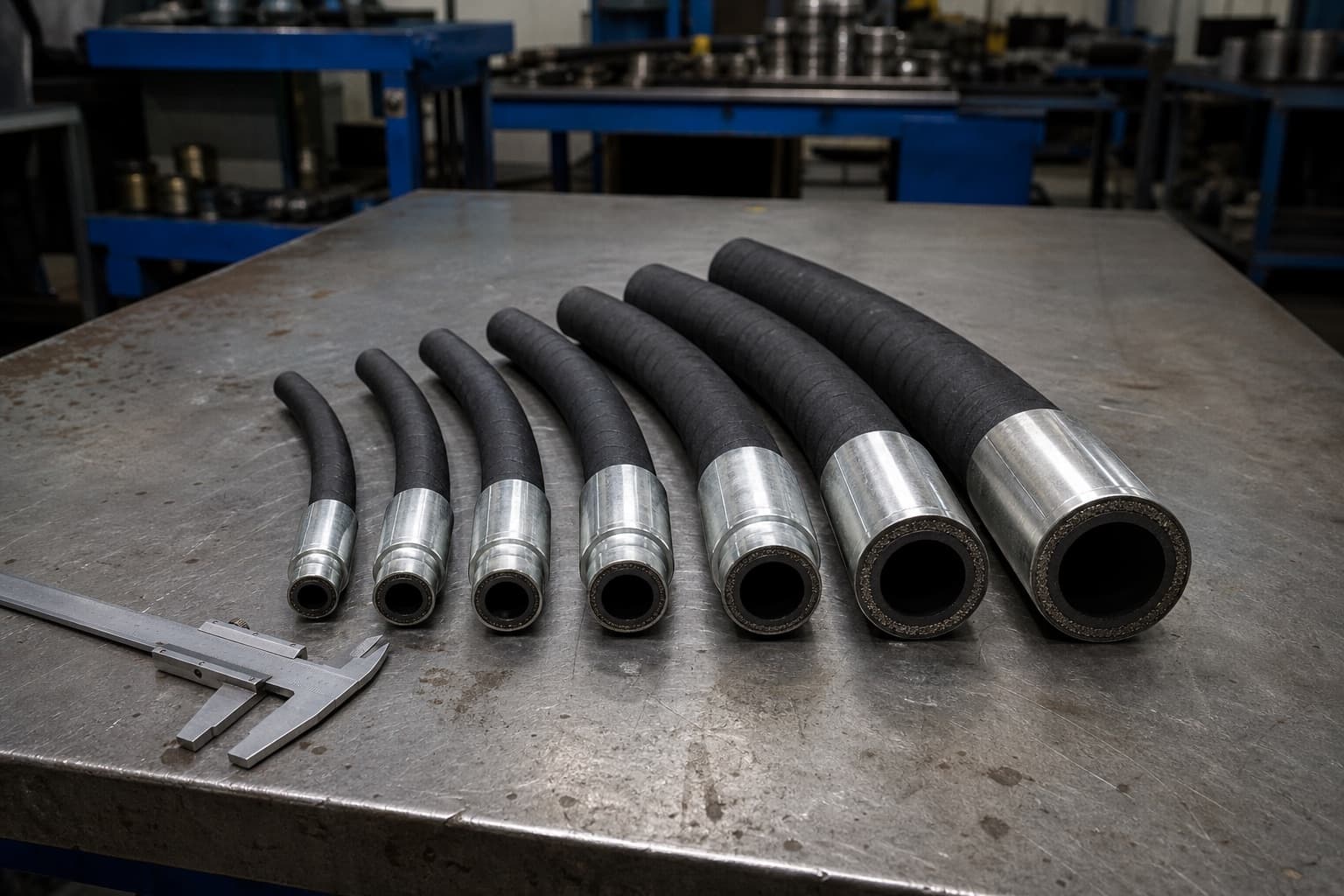

The pressure-by-size article carries the full per-bore tables for every construction, small bore and large.
I am reading markings off a hose in front of me.

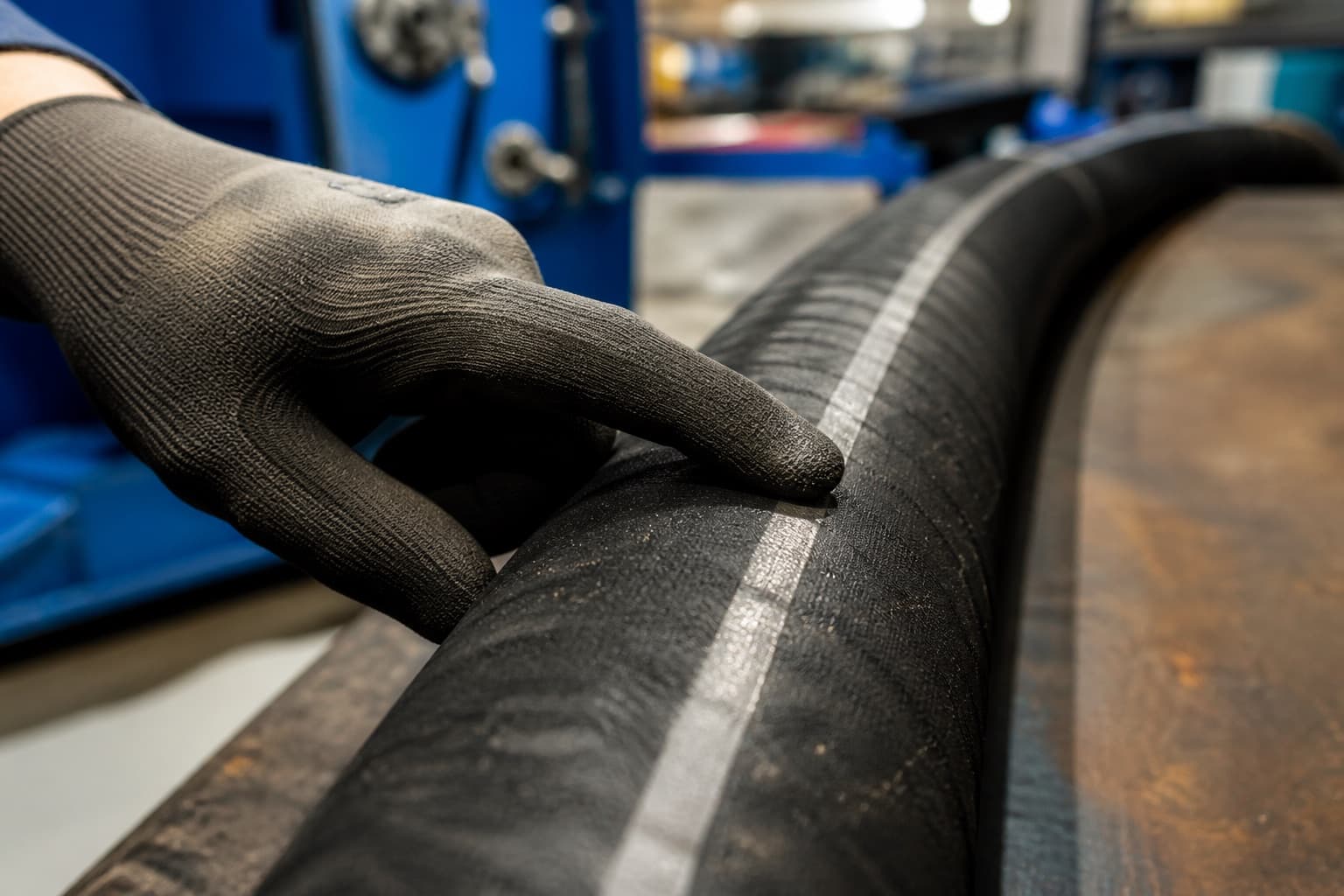

The layline article decodes every element printed on the cover, and covers what to do when the printing has worn away.
