Grade 100 Connecting Link — Non-Removable
Grade 100 Connecting Link, Non-Removable, in 5 sizes, 7 mm (9/32″) to 20 mm (3/4″), WLL 4,300 to 35,300 lbs. Indus part numbers, manufacturer's test certificate.
Key features
- Product type: Connecting link, non-removable
- Pattern / standard: Grade 100; EN 1677-1 as the manufacturer states
- Size range: 7 mm (9/32″) to 20 mm (3/4″)
- Working load limit: 4,300 to 35,300 lbs
- Size range
- 7 mm (9/32″) to 20 mm (3/4″)
- Working load limit
- 4,300 to 35,300 lbs
- Material
- Alloy steel, quenched and tempered
- Finish
- Powder coated
Product description
Grade 100 connecting link that joins chain to a master link or fitting permanently: once it is assembled it is not meant to be taken apart again.
Sizes and ratings

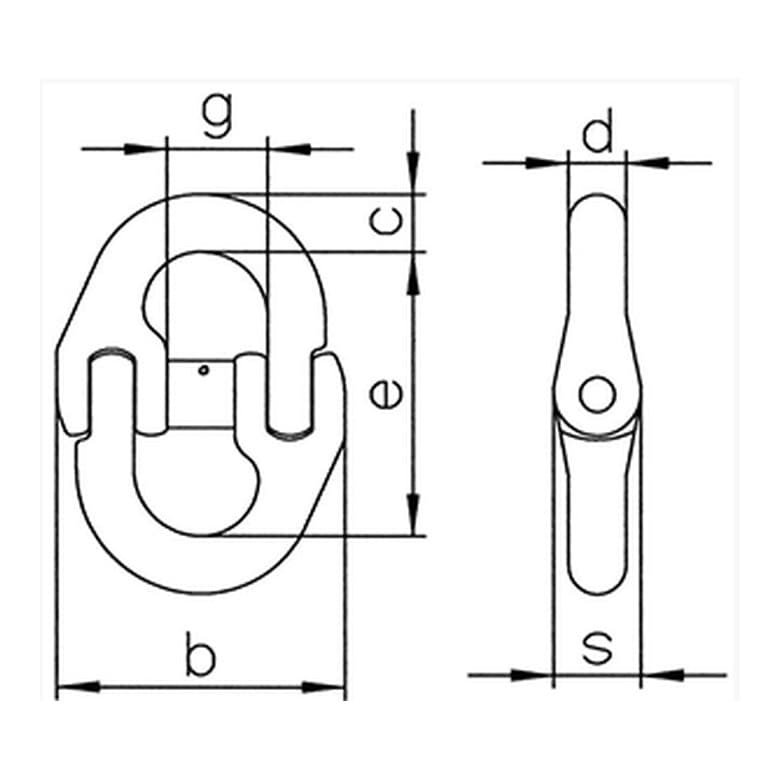

5 sizes, 7 mm (9/32″) to 20 mm (3/4″). Working load limit 4,300 to 35,300 lbs. Every size has its own Indus part number in the table below, with the loads in the unit the manufacturer rates them in. The lettered dimensions refer to the dimension drawing in the gallery.
Choosing a size
Chosen where a sling must stay as built, so that a leg cannot be swapped or re-made in the field. Each row is the link for one Grade 100 chain size and carries that chain's working load limit.
Ordering
Quote the Indus part number from the size table, or send the size and working load you need. Each consignment ships with the manufacturer's test certificate; say on the RFQ if your site needs anything more.
Identification
| Parameter | Value |
|---|---|
| Product type | Connecting link, non-removable |
| Pattern / standard | Grade 100; EN 1677-1 as the manufacturer states |
| Sizes | 5 |
Dimensions
| Parameter | Value |
|---|---|
| Size range | 7 mm (9/32″) to 20 mm (3/4″) |
Performance
| Parameter | Value |
|---|---|
| Working load limit | 4,300 to 35,300 lbs |
Construction
| Parameter | Value |
|---|---|
| Material | Alloy steel, quenched and tempered |
| Finish | Powder coated |
Compliance
| Parameter | Value |
|---|---|
| Certification | Manufacturer's test certificate |
Shipping & lead time
Sizes & part numbers
5 sizes| Indus part no. | Size | WLL (lbs) | b (mm) | d (mm) | c (mm) | e (mm) | g (mm) | s (mm) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| IH-LR-G10-NRCL-7MM | 7 mm (9/32″) | 4,300 | 46.5 | 8.9 | 9.9 | 51.1 | 17 | 13 | 0.26 |
| IH-LR-G10-NRCL-10MM | 10 mm (3/8″) | 8,800 | 63 | 12.7 | 12.7 | 71.9 | 23.1 | 17.8 | 0.93 |
| IH-LR-G10-NRCL-13MM | 13 mm (1/2″) | 15,000 | 79 | 16.8 | 19 | 87.9 | 27.7 | 22.1 | 1.85 |
| IH-LR-G10-NRCL-16MM | 16 mm (5/8″) | 22,600 | 105.9 | 21.1 | 21.1 | 103.1 | 33 | 29 | 2.51 |
| IH-LR-G10-NRCL-20MM | 20 mm (3/4″) | 35,300 | 118.1 | 24.4 | 29.5 | 115.1 | 41.7 | 34.8 | 4.72 |
Size — Nominal size as the manufacturer states it. WLL — Working load limit — the most the part may carry in service, as the manufacturer rates it. b — Dimension b on the manufacturer dimension drawing. d — Dimension d on the manufacturer dimension drawing. c — Dimension c on the manufacturer dimension drawing. e — Dimension e on the manufacturer dimension drawing. g — Dimension g on the manufacturer dimension drawing. s — Dimension s on the manufacturer dimension drawing. Weight — Weight as the manufacturer publishes it. Ask us for the dimension drawing if you need it stamped.
WLL is the most the part may carry in service. Proof and breaking loads are test figures — never lift to them. Each load is shown in the unit the manufacturer rates the part in, and a size ships with the manufacturer’s test certificate.
