Dewatering and water transfer hose: why suction is the whole specification

On a dewatering set the pump is rarely the problem. Suction hose that collapses, leaks air or sits above the water line accounts for most of the calls.

Written by
Ayush Bhatia, Director
Published
Updated
Reading
4 min · 3 sections
Share
A dewatering pump on a construction site with a helix-reinforced suction hose running down into a muddy sump at first light
Dewatering hose is specified for suction first, so it must not collapse under vacuum.

At a glance

Key takeaways

  1. A pump that will not prime is usually a suction-side problem, and usually the hose or its couplings rather than the pump.
  2. Delivery hose collapses under vacuum. Suction duty needs a helix-reinforced construction, which is why it is heavier and stiffer.
  3. An air leak on the suction side stops a pump priming even though nothing leaks water — because the leak only shows under vacuum.
  4. Suction hose kinked flat at the pump inlet is a very common site fault, and it presents as a pump fault.
  5. On construction dewatering the hose spends its life being dragged, driven over and left in the sun. Specify for the handling, not just the fluid.

Figures verified · Selection and diagnosis principles only. Vacuum ratings and lift capability are per construction and per pump.

Dewatering is the application where the hose is most often blamed last and at fault first. Water is not aggressive, pressures are modest and the pump is the expensive item — so when a set will not prime, the pump gets attention while the actual cause is usually a few metres upstream of it.

/01Suction is a different hose.

The confusion is understandable, because the failure is intermittent. A delivery hose pressed into suction service often works while the pump is primed and the lift is small, then collapses the moment conditions get harder — which reads as a pump losing performance rather than a hose doing exactly what it was always going to do. A true suction hose, such as our 16 bar water suction and delivery hose, carries a steel helix that holds the bore open when the pump pulls.

/02Air leaks you cannot see.

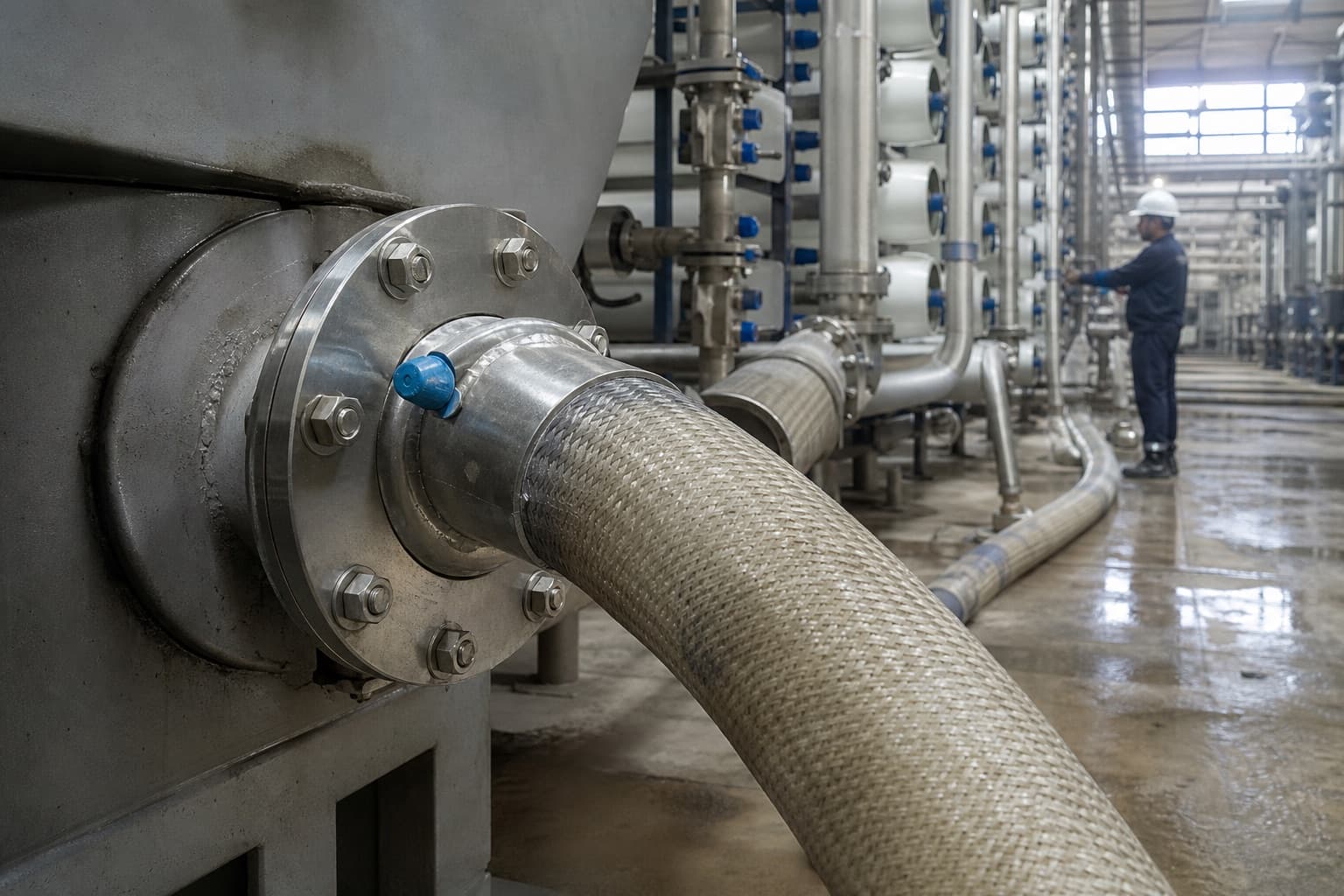

A flexible hose flanged to a manifold inside a desalination plant, rows of white pressure vessels and stainless pipework behind
Plant intakes are the same problem at a larger scale: everything is decided by what happens on the suction side.
Symptom to cause on a dewatering set
SymptomLikely causeCheck
Will not prime at allHighlightedAir ingress on the suction side, or a collapsed hoseCouplings, gaskets, and the hose at the inlet
Primes then loses primeIntermittent air leak, or strainer breaking the surfaceSubmergence depth and joint integrity
Flow drops as level fallsLift exceeding what the set can manageStatic lift, and whether the hose run has risen
Hose flattened at the inletDelivery hose on suction duty, or a kinkConstruction — is there a helix?
Gradual flow loss over weeksPartially blocked strainerStrainer, before anything else

/03Specify for the handling.

Construction dewatering hose is dragged across rubble, driven over, coiled wet and left in direct sun between jobs. Cover abrasion resistance and UV tolerance matter more here than they would on a plant installation, and a hose specified purely on bore and pressure will be technically correct and short-lived. Where sets move frequently, weight matters too — a hose nobody can handle gets dropped rather than carried. Where sets are joined and split on site, cam and groove couplings are the usual choice on pump connections and Bauer couplings on irrigation and slurry lines.

On the discharge side, most dewatering lines are lay flat hose. Our lay flat hose guide covers the materials and pressure classes, and the friction loss guide shows how to size the line for its length.

On Gulf construction sites, where the water table often sits within a couple of metres of the surface, see how a full construction dewatering hose system is put together, and what the discharge permit in Dubai, Abu Dhabi or Qatar asks for.

Suction and delivery constructions

Common questions

How do I find a suction air leak?
Pressurise the suction line gently and look for bubbles, or work systematically through the joints re-making each one. You will not find it by looking for water, because there is none to find.
Does the strainer need to be fully submerged?
Yes, and with margin. A strainer that breaks the surface as the level drops draws air, and the set loses prime just as the job is nearly finished.
Can I use suction hose on the delivery side?
You can — it is stronger than it needs to be there. It is heavier, stiffer and more expensive, so it is usually a waste rather than a mistake.
Why does my hose kink at the pump inlet?
Usually because the run turns immediately at the coupling with no straight section. Same principle as hydraulic routing: let the hose leave the fitting straight before it turns.
