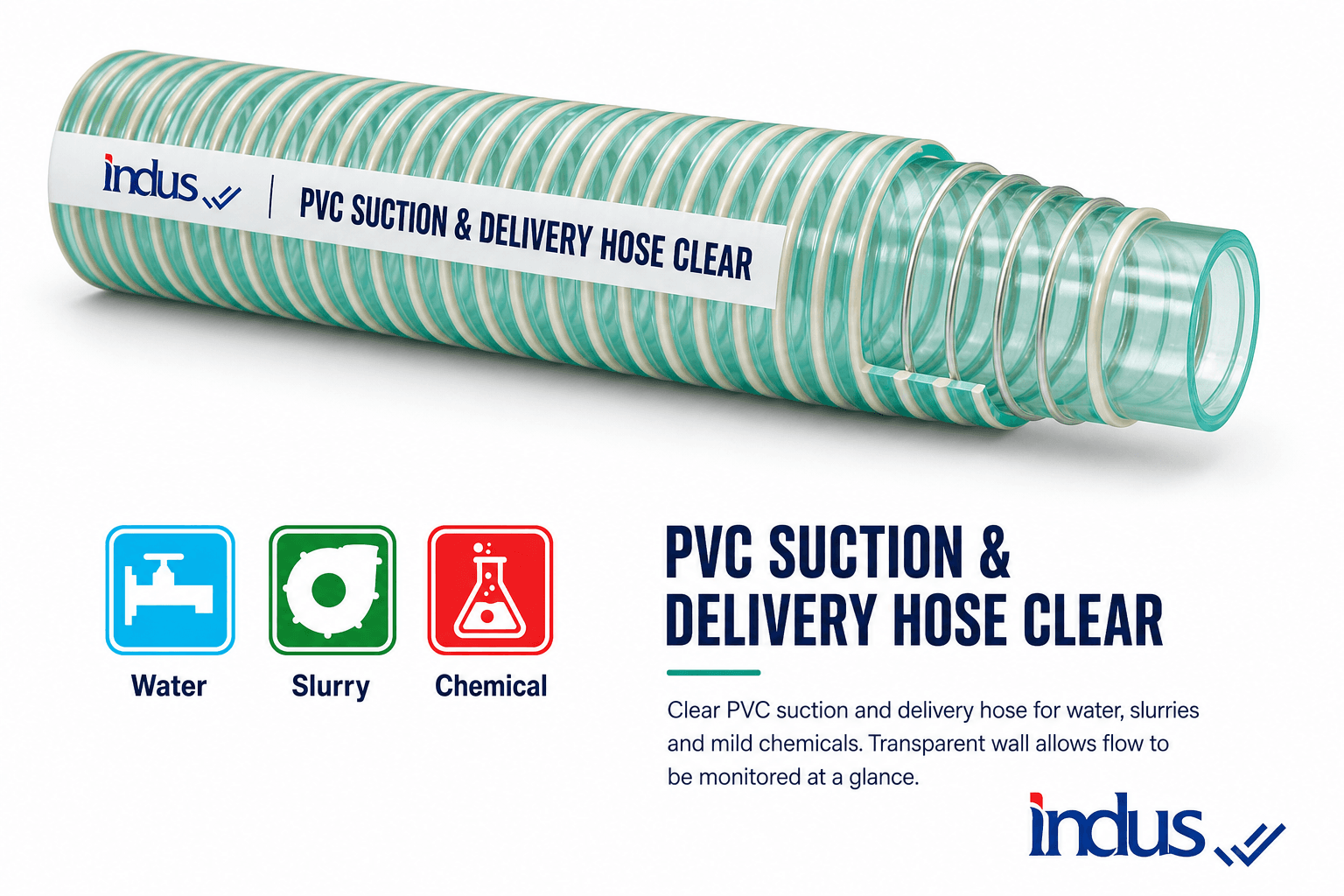

Clear PVC Suction & Delivery Hose
Low pressure generic hose for water and dilute chemicals. For use in agriculture, construction and water utility industries
Key features
- Application Family: water-suction-delivery
- Manufacturer Part Code: DELVAC
- Inner Diameter Range: 19 mm to 51 mm
- Max Working Pressure: 4-8 bar
- Operating Temperature: -10°C TO +55°C
- Application Family
- water-suction-delivery
- Manufacturer Part Code
- DELVAC
- Inner Diameter Range
- 19 mm to 51 mm
- Max Working Pressure
- 4-8 bar
- Operating Temperature
- -10°C TO +55°C
Product description
The Clear PVC Suction & Delivery Hose (part code DELVAC) is a Water Suction & Delivery Hose from the Indus Hydraulics industrial hose range.
Application
Low pressure generic hose for water and dilute chemicals. For use in agriculture, construction and water utility industries
Construction
- Cover: PVC tube construction (no separate cover/lining)
- Lining / Tube: PVC tube construction (no separate cover/lining)
- Reinforcement: PVC spiral helix
- Branding (printed on hose): INDUS DELVAC
Performance
- Inner-diameter range: 19 mm to 51 mm
- Max working pressure: 4-8 bar
- Min burst pressure: 13-24 bar
- Min bend radius: 86 to 230 mm, by size
- Weight: 0.28 to 0.81 kg/m, by size
- Operating temperature: -10°C TO +55°C
- Safety factor: 3:1
Family context
Water suction & delivery hoses with helical wire reinforcement for vacuum / suction service. Sizes from 25 mm up to 200 mm bore. Common on dewatering, irrigation, and tanker service.
How to order
Specify (a) the inner diameter from the size range, (b) the assembly length, (c) end-fitting requirements, and (d) any special requirements such as Lloyd's certification or third-party witness testing. Indus engineering will confirm the assembly drawing on the RFQ.
Companion products
Pair with matching couplings and accessories (Cam & Groove, Boss steam couplings, hose clamps, Holedall permanently-attached fittings, hose tags, and Spiral Hose Guard / Fire Jacket protective sleeves) — full range available on quote.
Identification
| Parameter | Value |
|---|---|
| Application Family | water-suction-delivery |
| Manufacturer Part Code | DELVAC |
| Hose Branding (Printed) | INDUS DELVAC |
Dimensions
| Parameter | Value |
|---|---|
| Inner Diameter Range | 19 mm to 51 mm |
| Min Bend Radius | 86 to 230 mm, by size |
| Weight | 0.28 to 0.81 kg/m, by size |
Performance
| Parameter | Value |
|---|---|
| Max Working Pressure | 4-8 bar |
| Min Burst Pressure | 13-24 bar |
| Operating Temperature | -10°C TO +55°C |
| Safety Factor | 3:1 |
Construction
| Parameter | Value |
|---|---|
| Cover Material | PVC tube construction (no separate cover/lining) |
| Lining / Tube Material | PVC tube construction (no separate cover/lining) |
| Reinforcement | PVC spiral helix |
Shipping & lead time
Sizes & part numbers
5 sizes| Indus part no. | Hose bore | O.D. (mm) | Min burst (bar) | Vacuum (bar) | Min bend radius (mm) | Weight (kg/m) | Working pressure (bar) |
|---|---|---|---|---|---|---|---|
| IH-IH-DELVAC-019 | 3/4" · DN19 | 25 | 24 | 0.7 | 86 | 0.28 | 8 |
| IH-IH-DELVAC-025 | 1" · DN25 | 32 | 19.5 | 0.7 | 114 | 0.33 | 6 |
| IH-IH-DELVAC-032 | 1-1/4" · DN32 | 39 | 16.5 | 0.7 | 143 | 0.46 | 5 |
| IH-IH-DELVAC-038 | 1-1/2" · DN38 | 45 | 13.5 | 0.7 | 171 | 0.55 | 4 |
| IH-IH-DELVAC-051 | 2" · DN51 | 60 | 13.5 | 0.7 | 230 | 0.81 | 4 |
O.D. — Outside diameter of the hose, which is what a clamp or a ferrule has to close on. Min burst — Minimum burst pressure. A test figure, never a working limit — never select on it. Vacuum — Vacuum the hose is rated to hold on suction duty, as published. Min bend radius — Tightest centreline radius the hose may be bent to at full working pressure. Weight — Weight of the hose per metre, as published.
Working pressure is the published rating for the hose itself. A made-up assembly is limited by its lowest-rated part, so check it against the coupling, the clamp or ferrule, and the temperature you are running at.
Cut lengths and made-up assemblies are prepared in Dubai. Tell us the bore, the length and the ends you need.
What is this hose used for?▾
What sizes are available?▾
What is the maximum working pressure?▾
What is the operating temperature range?▾
What is the construction (cover / lining / reinforcement)?▾
What is the printed branding on the hose?▾
Lead time?▾
Shipped worldwide from our Dubai warehouse. Transit, routes and documentation for 126 destinations
