What are the port specs?

Single port: Male DIN 24° cone L-series and S-series (M10×1 to M42×2) (24° cone (DIN bite-type)).

What sizes are available?

L6 to L42 (light series), S6 to S38 (heavy series). Larger or non-standard sizes are typically quoted on request.

What is the maximum working pressure?

L-series up to 250 bar (3625 psi); S-series up to 400 bar (5800 psi). The pressure rating tracks the lowest-rated component in the assembly — pair with appropriately rated host ports, hoses, and ferrules.

What materials and finishes are available?

Standard: carbon steel with zinc-plated, Cr3+ passivated, RoHS-compliant finish. Stainless steel 316 available on request for marine, chemical, or food-grade service.

Is this adapter interchangeable with other thread families?

DIN 2353 is a thread family in its own right and is NOT directly interchangeable with other families (BSP / JIC / NPT / Metric / ORFS / DIN). Use the appropriate thread-mix adapter (e.g., m JIC × m BSPT) when crossing thread families.

Do I need to crimp this onto a hose?

No — these are tube / port adapters, not hose ends. Use Indus crimp ferrules + Indus hose-end fittings for hose assemblies. These adapters thread into ports or join tube sections.

Common configurations are ex-stock from Dubai. Less-common thread × seal × size combinations typically ship within 7 working days from RFQ confirmation.

INDUS HYDRAULICSIH-AD-DIN-014· MADE IN UAE

Union Tee (DIN 2353)

Name: Union Tee (DIN 2353)
Brand: Indus Hydraulics
SKU: IH-AD-DIN-014

DIN 2353 Bite Type AdaptersEx-stock · delivery in 3 days

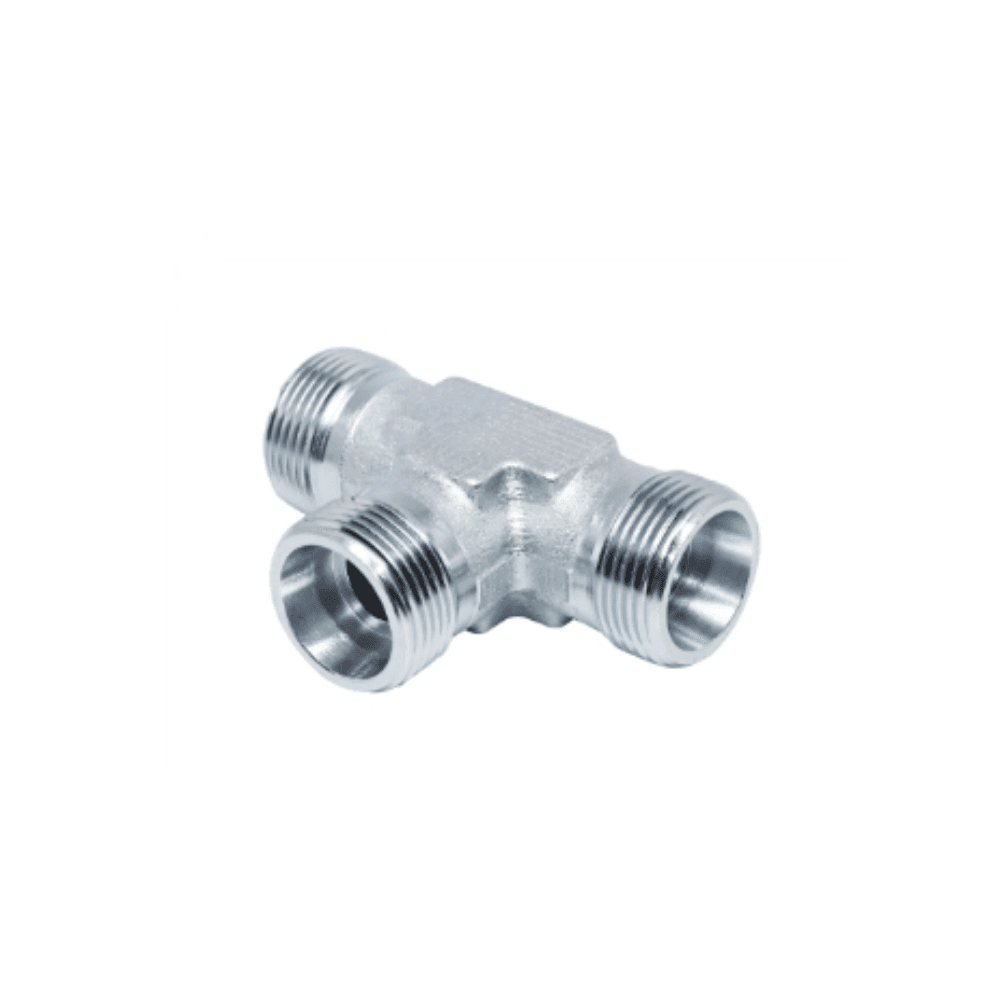

VIEW 01·Union tee, three DIN 2353 bite-type tube ends, zinc-plated steel

Union Tee — DIN 2353 family branch tee for hydraulic line interconnection. RFQ-only; standard Indus zinc-plated carbon-steel construction.

Key features

Body Configuration: branch-tee
Port A Thread: DIN 24° cone L-series and S-series (M10×1 to M42×2)
Port A Sealing: 24-cone
Nominal Size Range: L6 to L42 (light series), S6 to S38 (heavy series)
Max Working Pressure: L-series up to 250 bar (3625 psi); S-series up to 400 bar (5800 psi)

Body Configuration: branch-tee
Port A Thread: DIN 24° cone L-series and S-series (M10×1 to M42×2)
Port A Sealing: 24-cone
Nominal Size Range: L6 to L42 (light series), S6 to S38 (heavy series)
Max Working Pressure: L-series up to 250 bar (3625 psi); S-series up to 400 bar (5800 psi)

Enquire on WhatsApp Email for a quotation

Ships in 24h

Order before 14:00 GST · Jebel Ali

24-month warranty

Manufacturer-backed · genuine parts

Engineering support

A real applications engineer

Product description

The Union Tee (DIN 2353) is a Branch tee hydraulic adapter in the DIN 2353 family. Union Tee — DIN 2353 family branch tee for hydraulic line interconnection. RFQ-only; standard Indus zinc-plated carbon-steel construction.

Construction

Body configuration: Branch tee
Port A: Male — DIN 24° cone L-series and S-series (M10×1 to M42×2) (24° cone (DIN bite-type))
Material: Carbon steel (stainless steel available on request)
Surface treatment: Zinc-plated, Cr3+ passivated, RoHS-compliant

Performance

L-series up to 250 bar (3625 psi); S-series up to 400 bar (5800 psi). DIN 2353 family — DIN 2353 / ISO 8434-1 — 24° cone bite-type fittings using a hardened cutting-ring that grips the hardened-tube OD on assembly. The de-facto standard for hydraulic tube connections in Europe.

Applicable Standards

DIN 2353
ISO 8434-1

How to order

Specify (a) the host port size and thread spec on each end, (b) any special seal requirements (bonded seal vs ED seal vs cone seat), and (c) whether you need stainless-steel construction or non-standard surface treatment. Indus engineering will confirm the correct part number against your equipment.

Companion products

Pair with the appropriate Indus tubing or hose ends. For tube assemblies use Indus DIN 2353 cutting rings and end nuts. For hose assemblies pair with Indus crimp ferrules and the matching hose grade.

Identification

Parameter	Value
Body Configuration	branch-tee

Port A

Parameter	Value
Port A Thread	DIN 24° cone L-series and S-series (M10×1 to M42×2)
Port A Sealing	24-cone
Port A Gender	male

Dimensions

Parameter	Value
Nominal Size Range	L6 to L42 (light series), S6 to S38 (heavy series)

Performance

Parameter	Value
Max Working Pressure	L-series up to 250 bar (3625 psi); S-series up to 400 bar (5800 psi)

Construction

Parameter	Value
Material	Carbon steel (stainless on request)
Surface Treatment	Zinc-plated, Cr3+ passivated, RoHS-compliant

Compliance

Parameter	Value
Applicable Standards	DIN 2353, ISO 8434-1

Shipping & lead time

Lead TimeEx-stock from Dubai — delivered within 3 working days in the UAE. Export orders ship on the lane stated for the destination.

OriginMade in UAE

Sizes & part numbers

20 sizes

Indus part no.	End 1	End 2	End 3	S1 (mm)	S2 (mm)	D1 (mm)	L1 (mm)	L2 (mm)	L3 (mm)
IH-AD-DIN-014-C12	M12X1.5	M12X1.5	M12X1.5	12	14	6	19	12	27
IH-AD-DIN-014-C14	M14X1.5	M14X1.5	M14X1.5	12	17	8	21	14	29
IH-AD-DIN-014-C16	M16X1.5	M16X1.5	M16X1.5	14	19	10	22	15	30
IH-AD-DIN-014-C18	M18X1.5	M18X1.5	M18X1.5	17	22	12	24	17	32
IH-AD-DIN-014-C22	M22X1.5	M22X1.5	M22X1.5	19	27	15	28	21	36
IH-AD-DIN-014-C26	M26X1.5	M26X1.5	M26X1.5	24	32	18	31	23.5	40
IH-AD-DIN-014-C30	M30X2	M30X2	M30X2	27	36	22	35	27.5	44
IH-AD-DIN-014-C36	M36X2	M36X2	M36X2	36	41	28	38	30.5	47
IH-AD-DIN-014-C45	M45X2	M45X2	M45X2	41	50	35	45	34.5	56
IH-AD-DIN-014-C52	M52X2	M52X2	M52X2	50	60	42	51	40	63
IH-AD-DIN-014-D14	M14X1.5	M14X1.5	M14X1.5	12	17	6	23	16	31
IH-AD-DIN-014-D16	M16X1.5	M16X1.5	M16X1.5	14	19	8	24	17	32
IH-AD-DIN-014-D18	M18X1.5	M18X1.5	M18X1.5	17	22	10	25	17.5	34
IH-AD-DIN-014-D20	M20X1.5	M20X1.5	M20X1.5	17	24	12	29	21.5	38
IH-AD-DIN-014-D22	M22X1.5	M22X1.5	M22X1.5	19	27	14	30	22	40
IH-AD-DIN-014-D24	M24X1.5	M24X1.5	M24X1.5	24	30	16	33	24.5	43
IH-AD-DIN-014-D30	M30X2	M30X2	M30X2	27	36	20	37	26.5	48
IH-AD-DIN-014-D36	M36X2	M36X2	M36X2	36	46	25	42	30	54
IH-AD-DIN-014-D42	M42X2	M42X2	M42X2	41	50	30	49	35.5	62
IH-AD-DIN-014-D52	M52X2	M52X2	M52X2	50	60	38	57	41	72

End 1 — Thread or flange nominal size at this end, exactly as the manufacturer prints it. End 2 — Thread or flange nominal size at this end, exactly as the manufacturer prints it. End 3 — Thread or flange nominal size at this end, exactly as the manufacturer prints it. S1 — Dimension S1 on the manufacturer dimension drawing. S2 — Dimension S2 on the manufacturer dimension drawing. D1 — Dimension D1 on the manufacturer dimension drawing. L1 — Dimension L1 on the manufacturer dimension drawing. L2 — Dimension L2 on the manufacturer dimension drawing. L3 — Dimension L3 on the manufacturer dimension drawing. Ask us for the dimension drawing if you need it stamped.

Every size is available in 316 stainless steel on request — add “-SS” to the part number when you enquire.

Shipped worldwide from our Dubai warehouse. Transit, routes and documentation for 126 destinations

Also known as

The same part, in the designations used across European and Gulf trade catalogues.

de: Außengewinde T-Stück
fr: mâle té
es: macho te
it: maschio raccordo a T

From the blog

Written about this range

Fittings by industry

Fixed plant fittings: standardise, because you finally can

A factory is the one environment where the thread population is a choice rather than an inheritance. Most plants never make that choice, and pay for it every week.

3 min read

Thread & fitting identification

Fittings on European machines: DIN 2353, and light series versus heavy

Metric 24° cone covers most of it, but the same tube size exists in two series with different threads. Knowing which one you are holding is the whole job.

3 min read

Thread & fitting identification

Fittings on a Chinese excavator: which thread families to expect

Metric 24° cone and BSP cover most of what you will meet, with flanges on the big lines. What each looks like in the hand, and why the badge on the machine never settles it.

4 min read

RELATED · OFTEN PAIRED WITH

Engineers viewing this also looked at

IH-AD-DIN-015

Union Tee (DIN 2353)

Key features

Product description

Construction

Performance

Applicable Standards

How to order

Companion products

Identification

Port A

Dimensions

Performance

Construction

Compliance

Shipping & lead time

Sizes & part numbers

Written about this range

Fixed plant fittings: standardise, because you finally can

Fittings on European machines: DIN 2353, and light series versus heavy

Fittings on a Chinese excavator: which thread families to expect

Engineers viewing this also looked at

Male Female Connector

Blanking Plug for Port with ED Seal

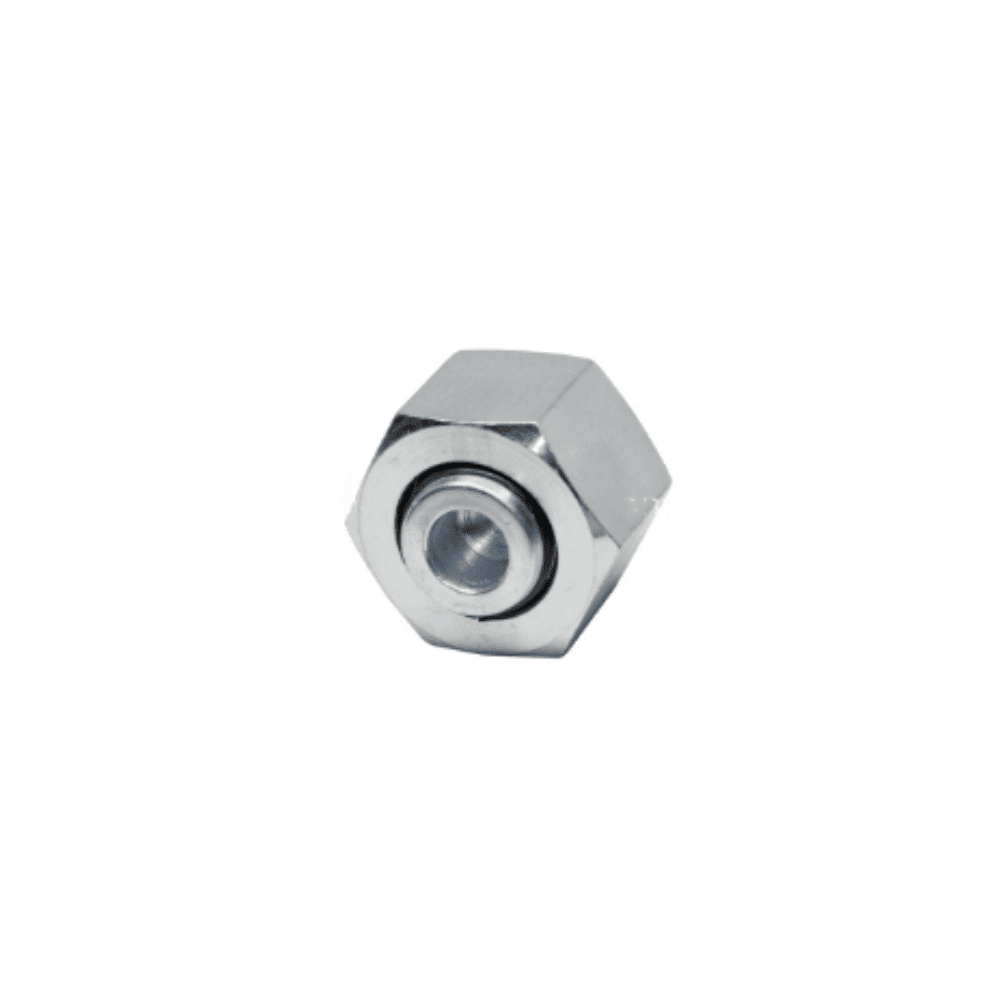

Blanking Plug with Nut for Cone
