Can I mix L and S series parts?

No. For the same tube size the two series use different nut threads, and their pressure ratings differ. Identify the series from the existing parts before ordering.

Do I need a new cutting ring when I remake a joint?

A ring that has already bitten can be remade on the same tube end, but it should never be moved to a different tube. When the tube is cut back, fit a new ring.

Do you supply blanking plugs?

Yes — blanking plugs for cones, plugs for ports with ED seals, and plugs with nuts.

Which nut thread goes with which tube size?

Each tube OD and series has its own nut thread. Light series: 6L M12×1.5, 8L M14×1.5, 10L M16×1.5, 12L M18×1.5, 15L M22×1.5, 18L M26×1.5, 22L M30×2, 28L M36×2, 35L M45×2, 42L M52×2. Heavy series: 6S M14×1.5, 8S M16×1.5, 10S M18×1.5, 12S M20×1.5, 14S M22×1.5, 16S M24×1.5, 20S M30×2, 25S M36×2, 30S M42×2, 38S M52×2. Note that 12L and 10S share M18×1.5, so a thread that fits does not prove the tube size: check the tube OD too.

What does a code like GE 12 L R1/2 mean?

It is the DIN-style designation many makers use: the body type, the tube OD in millimetres, the series, then the port thread. GE is a male stud connector, so GE 12 L R1/2 is a straight stud connector for 12 mm tube, light series, with a 1/2″ BSP thread. Other common prefixes are WE (male stud elbow), GV (straight union), W (union elbow), T (union tee), K (union cross) and SV (bulkhead union). Suffixes for the stud seal and material vary by maker, so send the full code.

What tube should be used with bite-type fittings?

Seamless precision steel tube to EN 10305-4 (formerly DIN 2391/2445), annealed or normalised so it is softer than the cutting ring, with the OD matching the fitting. Cut the tube square with a saw guide or cutter, deburr inside and out, and check the wall is thick enough for the pressure. Thin-wall or soft tube needs a reinforcing insert so the ring has something to bite against. Make up the ring until it grips, then the further turn the maker specifies, commonly about one and a half.

DIN 2353 Bite Type Adapters

DIN 2353 bite-type adapters are 24° cone tube fittings in which a hardened cutting ring bites into the outside of metric steel tube as the nut is tightened, sealing on the cone. This shelf carries Indus Hydraulics bite-type fittings from Dubai to DIN 2353 / ISO 8434-1 in light and heavy series: male stud connectors and elbows with BSPP, BSPT, NPT and metric ends, unions, elbows, tees, crosses, bulkheads, adjustable stud ends, weld connectors, banjos, nuts, cutting rings and blanking plugs.

57 SKUs1 brands

Tube OD and series, then the shape

A bite-type fitting grips steel tube with a hardened cutting ring that bites into the tube as the nut is tightened, and seals on a 24° cone. It is sized by tube outside diameter, and each size comes in a light (L) and a heavy (S) series that do not interchange.

Measure the tube OD, establish the series from the existing nut or the system pressure, then choose the body — straight, elbow, tee, bulkhead, adjustable stud end or plug. Pre-set the ring with the proper tool where you can: a badly set ring is a common cause of a weeping joint.

ISO 8434-1, formerly DIN 2353

Bite-type 24° cone fittings were standardised as DIN 2353 and are now covered by ISO 8434-1, which defines the light (L) and heavy (S) series. Adjustable stud ends follow the port standards ISO 6149 and DIN 3852.

Size range

1,099orderable sizes

53listings with a size table

Every size above is a part number you can quote from. Open any listing for its full table.

Delivery

DIN 2353 Bite Type Adapters across the Gulf

Ex-stock from Dubai, delivered within 3 working days in the UAE.

Hose and fittings are the bulk of what leaves this warehouse, and they travel well: a crated batch of assemblies with its crimp records, or a box of adapters on an airway bill. Buyers outside the UAE usually order to a measured list rather than to a part number, because a hose is defined by its ends, its length and its route rather than by a code. Send those and we will quote against them.

Saudi ArabiaTypically 3 working days from dispatch OmanTypically 3 working days from dispatch QatarTypically 3 working days from dispatch BahrainTypically 3 working days from dispatch KuwaitTypically 3 working days from dispatch

Beyond the Gulf

South-East Asia: Singapore, Brunei, Timor-Leste
North Africa: Egypt, Morocco, Algeria
East Africa: Kenya, Rwanda, Burundi

See every export destination

Showing 49–57 of 57 SKUs

Sort

Latest A–Z Z–A

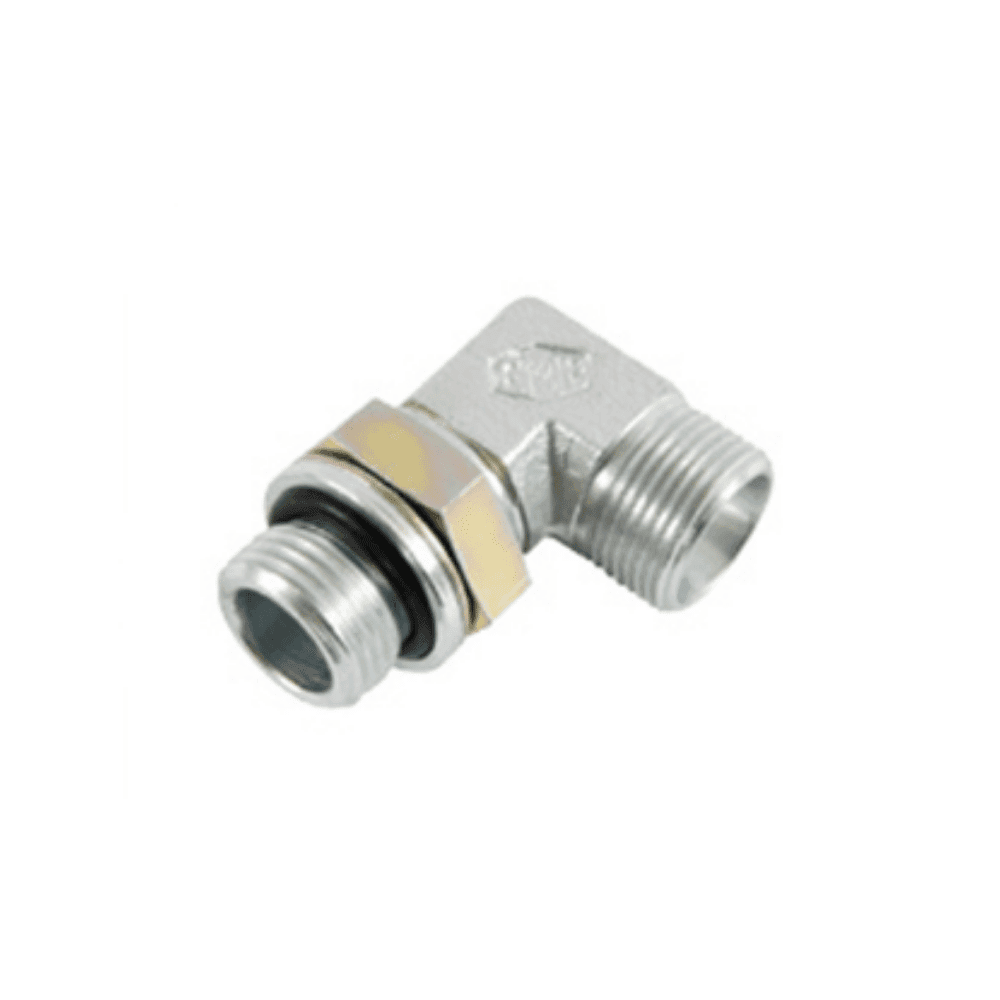

IH-AD-DIN-036

Adjustable LockNut Elbow Metric

Indus HydraulicsDIN 24° cone L-series and S-series (M10×1 to M42×2)L-series up to 250 bar (3625 psi); S-series up to 400 bar (5800 psi)

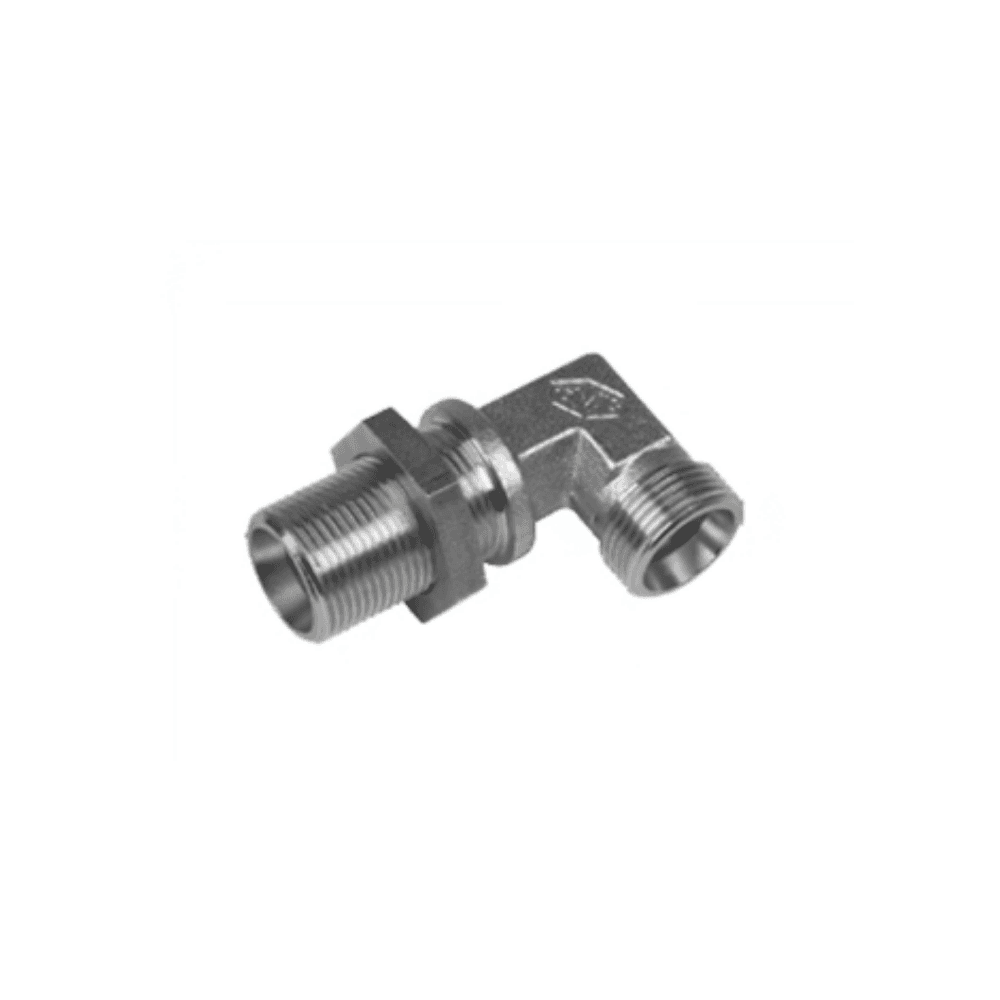

DIN 2353 metric bulkhead elbow union, 90° with long threaded body and locknut

IH-AD-DIN-026

Bulkhead Elbow Union Metric

Indus Hydraulicsbulkhead-elbow24-cone

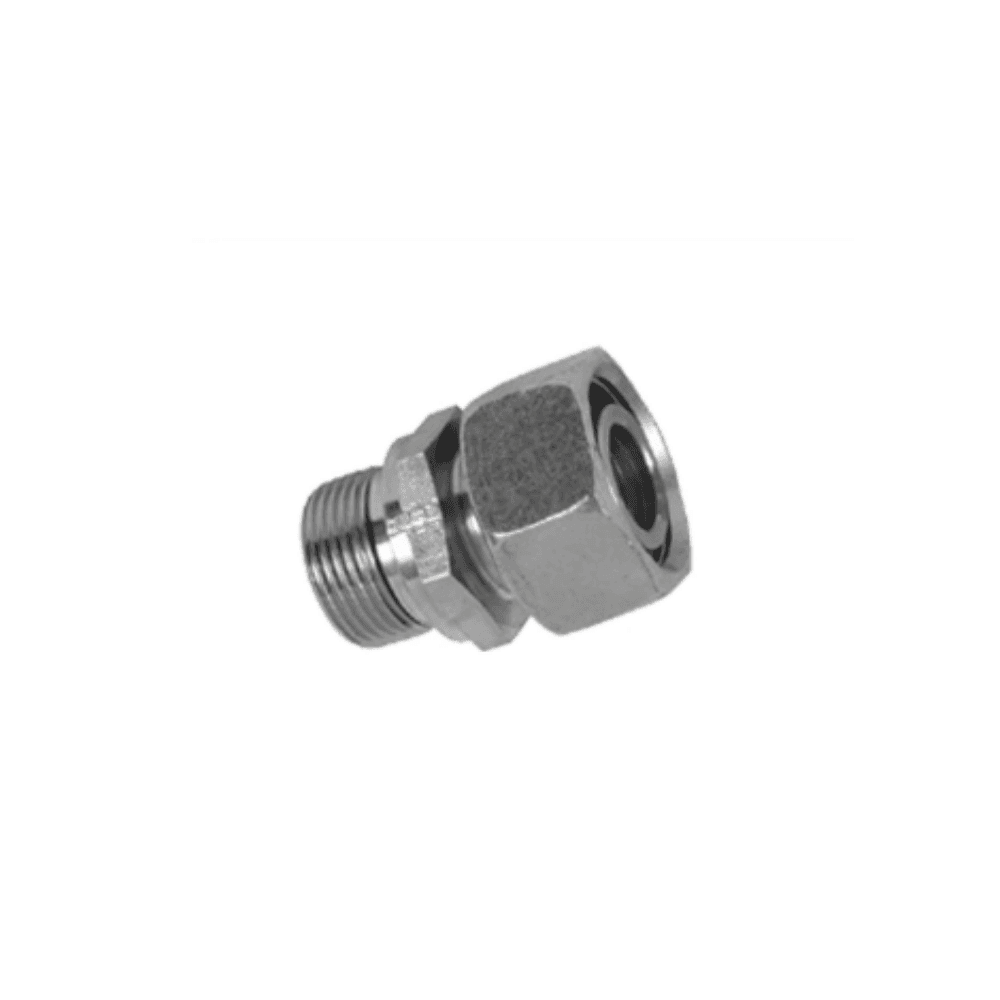

IH-AD-DIN-023

Swivel Connector BSPP 60° Cone Seat

Indus Hydraulics24-coneL6 to L42 (light series), S6 to S38 (heavy series)

Run tee with BSP adjustable stud end and swivel nut, DIN 2353 bite-type, zinc-plated steel

IH-AD-DIN-047

BSP Adjustable Stud End Run Tee

Indus HydraulicsMetric M12×1.5 to M42×2Metric O-ring stud end

IH-AD-DIN-024

Swivel Nut Union Tube End Reducer

Indus HydraulicsreducerDIN 24° cone L-series and S-series (M10×1 to M42×2)

IH-AD-DIN-035

High Pressure Banjo Elbow Metric

Indus HydraulicsL6 to L42 (light series), S6 to S38 (heavy series)L-series up to 250 bar (3625 psi); S-series up to 400 bar (5800 psi)

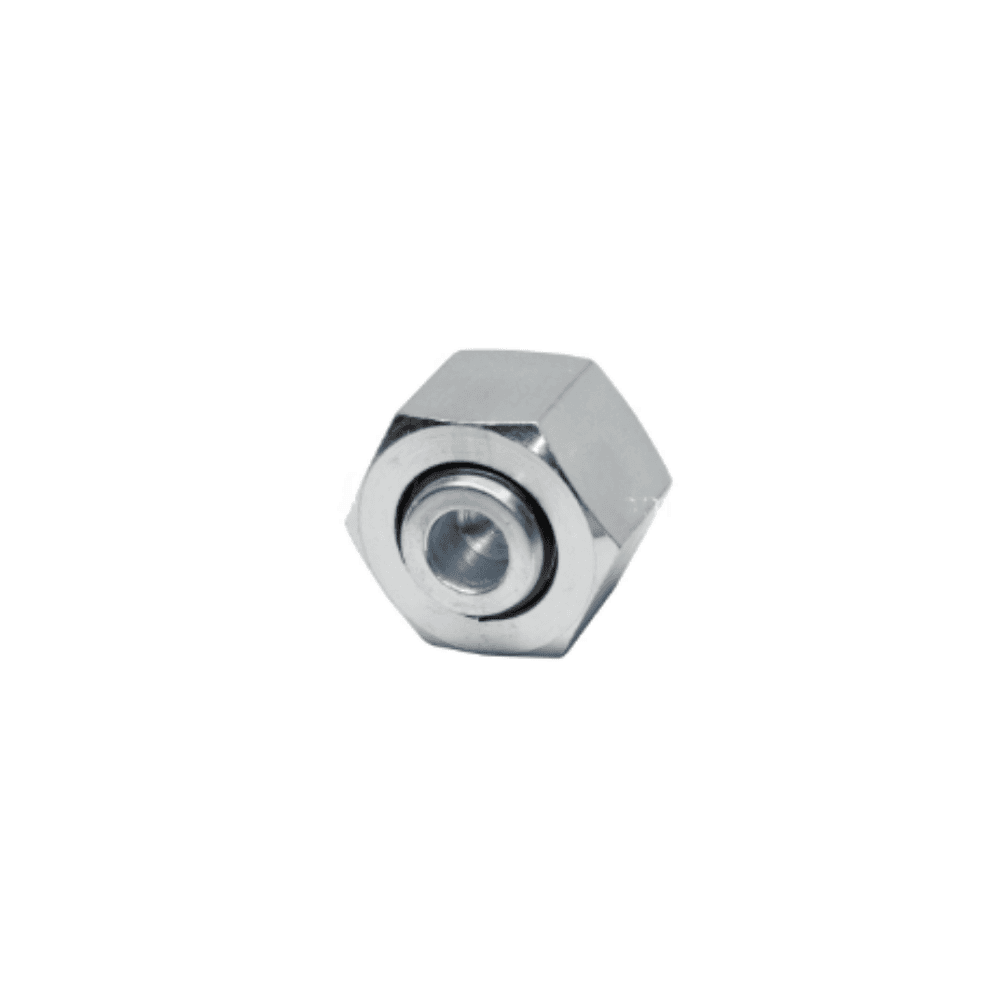

Blanking plug with nut for 24° cone, DIN 2353 bite-type, zinc-plated steel

IH-AD-DIN-017

Blanking Plug with Nut for Cone

Indus HydraulicsL6 to L42 (light series), S6 to S38 (heavy series)DIN 24° cone L-series and S-series (M10×1 to M42×2)

IH-AD-DIN-025

Swivel Connector Metric

Indus HydraulicsDIN 24° cone L-series and S-series (M10×1 to M42×2)24-cone

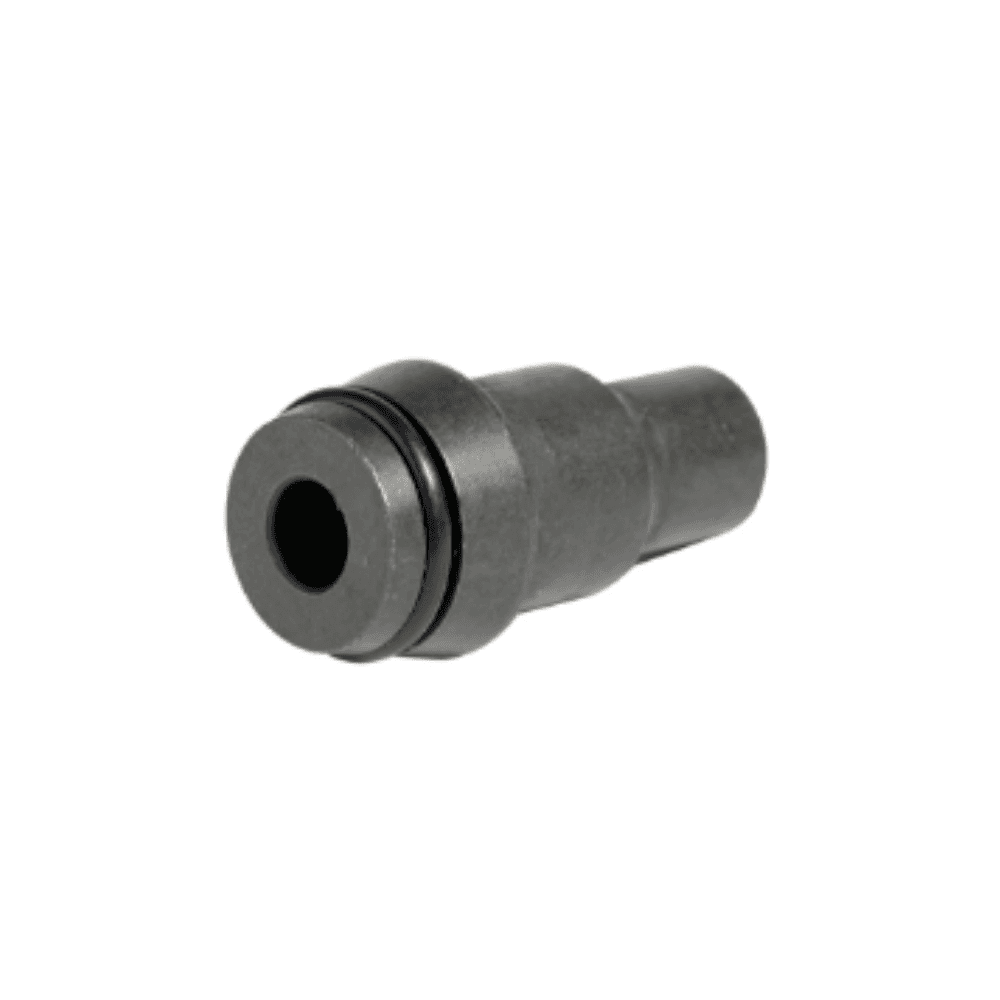

IH-AD-DIN-001

Orbital Weld Nipple

Indus HydraulicsL-series up to 250 bar (3625 psi); S-series up to 400 bar (5800 psi)weld-nipple

‹1 2

Questions we get asked

About this range

01Can I mix L and S series parts?: No. For the same tube size the two series use different nut threads, and their pressure ratings differ. Identify the series from the existing parts before ordering.
02Do I need a new cutting ring when I remake a joint?: A ring that has already bitten can be remade on the same tube end, but it should never be moved to a different tube. When the tube is cut back, fit a new ring.
03Do you supply blanking plugs?: Yes — blanking plugs for cones, plugs for ports with ED seals, and plugs with nuts.
04Which nut thread goes with which tube size?: Each tube OD and series has its own nut thread. Light series: 6L M12×1.5, 8L M14×1.5, 10L M16×1.5, 12L M18×1.5, 15L M22×1.5, 18L M26×1.5, 22L M30×2, 28L M36×2, 35L M45×2, 42L M52×2. Heavy series: 6S M14×1.5, 8S M16×1.5, 10S M18×1.5, 12S M20×1.5, 14S M22×1.5, 16S M24×1.5, 20S M30×2, 25S M36×2, 30S M42×2, 38S M52×2. Note that 12L and 10S share M18×1.5, so a thread that fits does not prove the tube size: check the tube OD too.
05What does a code like GE 12 L R1/2 mean?: It is the DIN-style designation many makers use: the body type, the tube OD in millimetres, the series, then the port thread. GE is a male stud connector, so GE 12 L R1/2 is a straight stud connector for 12 mm tube, light series, with a 1/2″ BSP thread. Other common prefixes are WE (male stud elbow), GV (straight union), W (union elbow), T (union tee), K (union cross) and SV (bulkhead union). Suffixes for the stud seal and material vary by maker, so send the full code.
06What tube should be used with bite-type fittings?: Seamless precision steel tube to EN 10305-4 (formerly DIN 2391/2445), annealed or normalised so it is softer than the cutting ring, with the OD matching the fitting. Cut the tube square with a saw guide or cutter, deburr inside and out, and check the wall is thick enough for the pressure. Thin-wall or soft tube needs a reinforcing insert so the ring has something to bite against. Make up the ring until it grips, then the further turn the maker specifies, commonly about one and a half.
