Skiving explained: when a fitting needs it, and what happens if you skip it

Skive and no-skive fittings are not interchangeable, and the difference is invisible once the assembly is crimped. What each does, and why the mistake only shows up under pressure.

Written by
Ayush Bhatia, Director
Published
Updated
Reading
3 min · 2 sections
Share
A hose end in a skiving machine with the rubber cover peeling away to expose bright steel braid, ferrule and fitting waiting beside it
Skiving removes the hose cover so the ferrule grips the reinforcement.

At a glance

Key takeaways

  1. Skiving means removing hose material — cover, tube, or both — so the fitting grips the reinforcement directly rather than through rubber.
  2. Skive and no-skive fittings are designed around different amounts of material. They are not interchangeable in either direction.
  3. Getting it wrong produces an assembly that looks correct and holds at rest. It fails under pressure or cycling, usually by blowing off the fitting.
  4. No-skive is the default on most modern braid hose because it removes a step where a person can be inconsistent.
  5. The crimp specification belongs to the hose and fitting combination, not to either one alone.

Figures verified · Principles only. Crimp diameters and skive lengths are per hose-and-fitting combination — take them from the manufacturer chart.

Skiving is one of the few hose-assembly decisions with no visible consequence. A wrongly matched fitting crimps up, looks like every other assembly on the rack, and passes a casual inspection. The failure arrives later, at pressure, and takes the fitting with it.

/01What skiving actually removes.

The three arrangements
TypeWhat is removedWhat the ferrule grips
External skiveA band of outer cover at the hose endThe reinforcement directly
Internal skiveA band of inner tubeNipple seats against reinforcement from inside
No-skiveHighlightedNothingThrough the intact cover

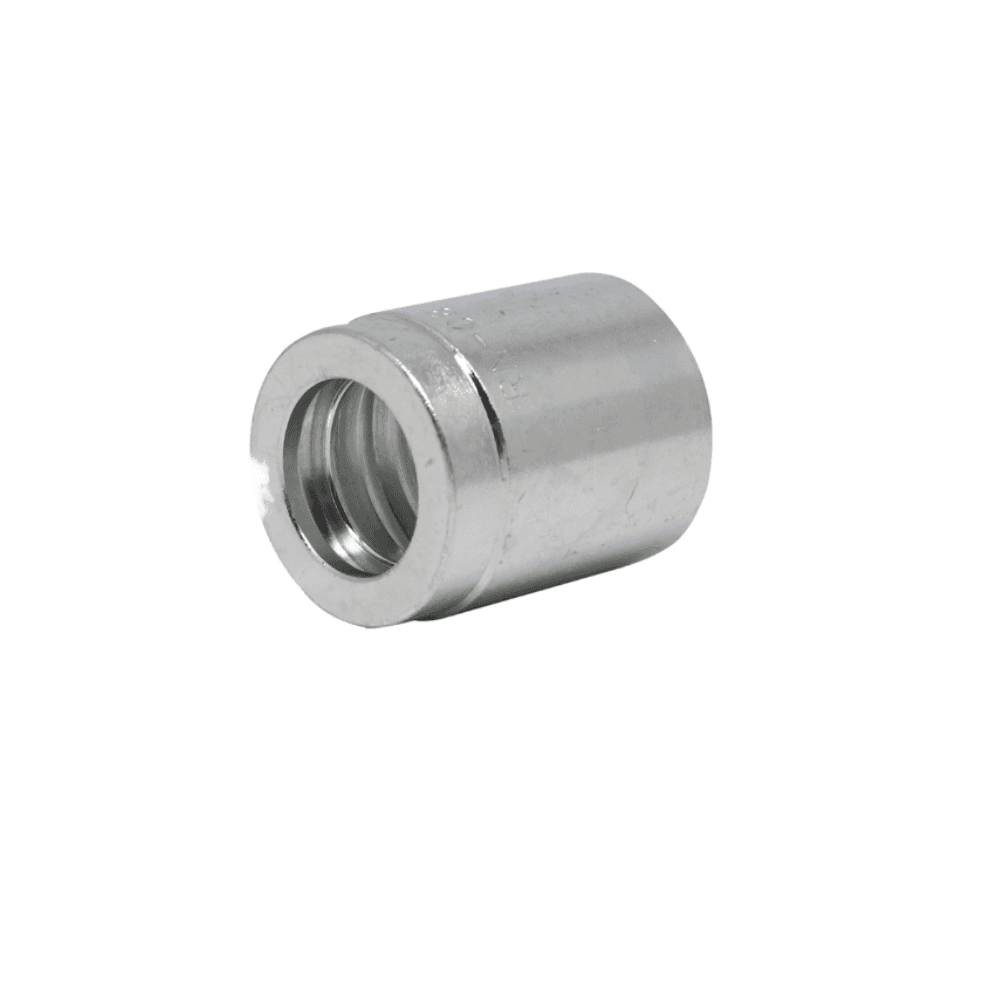

The point of removing the cover is grip. Rubber creeps; wire does not. A skive fitting is dimensioned assuming the ferrule closes onto reinforcement, so crimping it over an intact cover leaves the wire held through a compressible layer — which is exactly the layer that relaxes over the following weeks. Most current two-wire hose is built for no-skive ends — our no-skive ferrule for R2AT and 2SN is one — while spiral hose generally still needs skiving, as with the skive interlock ferrule for 4SH.

/02One-piece and two-piece.

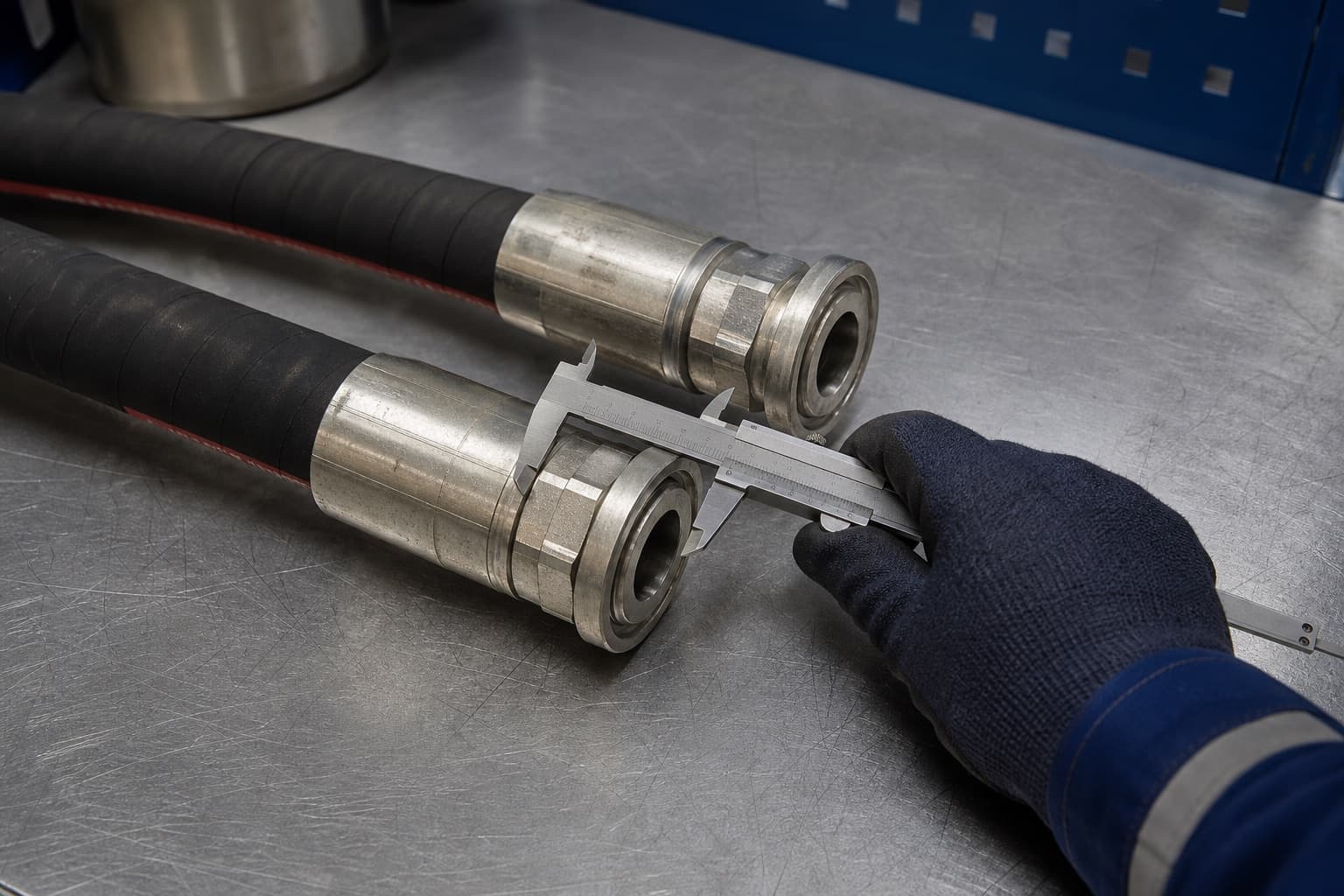

Two crimped hose ends side by side on a steel bench with a vernier caliper set across the flats of one ferrule
Skive or no-skive is set by the fitting, and it changes the crimp diameter the chart asks for.

A one-piece fitting arrives with the ferrule and nipple already assembled; a two-piece has them separate. For most fleet work one-piece is the better answer for an unglamorous reason: there is no way to get the parts wrong. Two-piece gives more flexibility across hose types and more opportunity for the wrong ferrule to end up on the right nipple.

Common questions

How do I tell whether a fitting is skive or no-skive?
From the manufacturer designation, not by eye — the difference is in the internal dimensions and the crimp specification, and it is not reliably visible on the bench. If the part number is unknown, treat the fitting as unidentified rather than guessing.
Where do I find the crimp diameter?
In the manufacturer crimp chart for that hose and fitting combination. It belongs to the pair, not to either part alone, which is why mixing brands across a joint is a bad idea even when the parts appear to fit.
Can I mix one manufacturer’s hose with another’s fittings?
It is not recommended. The crimp specification is validated for the combination, and outside that combination nobody has tested what the crimp actually does to the reinforcement.
Is no-skive weaker than skive?
No — it is a different design, validated to its own specification. It is more common on modern braid hose largely because it removes a manual step where results vary between people.

No-skive ferrules by hose type

What next

  1. 01
  2. 02
  3. 03

    Where the finished assemblies go

    Assemblies are cut to length in Dubai, crimped, tagged, pressure-tested and crated, and that is exactly what makes them practical to send somewhere with no hose shop of its own. A batch built to a measured list travels as one consignment with its test records and arrives ready to fit rather than ready to be made up. The further the site, the larger that difference gets.

    GCC & Middle East

    West & Central Africa

    Everything above ships from the same Dubai warehouse. If your destination is not listed, it is almost certainly still one we quote. See every export destination

Not sure which fitting your hose takes?

Send the hose layline and a photograph of the fitting. We will confirm the combination and the crimp specification before anything is built.
