Hose routing: bend radius, twist and the failures they cause

Three installation faults account for a large share of premature hose failure, and all three are free to avoid at fitting time. What they look like and how to design them out.

Written by
Ayush Bhatia, Director
Published
Updated
Reading
3 min · 3 sections
Share

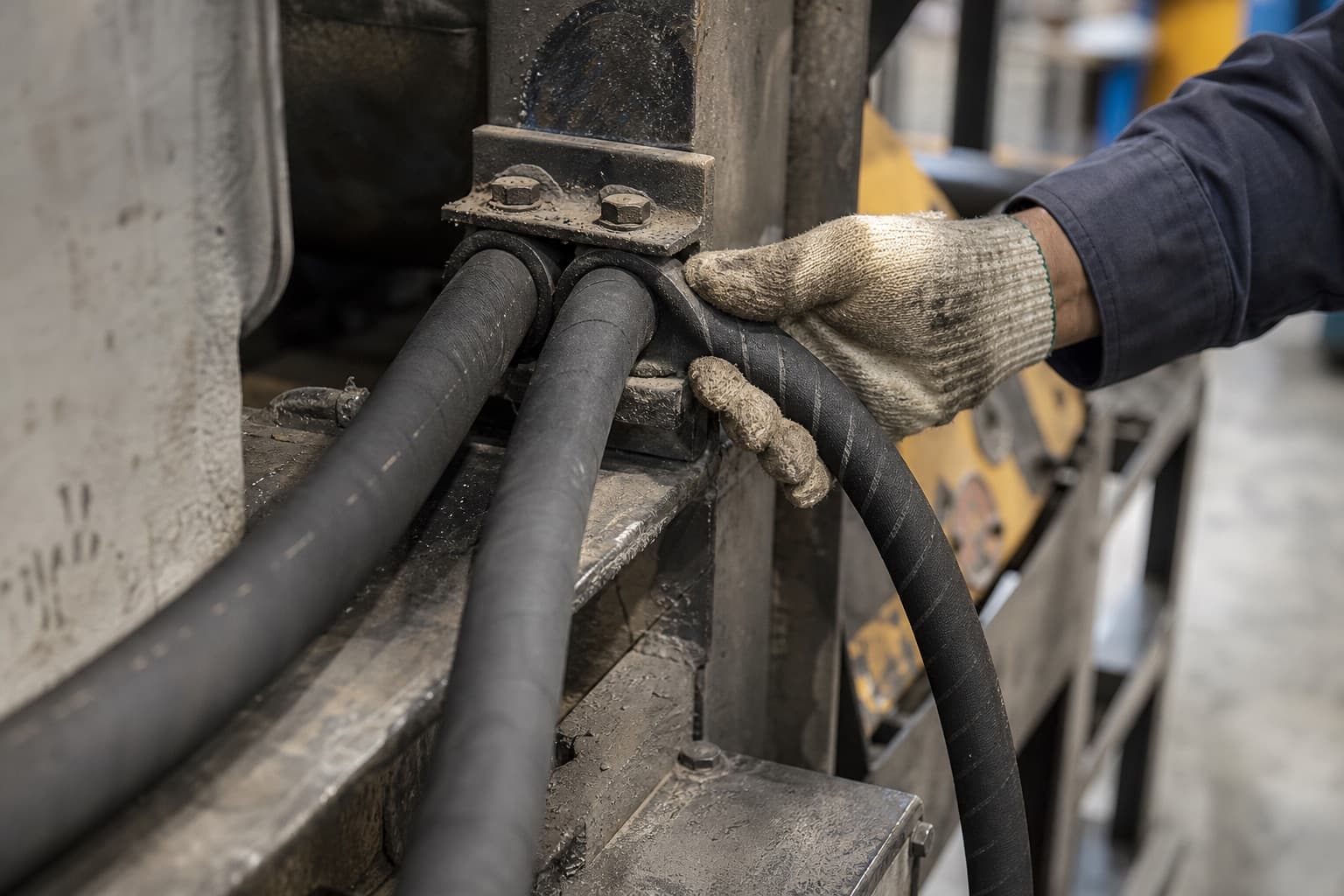

A gloved hand easing a hydraulic hose out of a tight bend at a clamp block, beside a second hose routed in a wide sweep
Too tight a bend or a twist in routing shortens hose life long before the pressure does.

At a glance

Key takeaways

  1. A hose that fails early usually failed where it was installed, not where it was made.
  2. The tightest bend on most machines is immediately behind a fitting — which is also the worst place for one.
  3. Twist is invisible unless you read the layline, and pressure works to unwind a twisted hose.
  4. An elbow fitting is almost always cheaper than the failures a tight bend causes.
  5. Clamp to control the hose, not to pin it. A hose that cannot move at all is loaded every time the machine does.

Figures verified · Routing principles and failure signatures only. Minimum bend radius is per grade and size — take it from the datasheet.

Ask why a hose failed after four months and the honest answer is usually that it was installed in a way that guaranteed it. Routing gets decided in the last ten minutes of a job, by whoever is holding the assembly, and it determines most of what happens afterwards.

/01Bend radius.

Every hose has a minimum bend radius below which the reinforcement is no longer doing what it was designed to do. Bending tighter than that flattens the bore, puts uneven load into the wire, and on a spiral hose can begin to separate the layers. The figure is specific to the grade and size and belongs on the datasheet — but the failure is generic and recognisable: a flattened or creased section, usually near an end. Where the route cannot open out, a compact grade such as 2SC bends to half the radius of standard two-wire braid.

/02Twist.

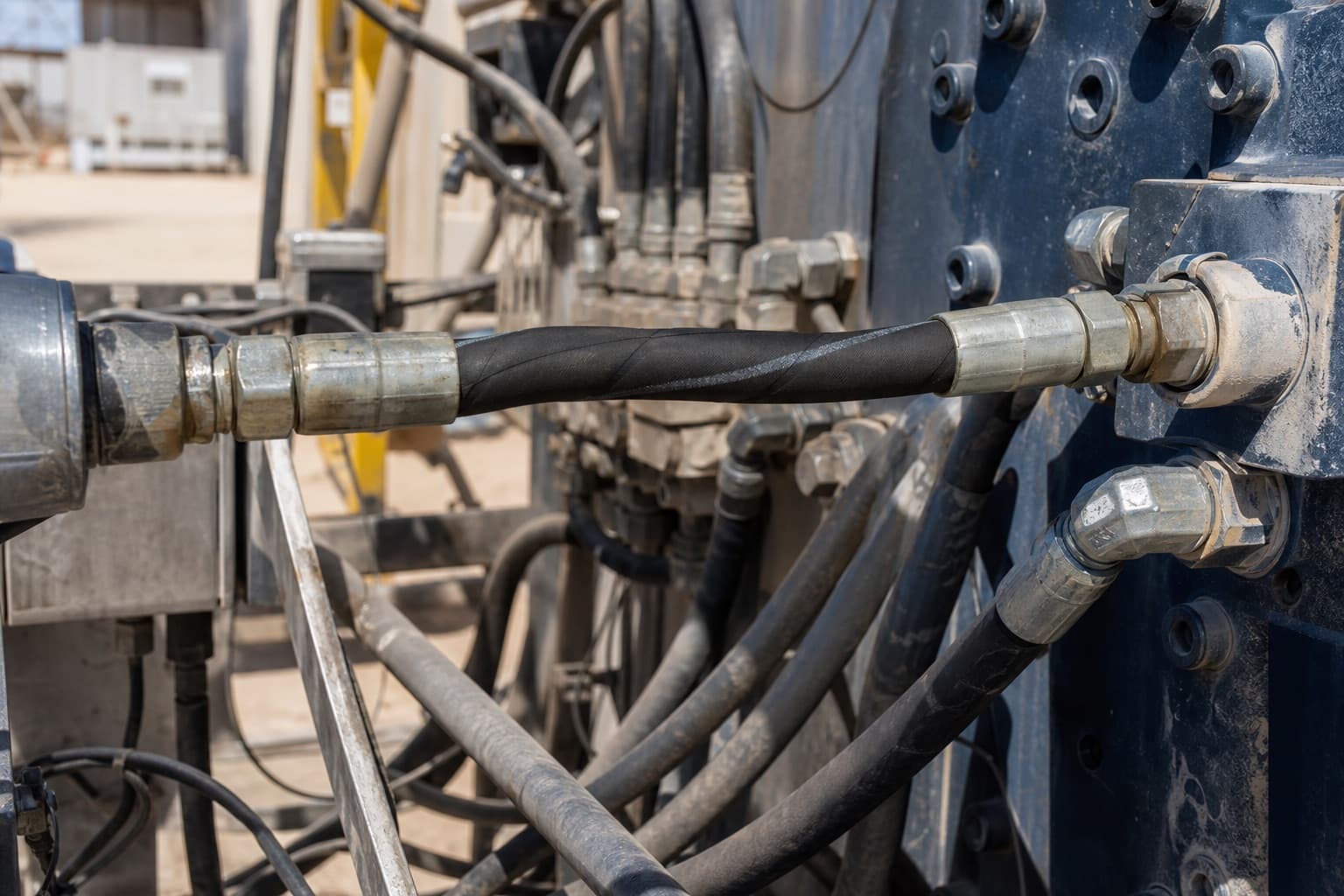

A hydraulic hose fitted between two machine ports with its printed line corkscrewing around the cover instead of running straight
The lay-line is the tell: on a correctly fitted hose it runs straight down the cover, and here it spirals.

Pressurising a twisted hose applies a force that tries to unwind it, and that load goes into the reinforcement rather than around it. A few degrees is enough to matter. The problem is that a twisted hose looks entirely normal — the only reliable tell is the layline, the printed stripe along the cover. If it spirals, the assembly is twisted.

ROUTING · SIGN-OFF CHECKS5 checks

Before the machine goes back

  1. Done

    Layline straight

    Sight along the assembly. A spiralling layline means twist — release the fitting and re-make it without.

    Who
    Fitter
    Tool
    Eyes
  2. Done

    Straight run behind each fitting

    The bend must begin clear of the ferrule, not at it.

    Who
    Fitter
    Tool
    Eyes
  3. Done

    Cycle and re-check

    Move the machine through its full range and look again. An assembly straight on the bench can be twisted at full extension.

    Who
    Fitter
    Tool
    Machine
  4. Done

    Contact points

    Anywhere the hose touches structure or another hose, clamp or sleeve it now.

    Who
    Fitter
    Tool
    Clamps
  5. Done

    Slack for movement

    Enough length to follow the movement without stretching, not so much that it whips or snags.

    Who
    Fitter
    Tool
    Eyes

/03Clamping, and the mistake it invites.

Clamping exists to stop a hose rubbing and to control where it moves — not to hold it rigid. A hose pinned at both ends of a section that flexes is being loaded every time the machine works, and will fail at the clamp. The useful mental model is that clamps guide a hose along a path; they do not fix it in place.

Routing faults and their signatures
FaultWhat you find laterFix at install
Bend starts at the fittingHighlightedCrease or flattening within a hand’s width of the ferruleElbow fitting, or a longer assembly
Installed twistSpiralling layline; failure that looks unexplainedRe-make the joint without twist; clamp against rotation
Unmanaged contactFlat worn patch, eventually exposed wireClamp, sleeve, or re-route clear
Too little slackTension at full extension; fitting pulledMeasure at the extreme of travel, not at rest
Too much slackWhip damage, snagging, abrasion in new placesShorten, or clamp to control the path

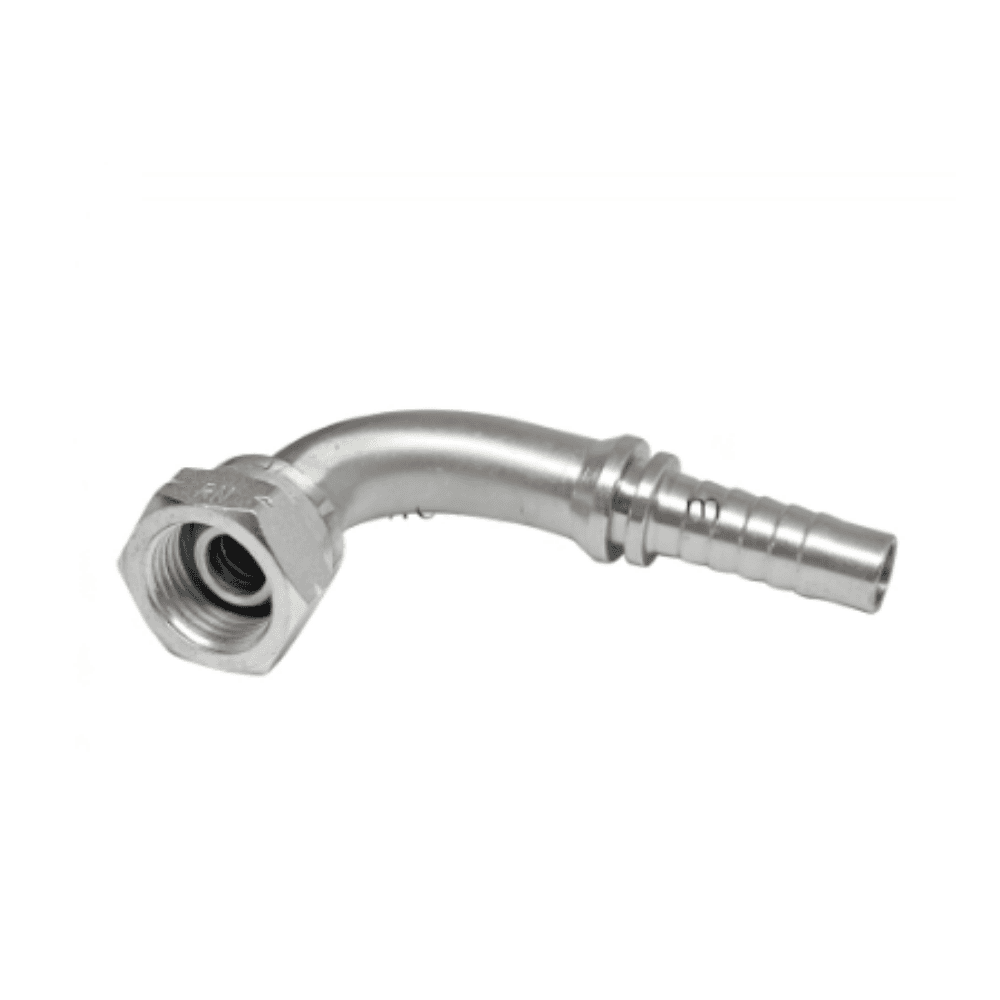

Elbow fittings that solve most tight bends

Common questions

Where do I find the minimum bend radius for my hose?
On the datasheet for that grade and size. It varies with construction — a compact hose is designed to bend tighter than a standard one of the same bore — so a single generic figure is not usable.
Is a 90° fitting worse than bending the hose?
Almost always better. An elbow takes the turn in the fitting where the geometry is controlled, instead of in the hose where it is not.
How do I stop a hose twisting when I tighten it?
Hold the hose against rotation while torquing the nut, and check the layline afterwards. On swivel fittings the nut should turn and the hose should not.
Does twist matter on a low-pressure return line?
Less, but it still loads the reinforcement and still costs life. It takes no longer to install it straight.
