Galvanic corrosion in fittings: what an upgrade moves rather than fixes

Put stainless into a plated steel port on a wet, salty site and the corrosion does not stop — it changes address. Sometimes that is the right trade.

Written by
Ayush Bhatia, Director
Published
Updated
Reading
3 min · 3 sections
Share
A bright stainless fitting in a plated steel port with corrosion forming only on the plated metal around it
Upgrading one fitting to stainless can move corrosion onto the cheaper part next to it.

At a glance

Key takeaways

  1. Two dissimilar metals plus a conductive film is a cell, and one of the two corrodes preferentially.
  2. Upgrading only the fitting on a coastal site often moves the attack onto the port rather than removing it.
  3. The relative surface areas matter: a small anodic part next to a large cathodic one corrodes fastest.
  4. Sometimes the trade is right — a port is easier to protect and inspect than an exposed fitting.
  5. What is never right is making the swap without knowing that is what you did.

Galvanic corrosion is the reason a well-intentioned material upgrade sometimes produces a worse outcome than leaving things alone. It is not an exotic phenomenon and it does not need seawater — humid salt-laden air is enough, and most of the coastal sites we supply have exactly that.

/01The mechanism, briefly.

Two different metals in electrical contact, with an electrolyte bridging them, form a cell. Current flows, and the less noble of the two gives up material to protect the other. In a hydraulic joint the electrolyte is condensation or salt spray sitting in the thread, and the two metals are whatever the fitting and the port happen to be. The joint is the cell, which is why inspecting the two parts separately misses it.

/02Where it shows up on real machines.

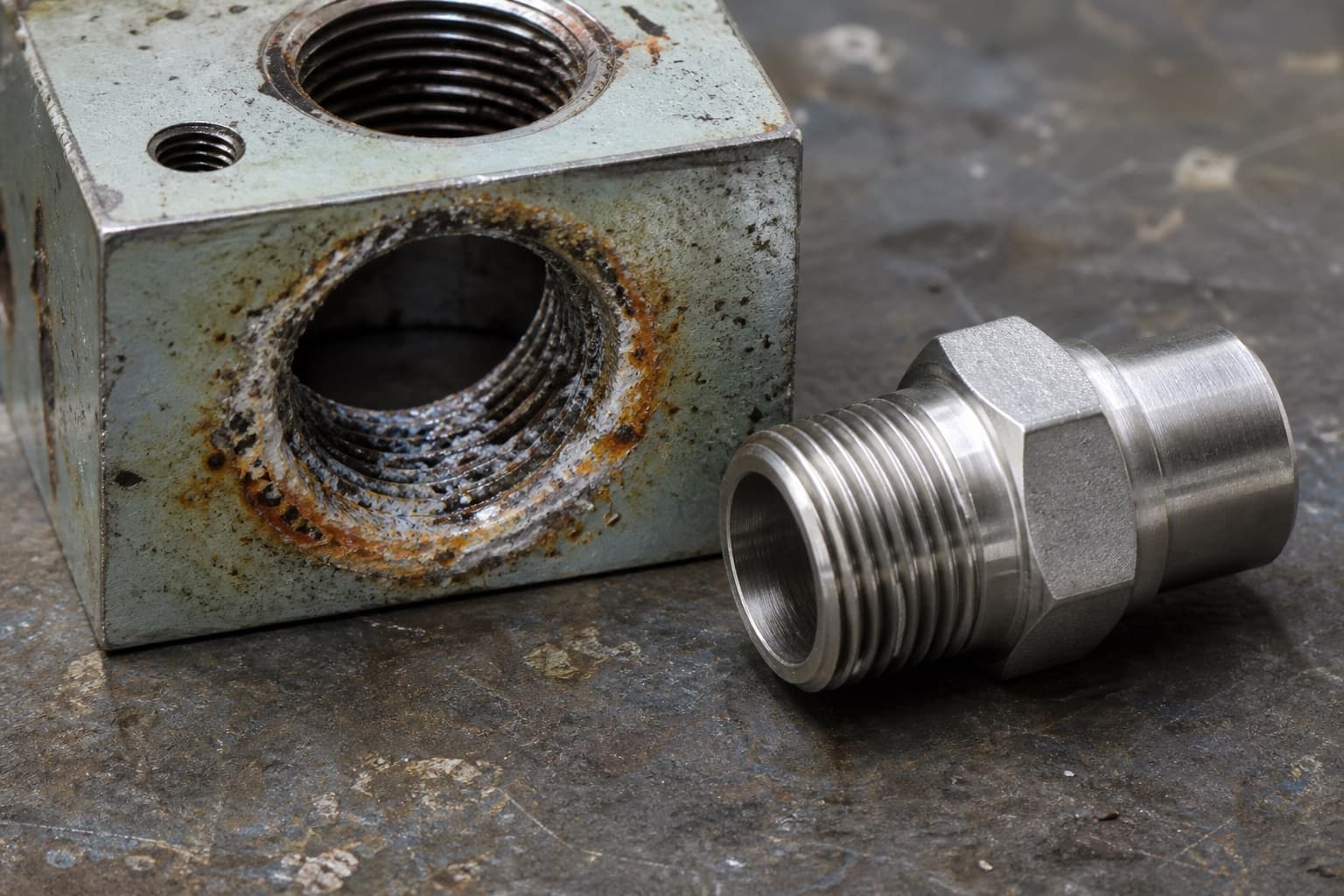

An almost unmarked stainless fitting lying beside the plated steel port block it was removed from, corrosion concentrated in the port threads where the two metals met
FIG. 01Attack concentrates at the interface between the two metals rather than spreading evenly over either part.
Common combinations on a coastal site
CombinationWhat tends to happen
Stainless fitting, plated steel portHighlightedAttack concentrates in the port threads
Plated fitting, stainless manifoldThe fitting is consumed; cheaper, and easier to see
Same material both sidesNo galvanic driver; ordinary corrosion only
Dissimilar, but dry and shelteredUsually inconsequential — no electrolyte, no cell

The second row is worth reading as a strategy rather than a warning. Deciding which part you would rather lose is a legitimate engineering choice — a consumable fitting protecting an expensive block is a trade many plants would take deliberately if anyone framed it that way.

/03What to do about it.

Match materials through the joint where the exposure is severe, and where you cannot, decide knowingly which side is the sacrificial one. Keep the electrolyte out — protecting the outside of an assembled joint is cheap and effective. And inspect dissimilar joints as joints, at the interface, rather than glancing at two apparently sound components. Where both halves can be stainless, 316L BSP and 316L JIC fittings remove the couple entirely.

316L stainless ends for matched-material joints

A stainless end belongs in a stainless or compatible port. Fitted alone into a plated system it moves the corrosion rather than ending it.

Frequently asked questions

Is a stainless fitting in a steel port always wrong?
No — it is a trade. In a dry sheltered position it is usually inconsequential. In salt air it will concentrate attack on the port, and whether that is acceptable depends on which part you would rather replace.
Does an anti-seize compound prevent it?
A compound that keeps moisture out of the thread interferes with the mechanism, which helps. It is a mitigation rather than a solution, and it does nothing for the exposed exterior of the joint.
How do I tell galvanic attack from ordinary corrosion?
Look at where it is concentrated. Ordinary corrosion is fairly even over exposed surfaces; galvanic attack clusters at the interface between the two metals and is often much worse there than anywhere else on either part.
