Reading a weeping joint: where the oil comes from tells you why

A weep is evidence before it is a fault. Where the oil appears — at the seat, down the thread, under the nut — narrows the cause to one of four things.

Written by
Ayush Bhatia, Director
Published
Updated
Reading
3 min · 3 sections
Share
A gloved hand with a rag beside a hydraulic hose joint on a yellow machine, a drop of oil forming under the swivel nut
Where the oil collects on a weeping joint points to which seal is leaking.

The reflex when a joint weeps is a spanner, and it is usually the wrong tool. On every family except a tapered thread, the seal is made by geometry that is either correct or damaged — extra torque deforms it further. A minute spent looking at where the oil is arriving from costs nothing and points at the actual fault.

/01Four places oil appears, and what each means.

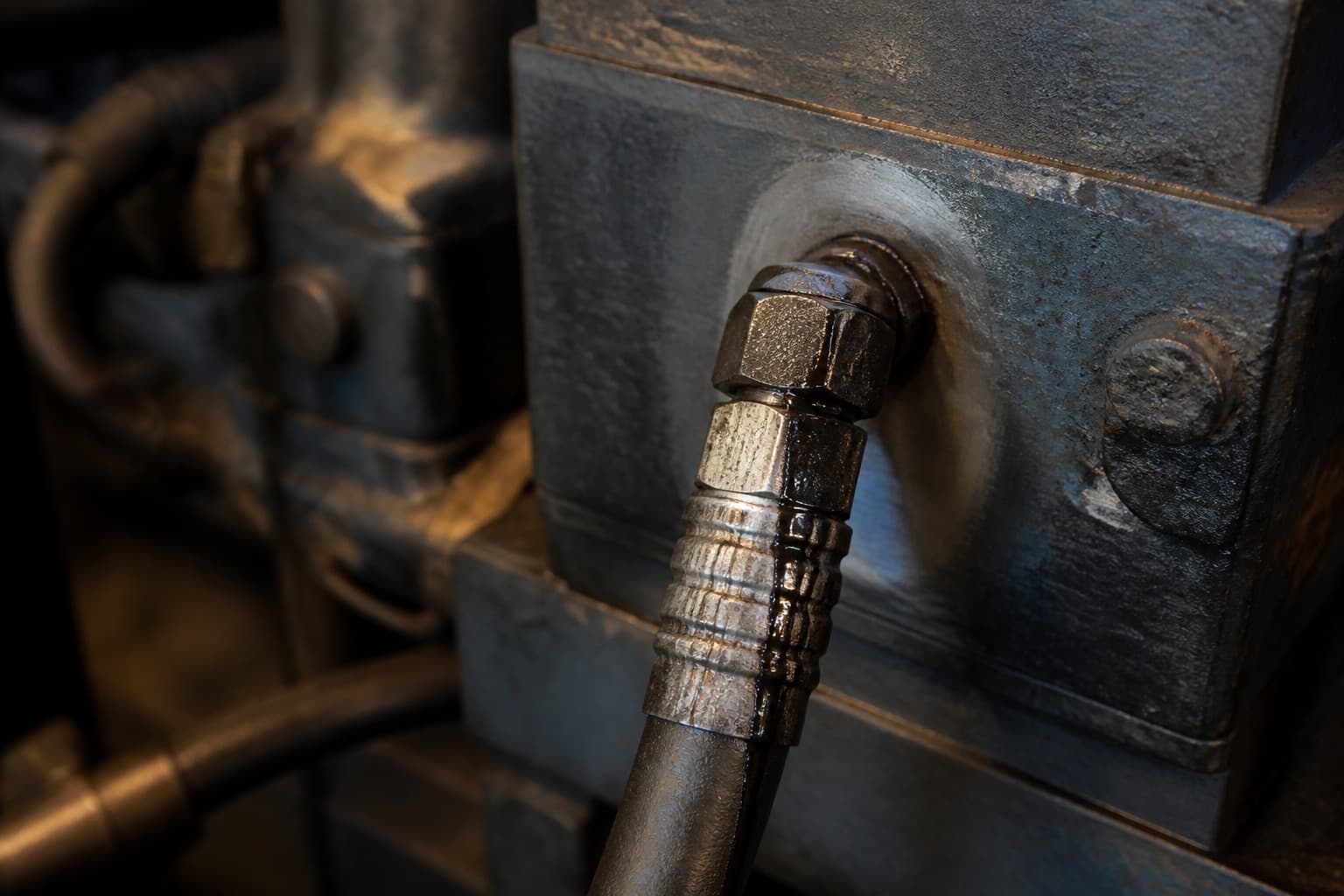

Oil crept from under the nut of a hydraulic joint and running down the fitting and hose below it, the surrounding metal wiped clean
FIG. 01Oil tracking from a joint on a machine, cleaned and re-run so the source is visible rather than the drip.
Reading the leak path
Where the oil appearsWhat it points atWhat not to do
At the cone or flat faceHighlightedSeat damage, wrong seat angle, or dirt on the sealing faceTighten — it deforms the seat further
Down the thread, tapered jointSealant path failed, or the thread is over-engagedAdd more tape over the old tape
Under the nut, straight threadO-ring or bonded seal wrong, damaged, or reusedAssume the fitting is faulty
Only under loadThe joint is moving — clamping or a lever armFix it at the joint alone

/02The one case where tightening is right.

A joint that was genuinely under-made-up will seal when it is brought up correctly, and the honest way to establish that is the flats-from-finger-tight method rather than feel. If a joint has already been made up correctly and still weeps, more torque will not fix it and will usually make the next repair worse — the seat rolls, the port thread stretches, and what was a seal replacement becomes a component replacement.

On a site with no torque wrench — which is most of the sites this article is written for — the practical rule is one attempt at correct make-up, then dismantle and inspect. Two attempts at tightening is the point where people start damaging things.

/03What to look at once it is apart.

Look at the sealing face under a light, at an angle. A radial scratch across a cone or a flat face is a leak path and no amount of assembly will close it. Look at the O-ring for a flat spot or a nick from installation. Look at the first two threads for pickup or deformation. And look at what came out on the rag: metal particles mean something is being worn, not merely leaking. A scored seat makes the part scrap: replace the adapter or the hose fitting, not only the seal.

Frequently asked questions

The joint stopped weeping after I tightened it. Is that a fix?
Sometimes, if it was genuinely loose. Often it is a deformed seat sealing temporarily under extra load, which returns as a weep and eventually as a failure. If it needed more than correct make-up, treat it as unresolved and plan the change.
Can I reuse the bonded seal after checking the joint?
In practice no. The rubber has taken a set, and a re-used bonded seal is the most common reason a joint leaks on the second assembly. They cost very little and they are the item worth keeping by the box.
Does a weep matter if it is only a drip?
It matters as information. A drip is a joint telling you which surface has failed, and the same fault under a pressure spike is a spray rather than a drip — which is a different order of problem next to a person.
