Over-tightened or under-tightened: reading a joint after the fact

Both faults leak, and the marks they leave are different. What to look for on a joint somebody else assembled, and which of the two is the expensive one.

Written by
Ayush Bhatia, Director
Published
Updated
Reading
3 min · 3 sections
Share
A disassembled hydraulic fitting with a crushed seat and a cracked swivel nut, a torque wrench beside it
A crushed seat or cracked nut shows a joint was over-tightened.

At a glance

Key takeaways

  1. An over-tightened fitting and a loose one both weep, and they leave completely different evidence behind.
  2. Under-tightening leaves clean, undamaged surfaces — the joint simply was not brought up.
  3. Over-tightening leaves rolled seats, stretched threads, flattened O-rings and sometimes a cracked nut.
  4. The expensive half is over-tightening, because the damage moves into the port rather than staying in the fitting.
  5. On a used machine, assume nothing about how the last person assembled it.

Diagnosing an over-tightened fitting matters most on machines other people have worked on — a used import, a rental, anything with an unrecorded repair history. The joint in front of you was made up by somebody whose habits you do not know, and the two ways they could have got it wrong need opposite responses.

/01The evidence each fault leaves.

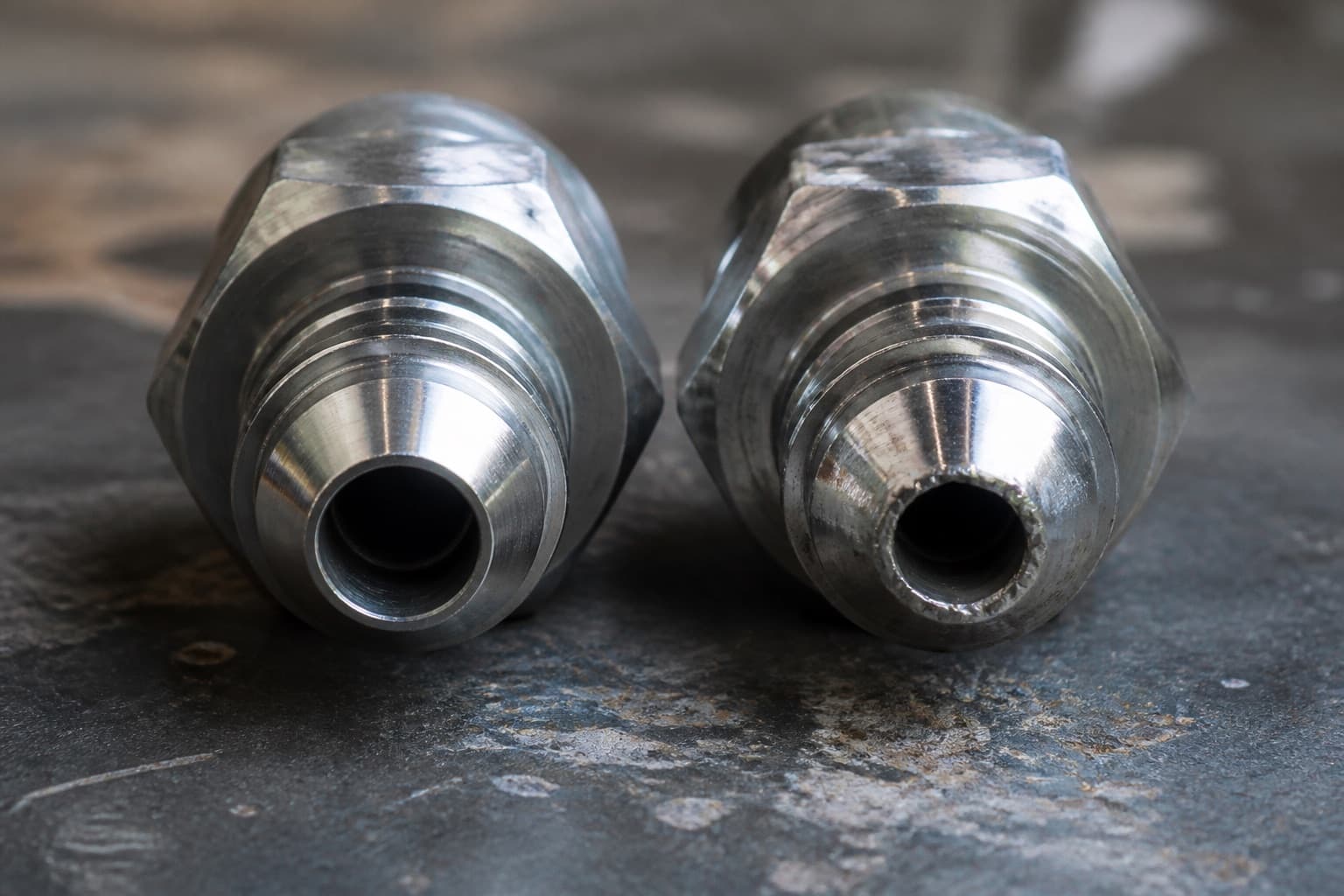

Two hydraulic fittings side by side on a workbench, the cone on the left cleanly machined and the one on the right crushed and burnished at its tip
FIG. 01The evidence is on the sealing face: an over-tightened joint is burnished where a correctly made one is not.
Same symptom, opposite causes
What you findUnder-tightenedOver-tightened
Sealing faceHighlightedClean, unmarkedRolled, burnished or galled
O-ring or bonded sealRound, undamagedFlattened, extruded, sometimes cut
ThreadsNormalPickup, stretch, or a nut that will not run freely
PortUnaffectedFirst threads deformed — the expensive part
BehaviourWeeps steadily from newSealed at first, then weeps and worsens

/02Why it happens more where there are no tools.

A torque wrench is rare on the sites we supply, and the substitute is judgement built on pipework habits — where tighter genuinely is better. Carried into a joint that seals on a cone, a flat face or an O-ring, that habit is destructive. The flats-from-finger-tight method needs no tool at all and is the practical answer where a wrench is not available; the existing article on make-up covers the method itself.

The second driver is a joint that would not seal for a reason nobody diagnosed. It gets tightened, then tightened again, and the fault it was masking is still there underneath the damage now added to it. The parts most often damaged this way are the cheapest to replace — the adapter or the hose end — which is the argument for replacing them rather than tightening again.

/03What to do with what you find.

After inspection

  1. IfClean surfaces, seal intact

    Re-make correctly with a new seal

    Nothing is damaged. Replace the elastomer anyway — it is the cheapest part of the job.

  2. IfFitting damaged, port clean

    Replace the fitting

    The ordinary outcome, and the reason to keep the common ends in stock rather than ordering per failure.

  3. IfPort thread damaged

    Stop and assess the component

    This is no longer a fitting job. Whether the port can be saved is a separate question and the answer is sometimes no.

  4. IfDamage on a machine you are about to hand over

    Record it

    An undocumented over-tightened port becomes the next person’s mystery leak.

Frequently asked questions

Can a fitting be re-used after being over-tightened?
If the sealing face is marked, no — the mark is a leak path and it does not go away. If it was over-tightened but the surfaces are unmarked, it can be, with a new seal, but inspect the threads carefully first.
How tight is correct without a torque wrench?
Finger tight, then a defined number of flats depending on the family and size. That method exists precisely because the torque figure is impractical on a machine, and it is more repeatable than feel.
Everything on this machine looks over-tightened. Now what?
Assume the habit rather than the incident, and check the ports rather than the fittings — fittings are cheap and ports are not. Where several ports are damaged, that is a training conversation rather than a parts order.
