Bauer couplings explained: the lever ring, the ball joint and ring lock lookalikes

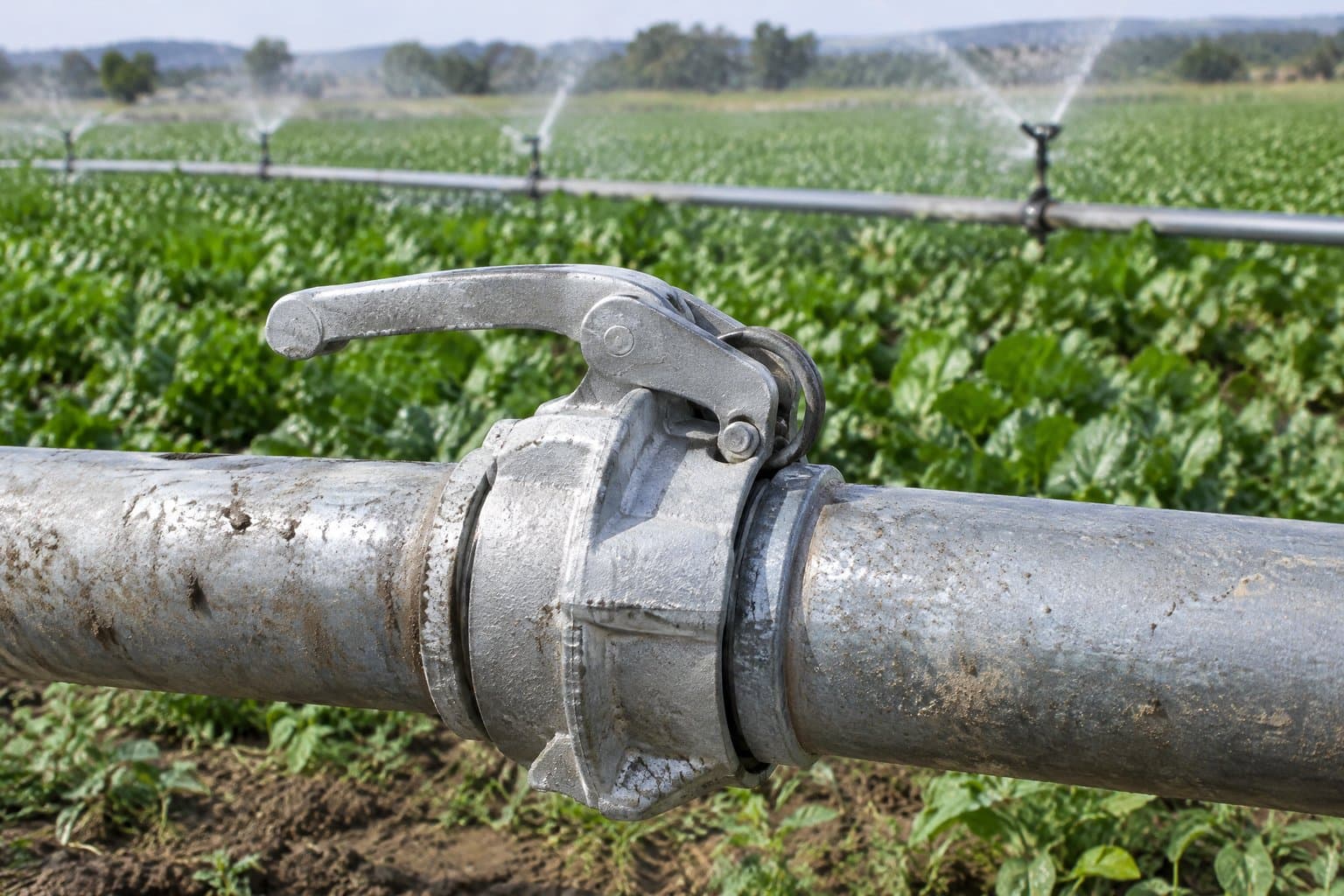

Bauer is the coupling of the field and the dewatering site: the one on irrigation laterals, slurry tankers and the lay-flat and suction lines that get moved every day. It locks with a lever rather than a thread, and the male tip seats like a ball in a cup, so a line laid across rough ground does not have to be perfectly straight at every joint. What it does not tolerate is mixing patterns — and there are several couplings that look like a Bauer from three metres away.

/01Three parts, one lever.

A Bauer joint is a male half, a female half and a lever ring. The male is a cylindrical tip with a rounded nose. The female is an open ring with an internal seat and a rubber O-ring, as Sealfast's drawing shows. The lever ring carries two handles; swung over, it draws the male tip into the seat and holds it there.

/02Rating and material.

Our Bauer-type couplings are zinc-plated carbon steel. Sealfast rates the flanged versions to 150 psi; for the rest it publishes no working pressure, so tell us the pressure and the medium and we will confirm the rating before you order. Check a half from another maker against ours before relying on the joint. Whatever the coupling is rated to, a shank held by hose bands is limited by the bands and the hose, and an assembly should be marked at its weakest part.

/03Ring lock is not Bauer.

Ring lock couplings use the same idea — a male tip, a female seat and a lever ring — and our range is 2" to 8" zinc-plated steel, again with no published working pressure. They are not directly interchangeable with Bauer. A ring lock male will sit in a Bauer female closely enough to fool someone in a hurry and then leak or part under pressure. If a site runs both, mark the halves and keep the spares separate.

/04Where Bauer fits, and where something else does.

Bauer earns its place on lines that are laid, moved and re-laid: irrigation, slurry spreading, temporary dewatering. For a fixed pump outlet or a tanker connection, cam and groove is the more common choice and connects by hand without a lever; for fire and large-bore water service, a symmetrical Storz head removes the male-female question entirely. The coupling should match what the rest of the site already runs, because the cost of a second pattern is paid every time a hose arrives with the wrong half.

On large-bore lay flat lines, Bauer couplings meet grooved, Storz, flanged and high-pressure alternatives; our lay flat hose coupling guide compares them.
