Industrial hose couplings: how to identify and choose every common family

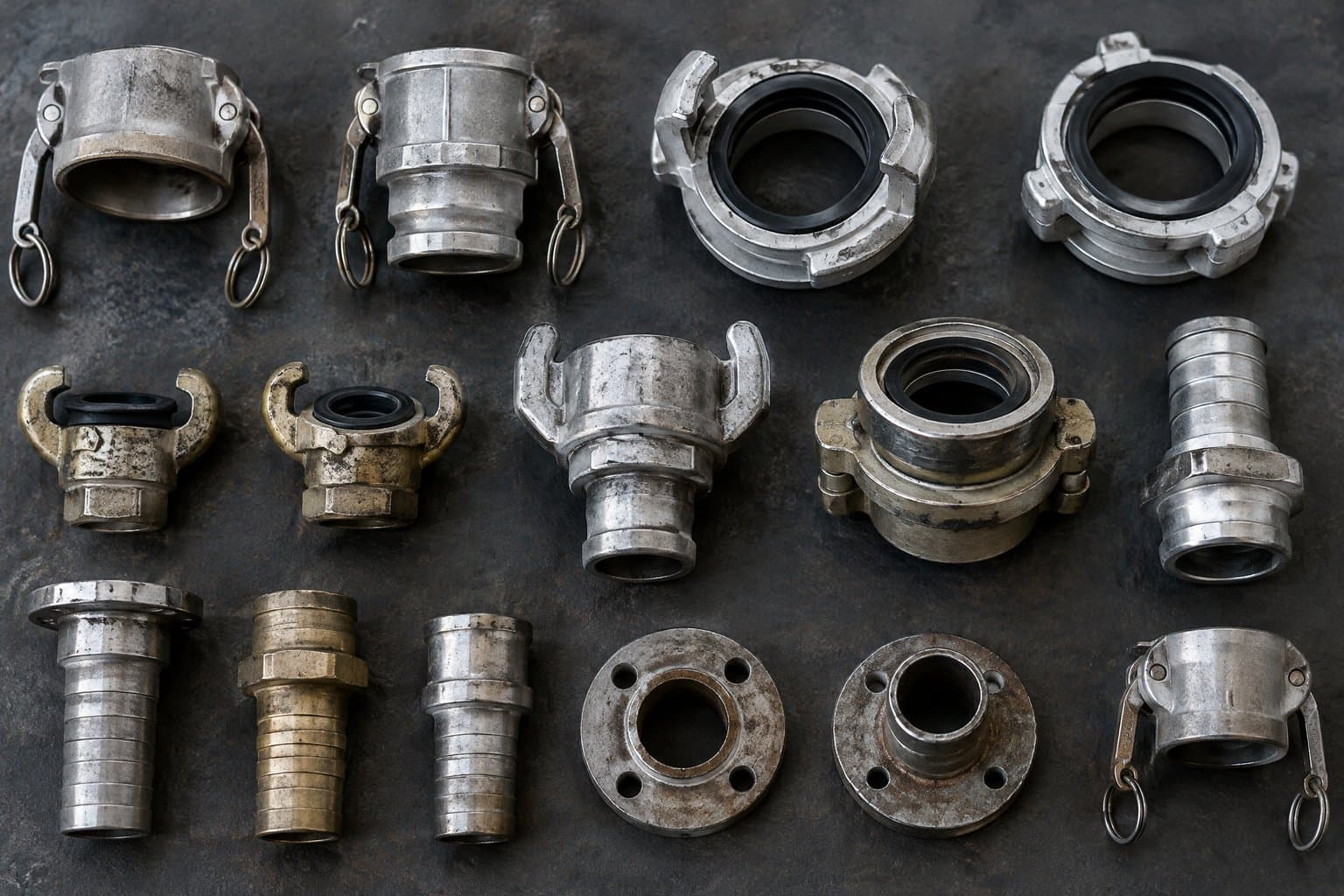

Industrial hose couplings come in more families than any other hose end, because every industry and almost every country settled on its own. The good news is that they sort quickly. One question — are the two halves the same or different? — divides them into two groups, and a second look at the face, the lugs or the thread names the family. This guide does that sorting and points to the detail on each.

/01Gendered or symmetrical.

A gendered coupling has a male half and a female half: a cam and groove adapter and coupler, a Bauer male tip and female ring, a ground joint stem and spud. Two of the same half will not connect, so a hose needs the right half at each end. A symmetrical coupling uses identical heads: any two Storz heads of one size lock together, as do any two Guillemin, Barcelona, GOST, Geka or universal claw heads of one type. Symmetry is why those families dominate fire and site-air service, where nobody wants to be holding the wrong end.

/02Identifying a coupling in thirty seconds.

/03Transfer: cam and groove and dry disconnects.

Cam and groove is the default for tankers, pumps and chemical transfer, listed to MIL A-A-59326 and EN 14420-7. Its letter code is decoded in cam and groove coupling types, including the pressure curve that makes the coupling the limit on a large line. Where a joint must part without a drip, a dry disconnect closes a valve in each half before the faces separate — see tanker loading and vapour recovery hose.

/04Fire and water: the symmetrical patterns.

Each country's fire service chose its own symmetrical coupling, and none fits another. Storz is sized by lug distance — 115 mm for 4", 148 mm for 5", 160 mm for 6" on our listings — and takes a grey suction or black pressure gasket. Guillemin, standardised in France as NF E 29-572, adds a lock ring. GOST, Barcelona and Geka cover Russia and the CIS, Spain and small water hose. Crossing between them means a threaded adapter of each pattern.

/05Irrigation, slurry and dewatering: Bauer.

Lines that are laid and moved every day use a lever coupling. Bauer couplings lock with a lever ring and tolerate some misalignment; our zinc-plated steel range runs 2" to 12", with ASA Class 150 flange backs. Ring lock couplings work the same way and are not interchangeable with Bauer.

/06Air and steam.

Site air runs on universal claw couplings, which must be pinned with a safety clip and restrained with a whip check, because air stores energy that oil does not — the hose side is in compressed air hose selection. Steam needs a joint with no rubber in it: the ground joint coupling seals metal to metal, while European plant uses EN 14423 clamp couplings.

/07Plain ends, clamps and flanges.

Many hoses end in a plain serrated tail with a thread or a flange: KC nipples and shank couplings, or EN 14420-5 GA and GI fittings under a DIN 2817 safety clamp. On all of them the joint is made by what is clamped around the hose — the subject of industrial hose clamps. Where the hose meets fixed pipework, it ends in a flange matched for size, class and face, covered in flanged hose connections. Composite hose has its own spiral-tail fittings, in composite hose explained.

/08The coupling sets the rating.

Every coupling has its own pressure rating, and it is often lower than the hose's. Our cam and groove halves are rated 250 psi to 2", 150 psi at 3"–4" and 75 psi at 5"–6", and several crowfoot ends at 150 psi; for Storz, Guillemin, Bauer and most crowfoot parts the manufacturers publish no rating, so we confirm one for your duty. Shanks held by band clamps are limited by the clamps. Rate and mark every assembly at its weakest component, and pressure-test it as an assembly.

Large-bore lay flat hose has its own coupling families — forged-shank couplings with bolted clamps, ending in grooved, Storz or flanged connections. See our lay flat hose coupling guide.
