Fittings by industry

Water well drilling rig fittings: stocking for a machine that moves

A drilling rig is a workshop that relocates every few weeks, usually further from help each time. What travels with it decides whether a failure costs hours or a fortnight.

Written by
Ayush Bhatia, Director
Published
Updated
Reading
3 min · 3 sections
Share
A truck-mounted water well drilling rig on dry savanna, an open toolbox of hydraulic spares on the deck
A water well rig moves between sites, so the fitting stock has to travel with it.

At a glance

Key takeaways

  1. The rig carries its own store. Anything not on the truck is days away, minimum.
  2. Rotation, feed and mast circuits take the load; the compressor and water lines take the abuse.
  3. Vibration and repeated rig-up and rig-down loosen joints that would be stable on a static machine.
  4. Consumables — seals, bonded washers, caps — matter more here than anywhere else in this series.
  5. One spare made-up assembly for each critical circuit is worth more than a drawer of adapters.

Drilling rig fittings have to be on the truck, because anything that is not is days away. Water-well and small exploration rigs are the most self-contained customers we supply. They rig up in a village or a bush site, work for days or weeks, and rig down and move — and the supply chain behind them is whatever fits on the support vehicle. A hydraulic failure on a rig is not a maintenance event; it is a project stoppage with a crew standing around it.

/01Where a rig actually fails.

By circuit
CircuitWhat goes wrong
Rotation headHighlightedHigh duty, heat, and hoses that move with the head
Feed and pull-downLoad cycling; joints loosen and seats fret
Mast raise and levelling jacksUsed at every rig-up; the joints get disturbed constantly
Water and air linesAbrasion, dragging, and being walked on

The third row is the one that distinguishes a rig from static plant. Every move is a disturbance event — hoses are handled, joints are broken and remade, lines are dragged across a site — and the failures cluster in the days after a move rather than being spread evenly through the job.

/02What to carry on the truck.

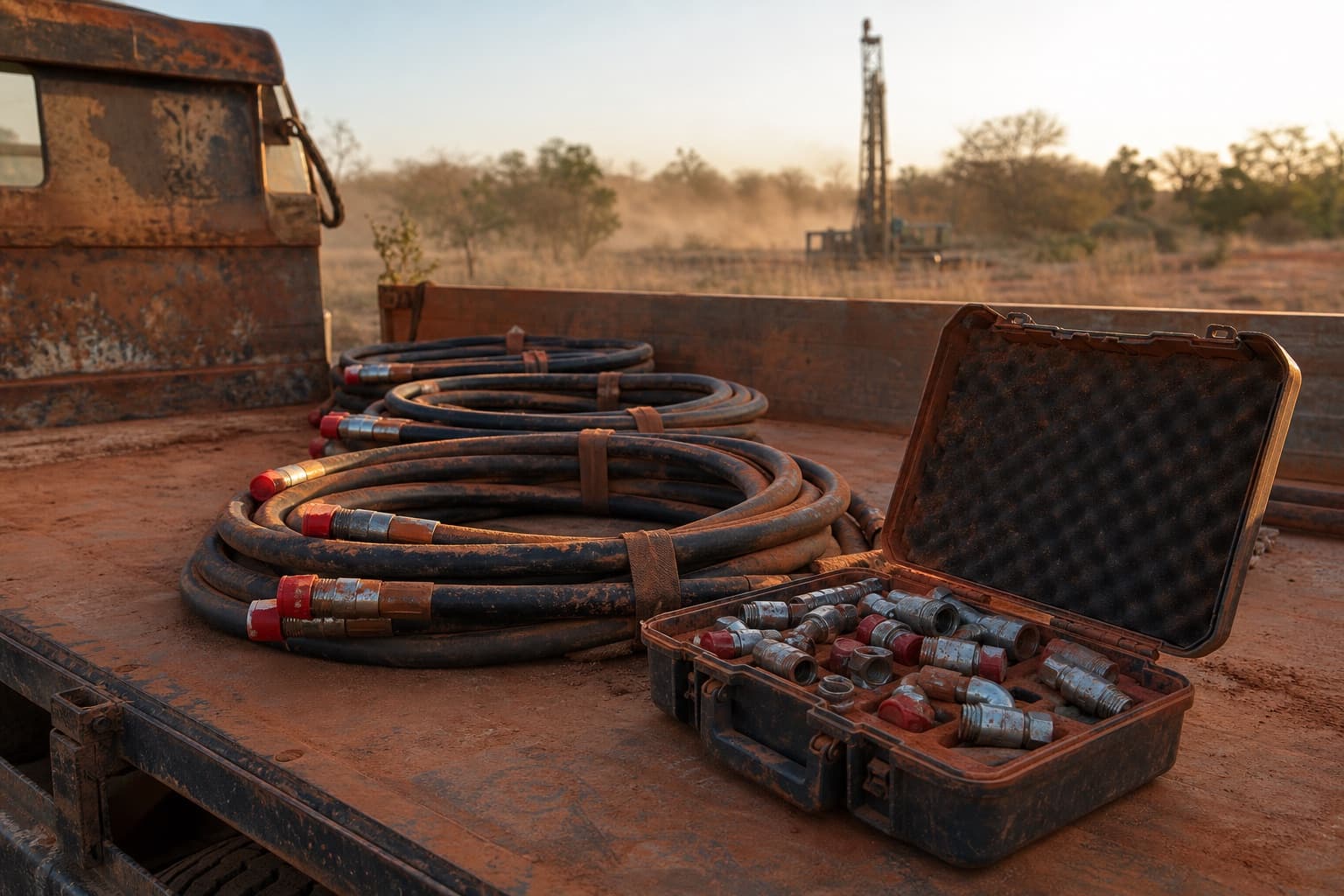

Coiled hydraulic hose assemblies with plastic caps fitted and an open case of steel adapters on the bed of a support truck at a bush drilling site at golden hour
FIG. 01A made-up spare assembly turns a stoppage into a change-out. A box of loose fittings turns it into a fabrication job.

Adapters are useful and assemblies are decisive. A made-up spare for each circuit that stops the rig — rotation feed, mast raise, the pull-down line — turns a stoppage into a change-out, whereas a box of loose fittings turns it into a fabrication job you cannot do without a crimper. Where the rig carries a crimper and someone trained, bulk hose and ends cover more part numbers for the same space.

A truck kit that earns its space
ItemWhy
One made-up assembly per stopping circuitTurns a stoppage into a change-out
Ends and ferrules in the rig’s boresCovers what the assemblies do not
Bonded seals and O-rings, by the boxHighlightedThe commonest reason a repair stalls half-done
Plugs and capsLets the rig work on a reduced circuit while a part is in transit
Pitch and seat gaugesIdentification in the field, without a signal

/03Ordering for a machine with no fixed address.

Deliveries chase a rig badly. The practical pattern is to order to the contractor’s base rather than to the site, hold the consignment there, and move parts out with the crew rotation — and to keep a small air-freight budget for the genuine stoppage. Nothing about that is unusual; what is unusual is how rarely it is planned before the first stoppage rather than after it.

Once the well is drilled, the pump often goes in on a flexible riser rather than steel column pipe; see flexible borehole riser hose vs steel column pipe.

Hose and ends for a rig spares kit

Frequently asked questions

Is a crimper worth carrying on a rig?
Where the rig works far from any hose shop and the crew is trained, yes — one coil of hose and a set of ends covers many failures. It is a capability decision with training attached rather than a purchase.
What is the single most useful spare?
A made-up assembly for whichever circuit stops the rig. It is the item that converts a multi-day wait into an hour of work, and it is usually the item nobody bought because it looked expensive.
Can you supply a kit built around our rig?
Yes. Send photographs of the ends at the main circuits with measurements, and how far the rig typically works from your base. We will build the truck kit and the base stock separately.
