Universal air couplings explained: Chicago, claw and crowfoot, and the clip that holds them

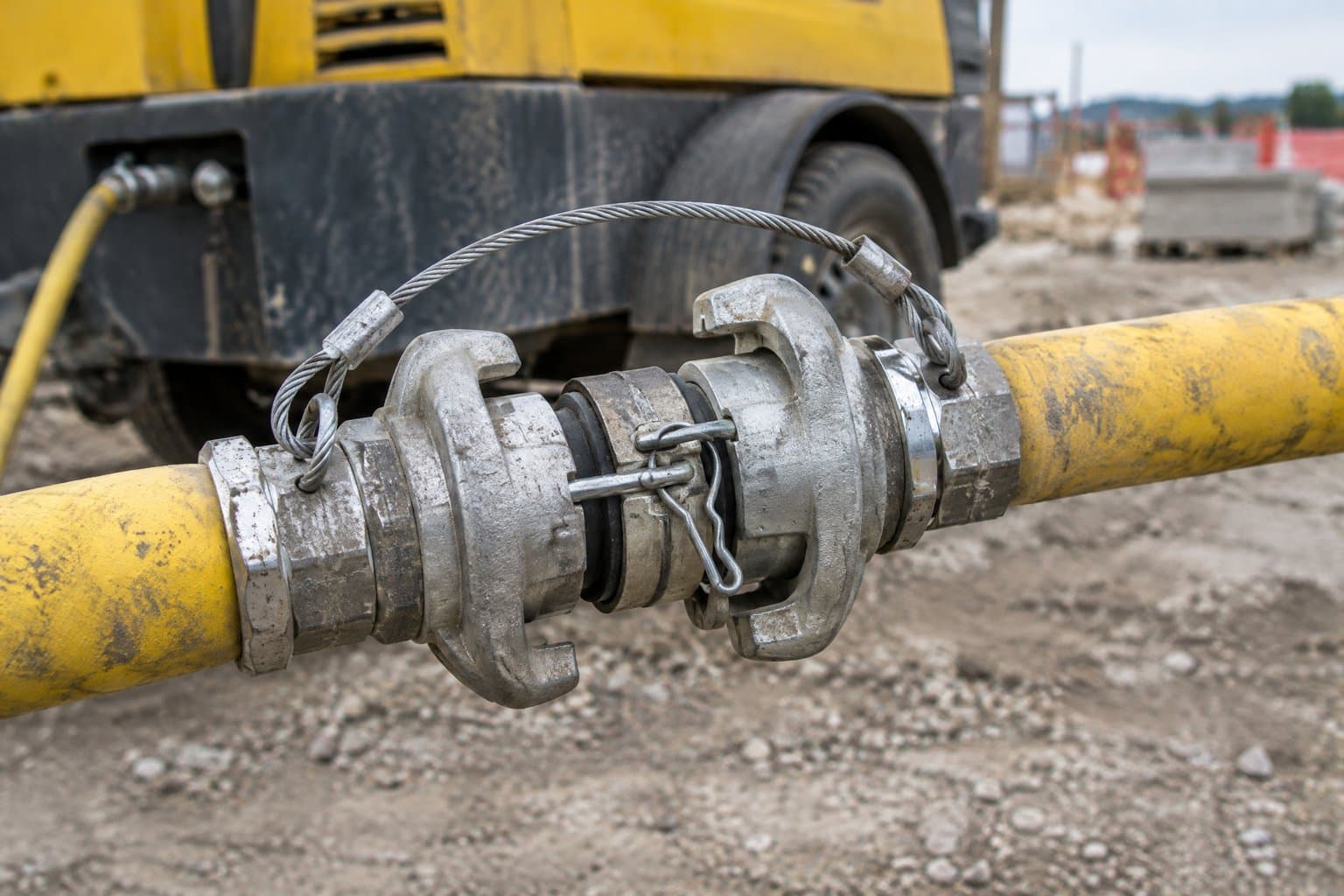

Walk any site in the region and the compressor hoses end in the same four-pointed claw: the universal coupling, called Chicago in the US and crowfoot by half the fitters who use it. Its appeal is that one head fits every other head of its type, whatever hose sits behind it, so a breaker, a drill and a blowgun all plug into the same line. Its risk is that a compressed-air hose that parts under pressure whips with enough energy to injure — which is what the clip and the cable are for.

/01One head fits every head.

Each universal head carries lugs and a ramp, and an NBR washer in its face. Offered face to face and turned, two heads lock as the lugs ride the ramps and compress the washers. Because the two-lug claw is the same from 1/4" to 1" within a type, a 3/4" hose end will lock to a 1/2" hose end — useful on a mixed site, and a reason to check that a small hose is not being run at the flow or pressure of the large line it was clipped to.

/02Three types, and the ends each one comes in.

Our listings carry American, European and Australian universal couplings, each as a hose end, a male-thread end, a female-thread end, a blank end and, for the American and Australian types, a 3-way. The threads follow the type: the American male and female ends are NPT or BSPT, the European female end BSPP and the European male end BSPT. Materials are carbon steel, brass and stainless across the types, with malleable iron on the American and European parts. Treat the three as separate patterns and keep one on a site where you can.

Our crowfoot range covers zinc-plated iron four-lug hose ends and female NPT ends from 1-1/4" to 2", and 316 stainless hose, male NPT, female NPT, blank and triple-connection ends from 1/2".

/03Ratings, and why air is the dangerous one.

Sealfast rates the four-lug hose end and the stainless blank and triple ends at 150 psi at 70 °F, and publishes no rating for the other hose and NPT ends. Read the rating of the part in your hand, not the family. Then remember why the rating is not the whole story on air: compressed air is a stored spring. When a claw joint or a hose end lets go, the hose is driven by the expanding air behind it, and a whipping hose end causes injuries that a hydraulic leak, for all its own dangers, does not.

Our safety whip checks come in hose-to-hose and hose-to-tool versions, in carbon steel or 304 stainless, from a 1/8" cable 12" long up to a 3/8" cable 44" long. Choose the cable by the hose size and the length by the joint it spans.
