Failure analysis

Why fittings seize in coastal air, and what to change at fitting time

A seized joint is decided months earlier, at the moment somebody made it up. What that person could have done differently, and what they could not.

Written by
Ayush Bhatia, Director
Published
Updated
Reading
3 min · 3 sections
Share
A hydraulic fitting joint crusted with rust and salt on a port machine, a spanner on the seized nut
Coastal salt makes fittings seize; the choice of plating and lubricant at fitting time helps.

At a glance

Key takeaways

  1. Seizure is an assembly-time decision that surfaces months later, at the worst moment.
  2. Corrosion starts where the coating is thinnest: thread crests, hex corners, and anywhere a spanner slipped.
  3. A joint that has been made up and broken twice corrodes faster than one that never moved.
  4. Anti-seize belongs on the thread and never on the sealing face — the two are different surfaces doing different jobs.
  5. On coastal sites, plating grade and joint count matter more than any other specification decision.

Fittings seize because corrosion gets between two threads and grows there, and in salt-laden air it starts within weeks rather than years. By the time the joint has to come apart the decision that mattered — what went on the thread and what protected the outside of it — was taken by somebody who has probably left the site.

/01What is actually happening in the thread.

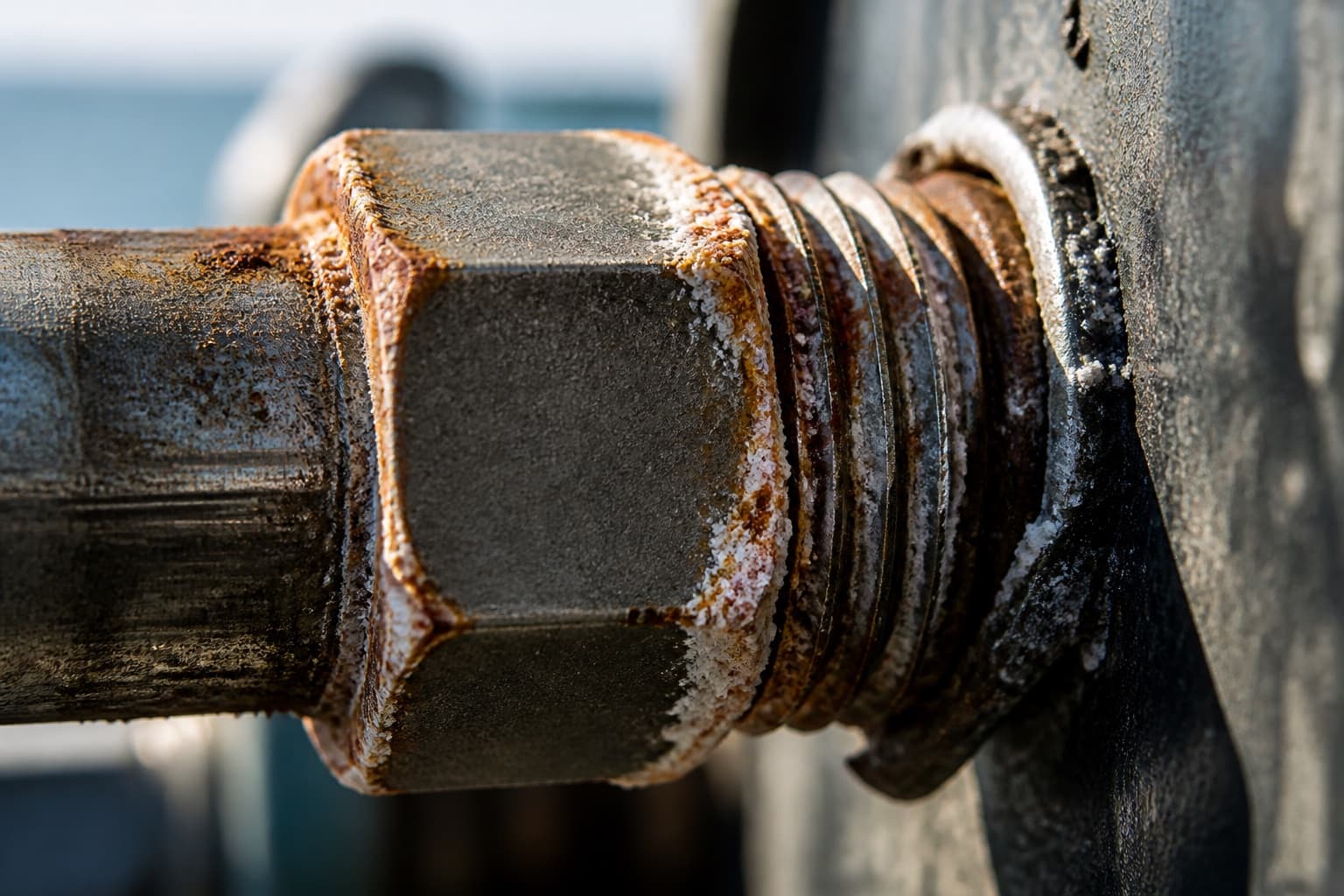

Macro of a hydraulic fitting hex at a coastal yard with corrosion blooming at the hex corners and thread crests while the flats remain sound
FIG. 01Corrosion starts at the crests and hex corners, then works underneath a coating that still looks intact.

Two steel surfaces are in contact with a moist, salt-carrying atmosphere finding its way between them by capillary action. Corrosion product occupies more volume than the metal it came from, so the gap closes and the two parts become mechanically locked. Nothing about the seal is involved — a perfectly sealing joint seizes exactly as readily as a weeping one, which is why the problem is invisible until somebody needs the joint apart.

/02What can be decided at fitting time.

Choices made at assembly, paid for at removal
DecisionEffect on seizure
Plating grade on the fittingHighlightedThe largest single lever on exposed joints
Anti-seize on the thread onlySlows the mechanism directly; must not reach the seat
Joint count in the lineEvery joint is another candidate; a stack of adapters is three
Protecting the hex after assemblyCheap, and it is where the spanner will need to grip
Recording the fitted dateTurns an unknown into a planned change at the next shutdown

/03When it has already seized.

Extraction is its own subject and we have written it separately. What belongs here is the decision that follows: a joint that had to be forced apart has almost certainly damaged something, and the correct assumption is that both the fitting and the seal are scrap until inspection says otherwise. Re-using a fitting that came out under protest is how a seizure becomes a leak on the same machine a week later.

The second decision is whether the rest of that machine is in the same state. Seizure is a site-wide condition rather than a component fault, so one seized joint is a prompt to check the others while the machine is already stopped. Where seizure keeps recurring, 316L stainless JIC and 316L BSP fittings on the exposed joints, with an anti-seize paste on the threads, are the usual next step.

316L stainless ends for coastal sites

Fit them into a stainless or compatible port — one stainless end in a plated system moves the corrosion rather than ending it.

Frequently asked questions

Does stainless solve seizure?
It solves corrosion of the fitting and introduces galling, which is a different way for threads to lock. It also brings a galvanic couple if the port is plated steel. On coastal sites it is a per-position decision, not a default.
Is anti-seize compatible with hydraulic fluid?
Use a compound rated for the service and keep it out of the system — thread only, wiped thin. Anything that can migrate past the seal into the fluid is a contamination decision as well as a corrosion one.
How often should exposed joints be inspected in salt air?
More often than inland, and what you are looking for is plating loss at the crests and hex corners rather than a leak. That is the point at which a future intervention starts getting expensive.
