Flanged hose connections: ASME B16.5 flange types, classes and faces on industrial hose

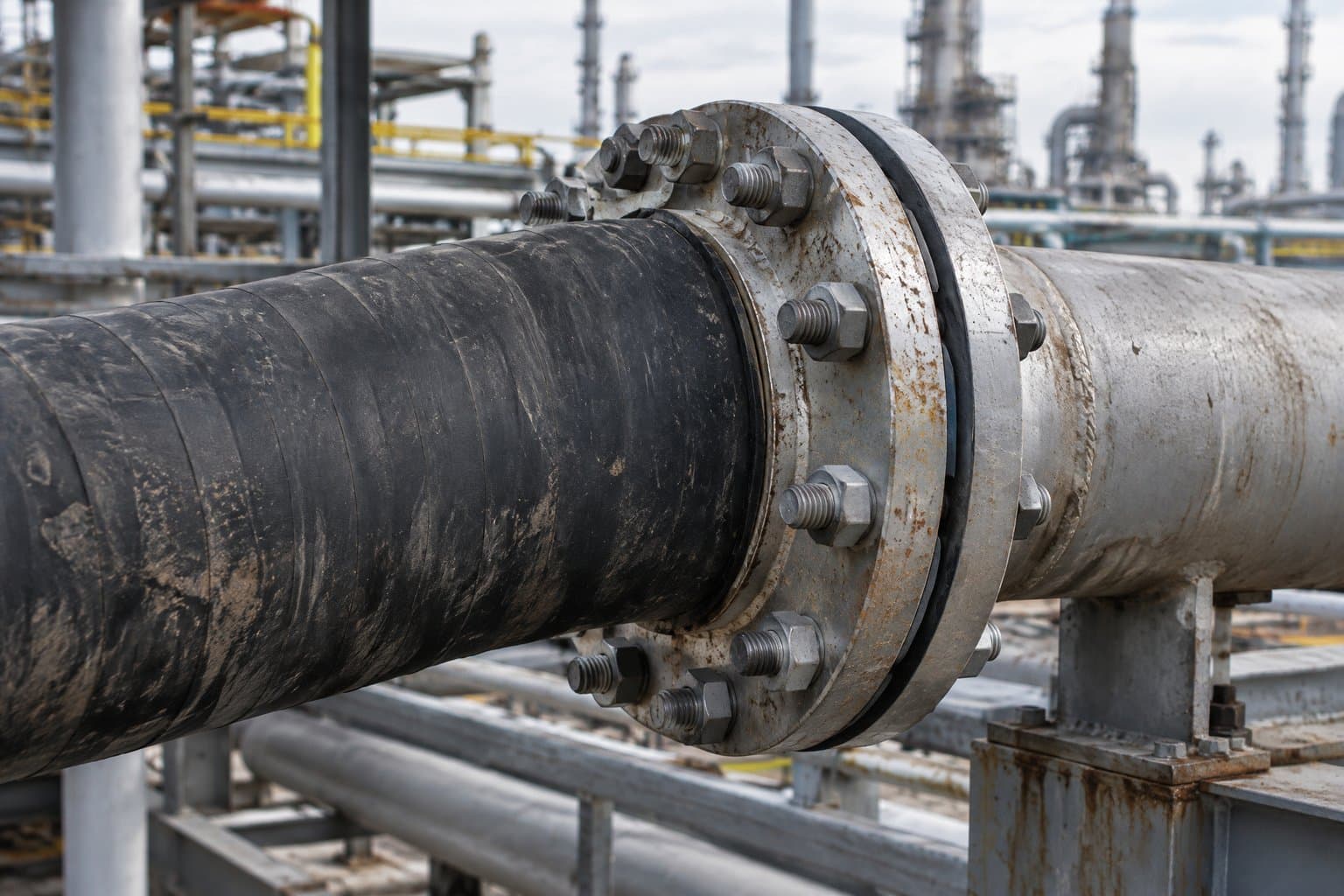

Quick couplings suit hoses that are connected and disconnected; fixed pipework, tank nozzles and loading arms are flanged. Where a transfer hose meets them, the hose end carries a flange too — welded to a KC nipple, swaged onto a composite hose tail or forming the back of a cam and groove half. The flange is the one part of the assembly dictated entirely by the other side, so the job is to read the pipework correctly and match it.

/01Size, class and face.

An ASME B16.5 flange is defined by its nominal pipe size, its pressure class and its face. The class sets the bolt circle, the bolt count and the thickness, so a Class 300 flange will not bolt to a Class 150 one of the same size. Our listings rate carbon steel flanges at 285 psi in Class 150 and 740 psi in Class 300 — those are the ambient-temperature ratings, and they fall as temperature rises.

/02Flange types in our range.

All are listed in ASTM A105 carbon steel and ASTM A182 304 or 316 stainless. For a hose, the choice is usually between a welded flange on a KC nipple or composite tail — our heavy-duty KC nipples come with a welded Class 150 flange, and our composite hose tails with an ASME B16.5 flange — and a lap-joint flange on a stub end.

/03Why stub ends suit hose.

A hose with a fixed flange at each end has to be twisted to line the bolt holes up at the second end — and a hose installed with a twist loses life from the first pressurisation. A lap-joint flange sits loose behind an MSS SP-43 stub end, so it can be rotated to meet the bolt holes while the hose stays straight. Our stub ends are listed in MSS SP-43 Types A, B and C, in carbon steel and 304 or 316 stainless. The stub end carries the seal; the flange only carries the bolts, so it can even be carbon steel behind a stainless stub end.

Two more parts complete the shelf: a blind flange to close an end, and a gunmetal dock flange with a male thread for marine and dockside connections.

/04Gaskets and bolts.

RF and FF faces take a sheet gasket to ASME B16.21, cut to the face type: a ring gasket inside the bolts for RF, a full-face gasket with bolt holes for FF. An RTJ face takes a metal ring joint gasket in its groove instead — the ring gaskets on our flow iron shelf are a separate subject. Use a new gasket every time the joint is broken, and tighten bolts in a cross pattern so the gasket compresses evenly.
