A fitting with no markings, on a machine whose manuals went missing three owners ago, is the most common identification job in any hydraulic workshop. The part is in your hand and the machine is down. Four measurements will tell you what it is.
/01Start with the seat, not the thread.
The instinct is to measure the thread first. The seat is faster and narrows the field further. Almost all hydraulic connections seal on a machined surface — a cone, a flare, or an O-ring — and not on the threads themselves. The threads only supply clamping force. Once you know how a fitting seals, you have usually eliminated two of the four families.
| Family | Thread form | Parallel or tapered | Where it seals |
|---|---|---|---|
| JIC 37° | UN/UNF, 60° thread angle | Parallel | 37° flare face |
| ORFS | UN/UNF, 60° thread angle | Parallel | O-ring in a flat face groove |
| BSP parallel (BSPP) | Whitworth, 55° thread angle | Parallel | 60° cone, or a bonded seal under the head |
| BSP tapered (BSPT) | Whitworth, 55° thread angle | Tapered | Thread interference, with sealant |
| Metric DIN 24° cone | Metric, 60° thread angle | Parallel | 24° cone, optionally with an O-ring |
| NPT / NPTF | UN, 60° thread angle | Tapered 1:16 | Thread interference, with sealant |
/02Then take four measurements.

Measure and gauge
- Done
Thread diameter
Caliper across the crests of a male thread, or across the roots of a female. Record in both mm and inches — the answer may be either.
- Who
- Fitter
- Tool
- Caliper
- Done
Thread pitch
Thread pitch gauge. Imperial families are counted in threads per inch; metric in millimetres between crests.
- Who
- Fitter
- Tool
- Pitch gauge
- Done
Parallel or tapered
Measure the crest diameter at the first thread and at the last. If it changes, the thread is tapered and you are looking at BSPT or NPT.
- Who
- Fitter
- Tool
- Caliper
- Done
Seat angle
A seat gauge, or compare against a known fitting. 37° and 24° are distinguishable by eye once you have seen both; 30° Komatsu and 37° JIC are not.
- Who
- Fitter
- Tool
- Seat gauge
Two of these four are the ones people skip, and they are the two that matter most. Taper separates BSPP from BSPT and NPT from everything parallel. Thread angle — 55° for BSP, 60° for everything else — is what a pitch gauge tells you and a tape measure never will.
/03The pairing that leaks.
This is the single most common cross-threading error in the field, and it happens because the nominal sizes are close enough to be plausible. The damage is not always obvious at assembly: a joint that took sealant and torqued up normally can still weep once the system sees working pressure, by which point the port thread may need re-cutting. At 1/2" and 3/4" the NPT and BSPT pitches match, which is why the two get forced together.
/04Which family is it?
Narrowing it down from the bench
Work in this order. Each step eliminates at least one family.
IfThe crest diameter changes along the thread
Tapered — BSPT or NPT.
Separate the two on thread angle: 55° is BSPT, 60° is NPT. Both rely on thread interference and sealant, not a seat.
IfParallel thread, flat face with an O-ring sitting in a groove
ORFS.
The O-ring makes the seal. A missing or perished O-ring will leak however hard the nut is torqued.
IH-ORFS-FEM-45IfParallel thread, cone seat at roughly 37°
JIC 37° flare.
The most widely stocked family in the region. Seals metal-to-metal on the flare.
IH-JIC-FEM-37-45IfParallel thread, 55° thread angle, female cone seat at 60°
BSP parallel with a 60° cone.
Common on British and Indian-built equipment and on a great deal of what is in service across the Gulf.
IH-BSP-FEM-60-45IfParallel metric thread, cone seat at roughly 24°
Metric DIN 24° cone — light or heavy series.
Light (L) and heavy (S) series share seat angles but not thread sizes. Confirm the series before ordering; the wrong one will not thread on.
IH-DF-FEM-24-OR-LS-45
One from each family, for comparison

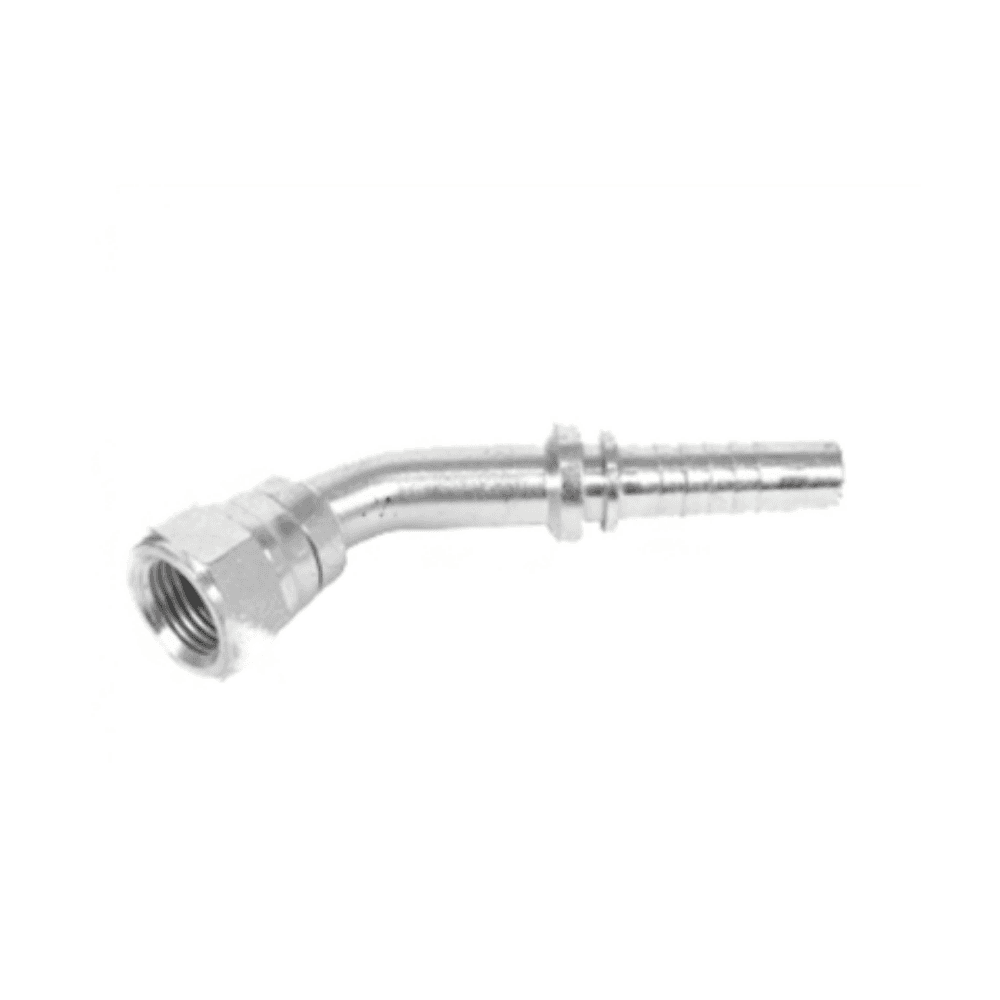

IH-JIC-FEM-37-4545° JIC Female 37° Seat Hose FittingIndus Hydraulics

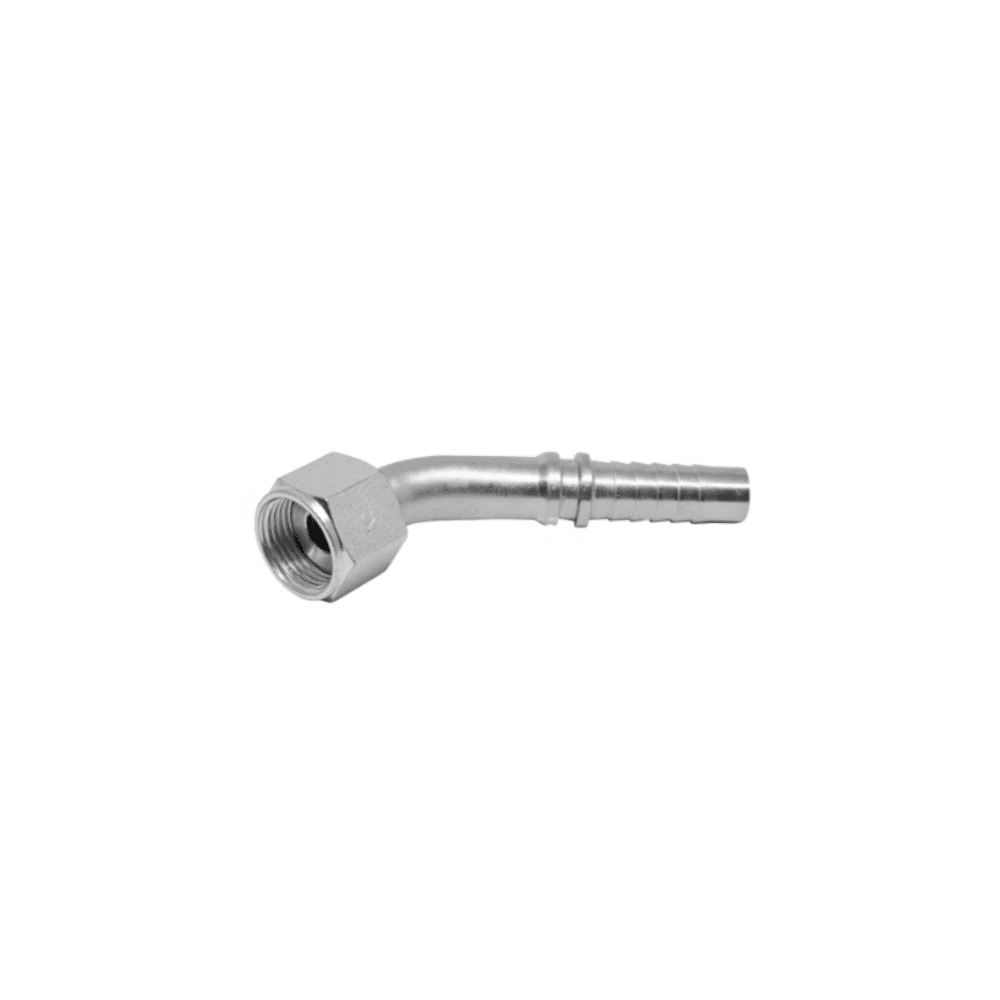

IH-ORFS-FEM-4545° ORFS Female Hose FittingIndus Hydraulics

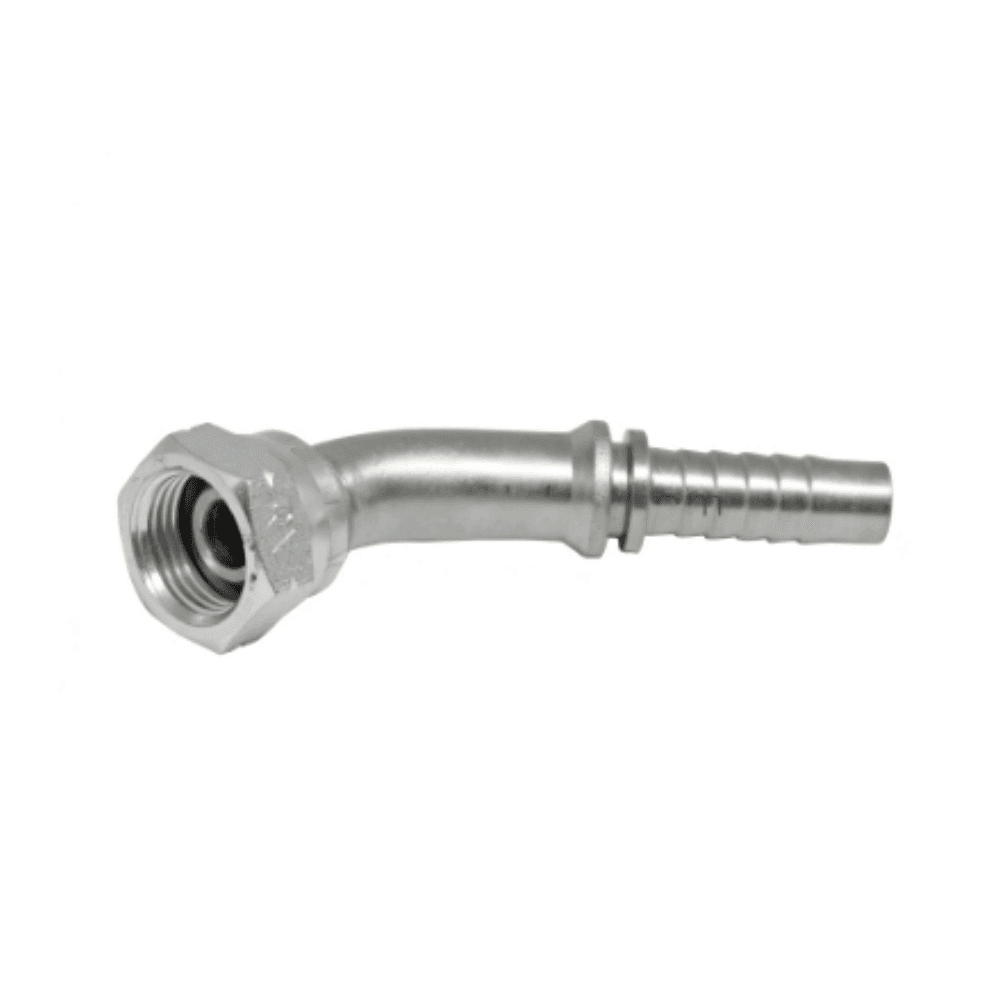

IH-BSP-FEM-60-4545° BSP Female 60° Cone Elbow Hose FittingIndus Hydraulics

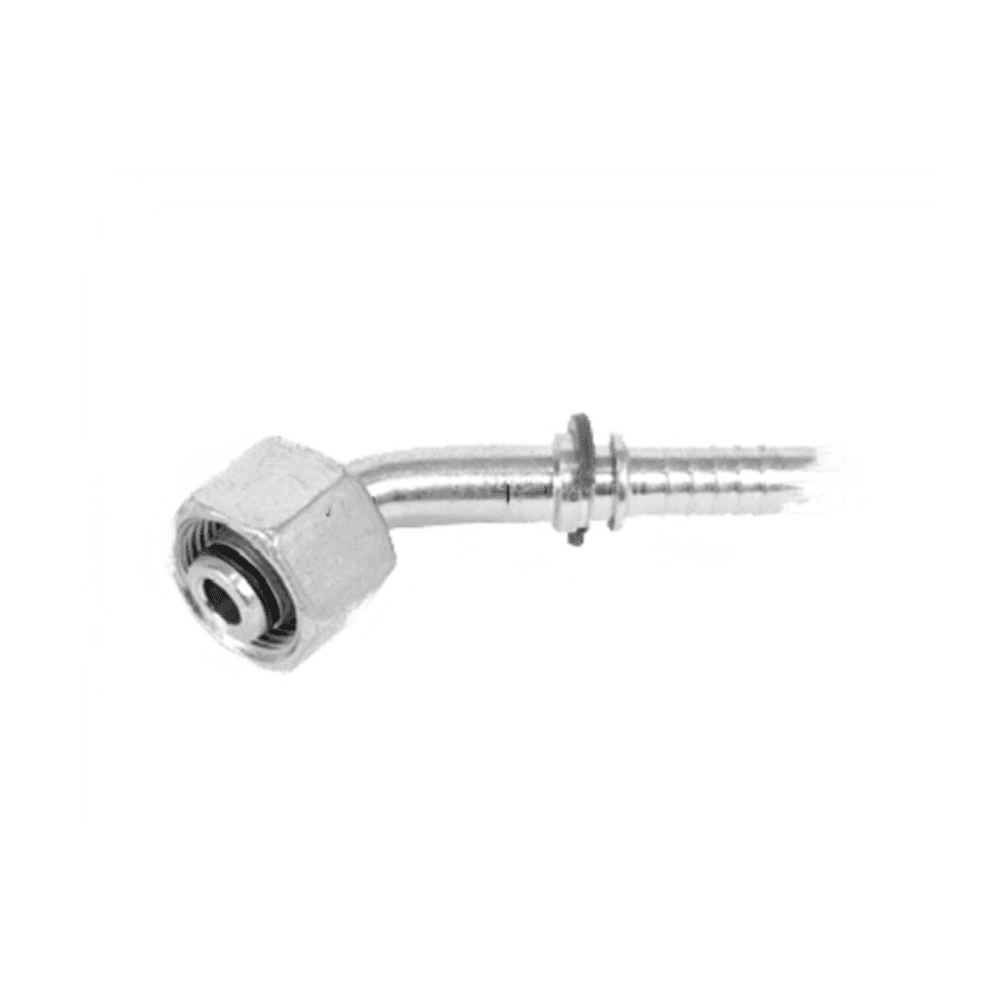

IH-DF-FEM-24-OR-LS-4545° Metric Female 24° O-ring Cone (Light Series) Hose FittingIndus Hydraulics
Keeping one known-good fitting from each family on the bench is the cheapest identification tool there is — comparison beats measurement when the part in your hand is damaged.
/05What the standards actually cover.
Metallic tube connections for fluid power and general use — Part 1: 24° cone connectors
Defines the metric 24° cone connector, including the light and heavy series distinction. This is the reference when a fitting is described as "DIN 2353" — the DIN designation is widely used in the trade, and ISO 8434-1 is the standard that now governs the geometry.
Pipe threads where pressure-tight joints are not made on the threads — Part 1: Dimensions, tolerances and designation
Covers BSP parallel threads. The title is the useful part: the standard states outright that the joint is not sealed by the threads, which is exactly why a BSPP male needs a cone seat or a bonded washer to do anything.
Pipe Threads, General Purpose (Inch)
Covers NPT. A 60° thread angle on a 1:16 taper, sealing on thread interference and requiring a sealant. The contrast with ISO 228-1 is the whole reason BSP and NPT cannot be mixed.
Note what is deliberately absent from the tables above: pressure ratings. Working pressure varies with size, series and manufacturer, and a figure quoted from memory is worth nothing on a machine. Take those from the datasheet for the part you are actually fitting.
