Reusing fittings in a rebuild: what survives, and what belongs in the bin

Half the parts in the tray are perfectly good and half are finished. Sorting them takes a light and two minutes, and getting it wrong shows up after reassembly.

Written by
Ayush Bhatia, Director
Published
Updated
Reading
3 min · 3 sections
Share
A tray of rebuild parts under a bench lamp, good fittings sorted from damaged ones
Some fittings can go back into a rebuild; damaged or corroded ones belong in the bin.

At a glance

Key takeaways

  1. Steel adapters in good condition are reusable; the elastomers with them are not.
  2. The sealing face decides it — a mark across a cone or flat face is a leak path.
  3. A fitting that came off a seized or over-tightened joint starts as scrap until inspection says otherwise.
  4. Bite rings and crimped ends belong to the tube or hose they were made up on.
  5. Sorting during dismantling costs nothing; sorting after reassembly costs the whole job again.

Reusing fittings in a rebuild is normal, sensible and how most workshops on a long lane keep a machine moving. What goes wrong is not the reuse — it is that the sorting happens with the parts already mixed in a tray, at the end of a long day, under pressure to reassemble.

/01Sort while you dismantle, not after.

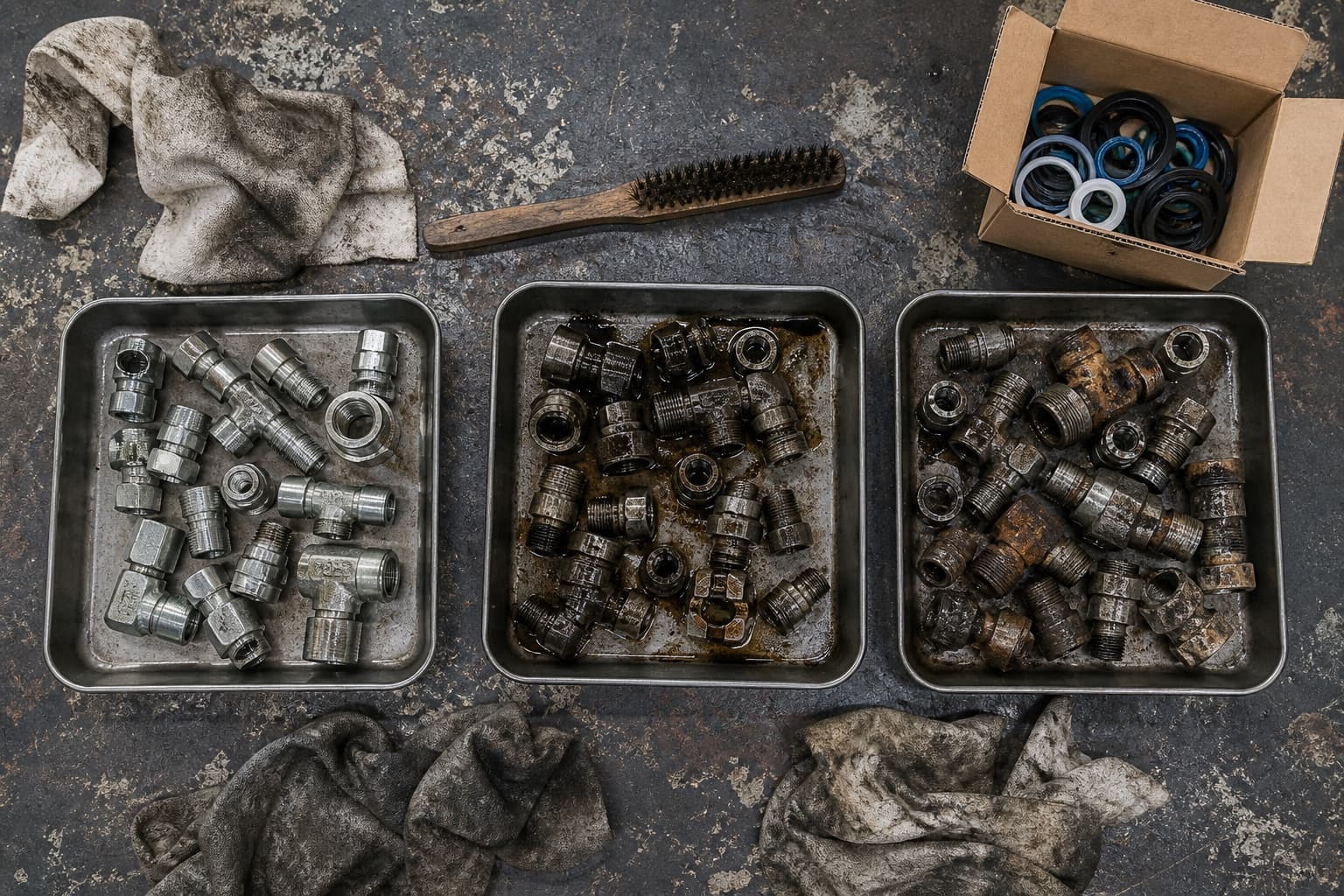

Three metal trays on a workbench during a strip-down holding hydraulic fittings sorted by condition, with rags, a wire brush and a box of new seals around them
FIG. 01Sorting as parts come off preserves the information a common tray destroys.

Every fitting that comes off carries information that disappears the moment it lands in a common tray: which port it came from, whether it fought coming off, whether the seat looked wrong. Three trays — reuse, inspect, scrap — decided as parts come off preserves that, and it costs nothing but the trays.

The sorting rule
Condition on removalTray
Came off easily, seat clean under a lightReuse, with new elastomers
Came off hard, or from a joint that was weepingHighlightedInspect properly before deciding
Any mark across the sealing faceScrap
Thread pickup, galling, or a rounded hexScrap
Bite ring, crimped end, or anything deformed onto its mateScrap — it belongs to that tube or hose

/02The elastomers are not a judgement call.

O-rings, bonded seals and dowty washers have taken a set under load and are single-use in practice. They cost almost nothing, they are the commonest reason a rebuilt joint weeps on first pressurisation, and re-using them is how a good rebuild acquires a fault that looks like bad workmanship. Buy them by the box and change every one — this is the least controversial line in this article and the most often ignored.

/03What to do with the "inspect" tray.

Look at the sealing face at an angle under a light; run a known nut down the thread; check the hex on a spanner for rounding. Anything that fails one of the three goes to scrap. The temptation on a remote site is to keep marginal parts because the replacement is weeks away — and that is exactly the site where a leak found after reassembly costs the most. Replacing a marginal adapter costs less than the leak it would cause.

The better answer to that constraint is upstream: hold the common ends in stock so the marginal part can be discarded without stopping the job. It is the same short list as everywhere else in this series — the two or three bores that actually fail.

Frequently asked questions

Can a fitting that came off a seized joint be reused?
Treat it as scrap until it has been inspected properly. Something in that joint was corroded or damaged, and the forces used to free it are not kind to threads or seats.
Are crimped hose ends reusable?
No. The ferrule has been deformed onto that hose and belongs to it. Re-crimping a used end onto new hose is a joint whose retention nobody can vouch for.
What about reusing a bite ring on the same tube?
It has already cut into that tube at one position. Best practice is a new ring and a freshly cut tube end; a re-made joint using the old ring is the usual explanation for a tube fitting that will not stop weeping.
