Copper mine hydraulic fittings: what the haul fleet and the plant each need

Two different hydraulic worlds share a fence line. The haul fleet fails by abrasion and vibration; the concentrator fails by slurry and washdown, and they want different answers.

Written by
Ayush Bhatia, Director
Published
Updated
Reading
4 min · 4 sections
Share
A giant haul truck in an open-pit copper mine, its hoist cylinder hoses visible, the concentrator in the distance
In a copper mine the haul fleet and the processing plant need very different fittings.

At a glance

Key takeaways

  1. A copper operation is two hydraulic populations: mobile fleet and fixed plant. They fail differently and should be stocked separately.
  2. On the fleet, abrasion and vibration do the damage — the fix is routing, clamping and fewer joints rather than a higher grade.
  3. In the plant, slurry and washdown attack the outside of the joint, so finish and material matter more than they do underground of the fence.
  4. Mixed-origin fleets are the norm, so a mine workshop needs bridging adapters as a stocked item rather than an improvisation.
  5. Resupply distance is the variable that decides depth. The further out, the more the cheap consumables matter.

Copper mine hydraulic fittings are bought for two different machines populations that share nothing but a gate. Copper mining across the central African belt runs two hydraulic systems that share nothing but a gate: a mobile fleet of excavators, haul trucks, loaders and drills, and a fixed plant of crushers, mills, thickeners, filter presses and pumps. Treating them as one stores problem is the commonest reason a mine workshop is simultaneously overstocked and out of the part it needs.

/01The fleet fails mechanically.

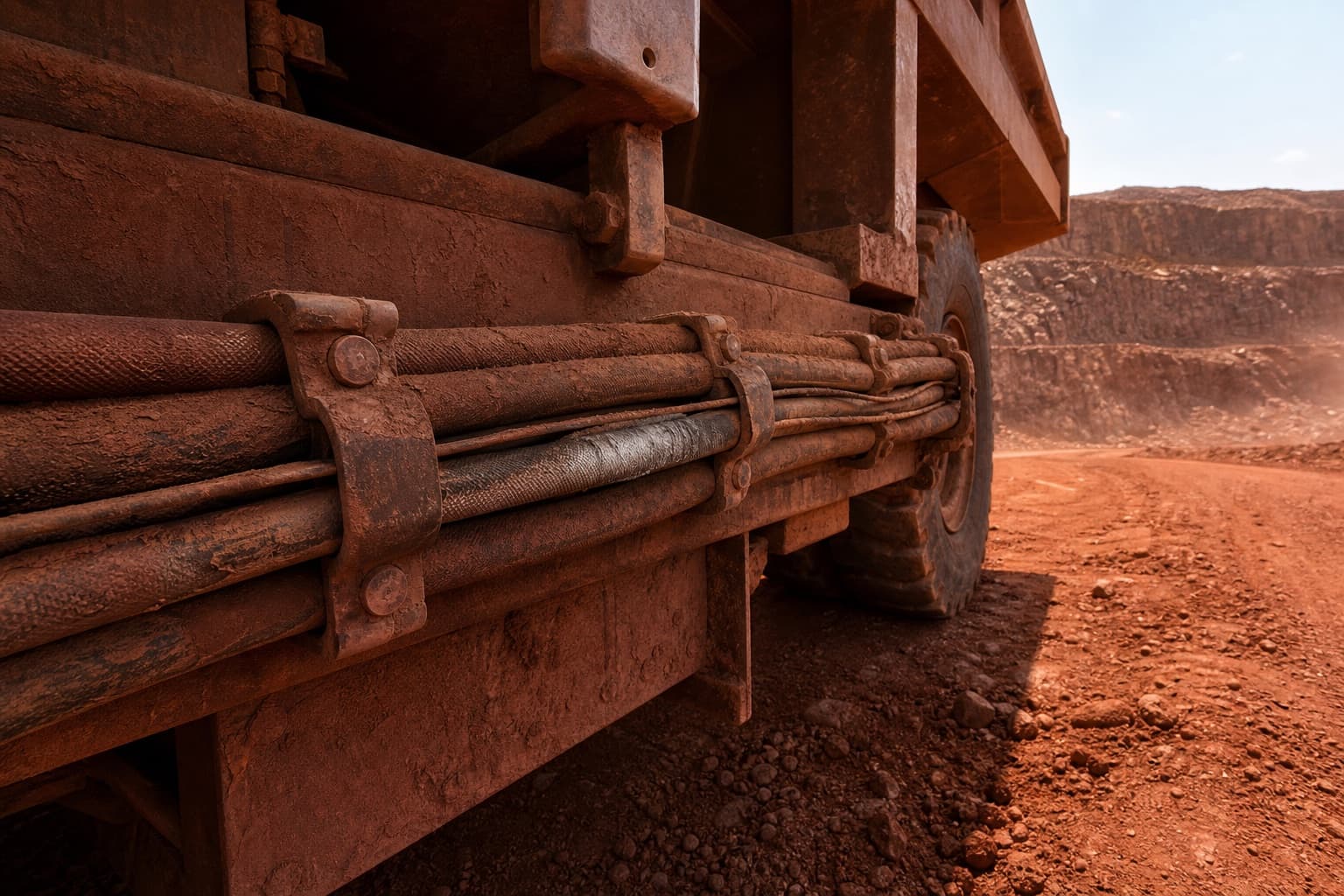

Hydraulic lines clamped along the chassis rail of a haul truck on a red-earth mine road, one line worn silver where it has been rubbing against a frame member
FIG. 01On the fleet the damage is mechanical: abrasion at contact points and fatigue at the joint.

On haul roads and in the pit, hoses die by abrasion at contact points and by fatigue at the joint. Dust turns every rub into a grinding operation, and vibration works on the fitting and the port behind it. Almost none of that is solved by buying a higher-pressure hose: it is solved by routing the line so it does not touch, clamping it so it cannot move, and removing adapter stacks that lever on the port.

/02The plant fails chemically.

Inside the concentrator the enemy is different. Slurry, process water, reagents and daily washdown work on the outside of every joint while the inside is perfectly sealed. Plating decides how long the fitting survives before the hex rounds and the thread seizes, and a joint that cannot be undone is a maintenance problem long before it is a leak. Inside the concentrator that makes the case for 316L stainless fittings on the joints that see washdown.

Two populations, two stock lists
PropertyMobile fleetFixed plant
Dominant failureHighlightedAbrasion, vibration, impactExternal corrosion and seizure
What to change firstRouting, clamping, joint countFinish and material
Thread familiesWhatever the imported machines carry — usually severalOften more consistent, set at build
Stock depth logicThe two or three bores that failThe positions that stop a circuit

For the water side of the mine — sump pumps, pit dewatering and acid mine water — see mine dewatering hose: TPU vs NBR lay flat.

/03Mixed fleets are the normal case.

A working mine buys machines when it can and from where it can, so the yard holds several origins at once. That makes bridging adapters a stocked item rather than an emergency measure, and it makes a written record of what each machine carries worth more than it is anywhere else — because on a mine site the person who knew is on the other rotation.

The corollary is that a shift-change handover should include hydraulic identifications, not just fault descriptions. A photograph of a fitting attached to a work order survives a rotation; a fitter’s memory does not.

/04Distance decides depth.

The Copperbelt sits a long way inland from any port, and that single fact should shape the store more than any preference about brands. Consumables that gate a repair — bonded seals, O-rings, dowty washers, plugs and caps — are the cheapest insurance available and the most common reason a repair stops half-finished. Buy them by the box, on the planned consignment, not against a failure.

Frequently asked questions

Should a mine hold finished assemblies or bulk hose?
Where the site has a crimper and trained people, bulk hose plus ends covers many part numbers with one coil. Where it does not, finished assemblies for the critical circuits, tagged so the right one is findable at night, are the better answer.
Is stainless worth it across a concentrator?
Position by position rather than wholesale. Exposed and washed-down joints earn it; joints inside housings rarely do, and on high-pressure lines the rating has to be checked because stainless is often rated below the carbon-steel equivalent.
How do we stop the same hose failing every few weeks?
Treat it as a routing problem first. Photograph the failed line in place, look for the contact point and the joint count, and change those before changing the grade. If it still fails, the specification is worth revisiting.
