Quarry and crusher fittings: vibration is the whole problem

Crushing plant destroys joints rather than hoses. Which means the fix is joint count, clamping and torque discipline — not a heavier grade of hose.

Written by
Ayush Bhatia, Director
Published
Updated
Reading
3 min · 4 sections
Share
Dust-coated hydraulic hoses and fittings clamped to a jaw crusher frame in a quarry
On crushers, vibration is what loosens fittings and fatigues hose.

Crushing and screening is the most hostile ordinary environment we supply into. It is not extreme in pressure or temperature; it simply never stops shaking, and hydraulics tolerate almost anything better than they tolerate that.

/01What vibration does, in order.

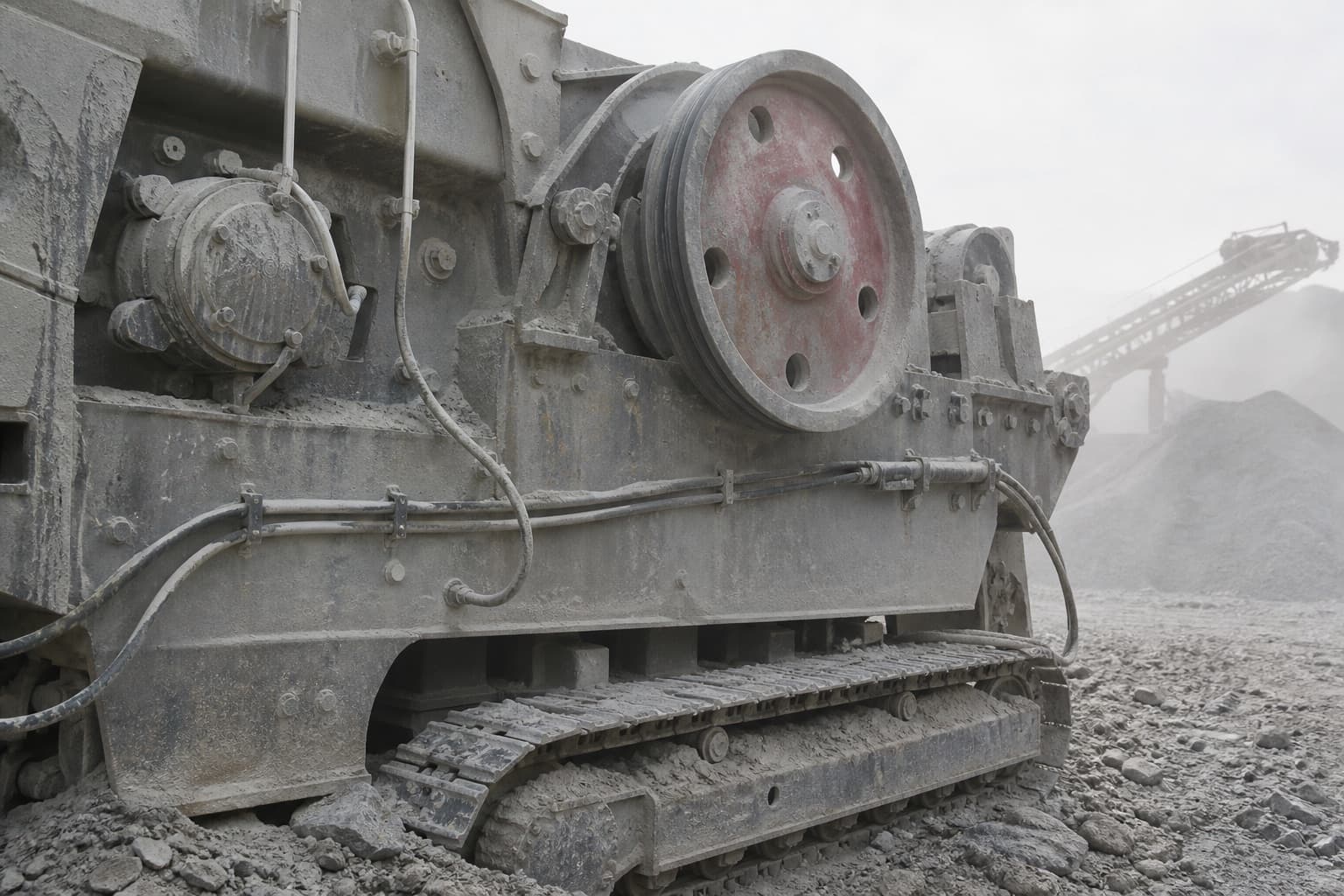

Hydraulic lines clamped along the frame of a tracked jaw crusher, every surface coated in thick grey rock dust, a conveyor and stockpile behind
FIG. 01Crushing plant destroys joints rather than hoses: make-up relaxes, the seat frets, and the port pays for it last.
The sequence, and where to intervene
StageWhat is happeningIntervention
Make-up relaxesThe joint loses preloadCorrect make-up, and re-check after commissioning
Micro-movement at the seatHighlightedFretting begins on the sealing faceClamping, so the hose does not drive the joint
WeepingThe seal is no longer continuousReplace before it is chased with a spanner
Port thread fatigueThe expensive failurePrevented earlier, not fixed here

/02Joint count is the design variable.

Every adapter in a line is another threaded joint exposed to the same shaking, and a stack of two or three is also a lever arm working on the port. On plant that vibrates, rebuilding a line so it has one correct end at each end is worth more than any upgrade in hose specification. It is also cheaper, which makes it an unusually easy argument to win.

Where a bridge between families is genuinely unavoidable, use one correctly rated adapter and clamp the assembly so the mass of the hose is not hanging on the joint.

/03Dust, and the second failure mode.

The other quarry problem is abrasion: airborne dust turns every point where a hose touches a frame into a slow grinding operation, and the cover is gone long before anyone inspects it. Guarding, spiral wrap at contact points and routing that leaves clearance are the answers, in that order. A hose that has been abraded through its cover has already lost the corrosion protection on its reinforcement, so treat cover damage as a replacement trigger rather than a cosmetic issue.

Pits and quarries also pump water continuously; see mine dewatering hose for the hose side.

/04What a quarry store should carry.

Depth in very few lines: the ends used on the crusher and screen circuits, bonded seals by the box, clamps and sleeving as consumables rather than as project items, and enough hose to remake the two or three lines that fail repeatedly. Everything else can wait for a consignment, because on a quarry the failures are predictable and the same ones keep happening. Bulk hose in the construction already fitted — often two-wire 2SN — and the matching hose ends cover those repeat failures.

Frequently asked questions

Should we re-torque fittings on vibrating plant?
Check make-up after commissioning and after any intervention, yes. Routinely tightening joints on a schedule is not the same thing and tends to damage seats — inspect for movement and weeping instead, and act on what you find.
Do stainless fittings help in a quarry?
Rarely. The problem is mechanical, not chemical, and stainless is often rated lower on pressure. Spend the money on clamping, guarding and removing joints.
Why does the same hose keep failing at the same point?
Because something is touching it or something is unclamped. Photograph the line in place before removing it — the wear mark shows you the cause, and it disappears the moment the hose is off the machine.
