Port and terminal fittings: salt air on equipment that never stops

Container handling runs around the clock in the most corrosive air on the continent. That combination decides the material, and it decides when you are allowed to change anything.

Written by
Ayush Bhatia, Director
Published
Updated
Reading
3 min · 3 sections
Share
A reach stacker working a container terminal at dusk, its hydraulic hoses in close focus
Port equipment runs around the clock in salt air, so fittings corrode while working.

Reach stackers, empty handlers, terminal tractors, ship-to-shore and mobile harbour cranes are all ordinary hydraulic machines in an extraordinary atmosphere. Nothing about their circuits is unusual. What is unusual is that a plated fitting exposed on the outside of one of them is being attacked every hour it sits there, working or not.

/01Corrosion is the scheduling problem.

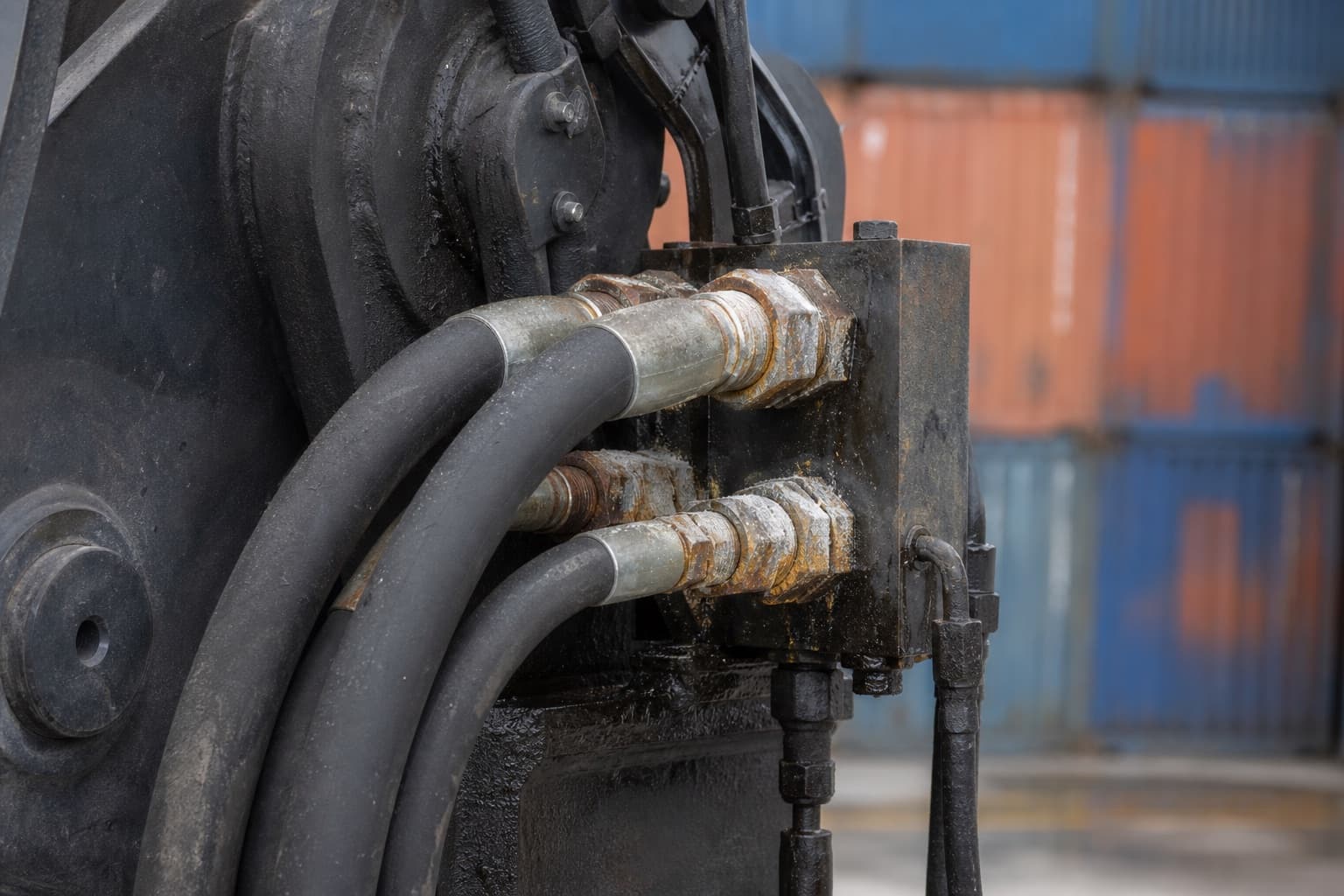

Salt-corroded hydraulic fittings entering a manifold block on the boom of a reach stacker, stacked shipping containers out of focus behind
FIG. 01Salt air works on every exposed joint whether the machine is running or not, and the bill arrives as a longer intervention later.

A corroded joint does not stop a machine. It makes every future intervention on that machine longer — the hex rounds, the thread seizes, and a five-minute hose change becomes a cutting job on a quay where the machine is wanted back. In an operation with no maintenance window to spare, that lengthening is the real cost of the wrong finish, and it arrives quietly. On the exposed joints, 316L stainless JIC and ORFS fittings take the plating out of the equation.

Where to spend on material at a terminal
PositionExposureWhat it argues for
Exposed joints on booms and mastsHighlightedFull salt air, wind-driven sprayBetter plating as standard; stainless where severe
Inside covers and housingsSheltered, still humidStandard plating
Quayside and splash-affected equipmentDirect salt water contactStainless, with the rating checked
Workshop and yard plantOrdinaryStandard

/02Continuous operation changes the maintenance shape.

Where equipment runs three shifts, the practical response is to move work into the changes that are already happening: when a machine comes in for anything, the exposed joints on that circuit get looked at and the ones that are going get changed then, rather than waiting for their own failure. That requires the parts to be on the shelf at the moment the opportunity appears, which is a stocking decision rather than a planning one.

/03Mixed fleets, again — and worse.

Terminals accumulate equipment from many makers across long service lives, so the thread population is wide and the machines that are hardest to source for are usually the oldest and the most needed. The response is the same as everywhere else in this series — record what each machine carries, stock depth in what repeats, keep bridging adapters for the pairs you actually run — but the payoff is larger because the cost of a stopped machine is measured against a vessel’s schedule.

Frequently asked questions

Is stainless justified across a whole terminal fleet?
No — by position. Exposed and splash-affected joints earn it; sheltered ones do not, and on high-pressure lines the rating must be checked because stainless is frequently rated below the carbon-steel equivalent.
How often should exposed joints be inspected in salt air?
More often than inland, and the finding matters more than the interval: what you are looking for is plating loss at thread crests and hex corners, because that is the point at which a future intervention starts getting expensive.
Can you supply to a terminal with no downtime for a survey?
Yes — work from photographs taken during ordinary interventions rather than from a scheduled survey. Send them as they accumulate and we will build the list against them.
