GCC conformity & documentation

Material test certificate: EN 10204 3.1 vs 2.2 on hydraulic fittings

The difference between a 2.2 and a 3.1 is not detail — it is whether the numbers came from your batch. That single distinction is behind most rejected document packs.

Written by
Ayush Bhatia, Director
Published
Updated
Reading
4 min · 3 sections
Share
Forged fitting blanks and bar stock with a heat tag, a mill test certificate clipped beside them
An EN 10204 3.1 certificate ties test results to the heat; a 2.2 does not.

At a glance

Key takeaways

  1. A 2.2 reports the manufacturer’s test results on the product type. A 3.1 reports tests on the actual batch supplied, validated by someone independent of production.
  2. A 3.2 adds validation by a second party — the customer’s inspector or a nominated body.
  3. The certificate is traceable to a heat or batch number, and that number has to appear on or with the goods for the document to mean anything.
  4. A 3.1 cannot be produced after the fact for stock that was never batch-traced. Ask before the order, not on receipt.
  5. Specify the type by its EN 10204 designation. "Mill certificate" and "MTC" mean different things to different suppliers.

A material test certificate is the document most often specified and least often read closely. Material certificates come up on any order where the metallic parts carry pressure or go somewhere regulated, and they are the most misunderstood documents in the pack. The confusion is not about metallurgy. It is that four superficially similar documents have very different evidential weight, and purchase orders routinely ask for one and accept another.

/01The four types, in the order of what they prove.

EN 10204 inspection documents
TypeWhat it reportsWho attests it
2.1A declaration of compliance with the order — no test resultsThe manufacturer
2.2Test results, but from non-specific inspection of the product typeThe manufacturer
3.1HighlightedTest results from the actual batch suppliedThe manufacturer’s inspection representative, independent of production
3.2Test results from the batch supplied, jointly validatedThe manufacturer plus the purchaser’s inspector or a nominated body

The step that matters is between 2.2 and 3.1. Both carry numbers, and to a reader who is checking that a document exists they look equivalent. They are not: a 2.2 says this is what this product normally tests at, and a 3.1 says this is what the material in your box actually tested at. Only the second is traceable to your goods.

/02When a 3.1 is genuinely required.

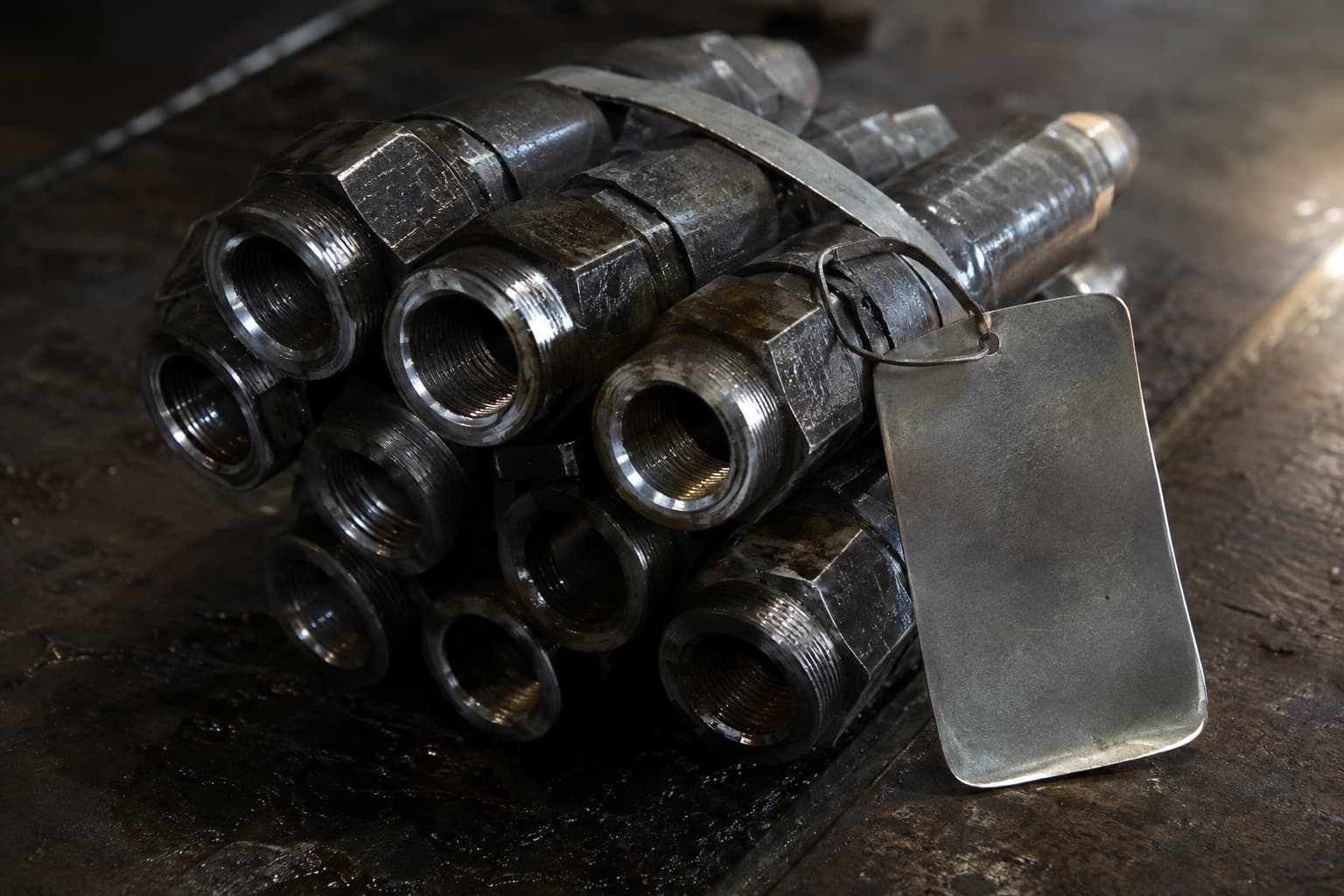

A bundle of steel hydraulic fittings banded together on a bench with a plain unmarked metal tag wired to the bundle
FIG. 01A 3.1 certifies the batch in your hand. Without a heat or batch number visible on the goods, nothing reconciles.

Specifying 3.1 on everything is a common defensive habit and it has a cost: it narrows the supply to traced stock, and it slows an order that did not need slowing. The requirement earns its place where the material itself is a safety variable — pressure-containing parts in an audited plant, sour-service duty, class-approved marine work, or anywhere a regulator or client will later ask to see the chain from the mill.

Which certificate to specify

  1. IfGeneral mobile equipment, workshop and fleet work

    A 2.2 or a declaration of conformity is usually proportionate

    The evidence that matters here is the assembly proof test and the traceability of the hose, not the heat number of the adapter.

  2. IfPressure-containing parts in a plant with an audit regime

    3.1 on the metallic parts

    Specify it at enquiry so availability can be checked against traced stock before anything is promised.

  3. IfSour service, or a client who nominates their own inspector

    3.1 as a minimum, and 3.2 where the inspector is to witness

    A 3.2 has scheduling consequences, because the second party has to be present. It is a project decision, not a stock decision.

/03Writing the clause so it can be met.

Three details turn an unanswerable clause into a quotable one: the designation (say "EN 10204 3.1", not "mill certificate"), the scope (which line items — fittings and ferrules, or everything including clamps), and whether the certificate must be traceable to a marking on the part. That last one is the difference between a document pack and an auditable one.

Frequently asked questions

Is an MTC the same as an EN 10204 3.1?
"MTC" is used loosely for anything from a 2.1 declaration to a full 3.1. Because the term has no fixed meaning across suppliers, specify the EN 10204 type and avoid the abbreviation in the purchase order.
Do hoses have material certificates?
Rubber hose is documented differently — by construction standard, batch and layline rather than by heat number. EN 10204 documents belong to the metallic parts: fittings, adapters, ferrules and flanges.
Can you supply 3.1 certificates for stainless fittings?
Where the stock is traced, yes; where it is not, we will say so rather than send a 2.2 and hope it passes. Ask at enquiry with the line items listed and we will answer per line.
What does a certificate need to be checkable against?
A heat or batch number that appears on the goods, the packing or the tag. A certificate quoting a number that appears nowhere on what arrived cannot be reconciled by a receiving inspector.
