R16 Compact Two-Wire Braid Hose

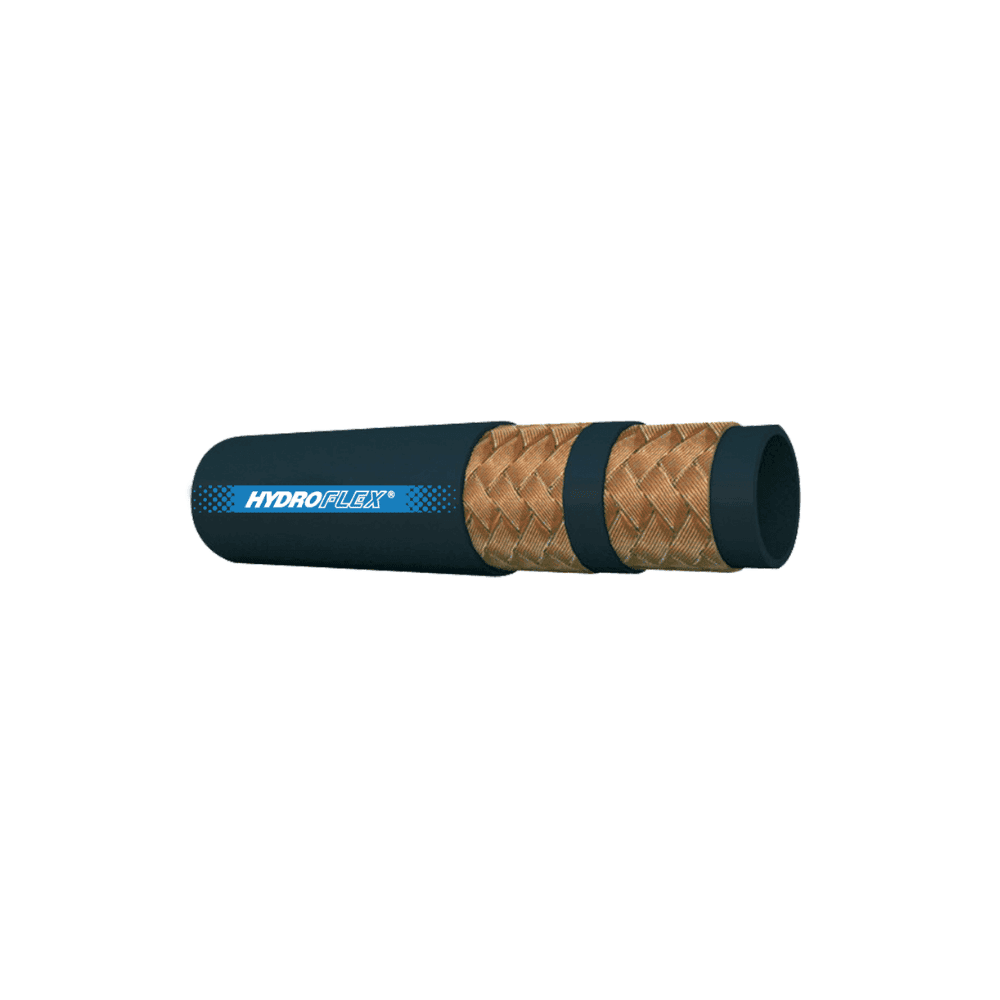

Category image · Hoses & FittingsSAE 100R16 compact two-wire braid hose with a smaller O.D. and tighter bend radius than R2: 400 bar at 1/4" down to 165 bar at 1". Listed in 1/4", 3/8", 5/8", 3/4" and 1".
Key features
- Applicable Standard: SAE 100R16
- Construction Type: 2-wire braid (compact)
- Bore Size Range: 1/4" – 1" (DN6 – DN25)
- Max Working Pressure: 400 bar
- Min Burst Pressure: 1600 bar
- Min Operating Temperature: -40 °C
- Max Operating Temperature: 100 °C
- Reinforcement: Two layers of high-tensile steel wire braid
- Applicable Standard
- SAE 100R16
- Construction Type
- 2-wire braid (compact)
- Bore Size Range
- 1/4" – 1" (DN6 – DN25)
- Max Working Pressure
- 400 bar
- Min Burst Pressure
- 1600 bar
- Min Operating Temperature
- -40 °C
Product description
The R16 Compact Two-Wire Braid Hose delivers SAE 100R2-class performance in a noticeably smaller envelope, ideal where routing space and bend radius matter. Conforms to SAE 100R16.
Construction
- Tube: Synthetic rubber (NBR), oil-resistant
- Reinforcement: Two layers of high-tensile steel wire braid
- Cover: Synthetic rubber, abrasion-resistant, MSHA-accepted, wrapped
Performance
Working pressure, as published by the manufacturer: 400 bar at 1/4", 330 bar at 3/8", 250 bar at 5/8", 215 bar at 3/4" and 165 bar at 1", with minimum burst four times working pressure. Continuous service from -40°C to 100°C (120°C intermittent) — ask for a fluid compatibility chart if running aggressive fluids.
Applications
- Tight-routing hydraulic lines on mobile and industrial equipment
- Compact pump and motor connections
- Direct replacement for R2 where space and bend radius matter
Compliance
- SAE 100R16
- MSHA-accepted cover
Also available in
The same SAE 100R16 grade is stocked in Eaton Winner and Parker Hannifin in addition to the Indus reference shown here. Tell us your brand preference on the RFQ and we will quote accordingly.
Companion grades
For higher-pressure compact 2-wire see R19. For uniform-pressure compact see R17. For standard 2-wire braid see R2 / EN 853 2SN.
Identification
| Parameter | Value |
|---|---|
| Applicable Standard | SAE 100R16 |
| Construction Type | 2-wire braid (compact) |
Dimensions
| Parameter | Value |
|---|---|
| Bore Size Range | 1/4" – 1" (DN6 – DN25) |
| Min Bend Radius | per SAE J517 size table (compact) |
Performance
| Parameter | Value |
|---|---|
| Max Working Pressure | 400 bar |
| Min Burst Pressure | 1600 bar |
| Safety Factor | 4:1 |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 100 °C |
Construction
| Parameter | Value |
|---|---|
| Reinforcement | Two layers of high-tensile steel wire braid |
| Tube (Inner) Material | Synthetic rubber (NBR), oil-resistant |
| Cover Material | Synthetic rubber, abrasion-resistant, MSHA-accepted |
| Cover Finish | wrapped |
Compliance
| Parameter | Value |
|---|---|
| Conductivity | non-conductive |
Commercial
| Parameter | Value |
|---|---|
| Sold By | per-metre |
Hydraulic performance
| Parameter | Value |
|---|---|
| Working Pressure Range | 400 bar at -04 down to 165 bar at -16 |
Shipping & lead time
Sizes & part numbers
10 sizes| Indus part no. | Supply | Hose bore | O.D. (mm) | Working pressure (bar) |
|---|---|---|---|---|
| IH-HS-R16S-04 | 50 ft pre-cut length | -04 · 1/4" | 15 | 400 |
| IH-HS-R16S-04-REEL | 500 ft reel | -04 · 1/4" | 15 | 400 |
| IH-HS-R16S-06 | 50 ft pre-cut length | -06 · 3/8" | 19 | 330 |
| IH-HS-R16S-06-REEL | 450 ft reel | -06 · 3/8" | 19 | 330 |
| IH-HS-R16S-10 | 50 ft pre-cut length | -10 · 5/8" | 25.4 | 250 |
| IH-HS-R16S-10-REEL | 520 ft reel | -10 · 5/8" | 25.4 | 250 |
| IH-HS-R16S-12 | 50 ft pre-cut length | -12 · 3/4" | 29.2 | 215 |
| IH-HS-R16S-12-REEL | 400 ft reel | -12 · 3/4" | 29.2 | 215 |
| IH-HS-R16S-16 | 50 ft pre-cut length | -16 · 1" | 38.1 | 165 |
| IH-HS-R16S-16-REEL | 200 ft reel | -16 · 1" | 38.1 | 165 |
Supply — Length and packaging the part number is supplied in, as published. O.D. — Outside diameter of the hose, which is what a clamp or a ferrule has to close on.
Working pressure is the published rating for the hose itself. A made-up assembly is limited by its lowest-rated part, so check it against the coupling, the clamp or ferrule, and the temperature you are running at.
Cut lengths and made-up assemblies are prepared in Dubai. Tell us the bore, the length and the ends you need.
What is the working pressure?▾
What temperature range does it take?▾
How is it sold?▾
Shipped worldwide from our Dubai warehouse. Transit, routes and documentation for 126 destinations
