Ask a rigger for “a 3/4 two-oh-nine” and you will get a screw-pin anchor shackle of that size from almost anyone. The Crosby Group’s catalogue numbers have become the common language for rigging hardware, including for parts Crosby did not make. Reading them properly tells you the shape, the finish and the material — and knowing where they stop tells you what a pattern part does and does not promise.
The letter: finish or material.
| Prefix | Means |
|---|---|
| G | Coated for corrosion protection — may be hot-dip galvanized, electro-deposited or another coating |
| S or SC | Self-coloured, painted or oiled |
| A | Alloy steel |
| C | Carbon steel |
| SS | Stainless steel |
| B | Bronze |
| L | Hook supplied with a latch kit |
So G-209 and S-209 are one product in two finishes, with one rating table. G-2130 and S-2130 are the bolt-type anchor shackle, galvanized or self-coloured. A-342 is an alloy master link. Prefixes such as H, HG and M also appear in catalogues and on the market, but they are not in Crosby’s published key.
The number: the shape.
| Number | What it is | Our guide |
|---|---|---|
| G-209 / S-209 | Screw-pin anchor (bow) shackle | Shackle types |
| G-210 | Screw-pin chain (dee) shackle | Shackle types |
| G-213 / G-215 | Round-pin anchor / chain shackle | Shackle types |
| G-2130 / G-2150 | Bolt-type anchor / chain shackle | Shackle types |
| G-2140 | Alloy bolt-type anchor shackle | Shackle types |
| G-2160 | Wide-body shackle | Shackle types |
| A-342 | Alloy master link | Master links |
| S-319 | Shank hook | Lifting hook types |
| L-320 / L-322 | Eye hook / swivel hook with latch (also seen as S-320 / S-322) | Lifting hook types |
| A-330 / A-331 | Alloy clevis grab hook / clevis slip hook | Lifting hook types |
| G-402 / G-403 | Regular swivel / jaw end swivel | — |
| G-411 / G-414 | Standard / extra-heavy wire rope thimble | Thimble types |
| G-416 / G-417 | Open / closed spelter socket | Spelter sockets |
| S-421T | Wedge socket | Spelter sockets |
| G-450 / G-429 | Wire rope clip / fist grip | Wire rope clips |
| S-505 / S-506 | Flemish eye sleeve / duplex sleeve | Eye terminations |
| G-277 / G-291 | Shoulder nut eye bolt / regular nut eye bolt | Eye bolts |
| S-279 / M-279 | Machinery eye bolt, UNC / metric thread | Eye bolts |
| G-335 | Split connecting link | — |
| HG-223, HG-226, HG-227, HG-228 | Turnbuckles: hook & hook, eye & eye, jaw & eye, jaw & jaw | Turnbuckle types |
| 404 / 418 / 419 | McKissick snatch blocks: tail board / hook / shackle | Snatch blocks |
Older numbers. Some numbers still in everyday use — H-323 and H-324 eye hooks, H-330 and H-331 clevis hooks, G-401 chain swivels, G-275 screw eyes — no longer appear in Crosby’s current catalogue, and several of our own pattern pages carry them. We use them the way the trade does: as a name for a shape. Hook and swivel numbering has also changed, with the latched eye and swivel hooks now sold as L-320 and L-322.
What does the G in G-209 mean?
In Crosby’s numbering, G means the part is coated for corrosion protection — usually hot-dip galvanized, though Crosby’s key also allows other coatings. S means self-coloured, painted or oiled. G-209 and S-209 are the same screw-pin anchor shackle in two finishes, with the same ratings.
Pattern part or Crosby part.
Crosby marks its own products: each carries a forged product identification code, its size or working load limit and Crosby’s name or logo. Crosby shackles have its Red Pin, and Crosby wire rope clips its Red U-Bolt. Crosby’s warnings and application information state that they apply to Crosby products only.
A part sold “to the G-209 pattern” — like ours — is made to the shape and dimensions that number describes, so it interchanges in a rigging plan. It is not a Crosby product and does not carry Crosby’s marks. Its rating, its material and its test record come from its own manufacturer and that maker’s certificate.
Some of our pattern ranges

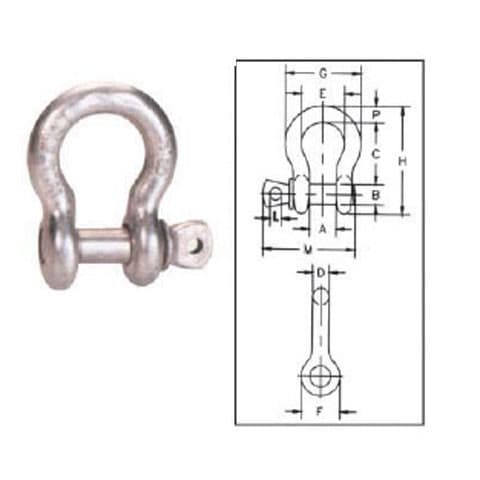

IH-LR-SH-G209
Screw Pin Anchor Shackle — G-209 Pattern

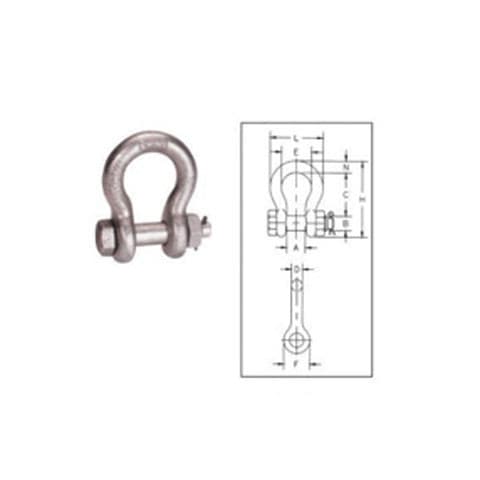

IH-LR-SH-G2130
Bolt-Type Anchor Shackle — G-2130 Pattern

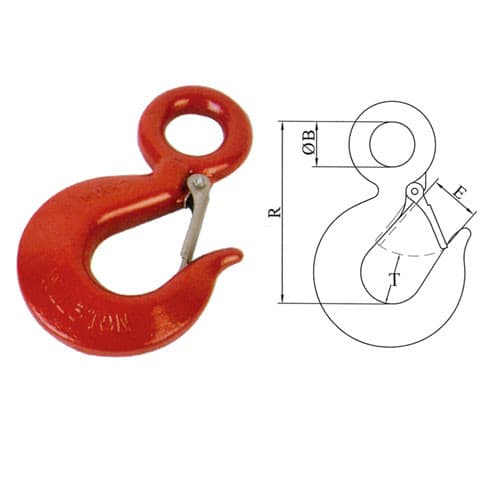

IH-LR-HK-320L
Eye Hoist Hook with Latch — 320 Pattern

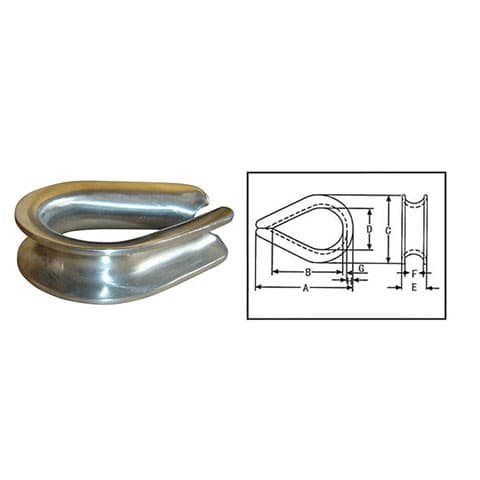

IH-LR-TH-EH
Extra Heavy Wire Rope Thimble — G-414 Pattern, Hot-Dip Galvanized

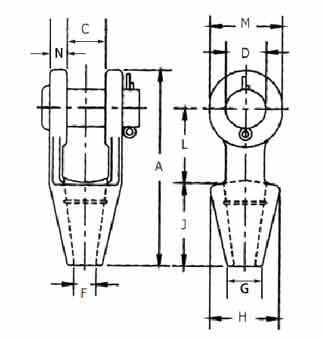

IH-LR-ST-OSSG416
Open Spelter Socket — G-416 Pattern

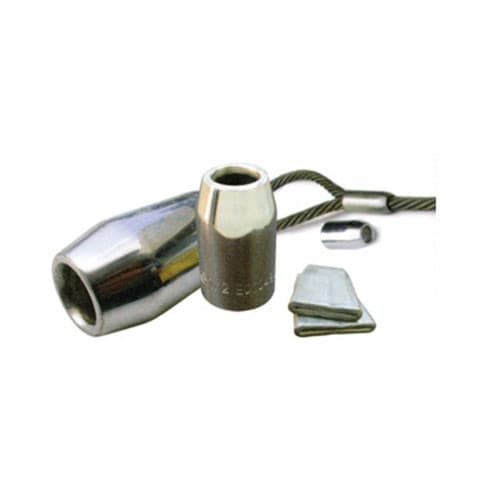

IH-LR-FS-S505
Flemish Eye Steel Swaging Sleeve, S-505 Pattern

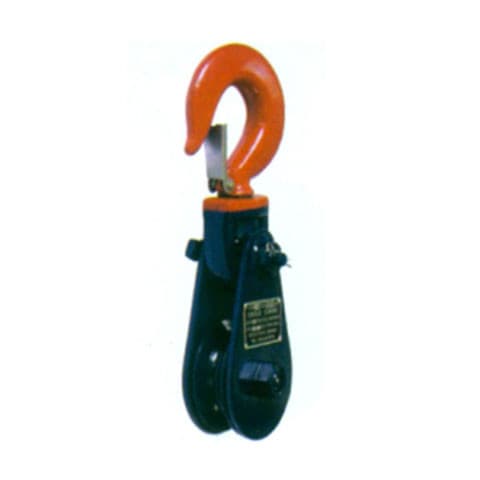

IH-LR-BP-418
Light Snatch Block with Hook — 418 Pattern
Common questions
What is the difference between G-209 and S-209?
Only the finish. G-209 is coated for corrosion protection, usually hot-dip galvanized; S-209 is self-coloured. They are the same screw-pin anchor shackle with the same ratings.
Is a G-209 pattern shackle the same as a Crosby G-209?
It is made to the same shape and dimensions, so it interchanges, but it is not a Crosby product. Its rating comes from its own manufacturer’s marking and certificate.
What does the A prefix mean on Crosby parts?
Alloy steel — for example A-342 alloy master links and A-330 alloy clevis grab hooks.
Why can’t I find H-330 in the Crosby catalogue?
Some numbers still used in the trade, including H-330 and H-331 clevis hooks and H-323 and H-324 eye hooks, are no longer in Crosby’s current catalogue. They remain in use as names for those hook shapes.
Rigging hardware
Shackles, hooks, links and eye bolts, cross-referenced to the common pattern numbers.
Figures verified · Prefix key and product numbers from the Crosby & Gunnebo Industries catalogue (Imperial, 2025-2026). Crosby, Red Pin and Red U-Bolt are Crosby’s marks; our pattern parts are not Crosby products.
