Open Spelter Socket — G-416 Pattern
Open Spelter Socket (G-416), in 20 sizes. Not for overhead lifting. Indus part numbers.
Key features
- Product type: Open Spelter Socket
- Pattern / standard: G-416
- Material
- Forged steel/alloy steel
- Finish
- Zinc plated / hot-dip galvanized
Product description
Open Spelter Socket for tension, lashing and fixing duty. This range follows the G-416 pattern, sized to interchange in an existing rigging plan. Forged steel/alloy steel, zinc plated / hot-dip galvanized.
Not for overhead lifting. The manufacturer rates this range for tension, lashing or fixing, not for lifting. For a lift, use a rated lifting component — ask us which.
Sizes
20 sizes. Every size has its own Indus part number in the table below.
The lettered dimensions in the table refer to the dimension drawing shown with this product.
Choosing a size
Match the terminal to the rope diameter and construction, and fit it with the method it is made for — poured, pressed or hand-assembled.
Ordering
Quote the Indus part number from the size table, or send the size and rating you need.
Identification
| Parameter | Value |
|---|---|
| Product type | Open Spelter Socket |
| Pattern / standard | G-416 |
| Sizes | 20 |
Construction
| Parameter | Value |
|---|---|
| Material | Forged steel/alloy steel |
| Finish | Zinc plated / hot-dip galvanized |
Shipping & lead time
Sizes & part numbers
20 sizesReplaces the Crosby G-416 series. Quote the Indus part number, or send us the Crosby number and we will cross it.
| Indus part no. | Size | Rope size | A (mm) | C (mm) | D (mm) | F (mm) | G (mm) | H (mm) | J (mm) | L (mm) | M (mm) | N (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IH-LR-ST-OSSG416-146MM | 1/4″ / 6 mm | 1/4″ / 6 mm | 115.8 | 23.11 | 17.53 | 9.65 | 11.53 | 39.62 | 57.15 | 39.62 | 33.27 | 9.14 | 0.5 |
| IH-LR-ST-OSSG416-5163889MM | 5/16~3/8″ / 8~9 mm | 5/16~3/8″ / 8~9 mm | 122.9 | 20.57 | 50.57 | 12.7 | 20.57 | 42.93 | 57.15 | 44.45 | 38.1 | 11.19 | 0.59 |
| IH-LR-ST-OSSG416-716121112MM | 7/16~1/2″ / 11~12 mm | 7/16~1/2″ / 11~12 mm | 141.2 | 25.4 | 25.4 | 14.22 | 23.88 | 47.75 | 63.5 | 50.8 | 47.75 | 12.7 | 1.02 |
| IH-LR-ST-OSSG416-916581416MM | 9/16~5/8″ / 14~16 mm | 9/16~5/8″ / 14~16 mm | 171.5 | 21.75 | 30.23 | 17.53 | 28.7 | 57.15 | 76.2 | 63.5 | 57.15 | 14.22 | 1.8 |
| IH-LR-ST-OSSG416-3419MM | 3/4″ / 19 mm | 3/4″ / 19 mm | 201.7 | 38.1 | 35.05 | 20.57 | 31.75 | 66.53 | 88.9 | 76.2 | 66.55 | 15.75 | 2.64 |
| IH-LR-ST-OSSG416-7822MM | 7/8″ / 22 mm | 7/8″ / 22 mm | 234.9 | 44.45 | 41.4 | 23.88 | 38.1 | 82.55 | 101.6 | 88.8 | 79.5 | 20.32 | 4.47 |
| IH-LR-ST-OSSG416-125MM | 1″ / 25 mm | 1″ / 25 mm | 268.2 | 50.8 | 50.8 | 28.7 | 44.46 | 95.25 | 114.3 | 101.6 | 95.25 | 22.35 | 7.03 |
| IH-LR-ST-OSSG416-1-1828MM | 1-1/8″ / 28 mm | 1-1/8″ / 28 mm | 300 | 57.15 | 57.15 | 31.75 | 50.8 | 104.7 | 127 | 117.3 | 104.7 | 25.4 | 9.75 |
| IH-LR-ST-OSSG416-1-141-3831P535MM | 1-1/4~1-3/8″ / 31.5~35 mm | 1-1/4~1-3/8″ / 31.5~35 mm | 335 | 63.5 | 63.5 | 38.1 | 57.15 | 120.7 | 139.7 | 127 | 120.7 | 28.7 | 14.06 |
| IH-LR-ST-OSSG416-1-1238MM | 1-1/2″ / 38 mm | 1-1/2″ / 38 mm | 384.1 | 76.2 | 69.85 | 41.4 | 69.85 | 133.3 | 152.4 | 152.4 | 136.7 | 30.23 | 21.43 |
| IH-LR-ST-OSSG416-1-5842MM | 1-5/8″ / 42 mm | 1-5/8″ / 42 mm | 412.8 | 76.2 | 76.2 | 44.45 | 76.2 | 139.7 | 165.1 | 165.1 | 146.1 | 33.27 | 24.44 |
| IH-LR-ST-OSSG416-1-341-784547P5MM | 1-3/4~1-7/8″ / 45~47.5 mm | 1-3/4~1-7/8″ / 45~47.5 mm | 463.6 | 88.9 | 88.9 | 50.8 | 79.5 | 162.1 | 190.5 | 177.8 | 165.1 | 39.62 | 37.2 |
| IH-LR-ST-OSSG416-22-1850-53MM | 2~2-1/8″ / 50-53 mm | 2~2-1/8″ / 50-53 mm | 546.1 | 101.6 | 95.25 | 57.15 | 95.25 | 187.4 | 215.9 | 288.6 | 177.8 | 45.97 | 56.7 |
| IH-LR-ST-OSSG416-2-142-3857-60MM | 2-1/4~2-3/8″ / 57-60 mm | 2-1/4~2-3/8″ / 57-60 mm | 596.9 | 114.3 | 108 | 63.5 | 101.6 | 209.6 | 228.6 | 254 | 196.8 | 54.1 | 75.75 |
| IH-LR-ST-OSSG416-2-122-586366MM | 2-1/2~2-5/8″ / 63~66 mm | 2-1/2~2-5/8″ / 63~66 mm | 647.7 | 127 | 120.7 | 73.15 | 114.3 | 234.9 | 247.7 | 273.1 | 215.9 | 60.45 | 114.3 |
| IH-LR-ST-OSSG416-2-342-7870-73MM | 2-3/4~2-7/8″ / 70-73 mm | 2-3/4~2-7/8″ / 70-73 mm | 692.1 | 133.3 | 127 | 79.25 | 124 | 266.7 | 279.4 | 279.4 | 228.6 | 73.15 | 142.9 |
| IH-LR-ST-OSSG416-33-187680MM | 3~3-1/8″ / 76~80 mm | 3~3-1/8″ / 76~80 mm | 736.6 | 146.1 | 133.3 | 85.85 | 133.2 | 282.4 | 304.8 | 285.8 | 241.3 | 76.2 | 172.4 |
| IH-LR-ST-OSSG416-3-143-388285MM | 3-1/4~3-3/8″ / 82~85 mm | 3-1/4~3-3/8″ / 82~85 mm | 784.4 | 158.8 | 139.7 | 91.95 | 146.1 | 301.8 | 330.4 | 295.4 | 254 | 79.25 | 196.9 |
| IH-LR-ST-OSSG416-3-123-588992MM | 3-1/2~3-5/8″ / 89~92 mm | 3-1/2~3-5/8″ / 89~92 mm | 844.5 | 171.4 | 152.4 | 98.55 | 165.1 | 314.4 | 355.6 | 317.5 | 273.1 | 82.55 | 255.4 |
| IH-LR-ST-OSSG416-3-34495-100MM | 3-3/4~4″ / 95-100 mm | 3-3/4~4″ / 95-100 mm | 920.5 | 190.5 | 177.8 | 108 | 184.2 | 345.9 | 381 | 342.9 | 317.5 | 88.9 | 355.2 |
Size — Nominal size as the manufacturer states it. Rope size — Rope diameter the sheave is made for. A — Dimension A on the manufacturer dimension drawing. C — Dimension C on the manufacturer dimension drawing. D — Dimension D on the manufacturer dimension drawing. F — Dimension F on the manufacturer dimension drawing. G — Dimension G on the manufacturer dimension drawing. H — Dimension H on the manufacturer dimension drawing. J — Dimension J on the manufacturer dimension drawing. L — Dimension L on the manufacturer dimension drawing. M — Dimension M on the manufacturer dimension drawing. N — Dimension N on the manufacturer dimension drawing. Weight — Weight as the manufacturer publishes it. Ask us for the dimension drawing if you need it stamped.
WLL is the most the part may carry in service. Proof and breaking loads are test figures — never lift to them. Each load is shown in the unit the manufacturer rates the part in, and a size ships with the manufacturer’s test certificate.
Indus Hydraulics is not affiliated with Crosby. Crosby part numbers are shown for cross-reference only, so you can order from an existing bill of materials.
The following competitor part numbers are compatible with or superseded by this SKU. Click through to the dedicated replacement page for each.
What sizes does the open spelter socket come in?▾
Can it be used for lifting?▾
What is the difference between an open and a closed spelter socket?▾
Shipped worldwide from our Dubai warehouse. Transit, routes and documentation for 126 destinations
From the blog
Written about this part
Lifting & rigging
Spelter sockets: open vs closed, zinc vs resin, and when a wedge socket will do
A properly poured spelter socket keeps 100% of the wire rope’s breaking load — the only end fitting besides a swaged socket that does. Open sockets connect with a pin through their jaws; closed sockets take a pin or shackle through a solid eye. A wedge socket is quicker to fit but keeps 80%. Here is how to choose and what a good socket needs.
4 min read
Lifting & rigging
Crosby pattern numbers decoded: G-209, G-2130, S-320 and what the letters mean
G-209, S-209, G-2130, A-342 — Crosby’s catalogue numbers have become the trade’s shorthand for rigging shapes. The letter tells you the finish or material; the number tells you the shape. Here is the key, a table of the common numbers, and why a part made to a Crosby pattern is not a Crosby part.
4 min read
Engineers viewing this also looked at

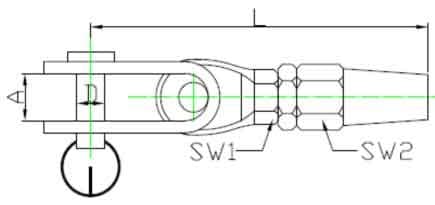

Stainless Steel Swageless Cone Toggle Terminal

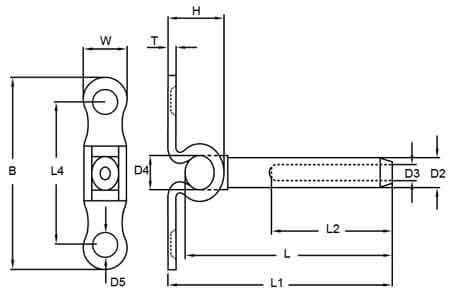

Stainless Steel Swageless Deck Toggle

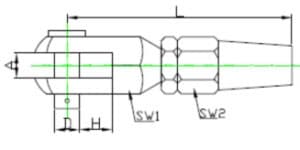

Stainless Steel Swageless Fork Terminal

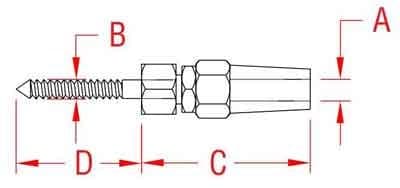

Stainless Steel Swageless Lag Screw Terminal

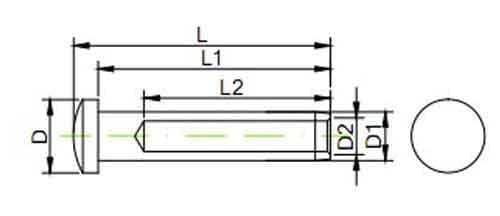

Stainless Steel Dome Head Terminal

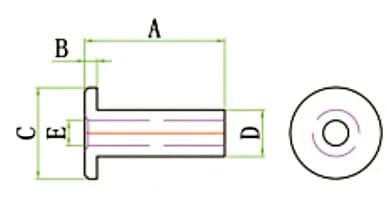

Stainless Steel Protector Sleeve

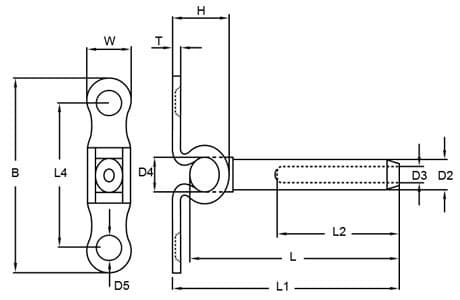

Stainless Steel Swage Deck Toggle Terminal for Cable Railing
