Bolt-Type Anchor Shackle — G-2130 Pattern
Bolt-Type Anchor Shackle, G-2130 pattern, in 20 sizes, 3/16″ to 4″, WLL 0.333 to 150 t. Indus part numbers, manufacturer's test certificate.
Key features
- Product type: Bolt-Type Anchor Shackle
- Pattern / standard: G-2130
- Size range: 3/16″ to 4″
- Working load limit: 0.333 to 150 t
- Size range
- 3/16″ to 4″
- Working load limit
- 0.333 to 150 t
Product description
A shackle joins a sling, hook or chain to a lifting point and opens with a removable pin. This range follows the G-2130 pattern, sized to interchange in an existing rigging plan.
Sizes and ratings
20 sizes, 3/16″ to 4″. Working load limit 0.333 to 150 t. Every size has its own Indus part number in the table below, with the loads in the unit the manufacturer rates them in.
Manufacturer's data
- Meets the performance requirements of US Federal Specification RR-C-271D, Type IVA, Grade A, Class 3.
Choosing a size
Choose on working load limit for the pull you will actually apply. A chain (dee) shackle takes an in-line pull; an anchor (bow) shackle accepts several slings or an angled pull. Side-loading reduces the rating, and a screw pin must be fully seated before loading.
Ordering
Quote the Indus part number from the size table, or send the size and working load you need. Each consignment ships with the manufacturer's test certificate; say on the RFQ if your site needs anything more.
Identification
| Parameter | Value |
|---|---|
| Product type | Bolt-Type Anchor Shackle |
| Pattern / standard | G-2130 |
| Sizes | 20 |
Dimensions
| Parameter | Value |
|---|---|
| Size range | 3/16″ to 4″ |
Performance
| Parameter | Value |
|---|---|
| Working load limit | 0.333 to 150 t |
Compliance
| Parameter | Value |
|---|---|
| Certification | Manufacturer's test certificate |
Shipping & lead time
Sizes & part numbers
20 sizesReplaces the Crosby G-2130 series. Quote the Indus part number, or send us the Crosby number and we will cross it.
| Indus part no. | Size | WLL (t) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | H (mm) | L (mm) | N (mm) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IH-LR-SH-G2130-019 | 3/16″ | 0.333 | 9.7 | 6.3 | 22.4 | 4.8 | 15.2 | 14.2 | 37.3 | 24.9 | 4.8 | 0.06 |
| IH-LR-SH-G2130-025 | 1/4″ | 0.5 | 11.9 | 7.9 | 28.7 | 6.3 | 19.8 | 15.5 | 46.7 | 32.5 | 6.3 | 0.11 |
| IH-LR-SH-G2130-031 | 5/16″ | 0.75 | 13.5 | 9.7 | 31 | 7.9 | 21.3 | 19 | 53.1 | 37.3 | 7.9 | 0.22 |
| IH-LR-SH-G2130-038 | 3/8″ | 1 | 16.8 | 11.2 | 36.6 | 9.7 | 26.2 | 23.1 | 63.2 | 45.2 | 9.7 | 0.33 |
| IH-LR-SH-G2130-044 | 7/16″ | 1.5 | 19 | 12.7 | 42.9 | 11.2 | 29.5 | 26.9 | 73.9 | 51.6 | 11.2 | 0.49 |
| IH-LR-SH-G2130-050 | 1/2″ | 2 | 20.6 | 16.3 | 47.8 | 12.7 | 33.3 | 30.2 | 83.3 | 58.7 | 12.7 | 0.79 |
| IH-LR-SH-G2130-062 | 5/8″ | 3.25 | 26.9 | 19.6 | 60.5 | 16 | 42.9 | 38.1 | 106.4 | 74.7 | 17.5 | 1.68 |
| IH-LR-SH-G2130-075 | 3/4″ | 4.75 | 31.8 | 22.6 | 71.4 | 19 | 50.8 | 46 | 126.2 | 88.9 | 20.6 | 2.72 |
| IH-LR-SH-G2130-088 | 7/8″ | 6.5 | 36.6 | 25.9 | 84.1 | 22.4 | 57.9 | 53.1 | 148.1 | 102.4 | 24.6 | 3.95 |
| IH-LR-SH-G2130-100 | 1″ | 8.5 | 42.9 | 29.2 | 95.2 | 25.4 | 68.3 | 60.5 | 166.6 | 119.1 | 26.9 | 5.66 |
| IH-LR-SH-G2130-112 | 1-1/8″ | 9.5 | 46 | 31.8 | 107.9 | 28.7 | 73.9 | 68.3 | 189.7 | 131.1 | 31.8 | 8.27 |
| IH-LR-SH-G2130-114 | 1-1/4″ | 12 | 51.6 | 35.6 | 119.1 | 32.8 | 82.5 | 76.2 | 209.5 | 146 | 35.1 | 11.71 |
| IH-LR-SH-G2130-138 | 1-3/8″ | 13.5 | 57.1 | 38.9 | 133.3 | 36.1 | 92.2 | 84.1 | 232.7 | 162.1 | 38.1 | 15.83 |
| IH-LR-SH-G2130-150 | 1-1/2″ | 17 | 60.5 | 42.2 | 146 | 38.9 | 98.6 | 92.2 | 254 | 174.8 | 41.1 | 19 |
| IH-LR-SH-G2130-175 | 1-3/4″ | 25 | 73.2 | 51.8 | 177.8 | 46.7 | 127 | 106.4 | 313.4 | 223.5 | 57.1 | 33.91 |
| IH-LR-SH-G2130-200 | 2″ | 35 | 82.5 | 58.4 | 196.8 | 52.8 | 146 | 122.2 | 347.5 | 257.8 | 61 | 52.25 |
| IH-LR-SH-G2130-250 | 2-1/2″ | 55 | 104.9 | 71.1 | 266.7 | 68.8 | 184.1 | 144.5 | 454.7 | 323.8 | 79.5 | 98.25 |
| IH-LR-SH-G2130-300 | 3″ | 85 | 127 | 83.8 | 330.2 | 79.2 | 200.2 | 165.1 | 546.1 | 371.3 | 91.9 | 154 |
| IH-LR-SH-G2130-350 | 3-1/2″ | 120 | 133.3 | 95.5 | 371.6 | 91.9 | 228.6 | 203.2 | 632 | 432.3 | 111.3 | 265 |
| IH-LR-SH-G2130-400 | 4″ | 150 | 139.7 | 108.2 | 368.3 | 101.6 | 254 | 228.6 | 652.3 | 457.2 | 115.8 | 338 |
Size — Nominal size as the manufacturer states it. WLL — Working load limit — the most the part may carry in service, as the manufacturer rates it. A — Dimension A on the manufacturer dimension drawing. B — Dimension B on the manufacturer dimension drawing. C — Dimension C on the manufacturer dimension drawing. D — Dimension D on the manufacturer dimension drawing. E — Dimension E on the manufacturer dimension drawing. F — Dimension F on the manufacturer dimension drawing. H — Dimension H on the manufacturer dimension drawing. L — Dimension L on the manufacturer dimension drawing. N — Dimension N on the manufacturer dimension drawing. Weight — Weight as the manufacturer publishes it. Ask us for the dimension drawing if you need it stamped.
WLL is the most the part may carry in service. Proof and breaking loads are test figures — never lift to them. Each load is shown in the unit the manufacturer rates the part in, and a size ships with the manufacturer’s test certificate.
Indus Hydraulics is not affiliated with Crosby. Crosby part numbers are shown for cross-reference only, so you can order from an existing bill of materials.
The following competitor part numbers are compatible with or superseded by this SKU. Click through to the dedicated replacement page for each.
What sizes does the bolt-type anchor shackle come in?▾
What is the working load limit?▾
What do G-209, G-2130 and G-213 mean?▾
What is the difference between WLL, SWL and breaking load?▾
Do the parts come with a test certificate?▾
Shipped worldwide from our Dubai warehouse. Transit, routes and documentation for 126 destinations
From the blog
Written about this part
Engineers viewing this also looked at
Round Pin Chain Shackle — G-215 Pattern
Bolt-Type Chain Shackle — G-2150 Pattern
Galvanized Shackle — Italian Type
JIS Screw Pin Chain Shackle — With or Without Collar

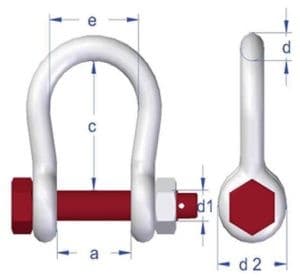

Mooring Shackle No. 852, Bolt Type
