Hardware stores and industrial stores sell many of the same shapes. A shackle, a turnbuckle, a quick link: each comes in versions made for fencing, boats, gates and signs, and versions made, rated and certified for lifting. The commercial versions are not bad products — they are made for a different job. The danger is when one crosses over, unmarked, into a rigging loft. This article explains the difference and how to keep them apart.
/01The same size, different ratings.
| Size | Commercial grade | G-209 pattern | Grade 8 alloy |
|---|---|---|---|
| 3/8" | 0.75 t | 1 t | 1.6 t |
| 1/2" | 1.5 t | 2 t | 3.3 t |
| 5/8" | 2.25 t | 3.25 t | 5 t |
| 3/4" | 3.25 t | 4.75 t | 7 t |
| 1"Highlighted | 5.5 t | 8.5 t | 12.5 t |
Our commercial-grade screw-pin anchor shackle is rated and marked, and suits light-duty and general rigging where its rating is enough. But order “a 1-inch shackle” without a pattern and you may get a 5.5 t part where your plan assumed 8.5 t. That is why a shackle order should name the pattern or grade, not just the size — see the shackle buying guide.
/02Turnbuckles: from rated to not rated.
Turnbuckles span an even wider range. Forged, drop-forged turnbuckles are rated by size and end fitting; light commercial hook-and-eye turnbuckles carry low ratings; and die-cast zinc turnbuckles, sold for fences, gates, signs and light tensioning, are listed by many sellers as not for lifting or not rated. End fittings matter too: in our DIN 1478 range, an M20 hook-and-eye turnbuckle is rated 730 kg against 2,700 kg for eye-and-eye. Our die-cast zinc turnbuckles are for light-duty fixing, not lifting. See how to choose and tension a turnbuckle.
/03How to tell them apart.
| Check | Lifting grade | Commercial / light duty |
|---|---|---|

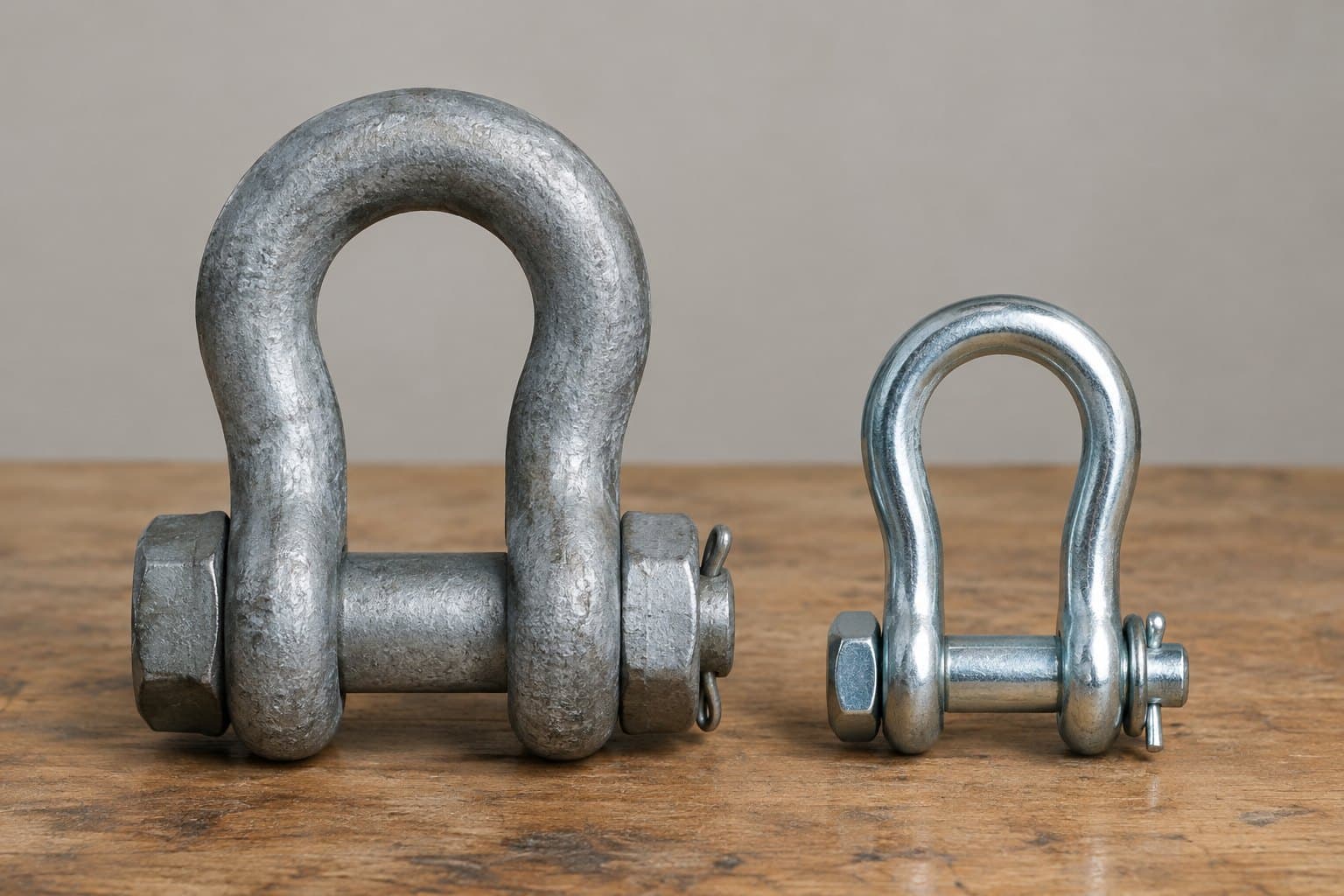

| Manufacture | Forged (shackles, most turnbuckles), heat-treated | Cast, die-cast or bent bar |
| Marking | Maker, WLL and size forged or stamped | Often none, or size only |
| Paperwork | Manufacturer’s test certificate | Usually none |
| Weight and finish | Heavy for its size; hot-dip galvanised or painted | Light; thin bright zinc plating |
| Price | Higher | Often much lower |
/04What the rules say.
In the US, OSHA’s construction rules require rigging equipment to carry the maker’s permanent marking of safe working load, and shackles must not be loaded beyond the WLL in those markings; both the construction and general-industry rules prohibit makeshift links or fasteners formed from bolts or rods. In the UAE, Abu Dhabi’s lifting code of practice requires every lifting accessory to show its safe working load, and Dubai’s requires periodic certification by an accredited third party — neither leaves room for unmarked hardware. Note also that a “Fed Spec” label is not the same as a lifting rating: US Federal Specification RR-C-271 describes itself as covering chain of commercial quality and its attachments.
Common questions
- What is a commercial grade shackle?
- A shackle made for general or light-duty use, typically with lower ratings than a lifting-grade pattern shackle of the same size. Ours is rated and marked; many hardware-store shackles are not.
- Can die-cast zinc turnbuckles be used for lifting?
- No. They are for fences, gates, signs and light tensioning.
- How can I tell a lifting shackle from a hardware shackle?
- A lifting shackle is forged and marked with the maker, WLL and size, and comes with a test certificate. Unmarked, light, cast or bright-plated shackles should be kept out of lifting.
- Are hook-end turnbuckles rated lower?
- Yes. Hook ends carry less than eye or jaw ends of the same size — in our DIN 1478 range, M20 hook-and-eye is rated 730 kg against 2,700 kg for eye-and-eye.
- Is a quick link a lifting component?
- Only if it is rated and marked for lifting by its maker. Many quick links are for light connections only; see snap hooks and quick links.
