Skive Crimp Ferrule for R12 Hose, DN32–DN51
Skive Crimp Ferrule for R12 Hose, DN32–DN51 — 3 sizes, -20 to -32.
Key features
- Fitting Configuration: straight
- Nominal Size Range: -20 to -32
- Fitting Configuration
- straight
- Nominal Size Range
- -20 to -32
Product description
The Skive Crimp Ferrule for R12 Hose, DN32–DN51 is part of the Indus hydraulic connection range.
The large end of the R12 range. Our existing R12 ferrule stops at DN16; these three sizes carry it to DN51.
Construction
- Configuration: straight
- Material: carbon steel, zinc-plated and Cr3+ passivated (316 stainless on request)
Sizes
3 sizes, -20 to -32. The full size and dimension table is on this page.
How to order
Quote the Indus part number for the size you need. Tell us the hose grade and bore and we will include the matching crimp ferrule — the ferrule follows the hose, not the fitting. Indus crimps and pressure-tests assemblies before dispatch.
Identification
| Parameter | Value |
|---|---|
| Fitting Configuration | straight |
Dimensions
| Parameter | Value |
|---|---|
| Nominal Size Range | -20 to -32 |
Construction
| Parameter | Value |
|---|---|
| Material | Carbon steel (316 stainless on request) |
| Surface Treatment | Zinc-plated, Cr3+ passivated, RoHS-compliant |
Compliance
| Parameter | Value |
|---|---|
| Applicable Standards | SAE 100R12 |
Shipping & lead time
Sizes & part numbers
3 sizes| Indus part no. | Hose bore | D (mm) | L (mm) |
|---|---|---|---|
| IH-CF-SK-R12-2032-20 | -20 · 1.1/4" · DN32 | 53 | 67.5 |
| IH-CF-SK-R12-2032-24 | -24 · 1.1/2" · DN38 | 61 | 75 |
| IH-CF-SK-R12-2032-32 | -32 · 2" · DN51 | 77 | 79 |
D — Dimension D on the manufacturer dimension drawing. L — Dimension L on the manufacturer dimension drawing. Ask us for the dimension drawing if you need it stamped.
Every size is available in 316 stainless steel on request — add “-SS” to the part number when you enquire.
What sizes are available?▾
What is the maximum working pressure?▾
Which ferrule pairs with this fitting?▾
Is stainless steel available?▾
Can Indus crimp the assembly?▾
Shipped worldwide from our Dubai warehouse. Transit, routes and documentation for 126 destinations
The same part, in the designations used across European and Gulf trade catalogues.
- de
- Presshülse
- fr
- jupe de sertissage
- es
- casquillo de prensado
- it
- boccola di pressatura
From the blog
Written about this range
Failure analysis
Crimp too tight, crimp too loose: what each one leaves behind
A crimp is a measured diameter with a tolerance in tenths of a millimetre. Miss it in either direction and the assembly fails — but it fails differently, and the difference is visible on the failed part.
4 min read
Assembly, crimping & certification
Skiving explained: when a fitting needs it, and what happens if you skip it
Skive and no-skive fittings are not interchangeable, and the difference is invisible once the assembly is crimped. What each does, and why the mistake only shows up under pressure.
3 min read
Failure analysis
It burst at the fitting, not mid-length: what that tells you
Where a hose failed is diagnostic. A burst within a hand’s width of the ferrule almost never means the hose was under-rated — it means something at that end was wrong, and replacing like for like will do it again.
5 min read
Engineers viewing this also looked at
Skive Crimp Ferrule for R12 Four-Spiral Hose
Skive Crimp Ferrule for R1A / 1ST Hose
Skive Crimp Ferrule for R2A / 2ST Hose

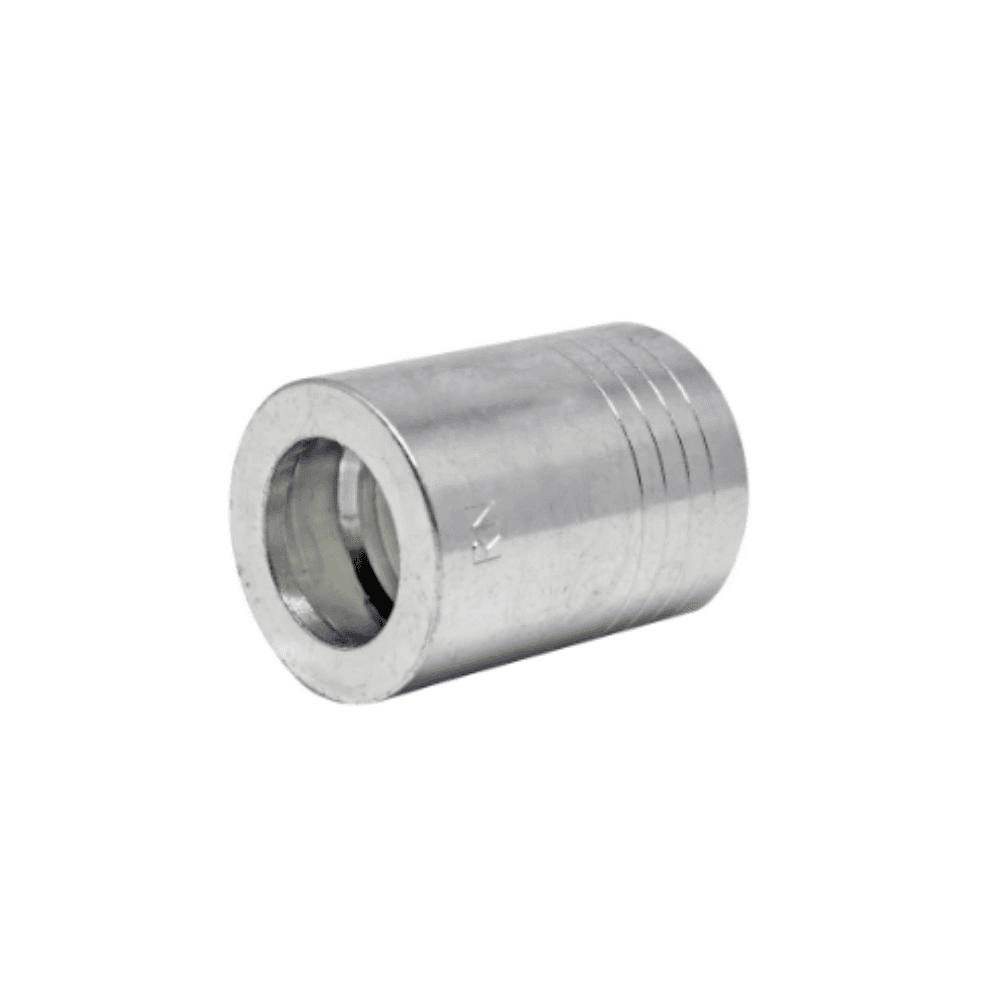

Skive Crimp Ferrule for R9 Hose

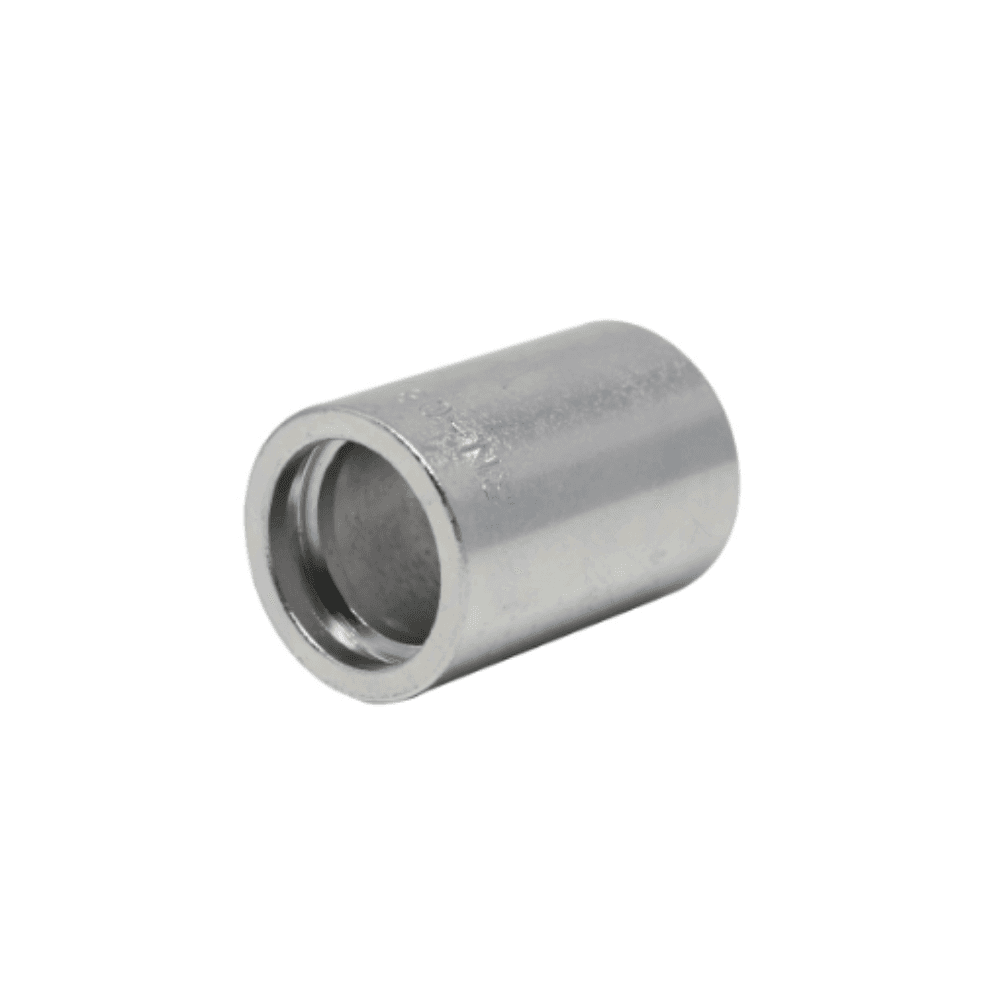

Specialty Crimp Ferrule for PTFE / Teflon Hose
