Flow iron explained: pup joints, swivels, fittings, adapters and manifolds on a treating line

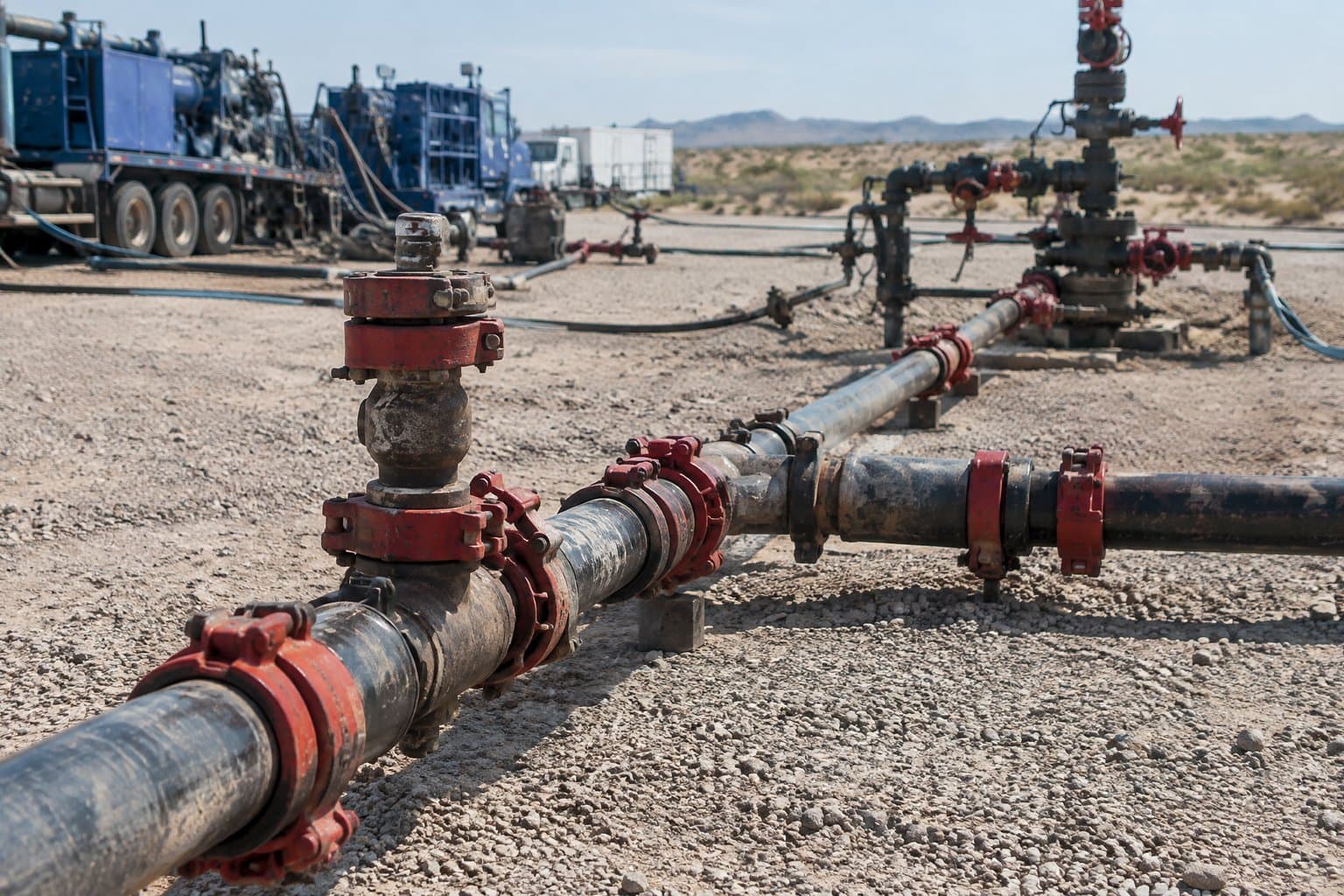

A frac or cement job puts thousands of psi through pipework that was laid out on the ground that morning and will be taken apart that evening. That pipework is flow iron, and it is built from a short list of parts that all join with the same hammer union, so the whole line can be rearranged to suit each location. The parts are simple; the discipline around them is what keeps people safe.

/01The parts of a treating line.

/02Integral against welded.

An integral pup joint is forged as a single body with the union ends formed on it — our 1502 integral listings describe it as "no welds — forged single-piece body". A welded pup joins union subs to a length of pipe with butt welds; our 206 sour pup joint is built that way, with schedule XH welds. Integral iron removes the weld as a place for a crack to start, which is why it dominates the high-pressure figures, and threaded double-end (DET) designs let a damaged sub be replaced. Lengths on our listings run from 1 ft to 20 ft depending on figure and design.

/03Swivels, loops and erosion.

Pumps vibrate, trucks settle and a wellhead does not sit at the height of the pump discharge, so a rigid line would be loaded at every joint. Swivel joints take that movement: our listings run from single-axis styles to the three-axis Style 50 and the heavy-duty Style 100, plus a Style 40 reel swivel for hose reels. A hose loop does the same job with flexible hose — our 1502 loop is stainless-braid hose with forged union ends, 2" from 6 ft to 20 ft. Wherever the flow changes direction, sand-laden fluid erodes the wall from the inside; long-radius elbows and hardfaced blast joints are there to slow that wear.

/04Pressure class and sour service.

Every part carries the rating of its union figure, and a line is only as strong as its weakest component. Standard-service iron on our listings is forged 4130/4140 alloy steel, tempered, rated −20 °F to 250 °F (−29 °C to 121 °C). Sour-service iron is hardness-controlled 4130 to NACE MR0175, API 6A material class EE, rated −20 °F to 180 °F (−29 °C to 82 °C), and is often derated: our 1502 sour pup joints, swivels and crosses are 10,000 psi rather than 15,000. The figures themselves are explained in hammer union figure numbers.

/05Adapters and flanges.

Adapters connect iron to everything that is not iron. Crossovers change gender or size within a figure — 1502 male × male, female × female, male × female and reducers such as 4" × 3". Adapter flanges take a 1502 female union onto an API 6BX flange at 10,000 or 15,000 psi, typically where the line meets a wellhead or a frac tree, and a double flange adapter joins an ANSI 2500 ring-joint flange to a 1502 union, rated 6,170 psi. Flanged joints need the right ring: see R, RX and BX ring joint gaskets.

/06Manifolds.

Manifolds turn a single line into a system. Choke manifolds reduce pressure through a fixed or adjustable bean, in single-stage and dual-stage forms; diverter manifolds split one inlet into two outlets with isolation valves; multi-well manifolds distribute frac fluid to four or eight wells, with plug valves isolating each one; and spring-loaded or pilot-operated relief valves guard pumps and iron against overpressure. These are engineered to the spread rather than bought off the shelf. Choke trims and bean sizes are covered in positive and adjustable chokes.
