Thread-to-Connect Flush Face Quick Coupler
High-pressure thread-to-connect flush-face coupler — working pressures to 8,500 psi with connect-under-pressure capability to 4,300 psi. The premium high-impulse Eaton hydraulic coupler.
Key features
- Series: QC-FFT
- Application Class: Hydraulic
- Valving: Flush Face (No-Spill)
- Connection Method: Thread-to-Connect
- Flush Face / No-Spill
- Connect Under Pressure
- Maximum Operating Pressure: 600 bar
- Series
- QC-FFT
- Application Class
- Hydraulic
- Valving
- Flush Face (No-Spill)
- Available Body Sizes
- 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
- Connection Method
- Thread-to-Connect
- Flush Face / No-Spill
- yes
Product description
The Thread-to-Connect Flush Face Quick Coupler is a hydraulic quick-disconnect coupling in the Indus QC-FFT range. High-pressure thread-to-connect flush-face coupler — working pressures to 8,500 psi with connect-under-pressure capability to 4,300 psi. The premium high-impulse Eaton hydraulic coupler.
Working pressure to 600 bar (8702 psi) at the smallest body size, with minimum burst pressure of 1500 bar. Thread-to-Connect connection — flush face (no-spill) variant.
Construction & features
- Connection method: Thread-to-Connect
- Valving: Flush Face (No-Spill)
- Interchanges with: Parker FEM-HP, Stucchi APM-HP, Faster CVE-HP, Eaton FD96
Available variants — specify in your RFQ
Indus supplies the full QC-FFT range. Specify the configuration that matches your hose end and operating envelope and we will quote against it.
- Coupling halves: Male, Female, Complete Set, Dust Cap/Plug
- Body sizes: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
- Body materials: Carbon Steel (zinc trivalent chromate plating + black oxide plating)
- Seal materials: Buna-N
- Port thread types: Female NPT, Female BSP, Female SAE O-ring
Performance
- Maximum operating pressure: 600 bar (8702 psi) at the smallest size; derates with diameter
- Minimum burst pressure: 1500 bar (21756 psi)
- Rated flow (largest size): up to 379 L/min
- Vacuum rating: 28 in./Hg
- Operating temperature range: -40°C to +100°C (varies by seal compound; specify in RFQ)
Replacing an existing coupling?
This coupler is dimensionally interchangeable with Eaton FD96, and with Parker FEM-HP, Stucchi APM-HP, Faster CVE-HP. If you are matching an existing fleet, quote the coupling you are replacing on the RFQ and we will confirm the mating half before you order.
How to order
Confirm the coupling half (male / female / complete set / dust cap), body size, port thread type and size, seal compound and body material. Indus quotes with material certification on request, and air-freight or sea-freight to the UAE and wider GCC. Standard lead time 14 days from order; stocked configurations ship the same week.
Companion products
Indus also supplies the matching dust caps, dust plugs and seal repair kits for this series — add them to the same RFQ. For a hose assembly terminated with this coupler, request a complete assembly quote and we will supply it tested at 1.5× working pressure with a witness-test certificate.
Identification
| Parameter | Value |
|---|---|
| Series | QC-FFT |
| Application Class | Hydraulic |
| Valving | Flush Face (No-Spill) |
Variants
| Parameter | Value |
|---|---|
| Available Body Sizes | 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" |
| Available Body Materials | Carbon Steel (zinc trivalent chromate plating + black oxide plating) |
| Available Seal Materials | Buna-N |
| Available Port Thread Types | Female NPT, Female BSP, Female SAE O-ring |
| Available Coupling Halves | Male, Female, Complete Set, Dust Cap/Plug |
Construction
| Parameter | Value |
|---|---|
| Connection Method | Thread-to-Connect |
| Flush Face / No-Spill | yes |
| Connect Under Pressure | yes |
Performance
| Parameter | Value |
|---|---|
| Maximum Operating Pressure | 600 bar |
| Minimum Burst Pressure | 1500 bar |
| Rated Flow (Largest Size) | 379 L/min |
| Vacuum Rating | 28 in./Hg |
| Operating Temperature Min | -40 °C |
| Operating Temperature Max | 100 °C |
Compliance
| Parameter | Value |
|---|---|
| Interchanges With (Competitor Brands) | Parker FEM-HP, Stucchi APM-HP, Faster CVE-HP, Eaton FD96 |
Shipping & lead time
What is the Indus QC-FFT range used for?▾
What is the maximum working pressure?▾
What sizes are available?▾
What seal and body materials are available?▾
What port thread options are available?▾
Does this coupling connect under pressure?▾
Will this replace the coupling already on my machine?▾
What is the typical lead time?▾
Shipped worldwide from our Dubai warehouse. Transit, routes and documentation for 126 destinations
The same part, in the designations used across European and Gulf trade catalogues.
- de
- Schnellkupplung
- fr
- raccord rapide
- es
- acoplamiento rápido
- it
- innesto rapido
From the blog
Written about this part
Engineers viewing this also looked at

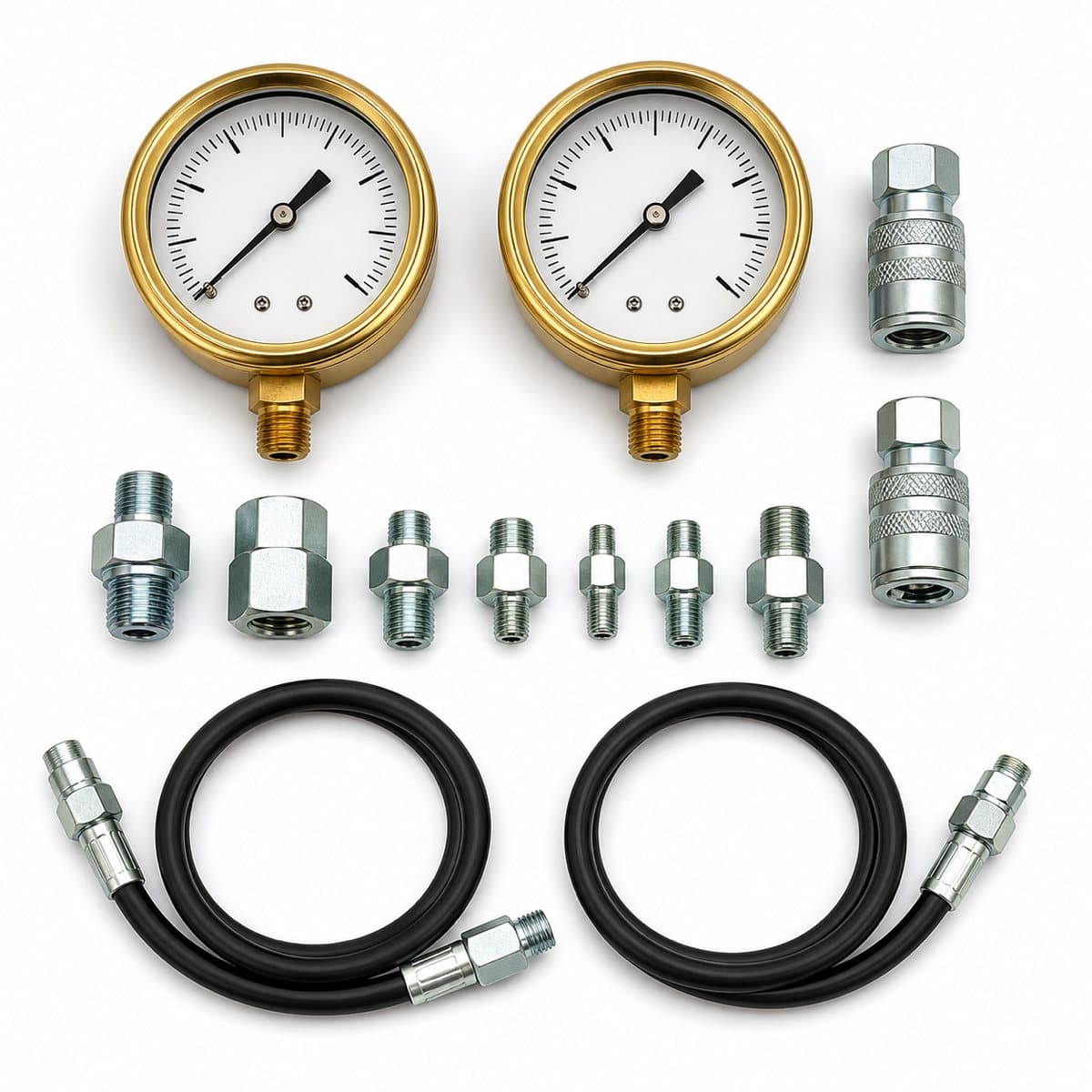

Hydraulic Pressure Gauge Test Kit
HTMA Interchange Hydraulic Tool Coupler
ISO 16028 Flush Face Hydraulic Quick Coupler

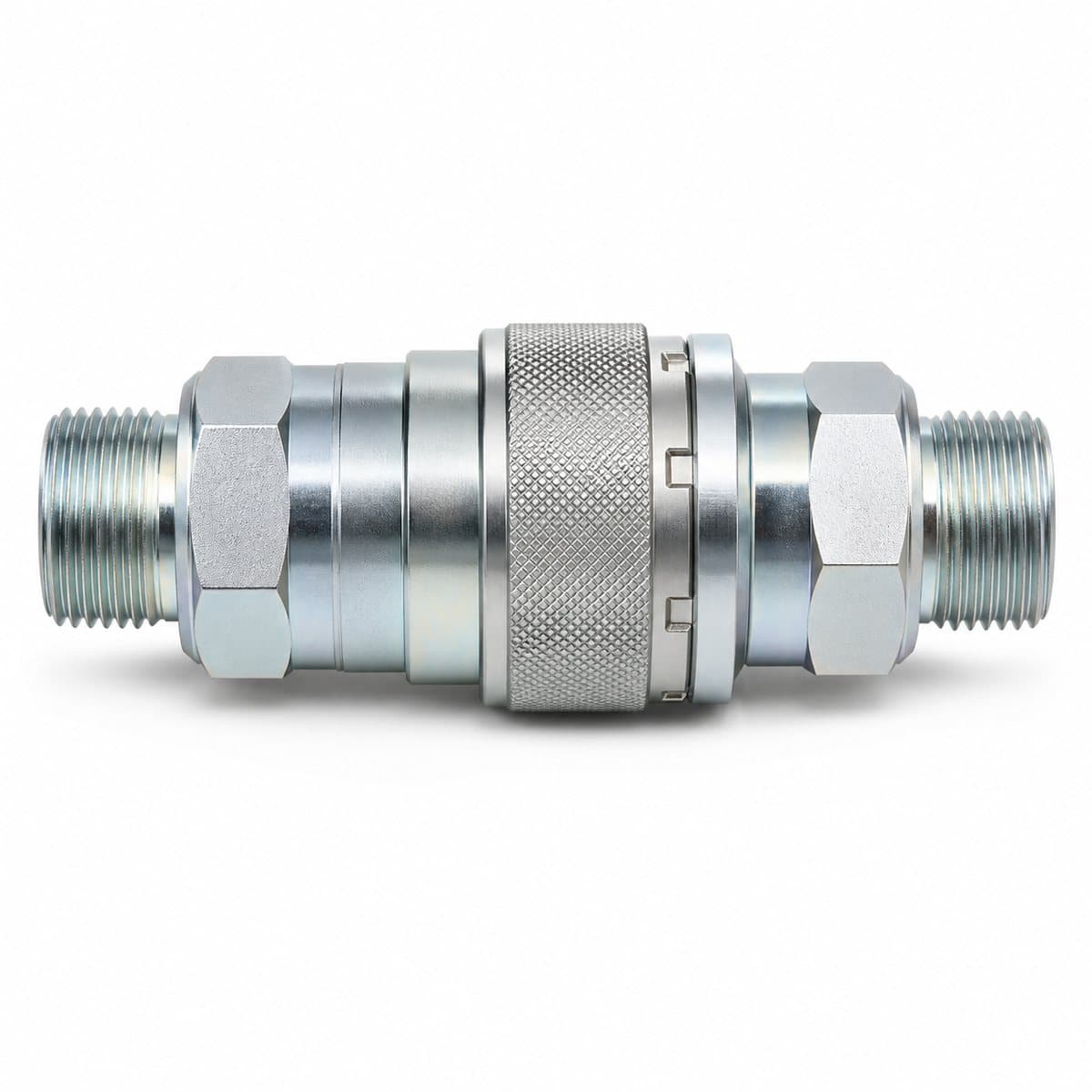

High-Pressure ISO 16028 Flush Face Coupler
