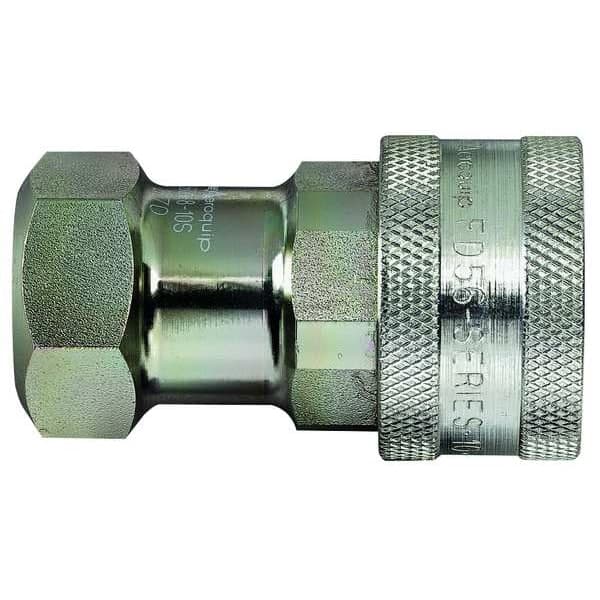

ISO 7241 Series A Non-Valved Quick Coupler
Non-valved variant of the 5600 ISO 7241/1 Series A coupler — straight-through bore for maximum flow. For systems with upstream line valving.
Key features
- Series: QC-7241A-NV
- Interchange Standard: ISO 7241/1 Series A
- Application Class: Hydraulic
- Valving: Non-Valved
- Connection Method: Push-Pull Ball Latch
- Maximum Operating Pressure: 350 bar
- Series
- QC-7241A-NV
- Interchange Standard
- ISO 7241/1 Series A
- Application Class
- Hydraulic
- Valving
- Non-Valved
- Available Body Sizes
- 1/4", 3/8", 5/8", 3/4", 1"
- Connection Method
- Push-Pull Ball Latch
Product description
The ISO 7241 Series A Non-Valved Quick Coupler is a hydraulic quick-disconnect coupling in the Indus QC-7241A-NV range. Non-valved variant of the 5600 ISO 7241/1 Series A coupler — straight-through bore for maximum flow. For systems with upstream line valving.
Working pressure to 350 bar (5076 psi) at the smallest body size, with minimum burst pressure of 1050 bar. Push-Pull Ball Latch connection — non-valved variant.
Construction & features
- Interchange standard: ISO 7241/1 Series A
- Connection method: Push-Pull Ball Latch
- Valving: Non-Valved
- Interchanges with: Parker 6600 NV, Faster TGV NV, Eaton 5600
Available variants — specify in your RFQ
Indus supplies the full QC-7241A-NV range. Specify the configuration that matches your hose end and operating envelope and we will quote against it.
- Coupling halves: Male, Female, Complete Set, Dust Cap, Dust Plug
- Body sizes: 1/4", 3/8", 5/8", 3/4", 1"
- Body materials: Carbon Steel (zinc plated)
- Seal materials: Buna-N, Viton, EPR
- Port thread types: Female NPT, Female SAE O-ring
Performance
- Maximum operating pressure: 350 bar (5076 psi) at the smallest size; derates with diameter
- Minimum burst pressure: 1050 bar (15229 psi)
- Rated flow (largest size): up to 189 L/min
- Vacuum rating: 28 in./Hg
- Operating temperature range: -40°C to +200°C (varies by seal compound; specify in RFQ)
Replacing an existing coupling?
This coupler is dimensionally interchangeable with Eaton 5600, and with Parker 6600 NV, Faster TGV NV. If you are matching an existing fleet, quote the coupling you are replacing on the RFQ and we will confirm the mating half before you order.
How to order
Confirm the coupling half (male / female / complete set / dust cap), body size, port thread type and size, seal compound and body material. Indus quotes with material certification on request, and air-freight or sea-freight to the UAE and wider GCC. Standard lead time 14 days from order; stocked configurations ship the same week.
Companion products
Indus also supplies the matching dust caps, dust plugs and seal repair kits for this series — add them to the same RFQ. For a hose assembly terminated with this coupler, request a complete assembly quote and we will supply it tested at 1.5× working pressure with a witness-test certificate.
Identification
| Parameter | Value |
|---|---|
| Series | QC-7241A-NV |
| Interchange Standard | ISO 7241/1 Series A |
| Application Class | Hydraulic |
| Valving | Non-Valved |
Variants
| Parameter | Value |
|---|---|
| Available Body Sizes | 1/4", 3/8", 5/8", 3/4", 1" |
| Available Body Materials | Carbon Steel (zinc plated) |
| Available Seal Materials | Buna-N, Viton, EPR |
| Available Port Thread Types | Female NPT, Female SAE O-ring |
| Available Coupling Halves | Male, Female, Complete Set, Dust Cap, Dust Plug |
Construction
| Parameter | Value |
|---|---|
| Connection Method | Push-Pull Ball Latch |
| Flush Face / No-Spill | no |
| Connect Under Pressure | no |
Performance
| Parameter | Value |
|---|---|
| Maximum Operating Pressure | 350 bar |
| Minimum Burst Pressure | 1050 bar |
| Rated Flow (Largest Size) | 189 L/min |
| Vacuum Rating | 28 in./Hg |
| Operating Temperature Min | -40 °C |
| Operating Temperature Max | 200 °C |
Compliance
| Parameter | Value |
|---|---|
| Interchanges With (Competitor Brands) | Parker 6600 NV, Faster TGV NV, Eaton 5600 |
