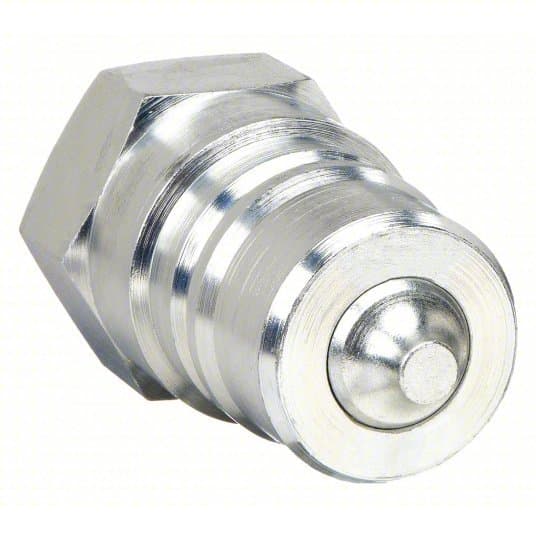

ISO 7241 Series A Valved Hydraulic Quick Coupler
Low-profile ISO 7241/1 Series A valved coupler with PUSH-PULL™ ball latch and streamlined poppet valving — minimum pressure drop. The European-standard hydraulic interchange.
Key features
- Series: QC-7241A
- Interchange Standard: ISO 7241/1 Series A
- Application Class: Hydraulic
- Valving: Valved (Self-sealing Poppet)
- Connection Method: Push-Pull Ball Latch
- Maximum Operating Pressure: 350 bar
- Series
- QC-7241A
- Interchange Standard
- ISO 7241/1 Series A
- Application Class
- Hydraulic
- Valving
- Valved (Self-sealing Poppet)
- Available Body Sizes
- 1/4", 3/8", 1/2", 3/4", 1"
- Connection Method
- Push-Pull Ball Latch
Product description
The ISO 7241 Series A Valved Hydraulic Quick Coupler is a hydraulic quick-disconnect coupling in the Indus QC-7241A range. Low-profile ISO 7241/1 Series A valved coupler with PUSH-PULL™ ball latch and streamlined poppet valving — minimum pressure drop. The European-standard hydraulic interchange.
Working pressure to 350 bar (5076 psi) at the smallest body size, with minimum burst pressure of 1050 bar. Push-Pull Ball Latch connection — valved (self-sealing poppet) variant.
Construction & features
- Interchange standard: ISO 7241/1 Series A
- Connection method: Push-Pull Ball Latch
- Valving: Valved (Self-sealing Poppet)
- Interchanges with: Parker 6600, Snap-tite 72, Faster TGV, Hansen LL-Series, Eaton 5600
Available variants — specify in your RFQ
Indus supplies the full QC-7241A range. Specify the configuration that matches your hose end and operating envelope and we will quote against it.
- Coupling halves: Male, Female, Complete Set, Dust Cap, Dust Plug, Repair Kit
- Body sizes: 1/4", 3/8", 1/2", 3/4", 1"
- Body materials: Carbon Steel (zinc trivalent chromate plated; brass poppet guide in 1/4" size)
- Seal materials: Buna-N, Viton, EPR
- Port thread types: Female NPT, Female SAE O-ring
Performance
- Maximum operating pressure: 350 bar (5076 psi) at the smallest size; derates with diameter
- Minimum burst pressure: 1050 bar (15229 psi)
- Rated flow (largest size): up to 189 L/min
- Vacuum rating: 28 in./Hg
- Operating temperature range: -40°C to +200°C (varies by seal compound; specify in RFQ)
Replacing an existing coupling?
This coupler is dimensionally interchangeable with Eaton 5600, and with Parker 6600, Snap-tite 72, Faster TGV, Hansen LL-Series. If you are matching an existing fleet, quote the coupling you are replacing on the RFQ and we will confirm the mating half before you order.
How to order
Confirm the coupling half (male / female / complete set / dust cap), body size, port thread type and size, seal compound and body material. Indus quotes with material certification on request, and air-freight or sea-freight to the UAE and wider GCC. Standard lead time 14 days from order; stocked configurations ship the same week.
Companion products
Indus also supplies the matching dust caps, dust plugs and seal repair kits for this series — add them to the same RFQ. For a hose assembly terminated with this coupler, request a complete assembly quote and we will supply it tested at 1.5× working pressure with a witness-test certificate.
Identification
| Parameter | Value |
|---|---|
| Series | QC-7241A |
| Interchange Standard | ISO 7241/1 Series A |
| Application Class | Hydraulic |
| Valving | Valved (Self-sealing Poppet) |
Variants
| Parameter | Value |
|---|---|
| Available Body Sizes | 1/4", 3/8", 1/2", 3/4", 1" |
| Available Body Materials | Carbon Steel (zinc trivalent chromate plated; brass poppet guide in 1/4" size) |
| Available Seal Materials | Buna-N, Viton, EPR |
| Available Port Thread Types | Female NPT, Female SAE O-ring |
| Available Coupling Halves | Male, Female, Complete Set, Dust Cap, Dust Plug, Repair Kit |
Construction
| Parameter | Value |
|---|---|
| Connection Method | Push-Pull Ball Latch |
| Flush Face / No-Spill | no |
| Connect Under Pressure | no |
Performance
| Parameter | Value |
|---|---|
| Maximum Operating Pressure | 350 bar |
| Minimum Burst Pressure | 1050 bar |
| Rated Flow (Largest Size) | 189 L/min |
| Vacuum Rating | 28 in./Hg |
| Operating Temperature Min | -40 °C |
| Operating Temperature Max | 200 °C |
Compliance
| Parameter | Value |
|---|---|
| Interchanges With (Competitor Brands) | Parker 6600, Snap-tite 72, Faster TGV, Hansen LL-Series, Eaton 5600 |
Shipping & lead time
Sizes & part numbers
5 sizes| Indus part no. | End 1 | End 2 |
|---|---|---|
| IH-QD-ISOA-04F-04FP | 1/4" ISO 7241-A female coupler | 1/4" NPTF female (1/4-18) |
| IH-QD-ISOA-06F-06FP | 3/8" ISO 7241-A female coupler | 3/8" NPTF female (3/8-18) |
| IH-QD-ISOA-08F-08FP | 1/2" ISO 7241-A female coupler | 1/2" NPTF female (1/2-14) |
| IH-QD-ISOA-12F-12FP | 3/4" ISO 7241-A female coupler | 3/4" NPTF female (3/4-14) |
| IH-QD-ISOA-16F-16FP | 1" ISO 7241-A female coupler | 1" NPTF female (1-11.5) |
End 1 — Thread or flange nominal size at this end, exactly as the manufacturer prints it. End 2 — Thread or flange nominal size at this end, exactly as the manufacturer prints it. Ask us for the dimension drawing if you need it stamped.
What is the Indus QC-7241A range used for?▾
What is the maximum working pressure?▾
What sizes are available?▾
What seal and body materials are available?▾
What port thread options are available?▾
Does this coupling connect under pressure?▾
Will this replace the coupling already on my machine?▾
What is the typical lead time?▾
Shipped worldwide from our Dubai warehouse. Transit, routes and documentation for 126 destinations
The same part, in the designations used across European and Gulf trade catalogues.
- de
- Schnellkupplung
- fr
- raccord rapide
- es
- acoplamiento rápido
- it
- innesto rapido
From the blog
Written about this part
Assembly, crimping & certification
Quick couplers: ISO 7241 A, B and flat-face, and why yours will not connect
Two couplers of the same nominal size, the same thread and the same brand will refuse to mate if one is Series A and the other Series B. Here is how to tell which you have before you order.
5 min read
Machine down
Tractors and implements: the couplers are older than the machine
Agricultural hydraulics run on a coupler standard that has barely changed in decades, which is why a 1990s implement still connects to a new tractor — and why grit gets into everything.
3 min read
Engineers viewing this also looked at
ISO 7241 Series B Non-Valved Quick Coupler
ISO 7241 Series B Pusher-Style Quick Coupler
ISO 7241 Series B Valved Hydraulic Quick Coupler
10,000 psi Hydraulic Jack Quick Coupler

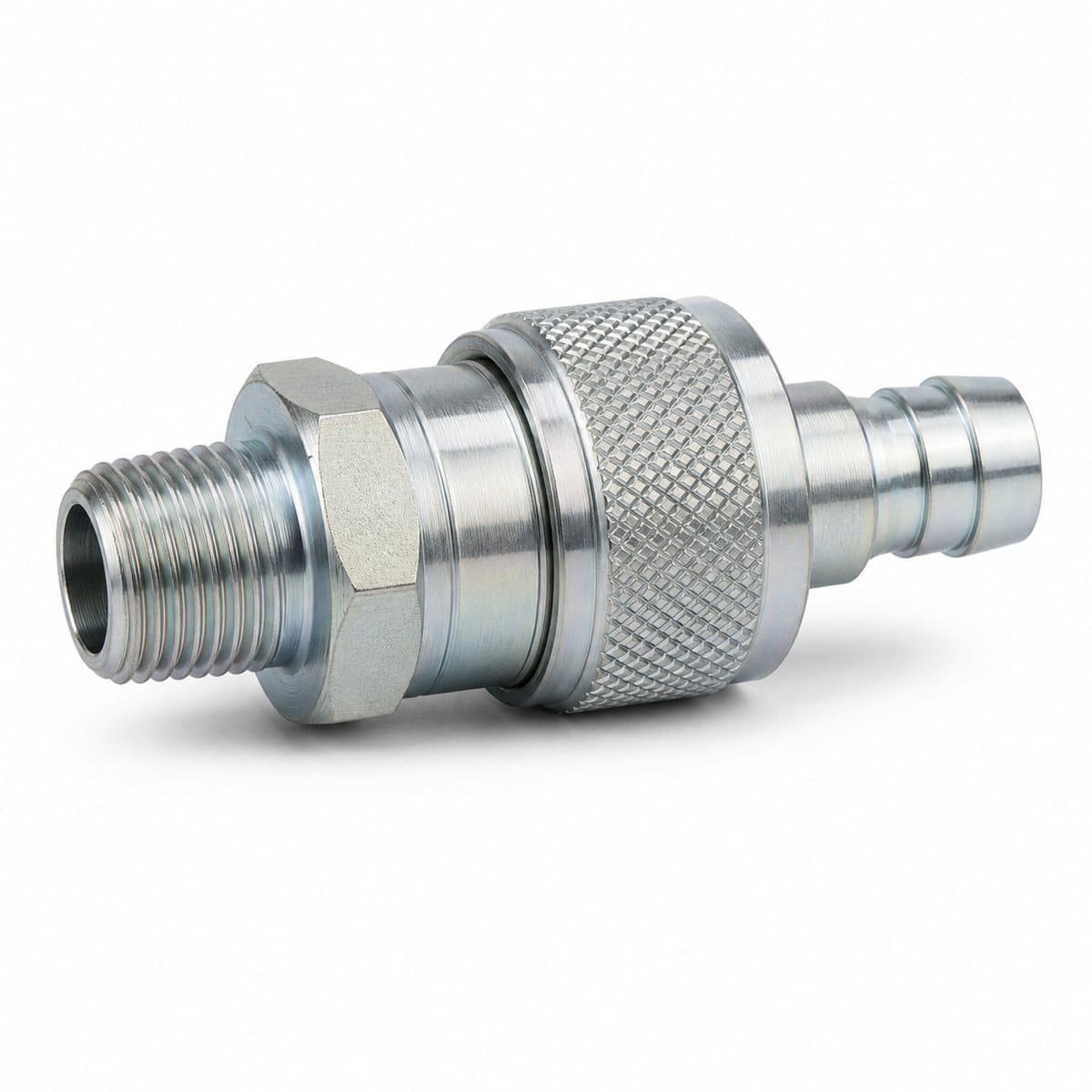

Push-to-Connect Oil Drain Coupling (FLOCS)
